English
Safety Notes
General Power Tool Safety Warnings
Read all safety warnings and all in-
structions.
Failure to follow the warnings
and instructions may result in electric shock, fire and/or seri-
ous injury.
Save all warnings and instructions for future reference.
The term “power tool” in the warnings refers to your mains-
operated (corded) power tool or battery-operated (cordless)
power tool.
Work area safety
f
Keep work area clean and well lit.
Cluttered or dark areas
invite accidents.
f
Do not operate power tools in explosive atmospheres,
such as in the presence of flammable liquids, gases or
dust.
Power tools create sparks which may ignite the dust
or fumes.
f
Keep children and bystanders away while operating a
power tool.
Distractions can cause you to lose control.
Electrical safety
f
Power tool plugs must match the outlet. Never modify
the plug in any way. Do not use any adapter plugs with
earthed (grounded) power tools.
Unmodified plugs and
matching outlets will reduce risk of electric shock.
f
Avoid body contact with earthed or grounded surfaces,
such as pipes, radiators, ranges and refrigerators.
There is an increased risk of electric shock if your body is
earthed or grounded.
f
Do not expose power tools to rain or wet conditions.
Water entering a power tool will increase the risk of electric
shock.
f
Do not abuse the cord. Never use the cord for carrying,
pulling or unplugging the power tool. Keep cord away
from heat, oil, sharp edges and moving parts.
Damaged
or entangled cords increase the risk of electric shock.
f
When operating a power tool outdoors, use an exten-
sion cord suitable for outdoor use.
Use of a cord suitable
for outdoor use reduces the risk of electric shock.
f
If operating a power tool in a damp location is unavoid-
able, use a residual current device (RCD) protected
supply.
Use of an RCD reduces the risk of electric shock.
Personal safety
f
Stay alert, watch what you are doing and use common
sense when operating a power tool. Do not use a power
tool while you are tired or under the influence of drugs,
alcohol or medication.
A moment of inattention while op-
erating power tools may result in serious personal injury.
f
Use personal protective equipment. Always wear eye
protection.
Protective equipment such as dust mask,
non-skid safety shoes, hard hat, or hearing protection
used for appropriate conditions will reduce personal inju-
ries.
f
Prevent unintentional starting. Ensure the switch is in
the off-position before connecting to power source
and/or battery pack, picking up or carrying the tool.
Carrying power tools with your finger on the switch or en-
ergising power tools that have the switch on invites acci-
dents.
f
Remove any adjusting key or wrench before turning
the power tool on.
A wrench or a key left attached to a ro-
tating part of the power tool may result in personal injury.
f
Do not overreach. Keep proper footing and balance at
all times.
This enables better control of the power tool in
unexpected situations.
f
Dress properly. Do not wear loose clothing or jewel-
lery. Keep your hair, clothing and gloves away from
moving parts.
Loose clothes, jewellery or long hair can be
caught in moving parts.
f
If devices are provided for the connection of dust ex-
traction and collection facilities, ensure these are con-
nected and properly used.
Use of dust collection can re-
duce dust-related hazards.
Power tool use and care
f
Do not force the power tool. Use the correct power tool
for your application.
The correct power tool will do the
job better and safer at the rate for which it was designed.
f
Do not use the power tool if the switch does not turn it
on and off.
Any power tool that cannot be controlled with
the switch is dangerous and must be repaired.
f
Disconnect the plug from the power source and/or the
battery pack from the power tool before making any
adjustments, changing accessories, or storing power
tools.
Such preventive safety measures reduce the risk of
starting the power tool accidentally.
f
Store idle power tools out of the reach of children and
do not allow persons unfamiliar with the power tool or
these instructions to operate the power tool.
Power
tools are dangerous in the hands of untrained users.
f
Maintain power tools. Check for misalignment or bind-
ing of moving parts, breakage of parts and any other
condition that may affect the power tool’s operation. If
WARNING
OBJ_DOKU-27752-001.fm Page 11 Thursday, September 8, 2011 9:58 AM
12
| English
2 609 140 740 | (8.9.11)
Bosch Power Tools
damaged, have the power tool repaired before use.
Many accidents are caused by poorly maintained power
tools.
f
Keep cutting tools sharp and clean.
Properly maintained
cutting tools with sharp cutting edges are less likely to bind
and are easier to control.
f
Use the power tool, accessories and tool bits etc. in ac-
cordance with these instructions, taking into account
the working conditions and the work to be performed.
Use of the power tool for operations different from those
intended could result in a hazardous situation.
Service
f
Have your power tool serviced by a qualified repair per-
son using only identical replacement parts.
This will en-
sure that the safety of the power tool is maintained.
Planer Safety Rules
f
Wait for the cutter to stop before setting the tool down.
An exposed rotating cutter may engage the surface leading
to possible loss of control and serious injury.
f
Hold the power tool by insulated gripping surfaces on-
ly, because the cutter may contact its own cord.
Cutting
a “live” wire may make exposed metal parts of the power
tool “live” and could give the operator an electric shock.
f
Use clamps or another practical way to secure and sup-
port the workpiece to a stable platform.
Holding the
work by your hand or against the body leaves it unstable
and may lead to loss of control.
f
Use suitable detectors to determine if utility lines are
hidden in the work area or call the local utility company
for assistance.
Contact with electric lines can lead to fire
and electric shock. Damaging a gas line can lead to explo-
sion. Penetrating a water line causes property damage or
may cause an electric shock.
f
Do not reach into the saw dust ejector with your hands.
They could be injured by rotating parts.
f
Apply the machine to the workpiece only when
switched on.
Otherwise there is danger of kickback when
the cutting tool jams in the workpiece.
f
When working, always hold the planer in such a manner
that the planer base plate faces flat on the workpiece.
Otherwise the planer can become wedged and lead to inju-
ries.
f
Never plane over metal objects, nails or screws.
The
planer blade and the blade shaft can become damaged and
lead to increased vibrations.
Products sold in GB only
: Your product is fitted with an
BS 1363/A approved electric plug with internal fuse (ASTA
approved to BS 1362).
If the plug is not suitable for your socket outlets, it should be
cut off and an appropriate plug fitted in its place by an author-
ised customer service agent. The replacement plug should
have the same fuse rating as the original plug.
The severed plug must be disposed of to avoid a possible
shock hazard and should never be inserted into a mains sock-
et elsewhere.
Products sold in AUS and NZ only
: Use a residual current de-
vice (RCD) with a rated residual current of 30 mA or less.
Product Description and Specifica-
tions
Read all safety warnings and all instruc-
tions.
Failure to follow the warnings and in-
structions may result in electric shock, fire
and/or serious injury.
While reading the operating instructions, unfold the graphics
page for the machine and leave it open.
Intended Use
The machine is intended for planing of firmly supported
wooden materials, such as beams and boards. It is also suita-
ble for beveling edges and rebating.
Product Features
The numbering of the product features refers to the illustra-
tion of the machine on the graphics page.
1
Planing depth scale
2
Depth adjustment knob (insulated gripping surface)
3
Sawdust ejector
4
Lock-off button for On/Off switch
5
On/Off switch
6
Planer base plate
7
V-grooves
8
Handle (insulated gripping surface)
9
Blade drum
10
Clamping element for blade
11
Fastening screw for planer blade
12
Carbide blade (TC)
13
Allen key
14
Extraction hose (Ø 35 mm)*
15
Chip/dust bag*
16
Park rest
17
Parallel guide
18
Scale for rebating width
19
Locking nut for adjustment of rebating width
20
Fastening bolt for parallel and beveling guide
21
Angle stop*
22
Locking nut for angle adjustment
23
Fastening bolt for rebating depth stop
24
Rebating depth stop*
*Accessories shown or described are not part of the standard de-
livery scope of the product. A complete overview of accessories
can be found in our accessories program.
OBJ_DOKU-27752-001.fm Page 12 Thursday, September 8, 2011 9:58 AM
English |
13
Bosch Power Tools
2 609 140 740 | (8.9.11)
Technical Data
Noise/Vibration Information
Measured sound values determined according to EN 60745.
Typically the A-weighted noise levels of the product are:
Sound pressure level 84 dB(A); Sound power level 95 dB(A).
Uncertainty K =3 dB.
Wear hearing protection!
Vibration total values a
h
(triax vector sum) and uncertainty K
determined according to EN 60745:
a
h
=8 m/s
2
, K=1.5 m/s
2
.
The vibration emission level given in this information sheet
has been measured in accordance with a standardised test
given in EN 60745 and may be used to compare one tool with
another. It may be used for a preliminary assessment of expo-
sure.
The declared vibration emission level represents the main ap-
plications of the tool. However if the tool is used for different
applications, with different accessories or poorly maintained,
the vibration emission may differ. This may significantly in-
crease the exposure level over the total working period.
An estimation of the level of exposure to vibration should also
take into account the times when the tool is switched off or
when it is running but not actually doing the job. This may sig-
nificantly reduce the exposure level over the total working pe-
riod.
Identify additional safety measures to protect the operator
from the effects of vibration such as: maintain the tool and the
accessories, keep hands warm, organise work patterns.
Declaration of Conformity
We declare under our sole responsibility that the product de-
scribed under “Technical Data” is in conformity with the fol-
lowing standards or standardization documents: EN 60745
according to the provisions of the directives 2011/65/EU,
2004/108/EC, 2006/42/EC.
Technical file (2006/42/EC) at:
Robert Bosch GmbH, PT/ETM9,
D-70745 Leinfelden-Echterdingen
Robert Bosch GmbH, Power Tools Division
D-70745 Leinfelden-Echterdingen
07.09.2011
Assembly
f
Before any work on the machine itself, pull the mains
plug.
Changing the Tool
f
Be cautious when replacing the planer blades. Do not
grasp the planer blades by the cutting edges.
Possible
danger of injury due to the sharp cutting edges of the plan-
er blades.
Use only original Bosch carbide blades (TC).
The carbide blade (TC) has 2 cutting edges and can be re-
versed. When both cutting edges are dull, the planer blade
12
must be replaced. The carbide blade (TC) may not be resharp-
ened.
Disassembling the Planer Blade(s) (see figure A)
To reverse or replace the planer blade
12
, rotate the blade
drum
9
until it is parallel to the planer base plate
6
.
n
Loosen the two fastening screws
11
with the Allen key
13
by approx. 1 – 2 turns.
o
If necessary, loosen the clamping element
10
by giving it
a light blow with a suitable tool (e.g. a wooden wedge).
p
Push the planer blade
12
sidewards out of the blade
drum
9
with a piece of wood.
Assembling the Planer Blade(s) (see figure B)
The guide groove of the planer blade always ensures continu-
ous height adjustment when replacing or reversing it.
If required, clean the blade seat in the clamping element
10
and the planer blade
12
.
When assembling the planer blade, ensure that it is seated
properly in the blade holder of the clamping element
10
. The
planer blade must be assembled and aligned
centred to the
planer base plate
6
. Afterwards tighten the 2 fastening
screws
11
with the Allen key
13
.
Note:
Before restarting, check if the fastening screws
11
are
tightened well. Rotate the blade drum
9
by hand and ensure
that the planer blade does not graze.
Dust/Chip Extraction
f
Dusts from materials such as lead-containing coatings,
some wood types, minerals and metal can be harmful to
one’s health. Touching or breathing-in the dusts can cause
allergic reactions and/or lead to respiratory infections of
the user or bystanders.
Planer
GHO 15-82
Professional
Article number
3 601 E94 0..
Rated power input
W
600
Output power
W
340
No-load speed
min
-1
16000
Planing depth
mm
0 – 1.5
Rebating depth
mm
0 – 9
Planing width, max.
mm
82
Weight according to
EPTA-Procedure 01/2003
kg
2.5
Protection class
/
II
The values given are valid for a nominal voltage [U] of 230 V. For differ-
ent voltages and models for specific countries, these values can vary.
Please observe the article number on the type plate of your machine.
The trade names of the individual machines may vary.
Dr. Egbert Schneider
Senior Vice President
Engineering
Dr. Eckerhard Strötgen
Engineering Director
PT/ESI
OBJ_DOKU-27752-001.fm Page 13 Thursday, September 8, 2011 9:58 AM
14
| English
2 609 140 740 | (8.9.11)
Bosch Power Tools
Certain dusts, such as oak or beech dust, are considered
as carcinogenic, especially in connection with wood-treat-
ment additives (chromate, wood preservative). Materials
containing asbestos may only be worked by specialists.
– As far as possible, use a dust extraction system suita-
ble for the material.
– Provide for good ventilation of the working place.
– It is recommended to wear a P2 filter-class respirator.
Observe the relevant regulations in your country for the
materials to be worked.
Clean the chip ejector
3
regularly. Use a suitable tool (e.g., a
piece of wood, compressed air, etc.) to clean a clogged chip
ejector.
f
Do not reach into the saw dust ejector with your hands.
They could be injured by rotating parts.
To ensure optimum extraction of dust/chips, always work
with external dust extraction or a chip/dust bag.
External Dust Extraction (see figure C)
Mount the vacuum hose
14
(accessory) on to the saw dust
ejector
3
.
Connect the vacuum hose
14
to a vacuum cleaner (accesso-
ry). An overview for connecting to various vacuum cleaners
can be found at the end of this manual.
The vacuum cleaner must be suitable for the material being
worked.
When vacuuming dry dust that is especially detrimental to
health or carcinogenic, use a special vacuum cleaner.
Integrated Dust Extraction (see figure C)
A chip/dust bag (accessory)
15
can be used for smaller jobs.
Insert the sleeve of the chip/dust bag firmly into the chip ejec-
tor
3
. Empty the chip/dust bag
15
at regulary intervals to
maintain optimum dust collection.
Operation
Operating Modes
Adjusting the Planing Depth
With the adjustment knob
2
, the planing depth can be adjust-
ed variably from 0–1.5 mm using the planing depth scale
1
(scale graduation = 0.1 mm).
Park Rest (see figure D)
The park rest
16
allows the machine to be set down directly
after operation, without danger of damaging the working sur-
face or the planer blade. While planing, the park rest
16
is tilt-
ed upwards thus enabling full contact of the rear part of the
planer base plate
6
.
Note:
The park rest
16
may not be removed.
Starting Operation
f
Observe correct mains voltage! The voltage of the pow-
er source must agree with the voltage specified on the
nameplate of the machine. Power tools marked with
230 V can also be operated with 220 V.
Switching On and Off
To
start
the machine,
first
push the lock-off button for the
On/Off switch
4
and
then
press the On/Off switch
5
and keep
it pressed.
To switch off the machine,
release
the On/Off switch
5
.
Note:
For safety reasons, the On/Off switch
5
cannot be
locked; it must remain pressed during the entire operation.
Working Advice
Planing (see figure D)
Set the required planing depth and place the front part of the
planer base plate
6
against the workpiece.
f
Apply the machine to the workpiece only when
switched on.
Otherwise there is danger of kickback when
the cutting tool jams in the workpiece.
Switch the machine on and guide the machine with even feed
over the surface to be planed.
To achieve high-grade surfaces, work only with low feed and
apply pressure on the centre of the planer base plate.
When machining hard materials (e.g. hardwood) as well as
when utilising the maximum planer width, set only low planing
depths and reduce planer feed, as required.
Excessive feed reduces the surface quality and can lead to
rapid clogging of the chip ejector.
Only sharp blades achieve good cutting capacity and give the
machine longer life.
The integrated park rest
16
also allows for continued planing
at any given location on the workpiece after an interruption:
– With the park rest folded down, place the machine on the
location of the workpiece where the planing is to be contin-
ued.
– Switch on the machine.
– Apply the supporting pressure onto the front part of the
planer base plate and slowly push the machine forward
(
n
). This tilts the park rest upward (
o
) so that the rear
part of the planer base plate faces on the workpiece again.
– Guide the machine over the surface to be planed (
p
) with
even feed.
Beveling Edges (see figure E)
The V-grooves in the front planer base plate allow quick and
easy beveling of workpiece edges. Depending on required
bevel width, use the corresponding V-groove. For this, place
the planer with the V-groove onto the edge of the workpiece
and guide it along the edge.
Planing with Parallel/Beveling Guide (see figures F–H)
Mount the parallel guide
17
or beveling guide
21
to the ma-
chine using the corresponding fastening bolt
20
. Depending
on the application, mount the rebating depth stop
24
with fas-
tening bolt
23
to the machine.
Groove to be used
Dimension
a (mm)
none
0 – 4
small
2 – 6
medium
4 – 9
large
6 – 10
OBJ_DOKU-27752-001.fm Page 14 Thursday, September 8, 2011 9:58 AM
English |
15
Bosch Power Tools
2 609 140 740 | (8.9.11)
Loosen the locking nut
19
and adjust the requested rebating
width on the scale
18
. Tighten the locking nut
19
again.
Adjust the requested rebating depth accordingly with the re-
bating depth stop
24
.
Carry out the planing procedure several times until the re-
quested rebating depth is reached. Guide the planer applying
sideward supporting pressure.

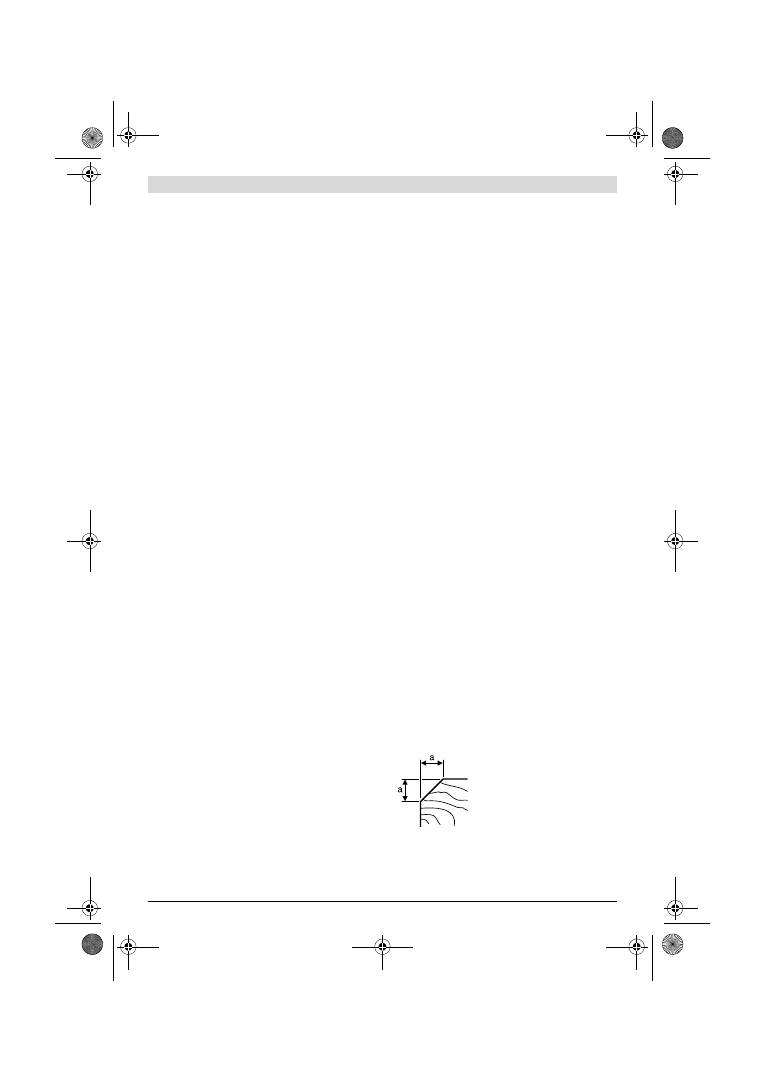

Beveling with the Beveling Guide
When beveling rebates and
surfaces, adjust the required
slope angle with the angle ad-
justment
22
.
Maintenance and Service
Maintenance and Cleaning
f
Before any work on the machine itself, pull the mains
plug.
f
For safe and proper working, always keep the machine
and ventilation slots clean.
Ensure easy operation of the park rest
16
and clean it regular-
ly.
When the carbon brushes wear below acceptable service tol-
erances, the machine will automatically cut out. The machine
must be sent to customer service for maintenance (for ad-
dress, see the “Kundendienst und Kundenberatung” section.
If the machine should fail despite the care taken in manufac-
turing and testing procedures, repair should be carried out by
an after-sales service centre for Bosch power tools.
In all correspondence and spare parts order, please always in-
clude the 10-digit article number given on the type plate of
the machine.
After-sales Service and Customer Assistance
Our after-sales service responds to your questions concern-
ing maintenance and repair of your product as well as spare
parts. Exploded views and information on spare parts can al-
so be found under:
www.bosch-pt.com
Our customer service representatives can answer your ques-
tions concerning possible applications and adjustment of
products and accessories.
Great Britain
Robert Bosch Ltd. (B.S.C.)
P.O. Box 98
Broadwater Park
North Orbital Road
Denham
Uxbridge
UB 9 5HJ
Tel. Service: +44 (0844) 736 0109
Fax: +44 (0844) 736 0146
E-Mail: boschservicecentre@bosch.com
Ireland
Origo Ltd.
Unit 23 Magna Drive
Magna Business Park
City West
Dublin 24
Tel. Service: +353 (01) 4 66 67 00
Fax: +353 (01) 4 66 68 88
Australia, New Zealand and Pacific Islands
Robert Bosch Australia Pty. Ltd.
Power Tools
Locked Bag 66
Clayton South VIC 3169
Customer Contact Center
Inside Australia:
Phone: +61 (01300) 307 044
Fax: +61 (01300) 307 045
Inside New Zealand:
Phone: +64 (0800) 543 353
Fax: +64 (0800) 428 570
Outside AU and NZ:
Phone: +61 (03) 9541 5555
www.bosch.com.au
Republic of South Africa
Customer service
Hotline: +27 (011) 6 51 96 00
Gauteng – BSC Service Centre
35 Roper Street, New Centre
Johannesburg
Tel.: +27 (011) 4 93 93 75
Fax: +27 (011) 4 93 01 26
E-Mail: bsctools@icon.co.za
KZN – BSC Service Centre
Unit E, Almar Centre
143 Crompton Street
Pinetown
Tel.: +27 (031) 7 01 21 20
Fax: +27 (031) 7 01 24 46
E-Mail: bsc.dur@za.bosch.com
Western Cape – BSC Service Centre
Democracy Way, Prosperity Park
Milnerton
Tel.: +27 (021) 5 51 25 77
Fax: +27 (021) 5 51 32 23
E-Mail: bsc@zsd.co.za
Bosch Headquarters
Midrand, Gauteng
Tel.: +27 (011) 6 51 96 00
Fax: +27 (011) 6 51 98 80
E-Mail: rbsa-hq.pts@za.bosch.com
Disposal
The machine, accessories and packaging should be sorted for
environmental-friendly recycling.
Do not dispose of power tools into household waste!
OBJ_DOKU-27752-001.fm Page 15 Thursday, September 8, 2011 9:58 AM
