Braun 310 Series 3: инструкция

310

S

e

r

i

e

s

3

o

n

o

f

f

charge

310

Type 5777

98727823_Floater310_S01.indd 198727823_Floater310_S01.indd 1 02.06.2008 12:00:37 Uhr02.06.2008 12:00:37 Uhr

Braun Infolines

English 6

GB

0800 783 70 10

Français 9

IRL

1 800 509 448

Polski 13

F

0 810 309 780

âesk˘ 17

Slovensk˘ 21

B

0 800 14 592

Magyar 25

E

901 11 61 84

Hrvatski 28

PL

0 801 127 286

Slovensko 31

0 801 1 BRAUN

Türkçe 35

CZ

221 804 335

êÛÒÒÍËÈ 38

ìÍ‡ªÌҸ͇ 43

SK

02/5710 1135

52

H

(06-1) 451-1256

HR

01/6690 330

SLO

080 2822

TR

0 212 473 75 85

RUS

8 800 200 20 20

UA

+ 38 044 428 65 05

Braun GmbH

Frankfurter Straße 145

HK

852-25249377

61476 Kronberg/Germany

(Audio Supplies Company Ltd.)

www.service.braun.com

98727823/VI-08

GB/F/PL/CZ/SK/H/HR/SLO/TR/RUS/

UA/Arab

98727823_Floater310_S02.indd 198727823_Floater310_S02.indd 1 02.06.2008 11:57:34 Uhr02.06.2008 11:57:34 Uhr

S

e

r

i

e

s

3

o

n

o

f

f

charge

310

STOP

4

1

2

3

4

5

6

7

S

e

r

i

e

s

3

98727823_Floater310_S04.indd 198727823_Floater310_S04.indd 1 02.06.2008 11:58:20 Uhr02.06.2008 11:58:20 Uhr

90°

5

full

full

click!

98727823_Floater310_S05.indd 198727823_Floater310_S05.indd 1 02.06.2008 11:59:09 Uhr02.06.2008 11:59:09 Uhr

English

Our products are designed to meet the highest standards of quality,

functionality and design. We hope you enjoy your new Braun Shaver.

Warning

Your shaving system is provided with a special cord set, which has an

integrated Safety Extra Low Voltage power supply. Do not exchange or

tamper with any part of it, otherwise there is risk of an electric shock.

This appliance is not intended for use by children or persons with reduced

physical or mental capabilities, unless they are given supervision by a person

responsible for their safety. In general, we recommend that you keep the

appliance out of reach of children.

Description

1 Foil & Cutter cassette

2 Long hair trimmer

3 On/off switch

4 Charging light (green)

5 Shaver power socket

6 Special cord set

7 Foil protection cap

Charging

The best environmental temperature for charging is between 15 °C to 35 °C.

Do not expose the shaver to temperatures higher than 50 °C for extended

periods of time.

•

Using the special cord set (6), connect the shaver to an electrical outlet

with the motor switched off and charge it for at least 16 hours.

•

The green charging light (4) shows that the shaver is being charged.

•

Once the shaver is completely charged, discharge the shaver through

normal use. Then recharge to full capacity (16 hours).

•

A full charge provides up to 45 minutes of cordless shaving time

depending on your beard growth. However, the maximum battery capacity

will only be reached after several charging/discharging cycles.

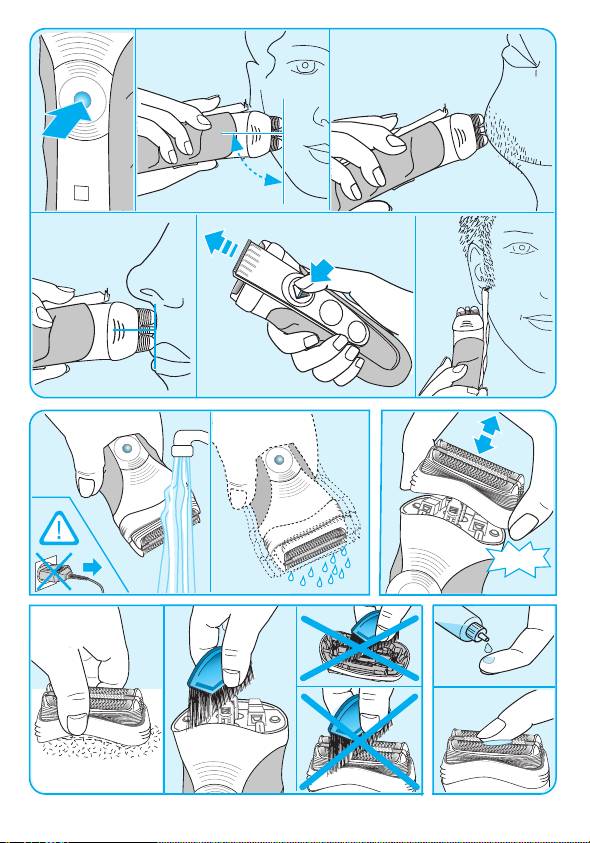

Shaving

Press the on/off switch (3) to operate the shaver (picture).

The flexible shaving foils automatically adjust to every contour of your face

(picture).

6

98727823_Floater310_S6-56.indd 698727823_Floater310_S6-56.indd 6 02.06.2008 11:54:05 Uhr02.06.2008 11:54:05 Uhr

Long hair trimmer

To trim sideburns, moustache or beard, slide the long hair trimmer (2)

upwards.

Tips for the perfect shave

For best results, Braun recommends you follow 3 simple steps:

1. Always shave before washing your face.

2. At all times, hold the shaver at right angles (90°) to your skin.

3. Stretch your skin and shave against the direction of your beard growth.

Cleaning

The shaver head is suitable for cleaning under running tap water.

Warning: Detach the shaver from the power supply before cleaning

the shaver head in water.

Regular cleaning ensures better shaving performance. Rinsing the shaver

head under running water after each shave is an easy and fast way to keep

it clean:

•

Switch the shaver on (cordless) and rinse the shaver head under hot

running water. You may use liquid soap without abrasive substances.

Rinse off all foam and let the shaver run for a few more seconds.

•

Next, switch off the shaver, remove the shaver Foil & Cutter cassette (1)

and let it dry.

•

If you regularly clean the shaver under water, then once a week apply a

drop of light machine oil onto the long hair trimmer (2) and shaver Foil &

Cutter cassette (1) (picture).

Alternatively, you may clean the shaver using a brush:

•

Switch off the shaver. Remove the shaver Foil & Cutter cassette and tap it

out on a flat surface (picture).

•

Using a brush, clean the inner area of the shaver head. However, do not

clean the shaver Foil & Cutter cassette with a brush (picture) as this may

damage it.

Keeping your shaver in top shape

To maintain 100% shaving performance, replace the shaver Foil & Cutter

cassette (1), at least every 18 months or when worn.

Foil & Cutter cassette: 32B

7

98727823_Floater310_S6-56.indd 798727823_Floater310_S6-56.indd 7 02.06.2008 11:54:06 Uhr02.06.2008 11:54:06 Uhr

Preserving the batteries

In order to maintain the optimum capacity of the rechargeable batteries, the

shaver has to be fully discharged (by shaving) every 6 months approximately.

Then recharge the shaver to full capacity.

Environmental notice

This product contains rechargeable batteries. In the interest of

protecting the environment, please do not dispose of the product in

the household waste at the end of its useful life. Disposal can take

place at a Braun Service Centre or at appropriate collection sites

provided in your country.

Subject to change without notice.

This product conforms to the European Directives EMC 2004/108/EC

and Low Voltage 2006/95/EC.

For electric specifications, see printing on the special cord set.

Guarantee

We grant 2 years guarantee on the product commencing on the date of

purchase. Within the guarantee period we will eliminate, free of charge, any

defects in the appliance resulting from faults in materials or workmanship,

either by repairing or replacing the complete appliance as we may choose.

This guarantee extends to every country where this appliance is supplied by

Braun or its appointed distributor.

This guarantee does not cover: damage due to improper use, normal wear

and tear (e.g. shaver Foil & Cutter cassette) as well as defects that have a

negligible effect on the value or operation of the appliance. The guarantee

becomes void if repairs are undertaken by unauthorised persons and if

original Braun parts are not used.

To obtain service within the guarantee period, hand in or send the complete

appliance with your sales receipt to an authorised Braun Customer Service

Centre.

For UK only:

This guarantee in no way affects your rights under statutory law.

8
