English

General Power Tool Safety Warnings

Read all safety warnings and all instructions.

Failure to follow the

warnings and instructions may result in electric shock, fire and/or

serious injury.

Save all warnings and instructions for future reference.

The term “power tool” in the warnings refers to your mains-operated (corded) power tool or

battery-operated (cordless) power tool.

Work area safety



Keep work area clean and well lit.

Cluttered or dark areas invite accidents.



Do not operate power tools in explosive atmospheres, such as in the presence of

flammable liquids, gases or dust.

Power tools create sparks which may ignite the dust

or fumes.



Keep children and bystanders away while operating a power tool.

Distractions can

cause you to lose control.

Electrical safety



Power tool plugs must match the outlet. Never modify the plug in any way. Do not

use any adapter plugs with earthed (grounded) power tools.

Unmodified plugs and

matching outlets will reduce risk of electric shock.



Avoid body contact with earthed or grounded surfaces, such as pipes, radiators,

ranges and refrigerators.

There is an increased risk of electric shock if your body is

earthed or grounded.



Do not expose power tools to rain or wet conditions.

Water entering a power tool will

increase the risk of electric shock.



Do not abuse the cord. Never use the cord for carrying, pulling or unplugging the

power tool. Keep cord away from heat, oil, sharp edges and moving parts.

Damaged

or entangled cords increase the risk of electric shock.



When operating a power tool outdoors, use an extension cord suitable for outdoor

use.

Use of a cord suitable for outdoor use reduces the risk of electric shock.

WARNING

OBJ_BUCH-1208-003.book  Page 12  Monday, June 24, 2013  3:19 PM

English

 |

13

Bosch Power Tools

1 609 92A 0CA | (24.6.13)

 English |

13



If operating a power tool in a damp location is unavoidable, use a residual current de-

vice (RCD) protected supply.

Use of an RCD reduces the risk of electric shock.

Personal safety



Stay alert, watch what you are doing and use common sense when operating a power

tool. Do not use a power tool while you are tired or under the influence of drugs, al-

cohol or medication.

A moment of inattention while operating power tools may result in

serious personal injury.



Use personal protective equipment. Always wear eye protection.

Protective equip-

ment such as dust mask, non-skid safety shoes, hard hat, or hearing protection used for

appropriate conditions will reduce personal injuries.



Prevent unintentional starting. Ensure the switch is in the off-position before con-

necting to power source and/or battery pack, picking up or carrying the tool.

Carry-

ing power tools with your finger on the switch or energising power tools that have the

switch on invites accidents.



Remove any adjusting key or wrench before turning the power tool on.

A wrench or a

key left attached to a rotating part of the power tool may result in personal injury.



Do not overreach. Keep proper footing and balance at all times.

This enables better

control of the power tool in unexpected situations.



Dress properly. Do not wear loose clothing or jewellery. Keep your hair, clothing and

gloves away from moving parts.

Loose clothes, jewellery or long hair can be caught in

moving parts.



If devices are provided for the connection of dust extraction and collection facili-

ties, ensure these are connected and properly used.

Use of dust collection can reduce

dust-related hazards.

Power tool use and care



Do not force the power tool. Use the correct power tool for your application.

The cor-

rect power tool will do the job better and safer at the rate for which it was designed.



Do not use the power tool if the switch does not turn it on and off.

Any power tool that

cannot be controlled with the switch is dangerous and must be repaired.



Disconnect the plug from the power source and/or the battery pack from the power

tool before making any adjustments, changing accessories, or storing power tools.

Such preventive safety measures reduce the risk of starting the power tool accidentally.



Store idle power tools out of the reach of children and do not allow persons unfamil-

iar with the power tool or these instructions to operate the power tool.

Power tools

are dangerous in the hands of untrained users.



Maintain power tools. Check for misalignment or binding of moving parts, breakage

of parts and any other condition that may affect the power tool’s operation. If dam-

aged, have the power tool repaired before use.

Many accidents are caused by poorly

maintained power tools.



Keep cutting tools sharp and clean.

Properly maintained cutting tools with sharp cutting

edges are less likely to bind and are easier to control.



Use the power tool, accessories and tool bits etc. in accordance with these instruc-

tions, taking into account the working conditions and the work to be performed.

Use

OBJ_BUCH-1208-003.book  Page 13  Monday, June 24, 2013  3:19 PM

1 609 92A 0CA | (24.6.13)

Bosch Power Tools

14

 | English

of the power tool for operations different from those intended could result in a hazardous

situation.

Battery tool use and care



Recharge only with the charger specified by the manufacturer.

A charger that is suit-

able for one type of battery pack may create a risk of fire when used with another battery

pack.



Use power tools only with specifically designated battery packs.

Use of any other bat-

tery packs may create a risk of injury and fire.



When battery pack is not in use, keep it away from other metal objects, like paper

clips, coins, keys, nails, screws or other small metal objects, that can make a con-

nection from one terminal to another.

Shorting the battery terminals together may

cause burns or a fire.



Under abusive conditions, liquid may be ejected from the battery; avoid contact. If

contact accidentally occurs, flush with water. If liquid contacts eyes, additionally

seek medical help.

Liquid ejected from the battery may cause irritation or burns.

Service



Have your power tool serviced by a qualified repair person using only identical re-

placement parts.

This will ensure that the safety of the power tool is maintained.

Safety Warnings for Drills and Screwdriver



Hold power tool by insulated gripping surfaces, when performing an operation

where the cutting accessory or fastener may contact hidden wiring.

Cutting accesso-

ry and fasteners contacting a “live” wire may make exposed metal parts of the power tool

“live” and could give the operator an electric shock.



Use auxiliary handle(s), if supplied with the tool.

Loss of control can cause personal in-

jury.



Use appropriate detectors to determine if utility lines are hidden in the work area or

call the local utility company for assistance.

Contact with electric lines can lead to fire

and electric shock. Damaging a gas line can lead to explosion. Penetrating a water line

causes property damage.



Switch off the power tool immediately when the tool insert jams. Be prepared for

high reaction torque that can cause kickback.

The tool insert jams when:

— the power tool is subject to overload or

— it becomes wedged in the workpiece.



Hold the machine with a firm grip.

High reaction torque can briefly occur while driving

in and loosening screws.



Secure the workpiece.

A workpiece clamped with clamping devices or in a vice is held

more secure than by hand.



Always wait until the machine has come to a complete stop before placing it down.

The tool insert can jam and lead to loss of control over the power tool.



Do not open the battery.

Danger of short-circuiting.

OBJ_BUCH-1208-003.book  Page 14  Monday, June 24, 2013  3:19 PM

English

 |

15

Bosch Power Tools

1 609 92A 0CA | (24.6.13)

 English |

15

Protect the battery against heat, e. g., against continuous intense sunlight,

fire, water, and moisture.

Danger of explosion.



In case of damage and improper use of the battery, vapours may be emitted. Venti-

late the area and seek medical help in case of complaints.

The vapours can irritate the

respiratory system.



Use the battery only in conjunction with your Bosch power tool.

This measure alone

protects the battery against dangerous overload.



Use only original Bosch batteries with the voltage listed on the nameplate of your

power tool.

When using other batteries, e.g. imitations, reconditioned batteries or other

brands, there is danger of injury as well as property damage through exploding batteries.

Additional Safety and Working Instructions



Dusts from materials such as lead-containing coatings, some wood types, minerals

and metal can be harmful to one’s health and cause allergic reactions, lead to respir-

atory infections and/or cancer.

 Materials containing asbestos may only be worked by

specialists.

–

Provide for good ventilation of the working place.

–

It is recommended to wear a P2 filter-class respirator.

Observe the relevant regulations in your country for the materials to be worked.



Before any work on the machine (e. g., maintenance, tool change, etc.) as well as

during transport and storage, set the rotational direction switch to the centre posi-

tion.

Unintentional actuation of the On/Off switch can lead to injuries.



The battery is supplied partially charged. To ensure full battery capacity, complete-

ly charge the battery in the battery charger before using for the first time.



Read the operating instructions of the battery charger.



Apply the power tool to the screw only when it is switched off.

Rotating tool inserts

can slip off.



Hold the machine with a firm grip.

High reaction torque can briefly occur when switch-

ing gears. A noise can appear when switching gears.



To save energy, only switch the power tool on when using it.

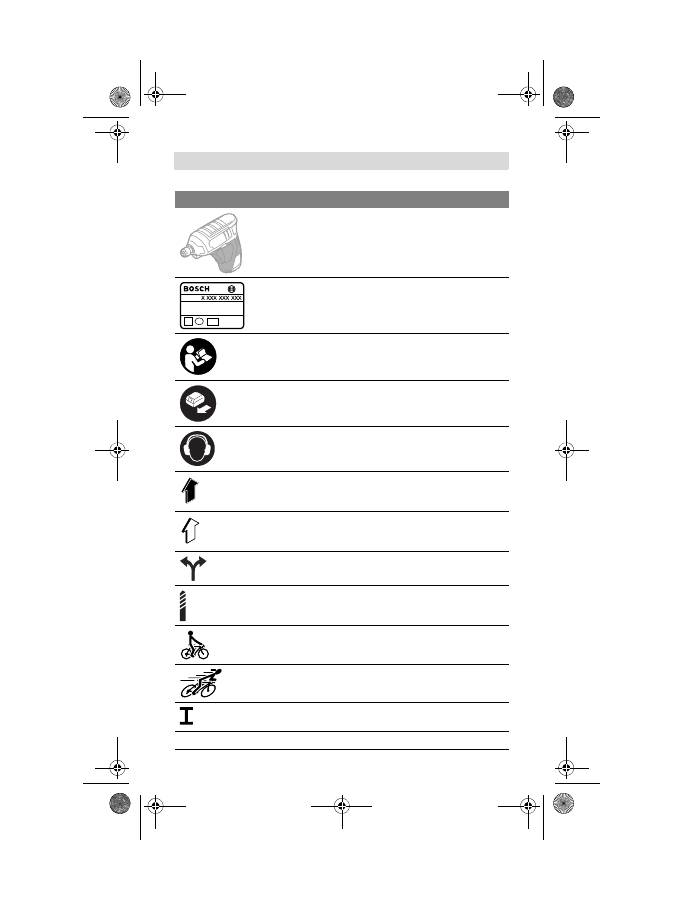

Symbols

The following symbols are important for reading and understanding the operating instruc-

tions. Please take note of the symbols and their meaning. The correct interpretation of the

symbols will help you to use the machine in a better and safer manner.

OBJ_BUCH-1208-003.book  Page 15  Monday, June 24, 2013  3:19 PM

1 609 92A 0CA | (24.6.13)

Bosch Power Tools

16

 | English

Symbol

Meaning

GSR Mx2Drive: Cordless Drill/Driver

Grey-marked area: Handle (insulated gripping surface)

Article number

Read all safety warnings and all instructions.

Before any work on the machine itself, remove the battery.

Always wear ear protection.

Movement direction

Reaction direction

Right/left rotation

Drilling and screwdriving

Low speed

High speed

Switching On

OBJ_BUCH-1208-003.book  Page 16  Monday, June 24, 2013  3:19 PM

English

 |

17

Bosch Power Tools

1 609 92A 0CA | (24.6.13)

 English |

17

Delivery Scope

Cordless Drill/Driver.

Battery, application tools and other accessories shown or described are not part of the

standard delivery scope.

A complete overview of accessories can be found in our accessories program.

Intended Use

The machine is intended for driving in and loosening screws as well as for drilling in wood and

plastic.

The light of this power tool is intended to illuminate the power tool’s direct area of working

operation and is not suitable for household room illumination.

Technical Data

The technical data of the machine are listed in the table on page 276.

Switching Off

U

Rated  voltage

n

0

 1

No-load speed (1st gear)

n

0

 2

No-load speed (2nd gear)

M

Maximum torque according to ISO 5393

Metal

Wood

Ø

Drilling diameter, max.

Ø

Max. screw dia.

Tool holder

Weight according to EPTA-Procedure 01/2003

L

wA

Sound power level

L

pA

Sound pressure level

K

Uncertainty

a

h

Vibration total value

Symbol

Meaning

OBJ_BUCH-1208-003.book  Page 17  Monday, June 24, 2013  3:19 PM

1 609 92A 0CA | (24.6.13)

Bosch Power Tools

18

 | English

Declaration of Conformity

We declare under our sole responsibility that the product described under “Technical Data”

is in conformity with the following standards or standardisation documents: EN 60745 ac-

cording to the provisions of the directives 2009/125/EC (Regulation 1194/2012),

2011/65/EU, 2004/108/EC, 2006/42/EC.

Technical file (2006/42/EC) at:

Robert Bosch GmbH, PT/ESC,

D-70745 Leinfelden-Echterdingen

Robert Bosch GmbH, Power Tools Division

D-70745 Leinfelden-Echterdingen

11.07.2011

Noise/Vibration Information

The measured values of the machine are listed in the table on page 276.

Noise and vibrational values (vector sum of three directions) determined according to

EN 60745.

The vibration emission level given in this information sheet has been measured in accord-

ance with a standardised test given in EN 60745 and may be used to compare one tool with

another. It may be used for a preliminary assessment of exposure.

The declared vibration emission level represents the main applications of the tool. However

if the tool is used for different applications, with different accessories or poorly maintained,

the vibration emission may differ. This may significantly increase the exposure level over the

total working period.

An estimation of the level of exposure to vibration should also take into account the times

when the tool is switched off or when it is running but not actually doing the job. This may sig-

nificantly reduce the exposure level over the total working period.

Identify additional safety measures to protect the operator from the effects of vibration such

as: maintain the tool and the accessories, keep hands warm, organise work patterns.

Mounting and Operation

Henk Becker

Executive Vice President

Engineering

Helmut Heinzelmann

Head of Product Certification

PT/ETM9

Action

Figure

Page

Removing the battery

1

277

Inserting the battery

2

277

Mounting application tools

3

277

Reversing the rotational direction

4

278

OBJ_BUCH-1208-003.book  Page 18  Monday, June 24, 2013  3:19 PM

English

 |

19

Bosch Power Tools

1 609 92A 0CA | (24.6.13)

 English |

19

Maintenance and Cleaning



For safe and proper working, always keep the machine and ventilation slots clean.

After-sales Service and Application Service

Our after-sales service responds to your questions concerning maintenance and repair of

your product as well as spare parts. Exploded views and information on spare parts can also

be found under:

www.bosch-pt.com

Bosch’s application service team will gladly answer questions concerning our products and

their accessories.

In all correspondence and spare parts order, please always include the 10-digit article num-

ber given on the type plate of the machine.

Great Britain

Robert Bosch Ltd. (B.S.C.)

P.O. Box 98

Broadwater Park

North Orbital Road

Denham

Uxbridge

UB 9 5HJ

Tel. Service: (0844) 7360109

Fax: (0844) 7360146

E-Mail: boschservicecentre@bosch.com

Ireland

Origo Ltd.

Unit 23 Magna Drive

Magna Business Park

City West

Dublin 24

Tel. Service: (01) 4666700

Fax: (01) 4666888

Adjusting the Speed

5

279

Switching On and Off

6

279

Selecting Accessories

–

280

Action

Figure

Page

OBJ_BUCH-1208-003.book  Page 19  Monday, June 24, 2013  3:19 PM

1 609 92A 0CA | (24.6.13)

Bosch Power Tools

20

 | English

Australia, New Zealand and Pacific Islands

Robert Bosch Australia Pty. Ltd.

Power Tools

Locked Bag 66

Clayton South VIC 3169

Customer Contact Center

Inside Australia:

Phone: (01300) 307044

Fax: (01300) 307045

Inside New Zealand:

Phone: (0800) 543353

Fax: (0800) 428570

Outside AU and NZ:

Phone: +61 3 95415555

www.bosch.com.au

Republic of South Africa

Customer service

Hotline: (011) 6519600

Gauteng – BSC Service Centre

35 Roper Street, New Centre

Johannesburg

Tel.: (011) 4939375

Fax: (011) 4930126

E-Mail: bsctools@icon.co.za

KZN – BSC Service Centre

Unit E, Almar Centre

143 Crompton Street

Pinetown

Tel.: (031) 7012120

Fax: (031) 7012446

E-Mail: bsc.dur@za.bosch.com

Western Cape – BSC Service Centre

Democracy Way, Prosperity Park

Milnerton

Tel.: (021) 5512577

Fax: (021) 5513223

E-Mail: bsc@zsd.co.za

Bosch Headquarters

Midrand, Gauteng

Tel.: (011) 6519600

Fax: (011) 6519880

E-Mail: rbsa-hq.pts@za.bosch.com

OBJ_BUCH-1208-003.book  Page 20  Monday, June 24, 2013  3:19 PM
