Functional description

d The RS232 communication module provides two independent RS232 interfaces to connect a printer and/or a Laptop.

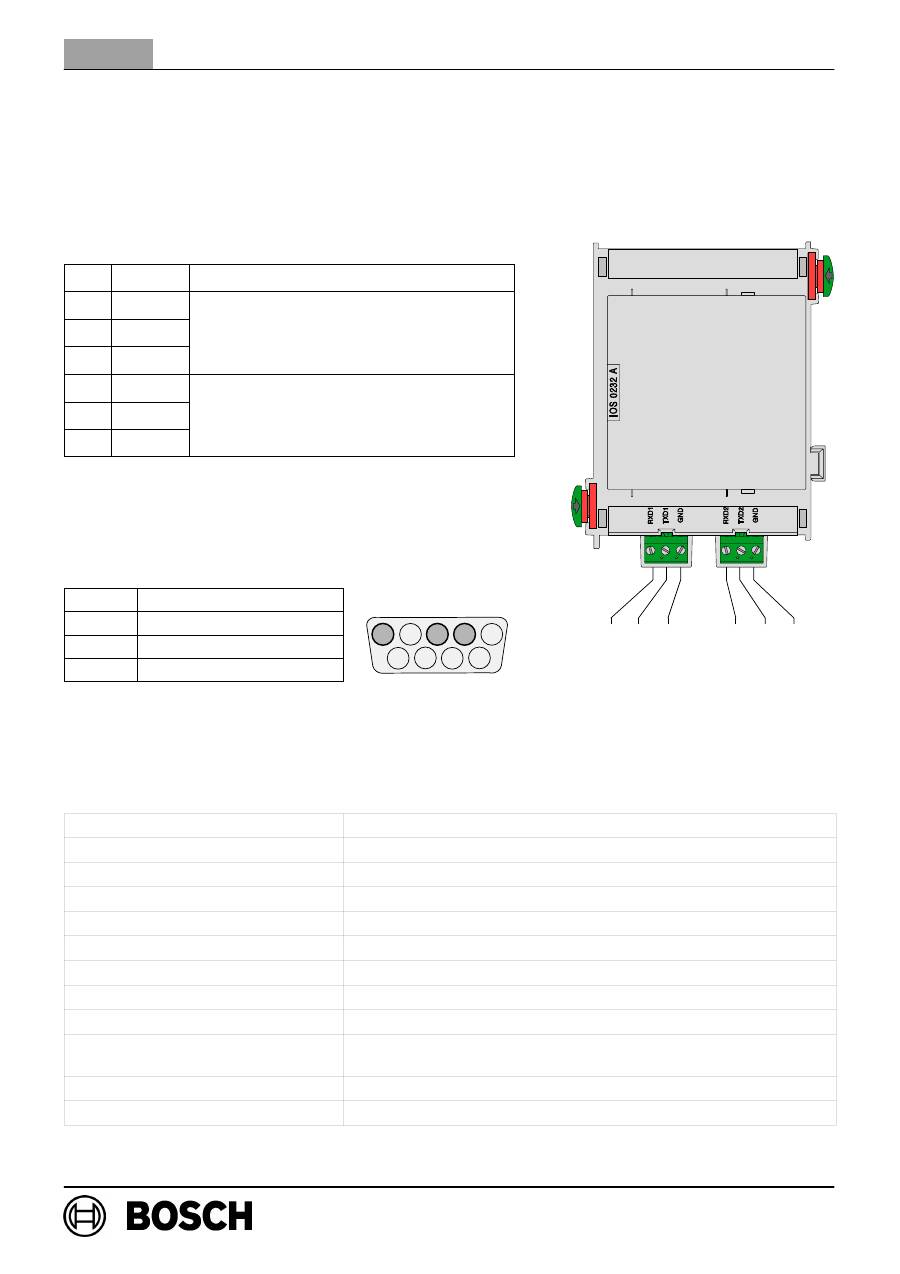

Wiring

Pos.

Marking

Connection

15

RXD1

16

TXD1

RS232 Interface 1

17

GND

20

RXD2

21

TXD2

RS232 Interface 2

22

GND

Pin−assignment of DSUB 9−pin plug

PIN−No.

Connection

2

TxD0

3

RxD0

5

GND

Technical Specification

Input voltage  (min − max)

20 V DC − 30 V DC

Maximum current consumption

2.6 mA

Maximum length of lines

3 m (3.28 yards) at each interface

Safety class

II

as per IEC 60950 / EN 60950

EMI / EMC protection

EN 50081−1 / FCC Part 15

Protection class

IP 30 as per IEC 60529

Operating Temperature

−5

_

C . . . 50

_

C     (23

_

F . . . 122

_

F)

Storage Temperature

−20

_

C . . . 60

_

C     (−4

_

F . . . 140

_

F)

Permissible relative humidity

max. 95%  non condensing

Housing material and color

ABS plastic Polylac PA−766 (UL94 V−0),

semi gloss anthracite, RAL 7016

Dimensions  (H x W x D)

approx. 127 x 96 x 60mm  (5.0 x 3.8 x 2.4 inches)

Weight

approx. 180 g  (6.3 ounces)
