Bosch ANI 0016 A Annunciator Module: English 4.998.137.262 Product description ANI 0016 A

English 4.998.137.262  Product description ANI 0016 A

12 / 32

ST−FIR / PRM1/deh

610−4.998.153.972 / A2

Functional description

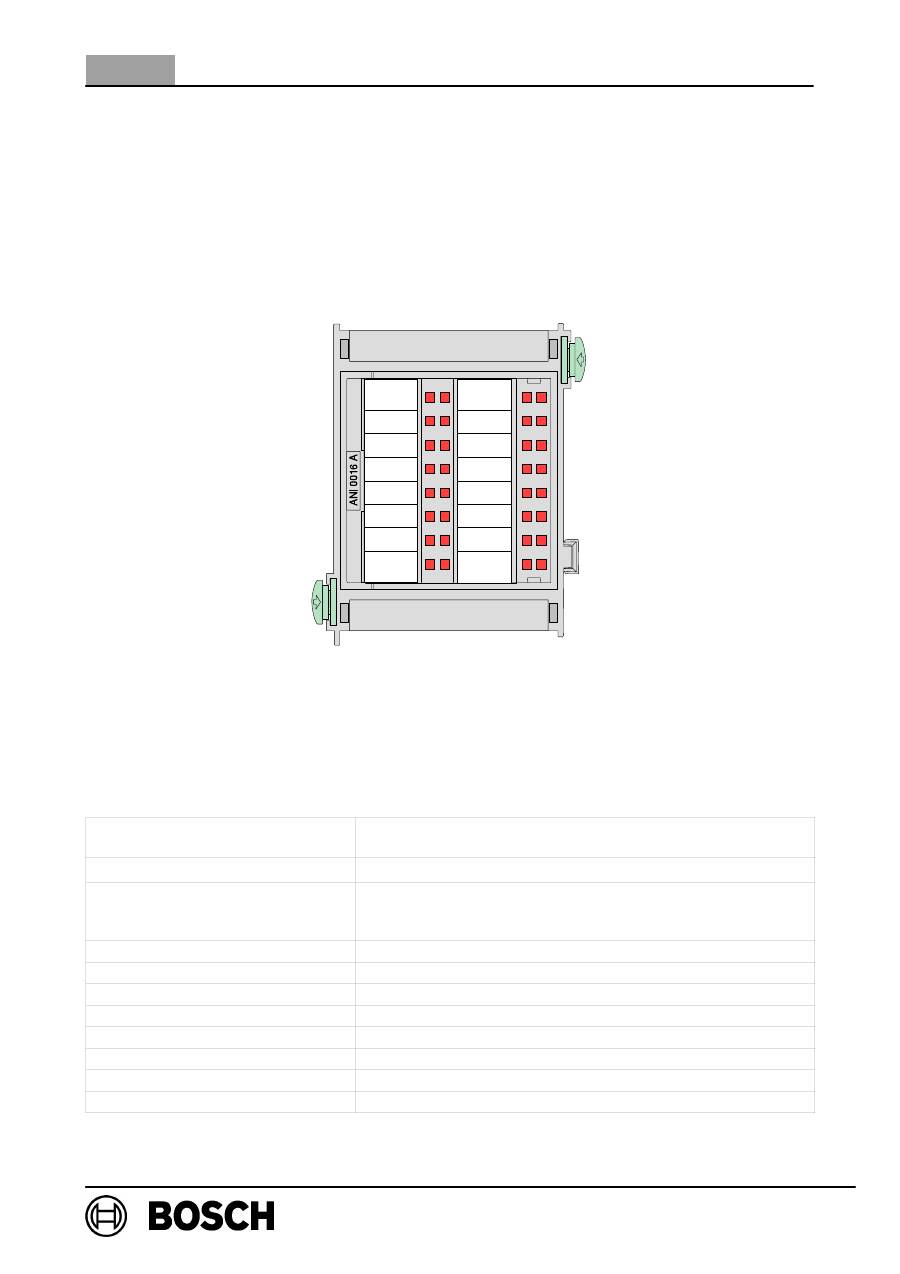

d The annunciator module with 16 red and 16 yellow LEDs enables the indication of alarms or messages at 16 different points. These points can be programmed without restrictions. The LED outputs are assigned with the FPA−5000 programming tool RPS  (Remote Programming Software)

Technical Specification

Indication elements

16 LEDs red

16 LEDs yellow

Input voltage  (min − max)

20 V DC − 30 V DC

Max. current consumption

− standby mode (all LEDs off)

− alarm mode (all LEDs on)

 6mA

30mA

Safety standards

IEC 60950 / EN 60950

EMI / EMC protection

EN 50130−4 / EN 50081−1 / UL 864 / FCC Part 15

Permissible operating temperature

−5

_

C . . . 50

_

C  (23

_

F . . . 122

_

F)

Permissible storage temperature

−20

_

C . . . 60

_

C  (−4

_

F . . . 140

_

F)

Permissible relative humidity

max. 95%  non condensing

Housing material and color

ABS plastics Polylac PA−766, semi gloss anthrazit, RAL 7016

Dimensions (H x W x D)

approx. 127 x 96 x 60 mm  (5.0 x 3.8 x 2.4 inches)

Weight

approx. 150 g (5.3 ounces)
