Sony Grand Wega KF-42SX200K: Connecting Optional Equipment

30

Optional Connections

Acceptable input signal

A

Audio/video and RGB signal

B

Audio/video and RGB signal

C

Audio/video and S video signal

D

Centre speaker input Set “Speaker”

on the Features menu to “Centre in”.

E

No inputs

F

S Video signal

G

Video signal

H

Audio signal

I

No input

Available output signal

Video/audio from TV tuner.

Video/audio displayed on TV screen (monitor out).

Video/audio from selected source.

No outputs.

Audio signal.

No output.

No output.

No output.

Audio signal to headphones.

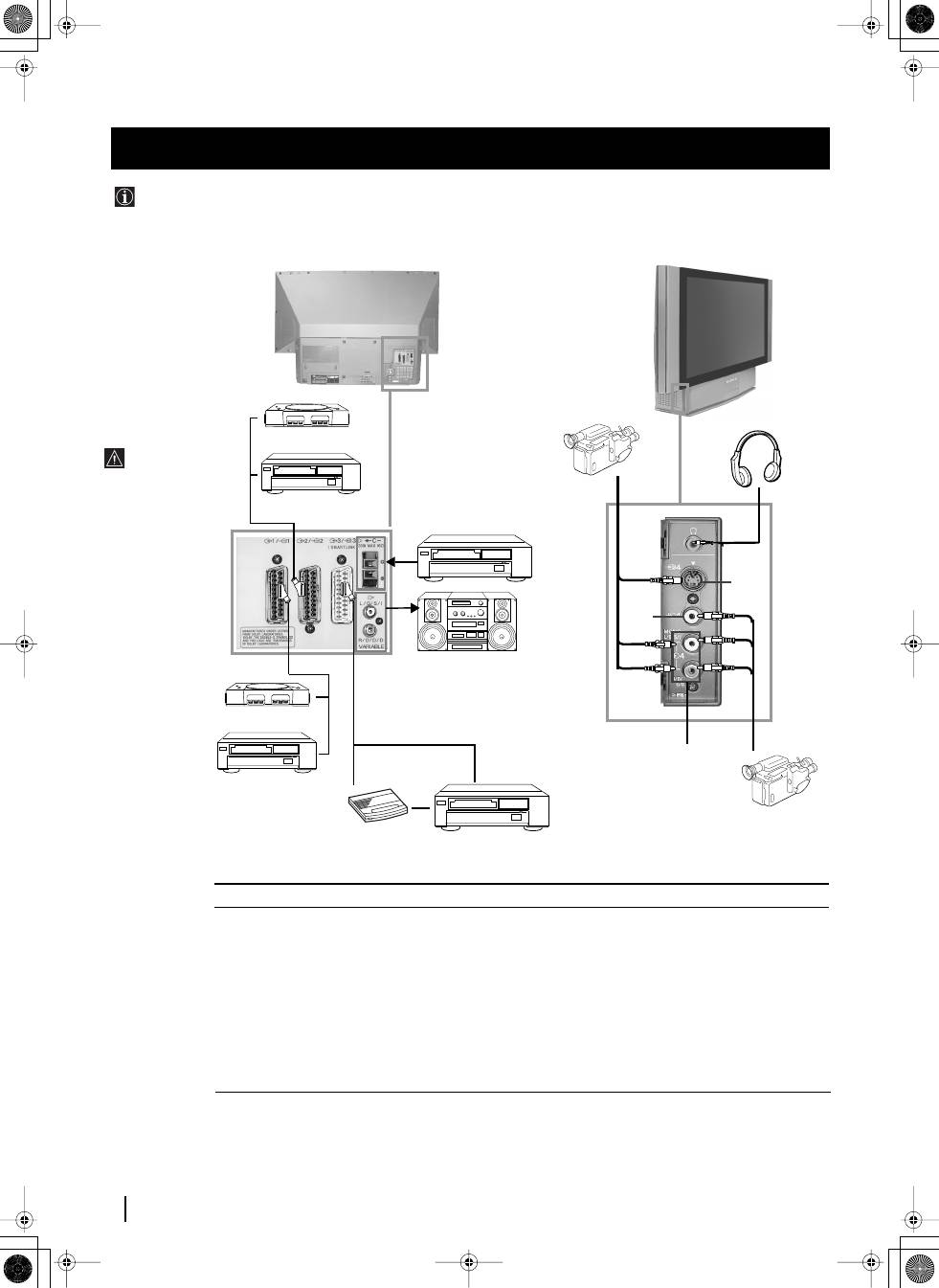

Optional Connections

Using the following instructions, you can connect a wide range of optional equipment to this TV set.

Connecting Optional Equipment

* “

PlayStation

”

is a product of

Sony

Computer

Entertainment,

Inc.

* “

PlayStation

”

is a trademark

of Sony

Computer

Entertainment,

Inc.

1

2

B

C

H

I

DVD

VCR

S.VHS/Hi8/DVC

camcorder

Dolby

Surround

Amplifier

Hi-Fi

F

G

8mm/Hi8/DVC

camcorder

“PlayStation”*

Decoder

D

E

1

2

DVD

A

“PlayStation”*

To avoid


distortion:

• Do not

 connect

equipment to

F

 and

G

connectors at

the same time.
