Sony VPL-HW55ES: Connecting the Unit Step 3

US

12

When making connections, be sure to do the following:

• Turn off all equipment before making any connections.

• Use the proper cables for each connection.

• Insert the cable plugs properly; poor connection at the plugs may cause a malfunction or poor

picture quality. When pulling out a cable, be sure to pull it out from the plug, not the cable

itself.

• Refer to the operating instructions of the connected equipment.

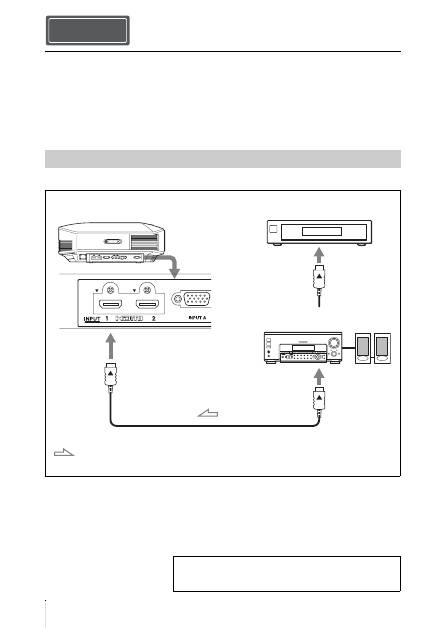

To connect to equipment with HDMI output connectors

Connecting the Unit Step 3

Connecting to a VCR

HDMI cable (not supplied)

: Video signal flow

Right side of the projector

Equipment with HDMI

output connectors

to HDMI output

AV amplifier with HDMI

input/output connectors

Speakers

When using an HDMI cable, be sure to use a Sony HDMI

cable or another cable that has the HDMI logo.

For more information, refer to “Connections and

Preparations” in the Operating Instructions contained in

the supplied CD-ROM.

13

 US

To connect to equipment with component video output connectors

Component video cable (not supplied)

: Video signal flow

Equipment with component

video output connectors

Right side of the projector

AV amplifier

Speakers

For more information, refer to “Connections and

Preparations” in the Operating Instructions contained in

the supplied CD-ROM.

US

14

Connecting to a Computer

HD-Dsub15 pin cable (not supplied) or HDMI cable (not supplied)

: Video signal flow

Right side of the projector

to monitor output

Computer

When using an HDMI cable, be sure to use a Sony HDMI

cable or another cable that has the HDMI logo.

For more information, refer to “Connections and

Preparations” in the Operating Instructions contained in

the supplied CD-ROM.

15

 US

CAUTION

Be sure to use straight-type LAN cable of up to 15 m labeled TYPE CM, and do not use an

extension cord.

You can use a 3D Sync Transmitter separate from this unit, using an optional LAN cable (straight-

type).

If the usage environment has interference of a continuous specific frequency, synchronization of 3D

image signals and the 3D glasses may be lost. In this case, use a LAN cable labeled Category 7.

When watching 3D images in an environment that has even more interference, use the internal

transmitter.

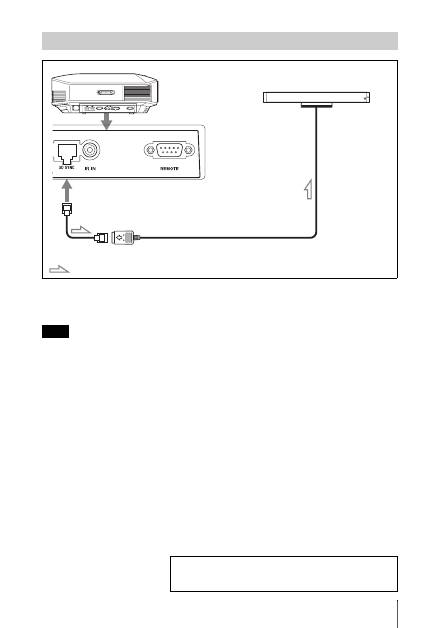

Connecting to a 3D Sync Transmitter

Note

Right side of the projector

3D Sync Transmitter

(not supplied)

Connecting cable

: 3D sync signal flow

For more information, refer to “Connections and

Preparations” in the Operating Instructions contained in

the supplied CD-ROM.
