Using Optional Equipment

Connecting optional equipment

You can connect a wide range of optional equipment to your TV. Connecting cables are not supplied.

Connecting to the TV (side)

To connect Do this

Conditional Access

To use Pay Per View services.

Module (CAM) A

For details, refer to the instruction

manual supplied with your CAM.

To use the CAM, remove the

rubber cover from the CAM slot.

Switch off the TV when inserting

your CAM into the CAM slot.

When you do not use the CAM, we

recommend that you replace the

cover on the CAM slot.

Note

CAM is not supported in all

countries. Please check with your

authorized dealer.

Using Optional Equipment

S VHS/Hi8/DVC

Connect to the S video socket

camcorder B

5 or the video socket 5,

and the audio sockets 5. To

avoid picture noise, do not connect

the camcorder to the video socket

5 and the S video socket

5 at the same time. If you

connect mono equipment, connect

to the L socket 5.

Headphones C Connect to the i socket to listen to

sound from the TV on headphones.

S VHS/Hi8/DVC

camcorder

Headphones

Continued

GB

33

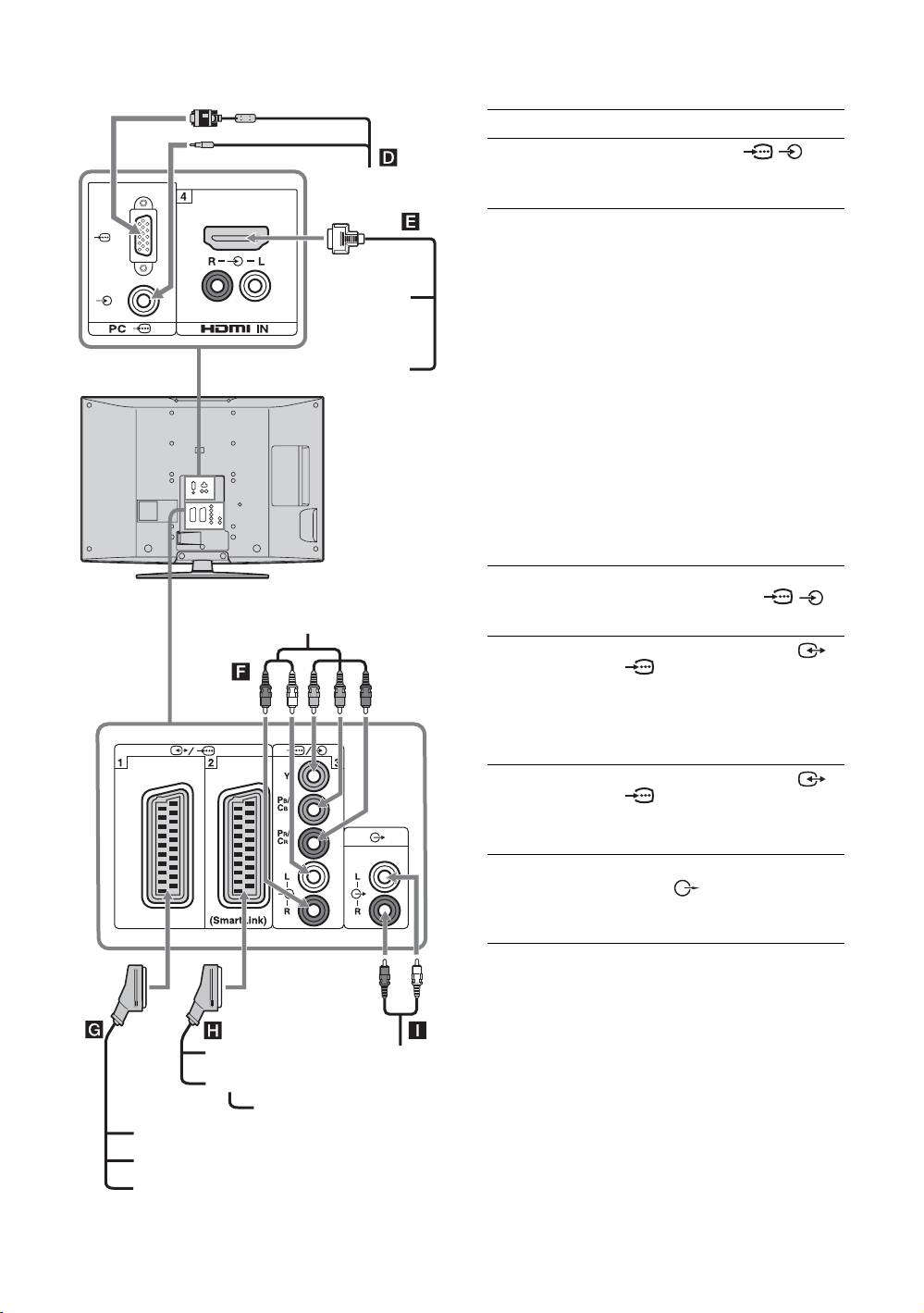

Connecting to the TV (rear)

To connect Do this

PC D Connect to the PC /

sockets. It is recommended to use

PC

a PC cable with ferrites.

Digital satellite

Connect to the HDMI IN 4 socket

receiver or DVD

if the equipment has a HDMI

player E

socket. The digital video and audio

signals are input from the

DVD player

equipment. If the equipment has a

DVI socket, connect the DVI

socket to the HDMI IN 4 socket

through a DVI - HDMI adaptor

Digital satellite receiver

interface (not supplied), and

connect the equipments audio out

sockets to the audio in HDMI IN 4

sockets.

Note

The HDMI sockets only support the

following video inputs: 480i, 480p,

576i, 576p, 720p and 1080i. To

connect a PC, please use the PC input

socket.

DVD player with

Connect to the component sockets

component output

and the audio sockets / 3.

DVD player

F

with component output

Video game

Connect to the scart socket /

equipment, DVD

1. When you connect the

player or decoder

decoder, the scrambled signal from

G

the TV tuner is output to the

decoder, then the unscrambled

signal is output from the decoder.

DVD recorder or

Connect to the scart socket /

VCR that supports

2. SmartLink is a direct link

SmartLink H

between the TV and a VCR/DVD

recorder.

Hi-Fi audio

Connect to the audio output

equipment I

sockets to listen to the sound

from the TV on Hi-Fi audio

equipment.

DVD recorder

Hi-Fi

VCR

Decoder

Video game equipment

DVD player

Decoder

GB

34

Using the Tools menu in PC input mode

Press TOOLS to display the following options when

viewing pictures input from the connected PC.

Options Description

Power Saving See page 26.

Picture Mode See page 20.

Sound Mode See page 22.

Auto Adjustment See page 27.

Horizontal Shift See page 27.

Vertical Shift See page 27.

Auto Clock Set (in

Allows you to switch to digital

analogue mode only)

mode and obtain the time.

i Volume See page 23.
