Optional Connections

Acceptable input signal

A

Audio/video and RGB signal

B

Audio/video and S video signal

C

Audio/video and S video signal

D

Centre speaker input Set “Speaker”

on the Features menu to “Centre in”.

E

No inputs

F

S Video signal

G

Video signal

H

Audio signal

I

No input

B

A

D

E

C

H

I

DVD

VCR

8mm/Hi8/DVC

camcorder

S.VHS/Hi8/DVC

camcorder

Dolby

Surround

Amplifier

Hi-Fi

F

G

Rear of projection TV

Front of projection TV

Available output signal

Video/audio from TV tuner.

Video/audio from selected source.

Video/audio displayed on TV screen (monitor out).

No outputs.

Audio signal.

No output.

No output.

No output.

Audio signal to headphones.

To avoid picture

distortion:

• Do not connect

equipment to

F

 and

G

connectors at

the same time.

VCR

Optional Connections

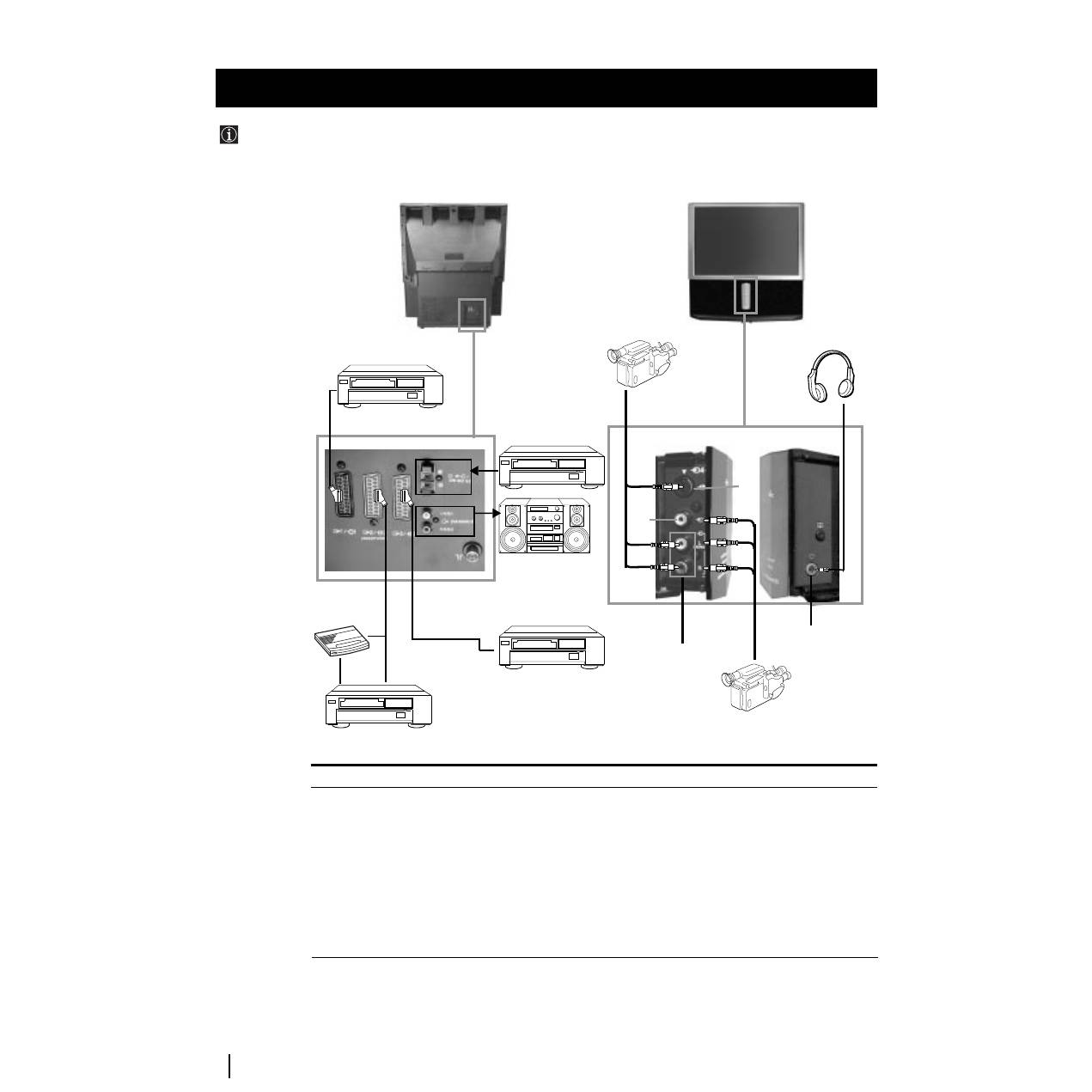

Using the following instructions, you can connect a wide range of optional equipment to your projection TV.

Connecting Optional Equipment

Decoder
