Installation procedure

● The wall-hanging bracket has attachment holes

provided in 16 locations.

  Be absolutely sure to attach each bracket in all

16 locations.

*  Refer to page 6 and 6 for the detailed

dimensions that apply when installing the plasma

display.

Caution



  The weight of the wall-hanging bracket is approximately  kg (.1 lbs.). For the weight of the plasma

display attached to the wall-hanging bracket, please see manual for the plasma display.



  Check the wall strength at the 16 attachment locations by referring to the dimension drawing of the wall-

hanging bracket, and provide adequate reinforcement if strength is not sufficient.

1. Confirm the strength of the installation location.

2. Install the wall-hanging bracket to the wall.

Unit: mm

Wall attachment holes (16 locations)

Caution

Horizontal installation

Marks (H)

(For horizontal

installation)

Marks (V)

(For vertical

installation)

Safety catch

anchoring screw

Safety catch

Vertical installation

● The marks indicate the center line of the Plasma Display.

● It is recommended that you leave a maintenance space of at least 70 cm (27.6″) behind the plasma display.

Note

Safety catch

anchoring screw

Safety catch

anchoring screw

Safety catch

English



  Based on the dimension drawing, find the positions of the holes which will be used to mount the brackets on

the wall, and mount the brackets on the wall.



(When installing the brackets horizontally)

 Mount the wall-hanging brackets with the arrows marked on

them pointing up. Mount the end of the bracket marked “L” on the left and the end marked “R” on the right.

(When installing the brackets vertically)

 Mount the end of the bracket marked “L” at the top and the end

marked “R” at the bottom.



  Use commercially available bolts or nuts with a nominal diameter of 1 mm to secure the brackets at all 16

mounting holes.

● Use commercially available bolts with a nominal diameter of 12 mm that are suited to the wall material.

● Check the strength of the mounting bolts, and use bolts which are strong enough.

Plasma display external dimensions

L

R

L

R

11

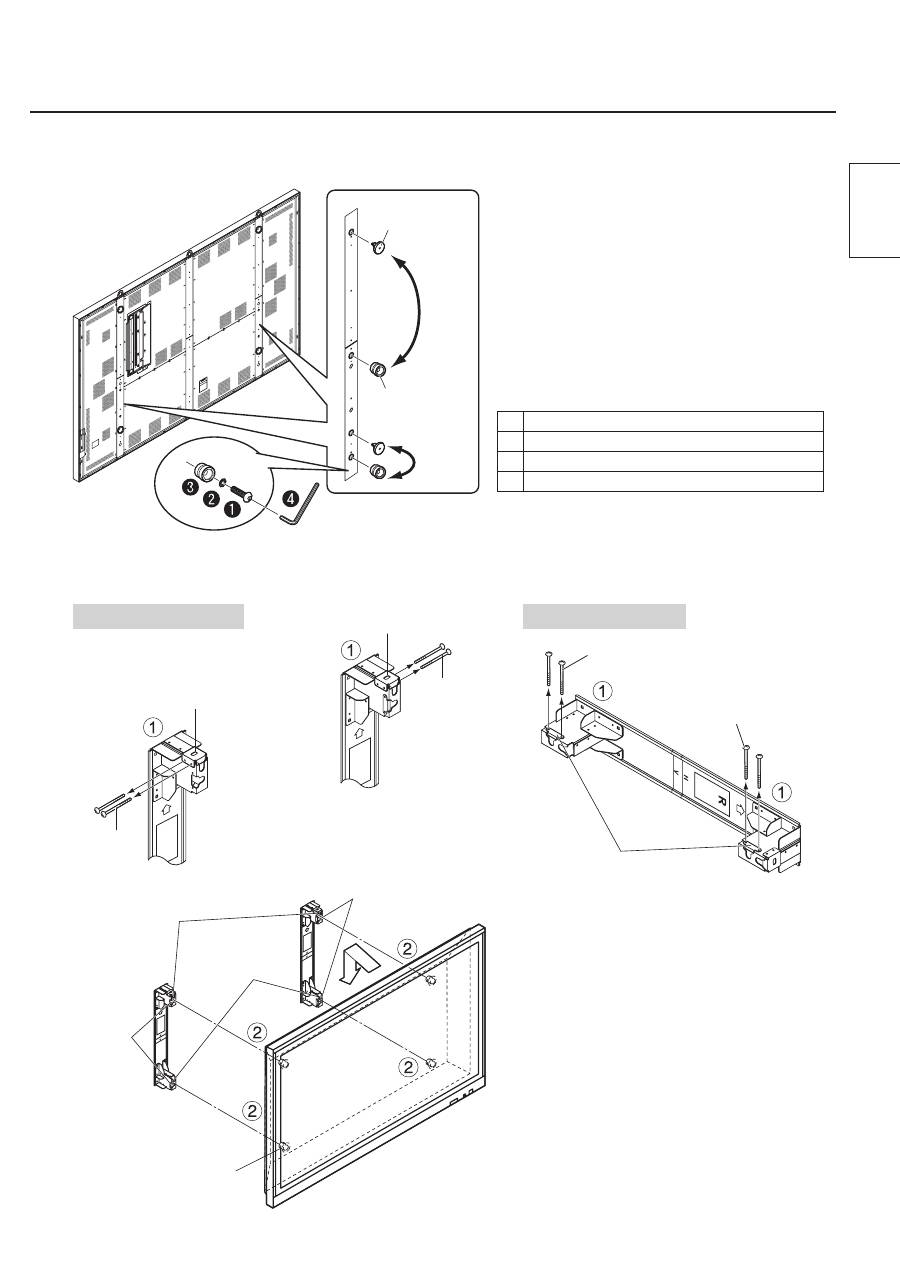

3. Prepare the Plasma Display.



Hexagon socket head button bolt



Spring washer



Stand hook



Allen key (provided with plasma display)



  Remove the eye-bolt caps (x ) at the left

and right of the rear panel.



  Attach the stand hooks wherever the eye-

bolt caps were removed.



  Attach the eye-bolt caps wherever the Stand

hooks were removed.

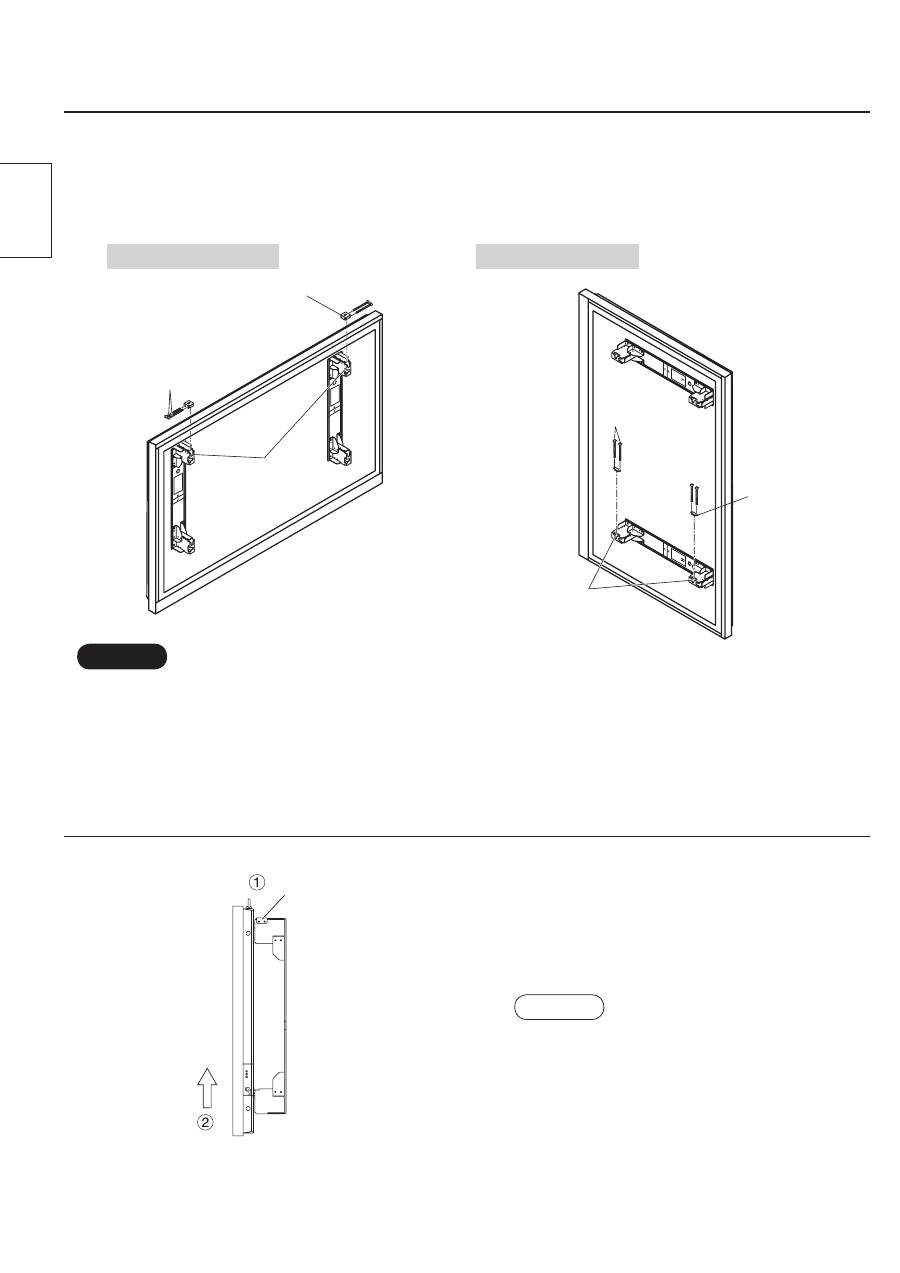

4. Install the display to the wall-hanging bracket.



  Remove the safety catch anchoring screw,

and remove the safety catch.



  Insert the stand hooks (x) on the display

into the notches of the wall-hanging

brackets, and lower the display straight

down.

Notches

(For horizontal

installation)

Notches

(For vertical installation)

Stand hook

Notches

(For horizontal

installation)

Notches

(For vertical

installation)

Horizontal installation

Vertical installation

Safety catch

anchoring

screw

Safety catch

Safety catch

Safety catch

anchoring screw

Safety catch

anchoring screw

Safety catch

Safety catch

anchoring screw

English

(Bottom side)

Eye-bolt caps

Stand hook

L

R

1

Installation procedure

● Be sure to tighten the left and right safety catches to prevent the display from detaching from the wall-hanging

bracket.

5. Securing the display.

Caution



  Securely tighten the safety catches (x) which were removed previously, using the safety catch anchoring

screws.

Notches

(For horizontal

installation)

Notches

(For vertical installation)

Removing the display

Horizontal installation

Vertical installation

Safety catch

anchoring screw

Safety catch

Safety catch

anchoring screw

Safety catch

Safety catch

● To remove the display, lift it about 60 mm.

Note

English



  Remove the safety catches (x) which were

attached to the wall-hanging brackets.



  Lift the display straight up.
