Operating Instructions

BATTERY GRIP

Thank you for purchasing this Panasonic product.

Please read these instructions carefully before using this product, and

save this manual for future use.

Contents

Information for Your Safety .....................................................................2

Precautions .............................................................................................5

Supplied Accessories..............................................................................5

Names of the components ......................................................................6

Mounting on and removing from the digital camera................................7

Inserting/Removing the Battery...............................................................8

Using the battery grip............................................................................11

Cautions for Use ...................................................................................11

Specifications........................................................................................13

Limited Warranty (ONLY FOR U.S.A.)..................................................14

Limited Warranty (ONLY FOR CANADA) .............................................17

Information for Your Safety

The socket outlet shall be installed near the equipment and shall be

easily accessible.

CAUTION!

To reduce the risk of fire, electric shock or product damage,

• Do not install or place this unit in a bookcase, built-in cabinet or in

another confined space. Ensure this unit is well ventilated.

2

DVQX1206 (ENG)

DVQX1206.book 3 ページ ２０１７年２月６日　月曜日　午後５時２９分

ENGLISH

∫ About the battery pack

CAUTION

Battery pack (Lithium ion battery pack)

• Use the specified unit to recharge the battery pack.

• Do not use the battery pack with equipment other than the specified unit.

• Do not get dirt, sand, liquids, or other foreign matter on the terminals.

• Do not touch the plug terminals (i and j) with metal objects.

• Do not disassemble, remodel, heat or throw into fire.

If any electrolyte should come into contact with your hands or clothes,

wash it off thoroughly with water.

If any electrolyte should come into contact with your eyes, never rub

the eyes. Rinse eyes thoroughly with water, and then consult a doctor.

CAUTION

• Danger of explosion if battery is incorrectly replaced. Replace only with

the type recommended by the manufacturer.

• When disposing of the batteries, please contact your local authorities or

dealer and ask for the correct method of disposal.

• Do not heat or expose to flame.

• Do not leave the battery(ies) in a car exposed to direct sunlight for a long

period of time with doors and windows closed.

Warning

Risk of fire, explosion and burns. Do not disassemble, heat above

60 xC (140 oF) or incinerate.

(ENG) DVQX1206

3

DVQX1206.book 4 ページ ２０１７年２月６日　月曜日　午後５時２９分

-If you see this symbol-

Disposal of Old Equipment

Only for European Union and countries with recycling systems

This symbol on the products, packaging, and/or

accompanying documents means that used electrical and

electronic products must not be mixed with general

household waste.

For proper treatment, recovery and recycling of old products, please

take them to applicable collection points in accordance with your

national legislation.

By disposing of them correctly, you will help to save valuable

resources and prevent any potential negative effects on human

health and the environment.

For more information about collection and recycling, please contact

your local municipality.

Penalties may be applicable for incorrect disposal of this waste, in

accordance with national legislation.

4

DVQX1206 (ENG)

DVQX1206.book 5 ページ ２０１７年２月６日　月曜日　午後５時２９分

Precautions

• This unit is exclusively for Panasonic digital camera DC-GH5. (As of

February 2017)

For the latest information on compatible devices, see the operating

instructions, catalogue or website of the digital camera.

• Ease of operation and grip when held vertically during the recording will

¢

improve. The attached battery pack

(optional), in addition to the battery in

the digital camera, will allow longer recording time.

¢ Indicated as battery pack or battery in the text.

∫ Handling the unit

• The dust- and splash-proofing of this unit is not a guarantee of a full

protection against the intrusion of dust and water. Please take care of

following when using. If the unit does not operate properly, please

contact the dealer where you have purchased the unit or Panasonic.

• Mount this unit firmly to the digital camera.

• Close the battery door and DC coupler cover firmly.

• Be careful not to allow sand, dust, or water to adhere or enter into the

terminal area, digital camera, or this unit when attaching or removing this unit.

• This unit is not water-proof, so this cannot be used underwater. For

splash-proofing, this unit is constructed to resist the entry of water. If

splashes of water etc. do adhere to this unit, wipe after use with a soft dry

cloth.

• Do not subject the unit to strong vibration or impact. Those actions may

result in malfunctions and failure.

• Please also read the manual of your digital camera.

Supplied Accessories

Product numbers correct as of February 2017. These may be subject to

change.

• The battery is optional.

Terminal Cap

• The terminal cap is attached to the

battery grip at the time of purchase.

DVKV1001Z

(ENG) DVQX1206

5

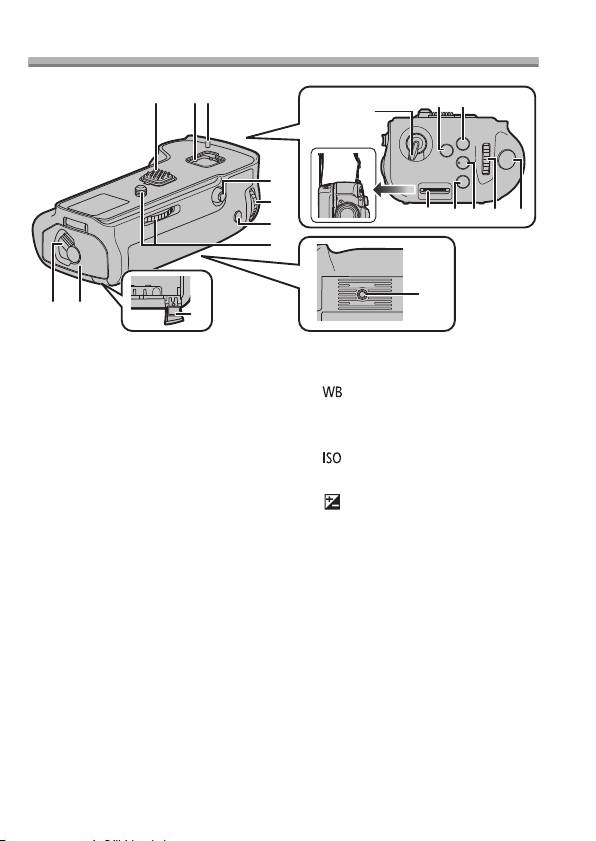

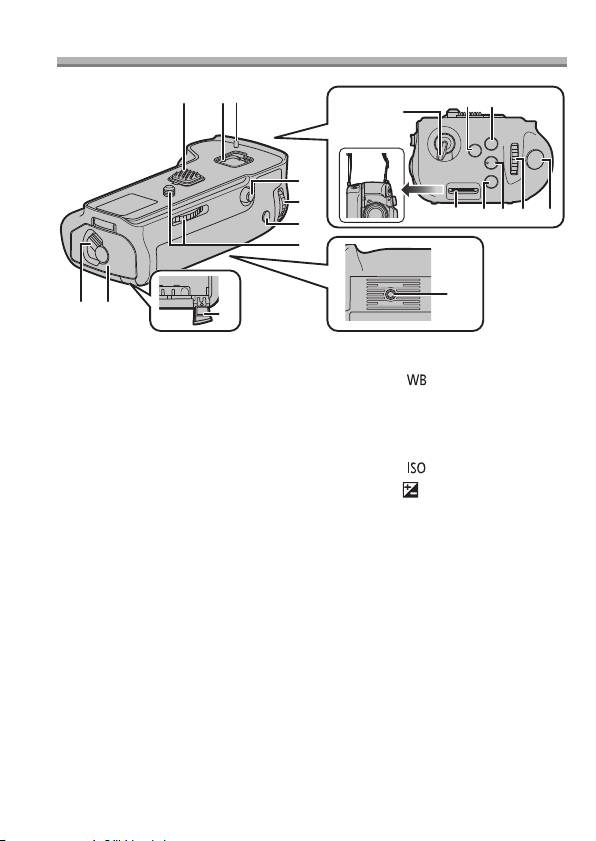

Names of the components

1 Electrical contacts

13 [Fn] button

2 Cover storage

14 [ ] (White Balance) button

3 Camera attachment pins

15 Shutter button

4 Joystick

16 Front dial

5 Rear dial

17 [ ] (ISO sensitivity) button

6 [AF/AE LOCK] button

18

[ ] (Exposure Compensation)

7 Attachment screw

button

8 DC coupler cover

19 Strap attachment holder

9 Battery door

• We recommend using the battery

10 Release lever

grip and the digital camera with

11 Tripod mount

the supplied shoulder strap

attached to prevent them from

12 Operation ON/OFF switch

dropping. (Read the digital

camera operating instructions for

details on how to attach the

strap.)

6

DVQX1206 (ENG)

DVQX1206.book 6 ページ ２０１７年２月６日　月曜日　午後５時２９分

DVQX1206.book 7 ページ ２０１７年２月６日　月曜日　午後５時２９分

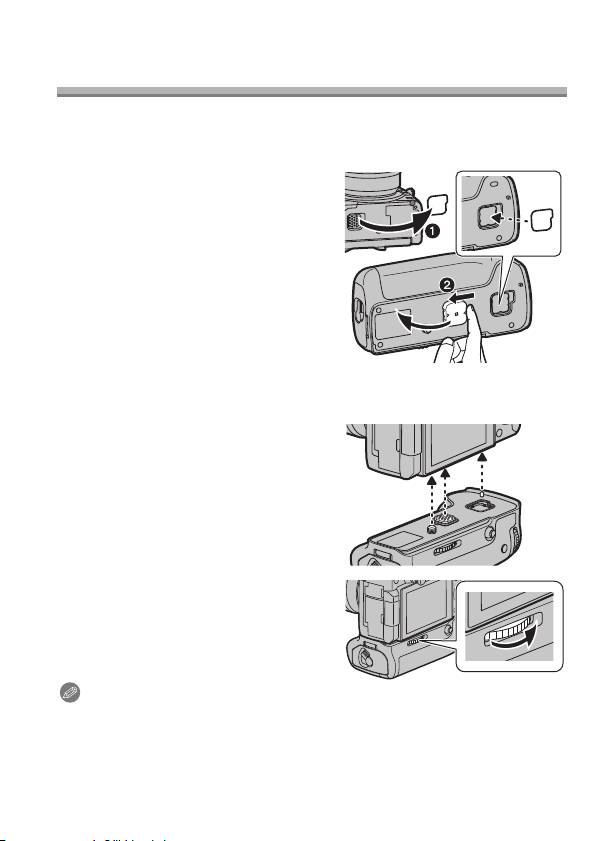

Mounting on and removing from the

digital camera

• Check that the digital camera is turned off. (Mounting the unit onto, or

disengaging it from, the camera while the power is on may cause trouble

and is not recommended.)

1 1Remove the cover for the

battery grip connector on

the digital camera.

• The cover for the battery grip

connector can be stored in the cover

storage in the battery grip.

2Remove the terminal cap on

the electrical contacts of the

battery grip.

• Return the cover for the battery grip

connector and the terminal cap to their

original position after use to protect the terminals.

• Be careful not to lose the terminal cap.

2 Insert by aligning the

attachment screw, electrical

contacts, and camera

attachment pins.

3 Turn the attachment screw in

direction of the arrow to

attach securely.

• Confirm that the attachment screw is

not loose while using.

Note

• Keep the Terminal Cap out of reach of children to prevent swallowing.

∫ Remove the battery grip from the digital camera

• Confirm that the digital camera is not powered, and turn the attachment

screw in the opposite direction of the attachment.

(ENG) DVQX1206

7

DVQX1206.book 8 ページ ２０１７年２月６日　月曜日　午後５時２９分

Inserting/Removing the Battery

For the U.S.A., CANADA and Latin America

• Always use genuine Panasonic batteries (DMW-BLF19PP: optional).

• If you use other batteries, we cannot guarantee the quality of this product.

For Taiwan

• Always use genuine Panasonic batteries (DMW-BLF19GT: optional).

• If you use other batteries, we cannot guarantee the quality of this product.

For China

• Always use genuine Panasonic batteries (DMW-BLF19GK: optional).

• If you use other batteries, we cannot guarantee the quality of this product.

For Other Countries

• Always use genuine Panasonic batteries (DMW-BLF19E: optional).

• If you use other batteries, we cannot guarantee the quality of this product.

• Use the battery after charging with a dedicated charger.

• The battery grip can be used when the battery is inserted in either the digital

camera or the battery grip.

• Check that the digital camera is turned off.

1 Turn the release lever of the

battery grip toward [OPEN],

and open the battery door.

2 Taking care of the orientation,

insert securely all the way

until you hear locking, and

confirm that the 1 lever is

hooked to the battery.

• When removing the battery, push the

1 lever toward the arrow and pull

out the battery.

8

DVQX1206 (ENG)

DVQX1206.book 9 ページ ２０１７年２月６日　月曜日　午後５時２９分

3 Close the battery door and

turn the release lever toward

[LOCK].

Note

• Remove the battery after use. (The battery will exhaust if it is left unused for

long period of time.)

• The battery will be warm after using, while charging, and right after

charging. The battery grip will also be warm while using, but this is not a

malfunction.

• Confirm that there is no foreign matter on the battery door.

∫ Using 2 batteries

The digital camera can be used for longer periods of time when batteries

are inserted in both the digital camera and the battery grip. (It will switch

to the other battery when one of the batteries is exhausted.)

• The battery to be used primarily can be set in the digital camera. Read the

operating instructions of your digital camera for details.

Note

• Do not remove the battery when the battery in the battery grip is being

used. (Power of the digital camera will be turned off.)

(ENG) DVQX1206

9

DVQX1206.book 16 ページ ２０１７年２月６日　月曜日　午後５時２９分

PARTS AND SERVICE, WHICH ARE NOT COVERED BY THIS LIMITED

WARRANTY, ARE YOUR RESPONSIBILITY.

As of March 2016

16

DVQX1206 (ENG)

DVQX1206.book 17 ページ ２０１７年２月６日　月曜日　午後５時２９分

Limited Warranty (ONLY FOR CANADA)

Panasonic Canada Inc.

5770 Ambler Drive, Mississauga, Ontario L4W 2T3

PANASONIC PRODUCT – LIMITED WARRANTY

Panasonic Canada Inc. warrants this product to be free from defects in material

and workmanship under normal use and for a period as stated below from the date

of original purchase agrees to, at its option either (a) repair your product with new

or refurbished parts, (b) replace it with a new or a refurbished equivalent value

product, or (c) refund your purchase price. The decision to repair, replace or refund

will be made by Panasonic Canada Inc.

Digital Camera One (1) year, parts and labour

Digital Camera Peripherals One (1) year, parts and labour

Digital Camera Accessories Ninety (90) days, parts and labour

This warranty is given only to the original purchaser, or the person for whom it was

purchased as a gift, of a Panasonic brand product mentioned above sold by an

authorized Panasonic dealer in Canada and purchased and used in Canada, which

product was not sold “as is”, and which product was delivered to you in new

condition in the original packaging.

IN ORDER TO BE ELIGIBLE TO RECEIVE WARRANTY SERVICE

HEREUNDER, A PURCHASE RECEIPT OR OTHER PROOF OF DATE OF

ORIGINAL PURCHASE, SHOWING AMOUNT PAID AND PLACE OF

PURCHASE IS REQUIRED

(ENG) DVQX1206

17

DVQX1206.book 18 ページ ２０１７年２月６日　月曜日　午後５時２９分

LIMITATIONS AND EXCLUSIONS

This warranty ONLY COVERS failures due to defects in materials or workmanship,

and DOES NOT COVER normal wear and tear or cosmetic damage. The warranty

ALSO DOES NOT COVER damages which occurred in shipment, or failures which

are caused by products not supplied by Panasonic Canada Inc., or failures which

result from accidents, misuse, abuse, neglect, mishandling, misapplication,

alteration, faulty installation, set-up adjustments, misadjustment of consumer

controls, improper maintenance, improper batteries, power line surge, lightning

damage, modification, introduction of sand, humidity or liquids, commercial use

such as hotel, office, restaurant, or other business or rental use of the product, or

service by anyone other than a Authorized Servicer, or damage that is attributable

to acts of God.

Dry cell batteries, printer ink cartridge and paper are also excluded from coverage

under this warranty.

Rechargeable batteries are warranted for ninety (90) days from date of original

purchase.

THIS EXPRESS, LIMITED WARRANTY IS IN LIEU OF ALL OTHER

WARRANTIES, EXPRESS OR IMPLIED, INCLUDING ANY IMPLIED

WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR

PURPOSE. IN NO EVENT WILL PANASONIC CANADA INC. BE LIABLE FOR

ANY SPECIAL, INDIRECT OR CONSEQUENTIAL DAMAGES RESULTING

FROM THE USE OF THIS PRODUCT OR ARISING OUT OF ANY BREACH OF

ANY EXPRESS OR IMPLIED WARRANTY.

(As examples, this warranty excludes damages for lost time, travel to and from the

Authorized Servicer, loss of or damage to media or images, data or other memory

or recorded content. This list of items is not exhaustive, but for illustration only.)

In certain instances, some jurisdictions do not allow the exclusion or limitation of

incidental or consequential damages, or the exclusion of implied warranties, so the

above limitations and exclusions may not be applicable. This warranty gives you

specific legal rights and you may have other rights which vary depending on your

province or territory.

WARRANTY SERVICE

For product operation, repairs and information assistance, please visit our

Support page:

www.panasonic.ca/english/support

18

DVQX1206 (ENG)

DVQX1206.book 19 ページ ２０１７年２月６日　月曜日　午後５時２９分

FRANÇAIS

Manuel d’utilisation

PRISE D’ALIMENTATION

Nous vous remercions d’avoir arrêté votre choix sur cet appareil.

Il est recommandé de lire attentivement ce manuel avant d’utiliser

l’appareil et de le conserver pour consultation ultérieure.

Table des matières

Précautions à prendre .......................................................................... 19

Précautions...........................................................................................22

Accessoires fournis...............................................................................22

Noms des composants .........................................................................23

Mise en place et retrait sur l’appareil photo numérique ........................24

Mise en place/retrait de la batterie........................................................25

Utilisation de la prise d’alimentation ..................................................... 28

Précautions d’utilisation ........................................................................ 28

Spécifications........................................................................................30

Garantie limitée..................................................................................... 31

Précautions à prendre

La prise de courant doit se trouver à proximité de l’appareil et être

facilement accessible.

ATTENTION!

Afin d’éviter tout risque d’incendie, de choc électrique ou de

dommage à l’appareil :

• N’installez pas ou ne placez pas cet appareil dans une bibliothèque,

une armoire ou tout autre espace confiné. Assurez-vous que la

ventilation de l’appareil est adéquate.

(FRE) DVQX1206

19

DVQX1206.book 20 ページ ２０１７年２月６日　月曜日　午後５時２９分

∫ À propos de la batterie

ATTENTION

Batterie (batterie au lithium-ion)

• Utilisez l’appareil spécifié pour recharger la batterie.

• N’utilisez la batterie avec aucun autre appareil que l’appareil spécifié.

• Évitez que de la saleté, du sable, des liquides ou d’autres corps

étrangers n’entrent en contact avec les bornes.

• Ne touchez pas les bornes des fiches (i et j) avec des objets

métalliques.

• Évitez de démonter, remodeler, chauffer ou jeter au feu.

Si de l’électrolyte entre en contact avec vos mains ou vos vêtements,

lavez-les avec beaucoup d’eau.

Si de l’électrolyte entre en contact avec vos yeux, ne les frottez pas.

Rincez-vous les yeux avec beaucoup d’eau, puis consultez un

médecin.

ATTENTION

• Danger d’explosion si la batterie n’est pas remplacée correctement.

Remplacez-la uniquement par une batterie du type recommandé par le

fabricant.

•

Suivez les instructions des autorités locales ou celles du détaillant pour

jeter les batteries usées.

• N’exposez pas la batterie à la chaleur et tenez-la éloignée de toute flamme.

• Ne laissez pas la ou les batteries dans un véhicule exposé au soleil avec

vitres et portes fermées pendant une longue période de temps.

Avertissement

Risque d’incendie, d’explosion et de brûlures. Ne pas démonter,

chauffer à plus de 60 °C (140 °F) ou incinérer.

20

DVQX1206 (FRE)

DVQX1206.book 21 ページ ２０１７年２月６日　月曜日　午後５時２９分
