Panasonic TYWK103PV9: Components

L

R

9

Components

Points to note during installation

● The wall-hanging bracket is for use in installing the Plasma Display to a vertical wall for viewing

purposes. Do not use it for any type of installation other than vertical wall installation.

● In order to ensure correct, problem-free operation of the Plasma Display, do not install the Display in

any of the following places.

    • Near sprinklers or fire/smoke detectors

    • Where there is a risk of exposure to vibration or impact

    • Near high-voltage wires or dynamic power supplies

    • Near sources of magnetism, heat, water vapor or soot

    • Locations exposed to air blown from heating equipment

    • Where droplets of condensation from an air conditioner or other unit may form

●  When installing this wall-hanging bracket unit, use a fixing method appropriate to the type of wall.

● Use commercially available bolts with a nominal diameter of 12 mm that are suited to the wall

material (steel frame, concrete, etc.) you are fitting the bracket to.

● Fit so there is no contact between the attachment bolts or power cord and any metal inside the wall.

●  Insert the power cord plug for the Plasma Display into a wall outlet which is close and easily

accessible.

● Provide adequate ventilation so that the temperature around the display does not rise above 40 °C

(104 °F). If there is insufficient movement of the air inside display, heat may build up inside the

display, and fire may result.

● Spread a soft blanket or cloth over the floor so that the plasma display and floor will not be marked

or scratched during the assembly and installation work.

● When screwing down the parts, ensure that the screws are neither insufficiently tightened nor over

tightened.

● Take sufficient care to ensure safety around you when performing the assembly and installation work

or while moving about during the course of the work.

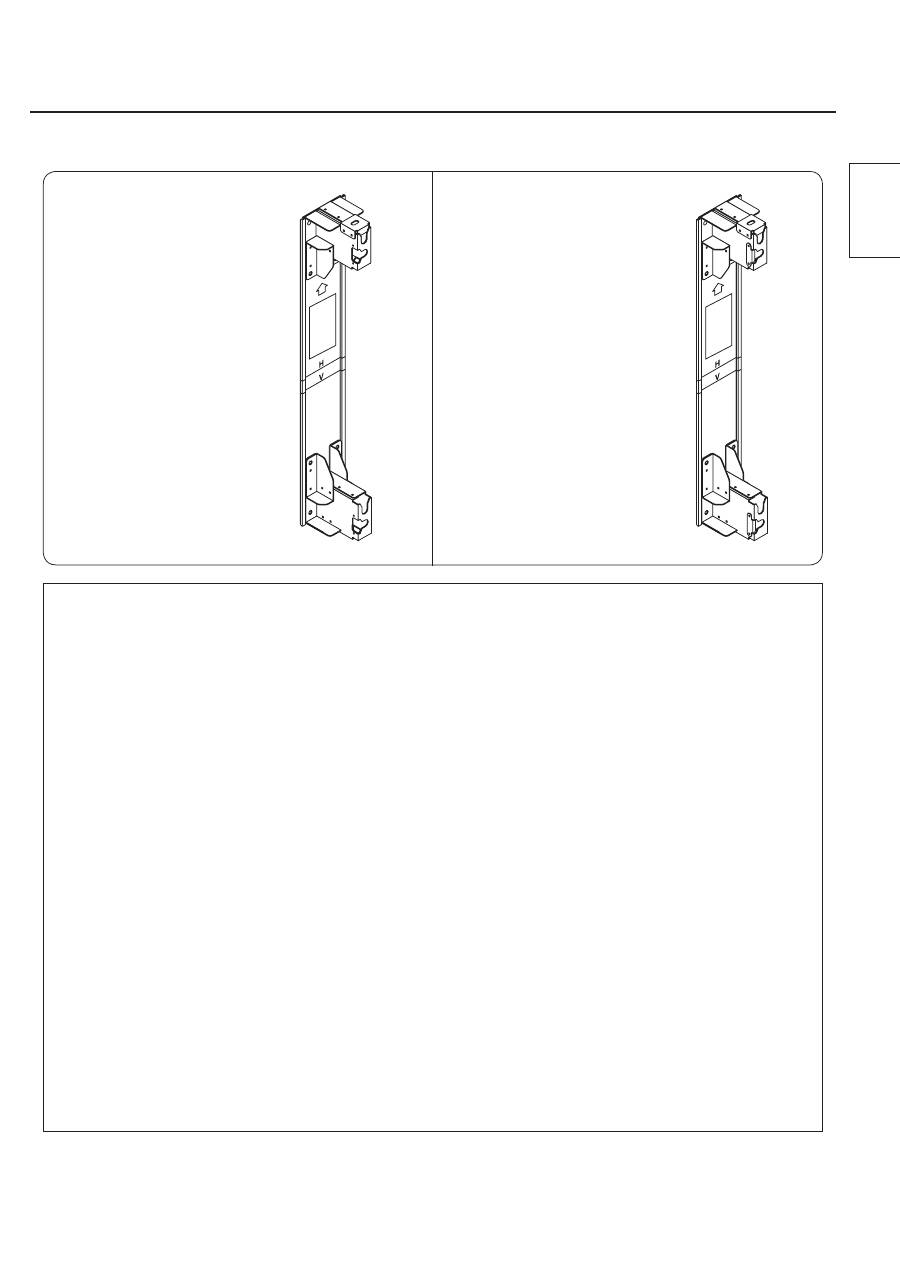

TY-WK103PV9  Wall-hanging bracket (Vertical mounting type)

Wall-hanging bracket

Base unit (L)

(1)

Wall-hanging bracket

Base unit (R)

(1)

English
