Panasonic TYWK42PV4W: Fitting procedure
Fitting procedure: Panasonic TYWK42PV4W

4
English
Fitting procedure
[ Never use any other method
than specified to install.]
1. Confirm the strength of the proposed fitting location.
(1) The weight of the wall-hanging bracket is approximately 7 kg (15.4 lbs). For the weight of the
plasma TV attached to the wall-hanging bracket, please see manual for the plasma TV.
(2) Check the wall strength at the 6 attachment locations by referring to the dimension drawing
of the wall-hanging bracket (given at right), and provide adequate reinforcement if strength
is not sufficient.
Notes
• There are 22 holes in the wall-hanging bracket.
If the wall material is wood, and adequate attachment strength
cannot be ensured by fastening at the 6 points at right, use
as many spare holes as necessary. However, exercise care
because some wall materials may crack if screws are located
too close together.
The following dimensions are important. Do not fit at any
location where these dimensions cannot be secured.
• For detailed dimensions for attaching the plasma TV, refer to
the separate External Dimension Drawing (page 46-48).
• Do not attach or place anything other than the plasma TV on
the bracket.
100 10
0
100 (3.9)
プラズマテレビ本体外形
プラズマテレビ本体外形
320 (12.6)
11
(0.4)
415 (16.3)
C
B
370 (14.6)
23 (0.9)
775 (30.5)
A
735 (28.9)
660 (26.0)
195 (7.7)
416 (16.4)
Unit: mm (inches)
* Be sure to fit screws and tighten securely.
Wall-hanging bracket
Wall attachment
holes (at 6 points)
Plasma TV external profile
* Provide spacing around the plasma TV of at least 10 cm
(3.9
″
) to the top and right side, at least 30 cm (11.8
″
) to
the left side, at least 6 cm (2.4
″
) to the bottom, leave a
clearance between the rear panel and the wall.
2. Fit wall-hanging bracket to wall.
(1) Fit so that the arrow marks on the wall-hanging bracket point upward.
(2) Fasten the screw at the top center hole (A) first.
(3) Using a level, correct any bracket inclination, and then fasten screws at the remaining
5 locations.
(A)
Notes
• If the wall consists of a material such as concrete, and bolts or nuts must be embedded
beforehand, determine the hole positions using the actual wall-hanging bracket, or
calculate hole positions based on the dimension drawing and then embed bolts or
nuts with a nominal diameter of 6 mm. When embedding bolts, locate so that the bolts
protrude from the wall by 10 to 15 mm (25/64 to 19/32 inches).
• Use commercially available screws with a nominal diameter of 6 mm that are suited to
the wall material you are fitting the bracket to.
• Always fix firmly more than 6 places with a screw.
3. Fit the insulation spacers to the plasma TV.
(1) Place the plasma TV unit face down on a blanket or other soft cloth that is clean and free of debris, and follow the
procedure below.
(2) Remove terminal covers (if fitted) from the plasma TV.
(3) Using a flathead screwdriver, remove the four caps from the plasma TV.
Note
• Carefully retain the removed terminal cover and caps in a safe
place. (They will be needed again later should it be required
to use the special-purpose stand or standalone stand.)
Terminal cover
Caps
Flathead screwdriver
Cloth
㇜
㇞
or
㇟
㇛
㇚
(4) Using the included Allen wrench
㇜
, fit the included Allen
head countersunk screws
㇞
or
㇟
dished toothed washers
㇛
and insulation spacers
㇚
(4 sets) into the holes from
where the caps were removed. (See the diagram at right.)
Refer to the page 46-48 for details on selecting the
hexagon flat countersunk head screws
㇞
or
㇟
.
The bolt should be securely tightened to the torque given
below.
(11 - 13 N•m)
TY-WK42PV4W̲TQZH997-2̲4048.indb 4
TY-WK42PV4W̲TQZH997-2̲4048.indb 4
2008/04/04 17:11:02
2008/04/04 17:11:02

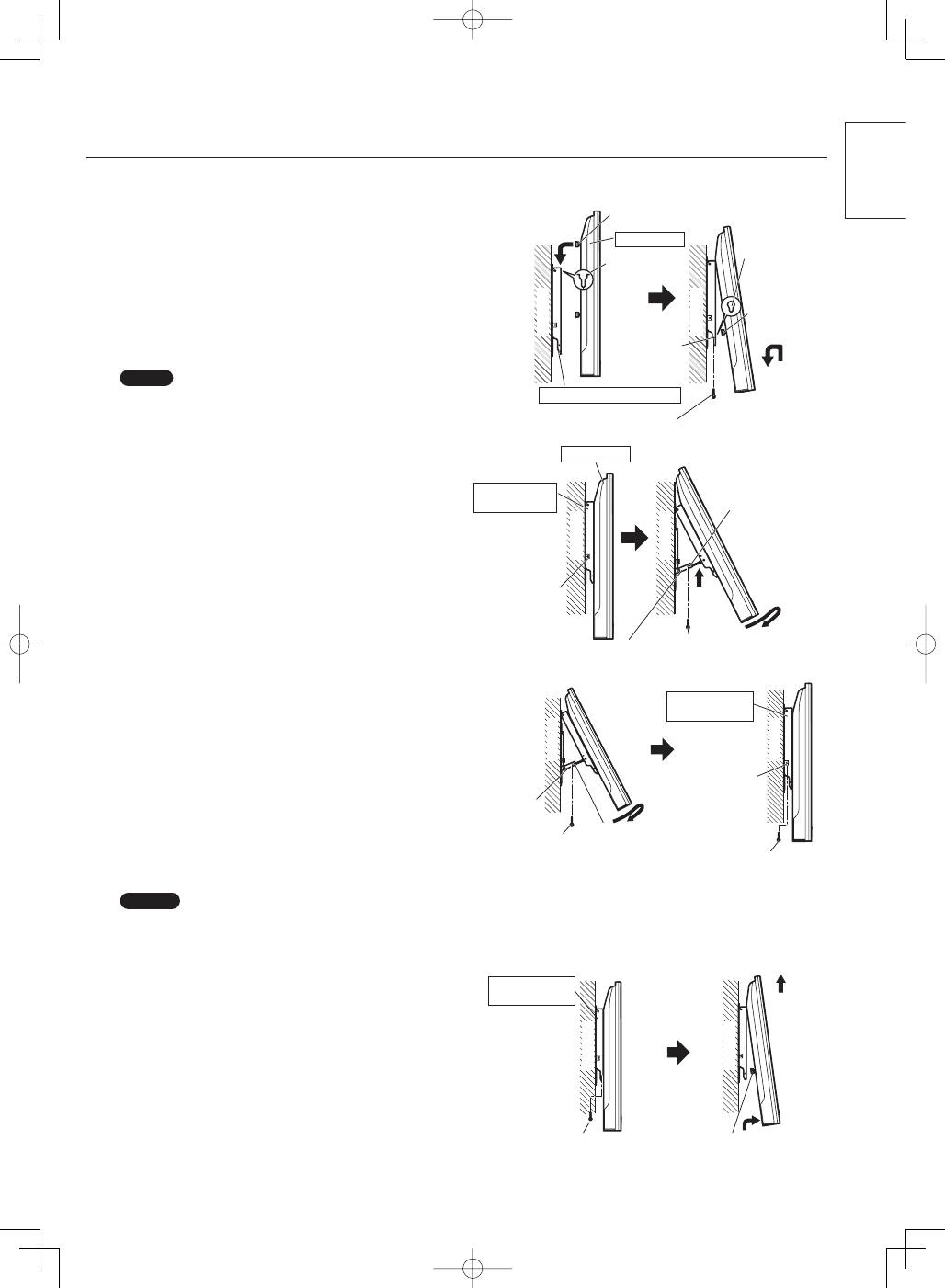

5
English
5
4. Fit and fasten the plasma TV unit to the wall-hanging bracket.
(1) Locate the insulation spacers on the top of the plasma TV
unit into the notch on the top of the wall-hanging bracket,
and slide down.
(2) Lift the plasma TV unit a little, insert the bottom insulation
spacers into the holes on the bottom of the wall-hanging
bracket, and slide the unit down.
(3) Attach securely using the included unit fastening screws (1
each for left and right).
The bolt should be securely tightened to the torque given
below.
(1.2 - 1.5 N•m)
(1)
(3)
(2)
Wall-hanging bracket
Plasma TV
Top insulation spacer
Upper
notch
Lower hole
Lower
insulation
spacer
Fitting hole
for plasma
TV fastening
screw
W
all
Plasma TV fastening
screw
W
all
Note
• Be sure to securely tighten the fastening screws to keep the
plasma TV from becoming loose.
5. Preparation for wiring to equipment.
(2)
W
all
Wall-hanging
bracket
Plasma TV
㊍
Red screw for
open
/
close
fastening
Lock bracket
㊎
Lock bracket
fastening hole
㊍
Red screw
for open
/
close
fastening
W
all
(1) Remove the red screws for open/close fastening (one each
on the left and right)
㊍
.
(2) Raise the plasma TV towards yourself, as shown in the
diagram at right, push up the lock bracket in the arrow
direction (upward), check that the bracket has locked,
and tentatively fasten. Securely fasten the red screw for
open/close fastening (one screw on left side)
㊍
to the lock
bracket fastening hole
㊎
.
(3) After the above preparation, wire to equipment.
The bolt should be securely tightened to the torque given
below.
(1.2 - 1.5 N•m)
6. Fastening of wall-hanging bracket.
(1)
Wa
ll
Lock
bracket
㊍
Red screw for
open
/
close
fastening
㊎
Lock bracket
fastening hole
㊍
Red screw for
open
/
close
fastening
㊏
Fitting hole
for red screw
for open
/
close
fastening
Wall-hanging
bracket
Wa
ll
(1) After wiring, remove the red screws for open/close fastening
(used when making wiring connections), raise the plasma
TV slightly, then slowly lower it back to the vertical position.
The lock will release.
(2) Securely fasten the red screws for open/close fastening
(one each for the left and right brackets)
㊍
tightly into the
fitting holes for red screws for open/close fastening
㊏
on
either side of the wall hanging bracket.
The bolt should be securely tightened to the torque given
below.
(1.2 - 1.5N•m)
Notes
• Pull back the plasma TV unit slowly when you set up it at the
original position.
• Be sure to always fit the red screws for open/close fastening
㊍
in order to fasten the plasma TV.
7. Removal of plasma TV unit.
(3)
(2)
Wall-hanging
bracket
(1)
Screw for plasma TV unit
fastening
Lower Insulation
spacer
W
all
W
all
(1) Remove the screws for unit fastening (1 each on the left
and right) that are fitted to the wall-hanging bracket sides.
(2) While lifting the bottom of the plasma TV unit, pull it towards
yourself.
(3) When the lower insulation spacers are freed, keep lifting
upward.
TY-WK42PV4W̲TQZH997-2̲4048.indb 5
TY-WK42PV4W̲TQZH997-2̲4048.indb 5
2008/04/04 17:11:02
2008/04/04 17:11:02
