Karcher Balayeuse KM 90-60 R Lpg Adv: Operation

     -

6



Place the cylinder in such a way that the

connection threading of the locking

valve vertically points upwards.

Note

: A fitting position towards the top

is important for the function of the gas

motor, it requires a gaseous extraction

from the gas bottle.



Close the bracket closure.



Attach safety splint.



Remove protective lid (1) from the con-

nection valve of the cylinder.



Connect the gas tube with Union nut (2)

(use 30 mm spanner).

Note

Connection has a left threading.

몇

Warning

Open the gas drawing valve (3) only after

starting the appliance (refer chapter Start-

ing the appliance).

Caution

Risk of damage to the drive! Prior to each

run, ensure that the freewheel lever is in the

lower position.

Caution

The air inlets next to the driver's seat must

not be covered. Do not store any objects

next to or behind the seat.

몇

Warning

Long hours of using the appliance can

cause circulation problems in the hands on

account of vibrations.

It is not possible to specify a generally valid

operation time, since this depends on sev-

eral factors:

–

Proneness to blood circulation deficien-

cies (cold, numb fingers).

–

A firm grip impedes blood circulation.

–

Continuous operation is worse than an

operation interrupted by pauses.

In case of regular, long-term operation of

the device and in case of repeated occur-

rence of the symptoms (e.g. cold, numb fin-

gers) please consult a physician.



Pull seat adjustment lever inwards.



Slide seat, release lever and lock in

place.



Check that the seat is properly locked in

position by attempting to move it back-

wards and forwards.

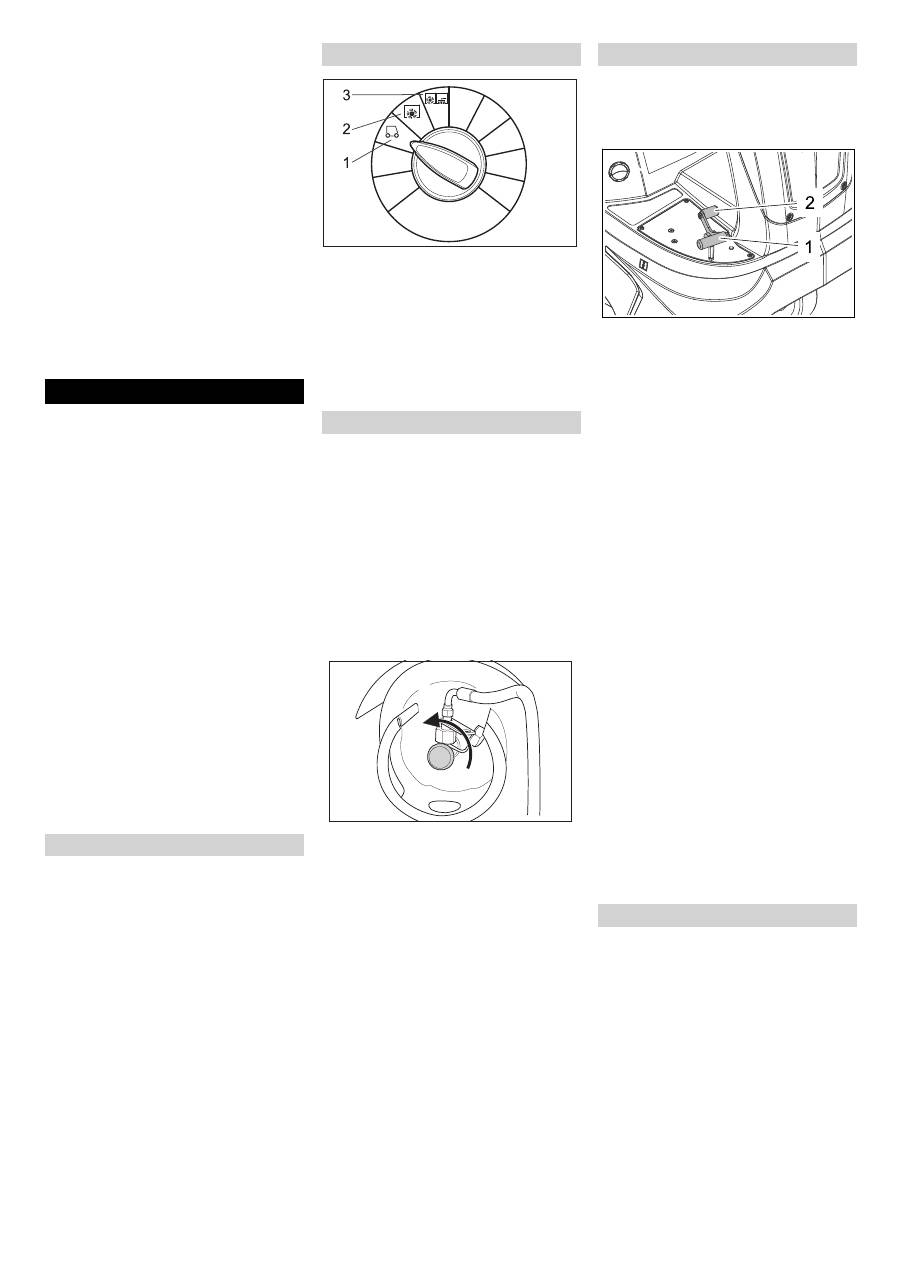

1 Driving

Driving to the Place of Use.

Side brush and roller brush are raised.

2 Sweeping with sweep roller

Roller brush is lowered.

3 Sweeping using roller brush and

side brushes

Roller brush and side brushes are low-

ered.

Note:

 The machine is equipped with a seat

contact switch If the driver's seat is vacat-

ed, the machine is switched off.

Note:

 If the seat contact switch has

switched off the machine, then turn the ig-

nition key to "0" to prevent battery dis-

charge.



Open the device hood.



Check, if the stop switch on the com-

bustion engine is in the "ON" position.



Close cover.



Open the gas drawing valve by turning

it in anti-clockwise direction.



Sit on the driver's seat.



Do NOT press the accelerator pedal.



Set programme switch to step 1 (driv-

ing).



Turn ignition key past position 1.



If the machine starts, release the igni-

tion key.

Note:

 Never operate the starter motor for

longer than 10 seconds. Wait at least 10

seconds before operating the starter motor

again.

Caution

Always press the accelerator pedal careful-

ly and slowly. Do not jerkily change from re-

verse to forward drive or vice versa.

1 Accelerator pedal, "forwards"

2 Accelerator pedal, "reverse"



Press slowly the accelerator pedal "for-

ward".



Danger

Risk of injury! While reversing, ensure that

there is nobody in the way, ask them to

move if somebody is around.



Press slowly the accelerator pedal "re-

verse".

–

The accelerator pedal can be used to

vary the driving speed infinitely.

–

Avoid pressing the pedal suddenly as

this may damage the hydraulic system.

–

In the event of power loss on inclined

surfaces, slightly reduce the pressure

on the accelerator pedal.



Release the accelerator pedal, the ma-

chine brakes automatically and stops.

Caution

Objects or loose obstacles may not be run

over or pushed.



Stationary obstacles of up to 5 cm can

be run over slowly and carefully.



Stationary obstacles of more than 5 cm

may only be run over using a suitable

ramp.



Danger

Risk of injury! If the bulk waste flap is open,

stones or gravel may be flung forwards by

the roller brush. Make sure that this does

not endanger persons, animals or objects.

Caution

Do not sweep up packing strips, wire or

similar objects as this may damage the

sweeping mechanism.

Caution

To avoid damaging the floor, do not contin-

ue to operate the sweeping machine in the

same position.

Operation

Adjusting driver's seat

Programme selection

Starting the machine

Opening the gas supply (gas engine)

Turning on the Appliance

Drive the machine

Drive forward

Reverse drive

Driving method

Brakes

Driving over obstacles

Sweeping mode

22 EN
