Pioneer KRP-SW01W: Preventing Equipment from Falling Over

16

En

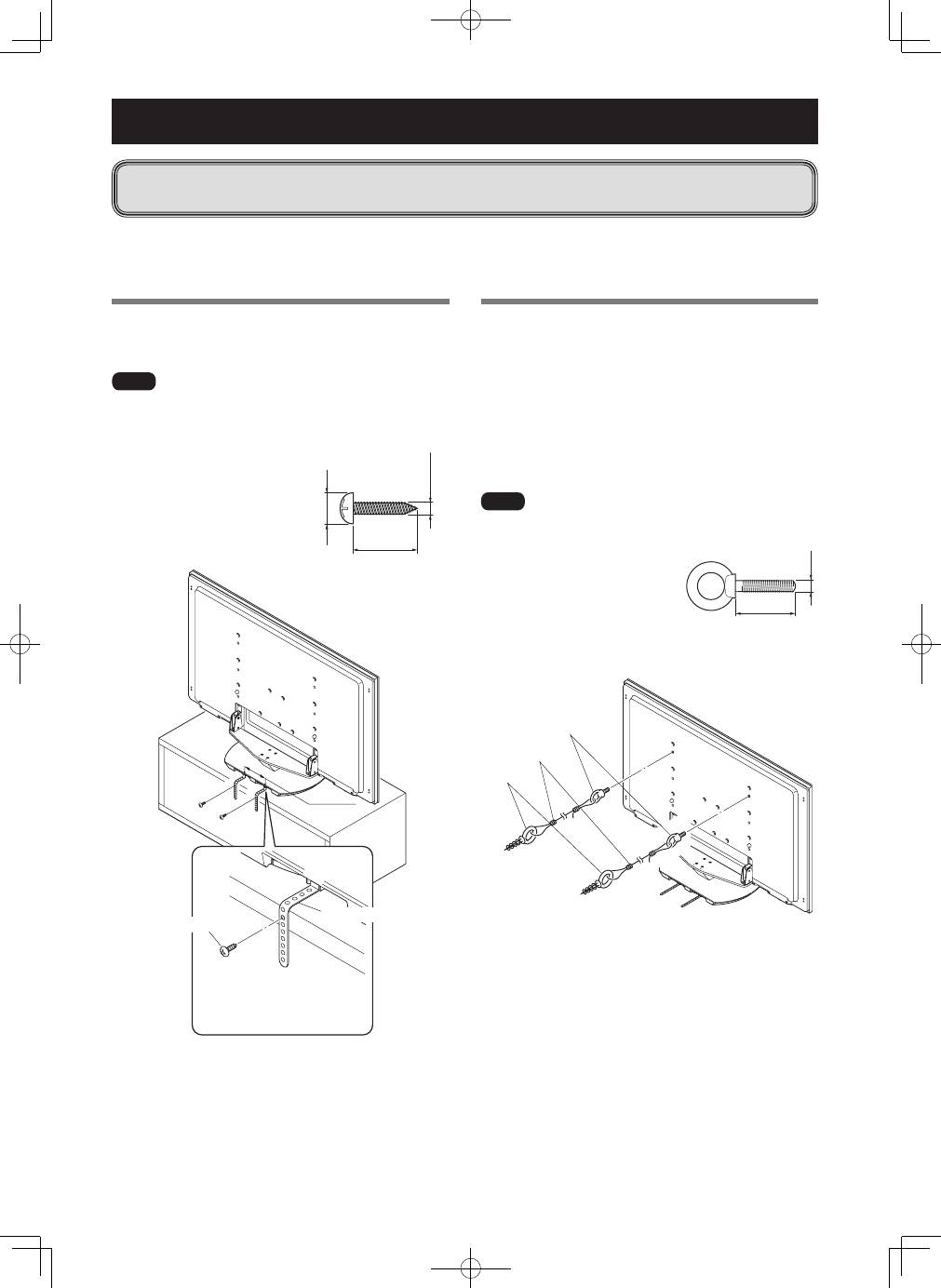

Preventing Equipment from Falling Over

Using a wall for stabilization

1

  Attaching falling prevention bolts to the

Pioneer display and television.

2

  Using strong cords to stabilize it appropriately

and firmly to a wall, pillar, or other sturdy

element.

•  Perform this work in the same way on the left and

right sides.

•  The length of the cords used must be long enough to

allow the stand to rotate freely.

 œÌi

•  Do not use bare metal wire for the cords. The wire ends may

cause electric shock and fire if they get inside the Pioneer

display and television through the

ventilation holes.

•  Use falling prevention bolts, ropes

and fittings that are available on

the market.

  Recommended bolts:

    Nominal diameter M8

    Length 12 mm to 15 mm (1/2 to 5/8 inch)

1

Falling prevention bolts

2

Cords

Fittings

Stabilizing on TV table or other location

Fix the Pioneer display and television to a TV table using the

fall-prevention straps as in the diagram.

Fix the racks etc. using screws for sale on the market.

 œÌi

•  The Pioneer display and television being quite heavy, a TV

table that is sturdy enough to support it, and with sufficient

width and depth to ensure that it does not fall over should

always be used.

•  To stabilize the Pioneer display

and television on a TV table,

use screws that have a nominal

diameter of 6 mm (1/4 inch).

Select the appropriate screws

after consulting a professional

installer if necessary.

Make a pilot hole in the rack’s

top board (center of the board’s

thickness), and fix the strap

with a store-bought screw.

136 mm

Screw

(commercially available)

Fall-prevention strap

After installing the stand, be sure to take special care to ensure that the Pioneer display and

television will not fall over.

•  Because of the Pioneer displays and televisions weight, if it could fall down, this can result in injury.

•  For safety, be sure to take special care to ensure that the Pioneer display and television will not fall over.

Min. 20 mm

(13/16 inch)

6 mm

(1/4 inch)

9 mm to 15 mm

(3/8 to 5/8 inch)

12 mm to 15 mm

(1/2 to 5/8 inch)

M

8
