Pioneer KRP-SW01W: Dimensions Diagram

17

En

English

Published by Pioneer Corporation.

Copyright © 2008 Pioneer Corporation.

All rights reserved.

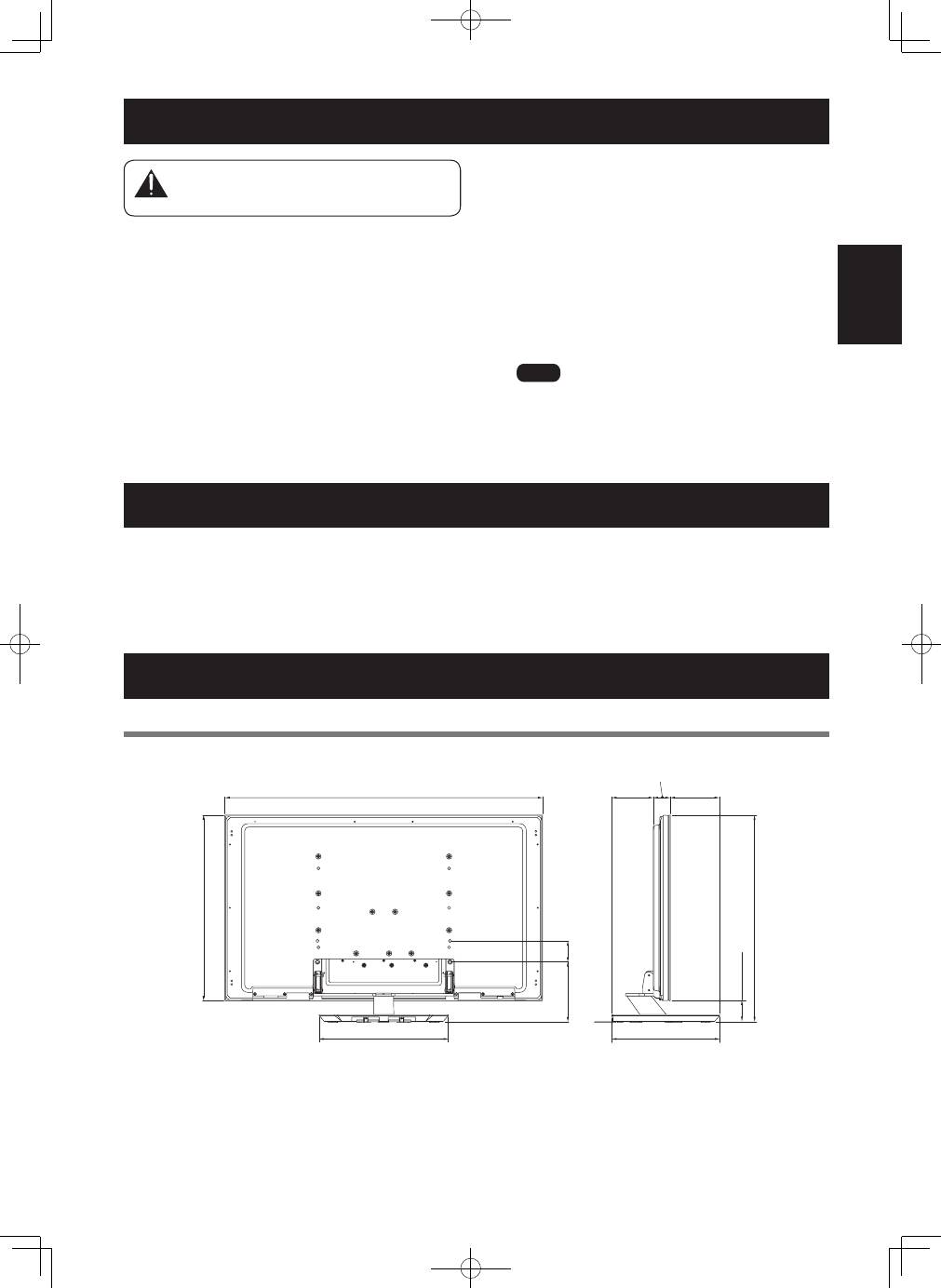

Dimensions Diagram

50 inch display model (PRO-101FD/KRP-500A/KRP-500M) (without speakers)

Unit: mm (inch)

159

(6-1/4)

187

(7-3/8)

225

(8-27/32)

80

(3-5/32)

64 (2-17/32)

1233 (48-17/32)

723 (28-15/32)

410 (16-5/32)

490 (19-9/32)

81

（

3-3/16

）

804 (31-21/32)

Detaching the Pioneer Display and Television from the Stand

 To remove the Pioneer display and television

from the stand, be sure to always follow the

procedure described below to prevent accidents.

1

Turn off the power and remove the power

plug from the power outlet and the cables

from the connectors.

2

Remove the fall-prevention straps and cords.

3

  First, confirm that the forward/backward

inclination anchor bolt is securely tightened.

4

  First clear a space on a flat floor etc. where you

can lay the Pioneer display and television flat,

then lay a sheet to protect it from scratches or

other damage.

5

  Remove the speakers.

6

  Referring to steps 3 and 4 in “Attaching the

Pioneer Display and Television” (Page 13),

remove the installation screws (4 screws).

7

  Holding the Pioneer display and television by

its handles and from the top, slowly lift the

display vertically.

8

  Place the Pioneer display and television slowly

onto the sheet laid out in step 4 with its screen

facing downwards.

 œÌi

When reattaching the Pioneer display and television to the

stand, be certain that the left/right support columns are

set at the same angle.

Specifications

External dimensions

533 mm (W) × 339.4 mm (H) × 410 mm (D) (20-31/32 inch (W) x 13-3/8 inch (H) x 16-5/32 inch (D))

Weight

10.7 kg (23.6 lbs)

•  The above specifications and exterior may be modified without prior notice to improve the product.

Caution
