Attaching the Pioneer Display and Television

Caution

  The weight of a Pioneer display and television is

about 31.4 kg (69.2 lbs), they have no depth, and

are unstable. Therefore, at least two people must

assemble and install them.

 œÌi

•  Be sure to install it on a flat stable location.

•  Insert the screws in the holes vertically and tighten them

securely.

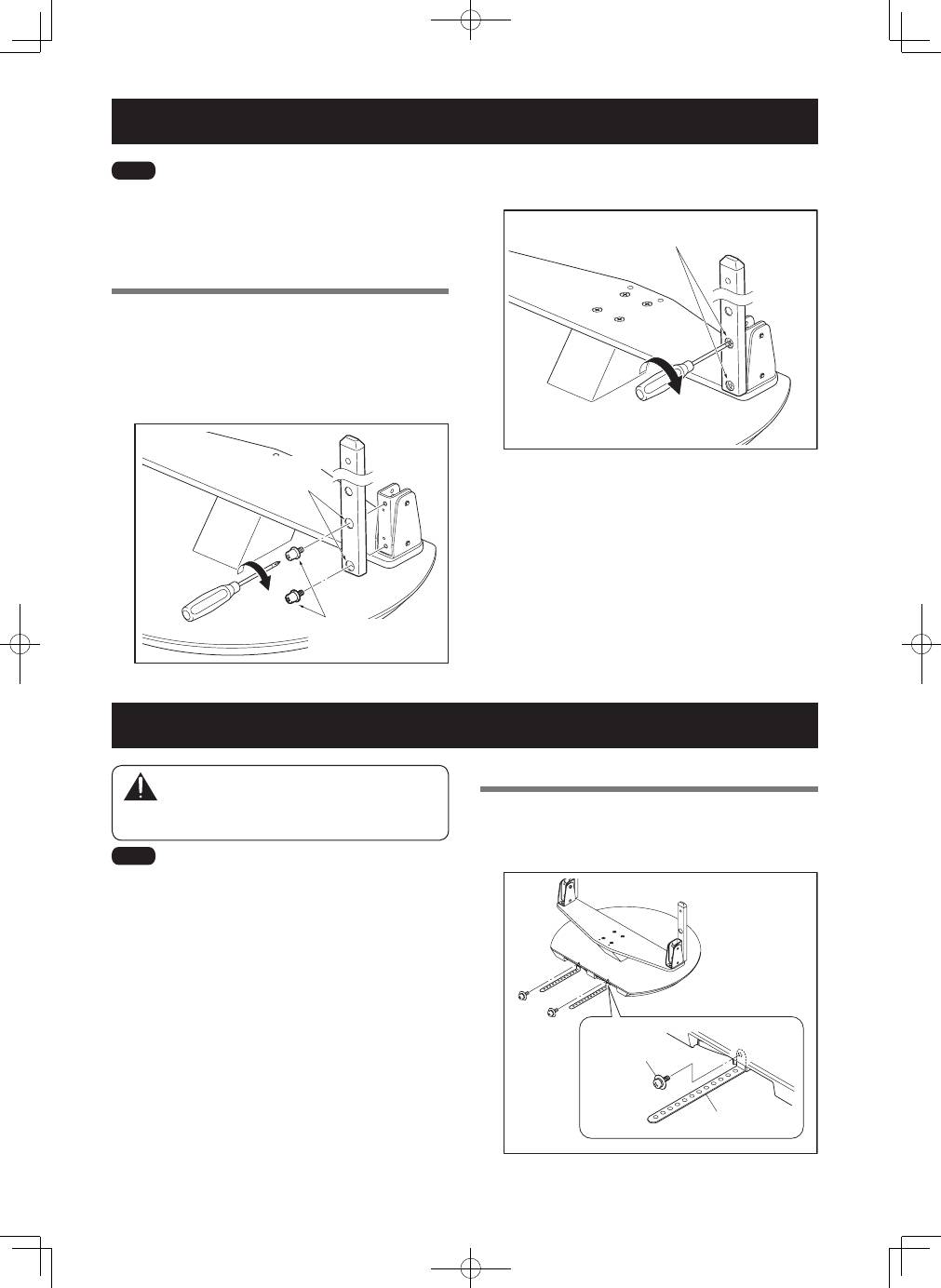

Attachment Method

1

Attach the fall-prevention straps to the stand

using attachment screws

4

.

Fix the screws with a Phillips screwdriver.

Screw

�

(M4 × 10 mm: black)

Fall-prevention strap

Assembling the Stand

 œÌi

•  Always assemble it on a flat table etc.

•  Insert the screws in the holes vertically and tighten them

securely.

•  When doing this, do not take off your hand from the support

column until it is fixed firmly.

Assembly Procedure

1

  Secure the support column to the stand

with

the Installation screws

1

 (4 locations on the

left and right).

Using a Phillips screwdriver, first loosely attach the

top attachment screw, then loosely attach the bottom

attachment screw.

Screws

�

(M6 × 12 mm: black)

The larger holes

are on the front.

2

  Fully tighten the Installation screws (4 locations

on the left and right).

Fully tighten the attachment screws.

13

En

English

2

  Attaching the Pioneer display and television to

the stand.

Fit the stand’s support columns to the bottom of the

Pioneer display and television as indicated by the arrows,

then slowly insert them vertically. Be extremely careful

not to insert the support columns of the stand into any

part of the Pioneer display and television other than the

stand insertion slots. Note that doing so might damage

the Pioneer display and television panel or its ports or

result in the warping of the stand.

Line up the column

supports with the bottom

of the Pioneer display and

television as indicated in

the accompanying

diagram.

3

  Securing the Pioneer display and television

with Installation screws

2

.

Fix the screws with a Phillips screwdriver.

Screws

�

(M8 × 15 mm: black)

Attaching the Pioneer Display and Television

4

  Securing the Pioneer display and television

with Installation screws

3

.

Attach the Pioneer display and television at the points

marked with “T” using a Phillips screwdriver.

Screws

�

(M8 × 23 mm: black)

Caution

  There have been cases where unforeseen

accidents such as the equipment breaking or

falling over occurred because the stand was

installed with wrong screws.

5

  Finding the center of the rotation range of the

stand.

The state in which the fall-prevention straps attached to

the stand are at a right angle in relation to the Pioneer

display and television is the center of the angle of

rotation of the stand.

Pioneer display

and television

Table top stand

Fall-prevention strap

90°

If the fall-prevention straps lean toward the left in relation

to the Pioneer display and television, the rotation angle

of the stand can be adjusted to the center by turning the

display toward the left so that the fall-prevention straps

form a right angle in relation to the Pioneer display and

television.

Pioneer display

and television

Table top stand

Fall-prevention strap
