AEG DI7490-M: CHARACTERISTICS

CHARACTERISTICS

18

CHARACTERISTICS

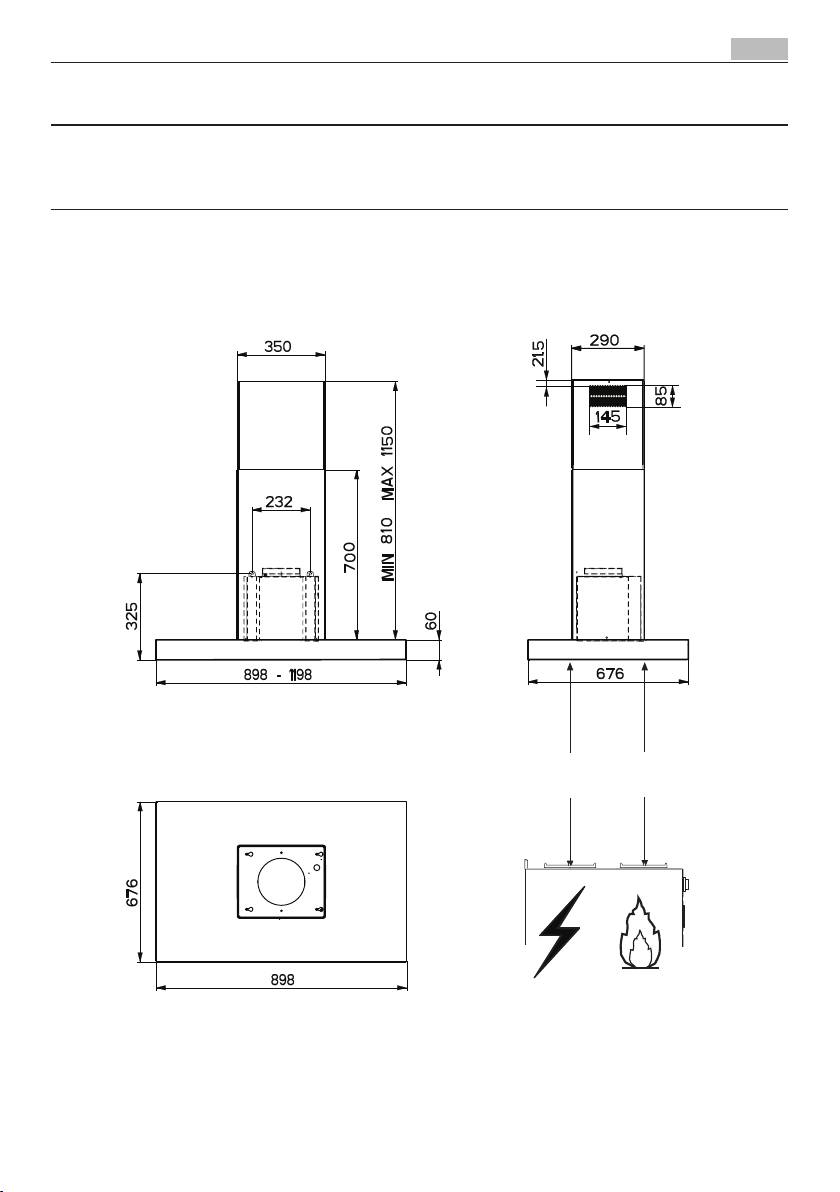

Dimensions

19

CHARACTERISTICS

Components

Ref. Q.ty Product Components

1 1 Hood Canopy complete with: Controls, Lights,

Filters

2 1 Telescopic chimney made up of:

2.1 1 Upper chimney

2.2 1 Lower chimney

7.1 1 Telescopic frame complete with Suction fan,

made up of:

7.1a 1 Upper frame

7.1b 1 Lower frame

9 1 Reductionflangeø150-120mm

10 1 Damperø150

14.1 2 Air Outlet Connector Extension

15 1 Air Outlet Connector

24 1 Connection box

25 2 Hose clamps (not included)

Ref. Q.ty Installation Components

7.3 1 Air Outlet Connector fixing bracket

11 4 WallPlugsø10

12c 8 Screws 2,9 x 6,5

12e 4 Screws 2,9 x 9,5

12f 2 ScrewsM4x80

12g 4 ScrewsM6x80

12h 4 Screws5,2x70

12q 4 Screws 3,5 x 9,5

21 1 Drilling template

22 8 6.4 mm int. dia washers

23 4 M6 nuts

Q.ty Documentation

1 Instruction Manual
