• Pioneer is not responsible for any accidents or damage that

result from improper installation, misuse or modification of

the product, or natural disasters.

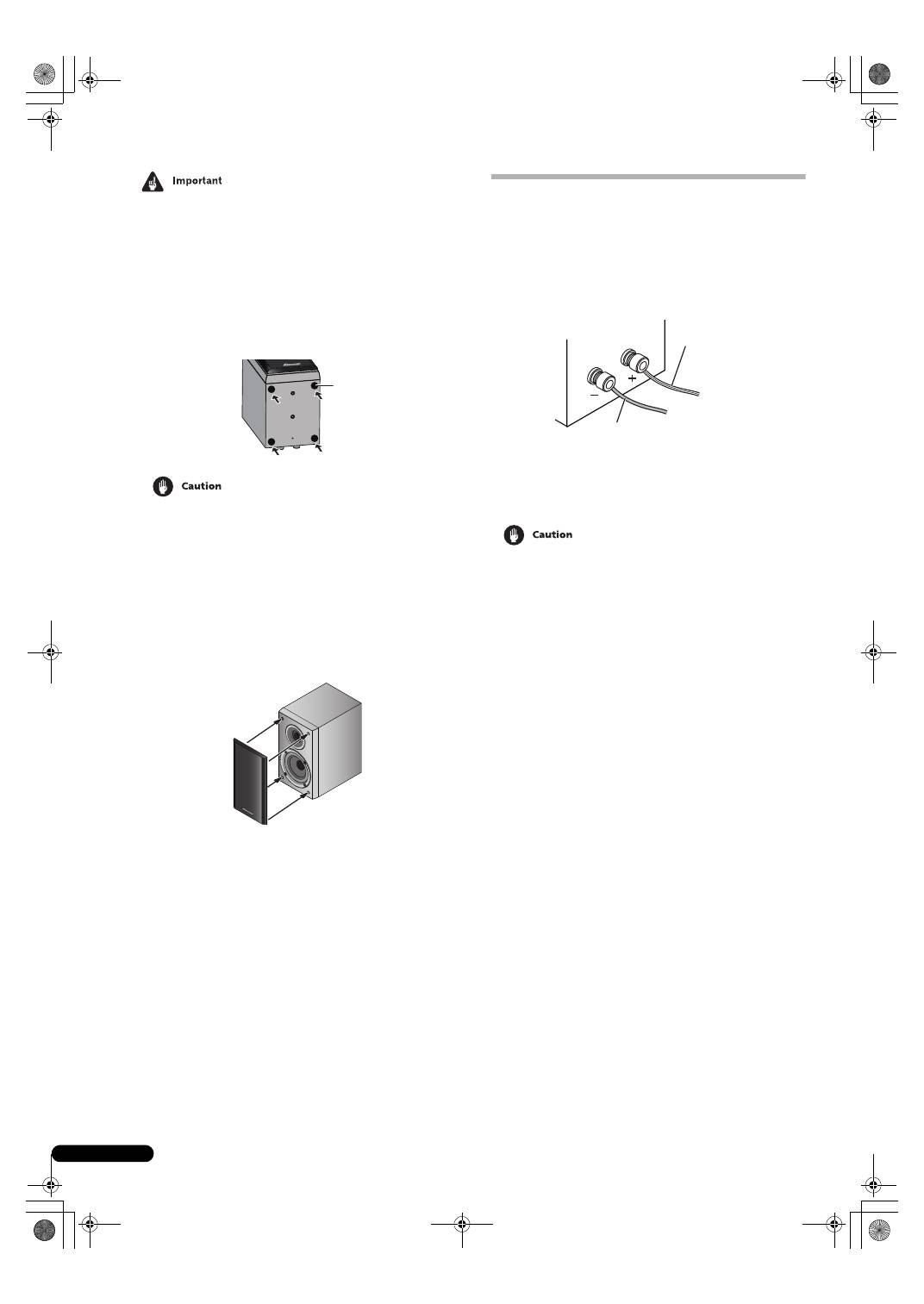

Applying non skid pads

The use of non skid pads is recommended depending on the

installation location. Apply the pads to the four corners of the side

of the speaker which will be on the bottom. Note that depending

on the location, the pads may not provide fully sufficient traction

to prevent slipping, so care should be taken not to install the

speakers in conditions where they may be prone to side.

• When applying non skid pads, laid down the speaker on the

soft cloth etc. to avoid working with unstable position.

Attaching and removing the grille

The front grille net can be removed if desired. To remove, follow

these instructions:

1

To remove the grille, place your hands at the bottom of

the grille and pull gently outward. Then do the same at the

top to detach.

2

To reattach the grille, align the four holes on the grille’s

back with the pins on the speaker and press in firmly.

Connections

1

Switch off the power of your amplifier.

2

Connect the speaker cables to the input terminals on the

back of the speaker. For input terminal polarity, red is

positive (+) and black is negative (–).

Loosen the knobs on the input terminals and insert the speaker

cable wires into each of the terminal post holes, then tighten the

knobs.

3

Connect the other ends of the cables to the amplifier’s

speaker output terminals (for details, refer to your

amplifier’s instruction manual).

• You can also connect the speaker’s terminals with a banana

plug.

• When using a banana plug, first remove the caps covering the

speaker terminal.

• After connecting the plugs, pull lightly on the cables to make

sure that the ends of the cables are securely connected to the

terminals. Poor connections can create noise and

interruptions in the sound.

• If the cables’ wires happen to be pushed out of the terminals,

allowing the wires to come into contact with each other, it

places an excessive additional load on the amplifier. This may

cause the amplifier to stop functioning, and may even damage

the amplifier.

• When using a set of speakers connected to an amplifier, you

won’t be able to obtain the normal stereo effect if the polarity

(+, –) of one of the speakers (left or right) is reversed.

Non skid pad

Speaker cable with white

line

Connect to the stereo

amplifier's positive (+)

output terminal.

Speaker cable without line

Connect to the stereo amplifier's negative (

–

) output terminal.

CAUTION

These speaker terminals carry HAZARDOUS LIVE

voltage. To prevent the risk of electric shock when

connecting or disconnecting the speaker cables,

disconnect the power cord before touching any

uninsulated parts.
