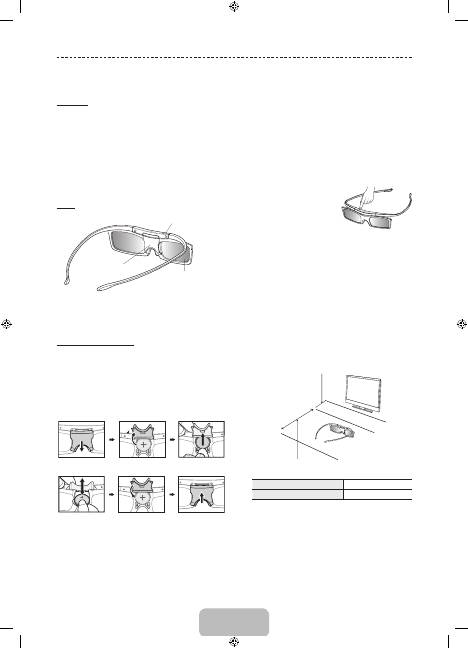

3D Basics

Features

Samsung's SSG-5100GB 3D glasses enable you to view

3D images on your 3D TV. The Samsung 3D glasses

communicate with Samsung 3D TVs via the 2.4GHz RF

band.

✎

The Samsung 3D glasses are only compatible with

Samsung D, E, and F series 3D TV's that were

released in 2011, 2012, and 2013. These 3D glasses

cannot be connected to other Bluetooth devices.

Parts

LED Indicator & Power Button

Liquid crystal shutter

Battery Cover

For details on how to attach the glasses' temples and

how to pair the glasses with the TV, refer to the separate

3D glasses manual.

Replacing the Battery

If the red LED blinks every two seconds continually,

replace the battery with a new one.

✎

Insert the "+" side of the battery into the side marked

with "+" in the battery compartment.

✎

To check the remaining battery capacity, refer to the

pairing section in this manual.

Pull the battery

cover downward

Open the battery

cover

Remove the

battery

Replace the battery

Push the battery

cover downward

Close the battery

cover

Pairing 3D Active Glasses

✎

What is Pairing? Pairing is the process of connecting

3D glasses and a 3D TV so that the two devices can

exchange data.

✎

Ensure your Samsung TV and 3D glasses are no

farther than 19.5 in (50 cm) apart from each other

while pairing is in progress.

•

Turning the glasses on

Press the power button

briefly. The green LED is

turned on for 3 seconds.

(Make sure that 3D is

activated on the TV before

using the 3D glasses.)

•

Turning the glasses off

Press the power button briefly. The red LED is turned

on for 3 seconds.

•

Performing the pairing process

Turn the TV on and let it power up completely. Press

and hold the Power button on the glasses. The green

and the red LEDs blink alternately for 2 seconds.

•

Operating range

Recommended pairing distance

50 cm

2~6m

Recommended viewing distance

Recommended viewing distance

2~6m (6.5 to 19.5 ft)

Recommended pairing distance

50 cm or less (19.5 in)

✎

Once the 3D glasses are paired, the remaining

battery capacity is displayed on the TV screen. (This

feature only applies to Samsung F series 3D TVs

and 3D glasses that have been available since 2013.)

✎

If you keep trying to pair the glasses and the TV, the

battery level will decrease significantly. However, the

battery level will recover to a certain degree in about

a minute.

3D Active Glasses

[PF8500-XH]BN68-04828G_01L16.indb   16

2013-03-16     7:05:27

English - 17

English

✎

The working distance depends on the existence

of obstacles (a person, metal, walls, etc.) between

the glasses and the TV and the strength of the

Bluetooth signal.

✎

Turn off the 3D glasses while they are not in use.

If you leave the 3D glasses on, the battery lifespan

decreases.

Pairing steps

1.

Turn on the TV, and then move the glasses within

19.5 inches of the TV.

2.

Press the power button on the 3D glasses briefly.

The 3D glasses will power on and pairing will start.

3.

The message “3D glasses are connected to TV.” will

be displayed on the TV screen when the pairing is

successfully completed.

•

If pairing fails, the 3D glasses will power off.

•

If the first attempt to pair fails, power the TV off

and on again and perform step 2.

•

How to pair again: Press the power button on

the 3D glasses for more than 1 second.

Pairing is needed again in the following

situations:

•

If the 3D glasses do not function, even when the

power button is pressed, especially with a 3D TV

after a repair.

•

If you want to play 3D content on another

Samsung 3D TV model that belongs to the D, E,

or F series released in 2011 through 2013. You

must pair the glasses with the other TV.

Watching 3D Video

Some 3D modes may not be available depending on the

format of the image source.

To watch in 3D, you must wear 3D Active Glasses and

turn the glasses on by pressing the power button.

1.

Go to the 3D screen. (


 >

3D

)

2.

Select the 3D Mode. The 3D Mode screen appears.

3.

Set the 3D Mode of the image you want to view.

Troubleshooting

If you encounter...

Try this...

My 3D glasses do not work.

Replace the battery.

The 3D glasses should be close to the TV. Make sure that the distance between the TV and your 3D

glasses is less than 19.5 feet (6m) in a straight line.

Check the 3D function settings of your TV.

The LED keeps blinking

The battery is dead. Replace the battery.

Specifications (Model Number: SSG-5100GB )

Optics

Shutters

Liquid crystal

Transmittance

36±2%

Recommended

operating distance

2 ~ 6m (6.5 to 19.5 ft)

Field Rate

120 fields/second

Weight

Glasses

21.5g/.76 oz. (including the battery: 24.0±0.5g/.85.±.018oz. )

Power

Glasses

One 3V lithium/manganese dioxide battery 3V(CR2025)

Power consumption

Glasses

0.85mA (Average)

Battery

Type

165mAh, 3.0V (CR2025)

Operating time

150 hours

Operating conditions

Operating temperature

50 °F ~ 104 °F (10°C ~ 40°C)

Custody temperature

-4 °F ~ 113 °F (-20°C ~ 45°C)

Product specifications may be changed without notice in order to enhance product performance.

✎

The continuous operating time may differ depending on the wireless communication environment and usage

conditions.

[ Recommendation ]- EU ONLY

Hereby, Samsung Electronics, declares that this 3D Active Glasses is in compliance with the

essential requirements and other relevant provisions of Directive 1999/5/EC.

This equipment may be operated in all EU countries.
