Инструкция к Samsung SNC-B2331-FRA-QG
SNC-B2331(P)
Network Camera
Quick Guide
imagine the possibilities
Thanks you for purchasing this Samsung product.
To receive a more complete service, please visit
our website
www.samsungsecurity.com
RoHS compliant
Our product complies with “The Restriction Of the use of certain Hazardous Substances in electrical
and electronic equipment”, and we do not use the 6 hazardous materials- Cadmium (Cd), Lead
+6
(Pb), Mercury (Hg), Hexavalent Chromium (Cr
), Poly Brominated Biphenyls (PBBs), Poly Brominated
Diphenyl Ethers (PBDEs)- in our products.
SNC-B2331-ENG-QG.indd 1 2009-08-20 오전 11:42:32
2

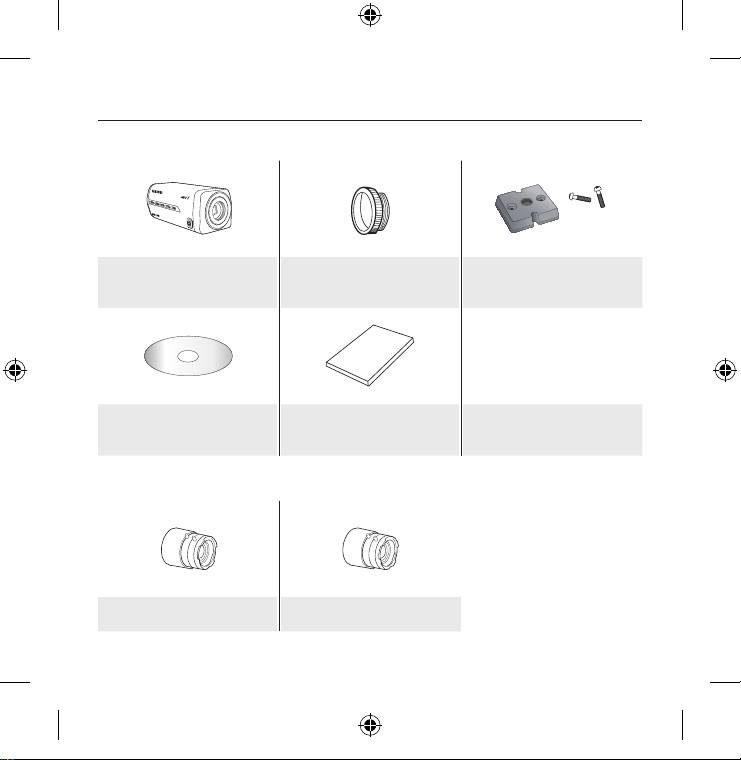

WHAT’S INCLUDED
Please check if your camera and accessories are all included in the product package.
Camera Holder (Mount)
Camera C Mount Adaptor
& Screws (2EA)
User Manual/
User Manual
IP INSTALLER CD
Lens Options
CS Lens C Lens
SNC-B2331-ENG-QG.indd 2 2009-08-20 오전 11:42:34
English
3
AT A GLANCE
Front Side
Item Description
Camera Holder
Used when you mount the camera onto the bracket by fixing the camera holder
(Mount) Holes
(mount) adaptor with the bracket.
Auto Iris Lens
Installed on the lens adaptor.
(Optional)
Auto Iris Lens
Used to supply power and output signal to control the iris of the lens.
Connector
Wipe out a dirty surface of the lens softly with a lens tissue or cloth to which you have applied
M
ethanol.
SNC-B2331-ENG-QG.indd 3 2009-08-20 오전 11:42:35
4
Rear Side
Item Description
Video Out Port Video signal output port connected to the monitor.
ON: The camera is turned on and connected to the network properly.
Blinking: During DDNS setup, or in case of setup failure, or in a state of
SYSTEM
unstable network connection
System, Power
OFF: When the system is rebooting, or turned off
Indicators
ON: While the power is on
POWER
OFF: If the power is off
Resets the camera settings to the default.
Reset Button
Press and hold it for about 3 seconds to turn off the system indicator and restart
the system.
SYSTEM POWER
VIDEO
RESET
1 2 3 4 5
NETWORK
1,2 : ALARM IN 1,2
ACT
LINK
AC 24V
3 : GND
GND
DC 12V
4,5 : ALARM OUT 1,2
SNC-B2331-ENG-QG.indd 4 2009-08-20 오전 11:42:35
English
5
Power Port Used to plug the power cable.
Network Port Used to connect to the Network cable.
ALARM
Used to connect the alarm input signal.
IN 1,2
I/O Port
GND Used for earth-grounding.
ALARM
Used to connect the alarm output signal.
OUT 1,2
MOUNTING THE LENS
Disconnect the power before proceeding.
Mounting the CS lens
Turn the optional CS lens clockwise to insert it.
CS Lens
SNC-B2331-ENG-QG.indd 5 2009-08-20 오전 11:42:36
6
Mounting the C lens
Turn the C mount adaptor clockwise to insert it and do the same with the C lens.
C Lens
Connecting the Auto Iris Lens connector
Insert the lens connector into the corresponding hole of the camera.
Focusing
Turn the lens left or right to control the zoom and focus the lens so that you can view a clear,
sharp object.
SNC-B2331-ENG-QG.indd 6 2009-08-20 오전 11:42:36
English
7
CONNECTING WITH OTHER DEVICE
Monitor
Power
Network
Connecting to the monitor
Connect the [VIDEO] port of the camera to the video input port of the monitor.
Network Connection
Connect the Network cable to the local network or to the Internet.
SYSTEM POWER
VIDEO
RESET
1 2 3 4 5
NETWORK
1,2 : ALARM IN 1,2
ACT
LINK
AC 24V
3 : GND
4,5 : ALARM OUT 1,2
GND
DC 12V
SNC-B2331-ENG-QG.indd 7 2009-08-20 오전 11:42:37
8
Power Supply
Use the screwdriver to connect each line of the power cable to the corresponding port of the
camera.
Be careful not to reverse the polarity when you connect the power cable.
J
You can also use a router featuring PoE (Power over Ethernet) to supply power to the camera.
STATIC IP SETUP
Manual Network Setup
Run <IP Installer.exe> to display the camera search list.
At the initial startup, both [Auto Set] and [Manual Set] will be grayed out.
For cameras found with the IPv6 setting, these buttons will be grayed out as the cameras do not
M
support this function.
1.
Select a camera in the search list.
Find the MAC (Ethernet) address labeled on
the rear of the camera.
Both the [Auto Set] and [Manual Set]
buttons will be activated.
2.
Click [Manual Set].
The MANUAL SET dialog appears.
The default values of <IP Address>,
<Subnet Mask>, <Gateway>, and <HTTP Port> of the camera will be displayed.
The default <PASSWORD> is 4321.
3.
In the <ADDRESS> pane, provide the necessary information.
MAC (Ethernet) Address : The MAC (Ethernet) address of the applicable camera will be
set automatically so you don't need to input it manually.
SNC-B2331-ENG-QG.indd 8 2009-08-20 오전 11:42:37
English
9
4.
In the <PORT> pane, provide necessary
information.
HTTP Port : Used to access the camera
using the Internet browser, defaulted to
80. Use the spin button to change the
HTTP Port value. The start value of the
port is 80, and increases or decreases
by 6 like 10000, 10006, 10012.
Device Port : Used to control the video signal transfer, defaulted to 60001(TCP).
TCP Port : Video signal transfer port using TCP protocols, defaulted to 60002(TCP).
UDP Port : Video signal transfer port using the UDP Unicast method, defaulted to
60003(UDP).
Upload Port : Used to upgrade the software fi rmware, defaulted to 60004(TCP).
Multicast Port :
Video signal transfer port using the UDP Multicast method, defaulted
to 60005(UDP).
5.
Enter the password.
This is the login password for the "root" user who accesses the camera.
The default password is "4321".
6.
Click [OK].
Manual network setup will be completed.
7.
When the manual setup including <IP> is completed, the camera will restart.
SNC-B2331-ENG-QG.indd 9 2009-08-20 오전 11:42:38
10
Auto Network Setup
Run <IP Installer.exe> to display the camera search list.
At the initial startup, both [Auto Set] and [Manual Set] will be grayed out.
For cameras found with the IPv6 setting, these buttons will be grayed out as the cameras do not
M
support this function.
1.
Select a camera in the search list.
Find the MAC (Ethernet) address labeled on
the rear of the camera.
Both the [Auto Set] and [Manual Set]
buttons will be activated.
2.
Click [Auto Set].
The AUTO SET dialog appears.
The <IP Address>, <Subnet Mask>, and
<Gateway> will be set automatically.
3.
Enter the password.
This is the login password for the "root"
user who accesses the camera.
The default password is "4321".
4.
Click [OK].
Auto network setup will be completed.
5.
The camera will automatically complete
the network setting and restart.
SNC-B2331-ENG-QG.indd 10 2009-08-20 오전 11:42:38
English
11
USING THE LIVE SCREEN
Item Description
Setup Move to the Setup screen.
About You can check the firmware version, serial number and manufacturer information.
Reset Alarm
Resets the Alarm icon. (the Alarm and Motion icons disappear.)
Capture Saves the snapshot as an image file in the .jpeg or .bmp format.
Print Prints out the current image.
SNC-B2331-ENG-QG.indd 11 2009-08-20 오전 11:42:39
Record Saves the snapshot as a video file in the .avi format.
Full Screen Displays the Live screen in full screen.
You can set the video format(MJPEG, H.264/MPEG4) for video files.
Video format
The context menu will differ, depending on the codec specified in <Select H.264 &
MPEG4 Video> of the active viewer.
On : Activates the specified Alarm Out port.
Alarm output
Off : Deactivates the specified Alarm Out port.
Pulse : Activates the Alarm Out port as much time as specified before deactivating it.
Camera OSD
Used to retrieve and customize the Camera Setup menu.
Viewer Screen Displays the Live video on the screen.
12
SNC-B2331-ENG-QG.indd 12 2009-08-20 오전 11:42:39
