Karcher ICC 1 D Adv: Shutdown Maintenance and care

English

 27

Î

For some bulk waste parts you may

have to briefly pull the lever totally to-

wards the rear.

Î

Lock in the lever at pos. 1 for medium-

size waste (such as leaves).

Î

Lock in the lever at pos. 2 for big size

waste (such as cans).

Note

Sand and stone chippings will not get

sucked in when the bulk waste flap is

raised.

To avoid deposits in the suction channel

and durst formation, the water supply to the

brush nozzles must be on.

Î

Switch on the spray water.

Î

Regulate the water quantity.

Switch off the water supply to the brush

nozzles if there is practically no dust forma-

tion.

Î

Switch-off spray water.



Danger

Risk of injury! While reversing, ensure that

there is nobody in the way, ask them to

move if somebody is around.



Danger

Danger of tipping. Place the machine on an

even surface during emptying.



Danger

Danger of tipping. Maintain the required

safety distance while emptying on dumps or

ramps.



Danger

Risk of injury! Switch off the suction blower

before emptying the waste container.



Danger

Risk of injury! When emptying the waste

container, care should be taken to ensure

that no persons or animals are within its

swivelling range.



Danger

Danger of crushing. Never reach into the

rod assembly for the drainage mechanism.

Î

Switch off suction blower.

Î

Raise the suction opening and the side-

brushes.

Î

Lock parking brake.

Î

Raise waste container.

Note

There is a warning sound signal when the

waste container is raised.

Î

Lower waste container.

Note

There is a warning sound signal when the

waste container is lowered.

Note

You need the attachment set 2.639-500 to

manually empty the waste container.

Î

During pumping, press the control lever

for "Raise/lower waste container" in

"Raise" position and keep it depressed.

Î

During pumping, press the control lever

for "Raise/lower waste container" in

"Lower" position and keep it depressed.

Î

Switch off suction blower.

Î

Switch off the spray water for side-

brushes and suction opening.

Î

Raise the suction opening and the side-

brushes.

Î

Lock parking brake.

Î

Push in the engine speed adjustment

completely,

Î

Turn ignition key to "0" and remove it.

몇

Warning

The appliance must be secured against

slippage during transport.

Î

Turn ignition key to "0" and remove it.

Î

Lock parking brake.

Î

Secure the appliance at the transport

eyelets using tension belts, ropes or

chains.

Î

Secure the wheels of the machine with

wheel chocks.

If the sweeper is going to be out of service

for a longer time period, observe the follow-

ing points:

Î

Park the sweeper on an even surface.

Î

Raise the side-brushes to prevent the

bristles from being damaged.

Î

Turn ignition key to "0" and remove it.

Î

Secure sweeper to prevent it rolling

away, lock parking brake.

Î

Fill fuel tank and close fuel cock.

Î

Change the engine oil and the oil filter.

Î

Drain off the cooling water if frost is ex-

pected and check whether there is ade-

quate anti-frosting agent.

Î

Empty the water tank and the pipe sys-

tem.

Î

Disconnect battery.

Î

Charge battery approx. every 2 months.

Î

Clean the inside and outside of the

sweeper.

Î

Park the machine in a safe and dry

place.

Î

First switch off the appliance and re-

move the ignition key before performing

any cleaning or maintenance tasks on

the appliance, replacing parts or switch-

ing over to another function.

Î

Pull out the battery plug or clamp the

battery while working on the electrical

unit.

– Maintenance work may only be carried

out by approved customer service out-

lets or experts in this field who are famil-

iar with the respective safety

regulations.

– Mobile appliances used for commercial

purposes aer subject to safety inspec-

tions according to VDE 0701.

Sweeping dry floors

Sweeping damp or wet floors

Emptying waste container

Emptying the waste container man-

ually (accessory)

Raise waste container

Lower waste container

Turn off the appliance.

Transport

Shutdown Maintenance and care

General notes

28

English



Danger

Risk of injury! Always lower the safety sup-

ports and secure with splint when the waste

container is raised.

Î

Raise waste container.

Î

Pull out the securing splint on the waste

container.

Î

Release the left and right safety sup-

ports and secure with splint.

Î

Park the sweeper on an even surface.

Î

Raise the suction opening and the side-

brushes.

Î

Lock parking brake.

Î

Raise waste container.

Î

Switch off engine.

Î

Turn ignition key to "0" and remove it.



Danger

Risk of injury! Wear safety goggles.

The appliance must be cleaned daily after

finishing work.

Note

Do not use aggressive cleaning agents.

Î

Pull out the securing splint on the waste

container.

Î

Release the left and right safety sup-

ports and secure with splint.

Î

Completely open the container lid.

Î

Pull out the securing splint.

Î

Hang out the supports of the container

lid at the frame and hang them in at the

waste container.

Î

Secure with securing splint.

Î

Clean the waste container with bulk

waste scraper.

Î

Clean the waste container using Kärch-

er high-pressure cleaner.

Î

Clean the sealing surfaces of the blower

channel using Kärcher high-pressure

cleaner.

Î

Clean the suction opening using Kärch-

er high-pressure cleaner.



Danger

Risk of injury! The blower continues to run

for a few seconds even after switching off

the motor. Open the maintenance flap only

after 30 seconds after switching off or after

the blower has come to a stand-still.

Note

The blower is automatically switched off

and the brakes are applied i the waste con-

tainer is raised when the blower is on or the

seat flap is open.

Î

Clean the blower channel below the

seat using Kärcher high-pressure clean-

er.

Î

Remove the covering grid.

– Clean the cooler only when the motor

has been switched off.

– Use a low-pressure water jet or com-

pressed air to clean the cooler from the

inside towards the outside.

– Do not clean using a high-pressure

cleaner.

General notes on safety

Please do not release engine

oil, fuel oil, diesel and petrol

into the environment Protect

the ground and dispose of

used oil in an environmentally-

clean manner.

Cleaning

Cleaning the appliance

Cleaning the blower channel

Clean the cooler

English

 29

Î

Unscrew the motor cover.

Î

Opent he flap and allow water to circu-

late in the blower housing.

Note

The operating meter of the motor shows the

timing of the maintenance intervals.

Daily maintenance:

Î

Check engine oil level.

Î

Check cooler water level.

Î

Check tyre pressure.

Î

Check the side-brushes and blower for

wear and wrapped belts.

Î

Clean the cooler.

Weekly maintenance:

Î

Check the hydraulic oil level.

Î

Clean water filter (frequently depending

on the water quality).

Maintenance to be carried out every 100

operating hours or every year:

Î

Change engine oil.

Î

Change the motor oil filter.

Î

Lubricte the bearings of the front axle.

Î

Lubricte the bearings of the mechanism

for raising the side-brushes.

Î

Check V-Belt and circular belt for wear

and tear.

Î

Clean the fuel filter (only diesel appli-

ances); replace them if required (diesel/

petrol appliance).

Î

Check fuel hose and clamps.

Î

Clean air filter.

Î

Check dirt indicator of hydraulic filter.

Maintenance to be carried out every 200

operating hours or every six months:

Î

Check cooler hoses and clamps.

Note

For description, see section on Mainte-

nance work.

Note

Where maintenance is carried out by the

customer, all service and maintenance

work must be undertaken by a qualified

specialist. If required, a specialised Archer

dealer may be contacted at any time.

Maintenance to be carried out after 20 op-

erating hours:

Î

Carry out initial inspection.

– Maintenance to be carried out every

400 operating hours or every six months

– Maintenance to be carried out every

1200 operating hours

Note

In order to safeguard warranty claims, all

service and maintenance work during the

warranty period must be carried out by the

authorised Kärcher Customer Service in

accordance with the maintenance booklet.

Preparation:

Î

Park the sweeper on an even surface.

Î

Turn ignition key to "0" and remove it.

Î

Lock parking brake.



Danger

When carrying out repairs on public high-

ways, wear warning clothing when working

close to passing traffic.

Please observe the following warning notes

when handling batteries:



Danger

Risk of explosion! Do not put tools or similar

on the battery, i.e. on the terminal poles and

cell connectors.



Danger

Risk of injury! Ensure that wounds never

come into contact with lead. Always clean

your hands after having worked with batter-

ies.



Danger

Risk of fire and explosion!

–

Smoking and naked flames are strictly

prohibited.

–

Rooms where batteries are charged

must have good ventilation because

highly explosive gas is emitted during

charging.



Danger

Danger of causticization!

–

Rinse thoroughly with lots of clear water

if acid gets into the eye or comes in con-

tact with the skin.

–

Then consult a doctor immediately.

–

Wash off the acid If it comes in contact

with the clothes.

Î

Unscrew rear cover.

Î

Insert battery in battery mount.

Î

Screw on mounts on battery base.

Î

Connect pole terminal (red cable) to

positive pole (+).

Î

Connect pole terminal to negative pole

(-).

Note

Before removing the battery, make sure

that the negative pole lead is disconnected.

Check that the battery pole and pole termi-

nals are adequately protected with pole

grease.



Danger

Risk of injury! Comply with safety regula-

tions on the handling of batteries. Observe

the directions provided by the manufacturer

of the charger.

Let water run into the blower housing.

Maintenance intervals

Maintenance by the customer

Maintenance by Customer Service

Maintenance Works

Safety notes regarding the batteries

Observe the directions on the

battery, in the instructions for

use and in the vehicle operat-

ing instructions!

Wear an eye shield!

Keep away children from acid

and batteries!

Risk of explosion!

Fire, sparks, open light, and

smoking not allowed!

Danger of causticization!

First aid!

Warning note!

Disposal!

Do not throw the battery in the

dustbin!

Installing and connecting the battery

Charging battery

30

English



Danger

Charge the battery only with an appropriate

charger.

Î

Connect positive terminal cable from

the charger to the positive pole connec-

tion on the battery.

Î

Connect negative terminal cable from

the charger to the negative pole con-

nection on the battery.

Î

Plug in mains connector and switch on

charger.

Î

Charge battery using lowest possible

level of charging current.

Note

When the battery is charged, first remove

the charger from the mains and then dis-

connect it from the battery.



Danger

Risk of burns!

Î

Allow engine to cool down.

Î

Wait for at least 5 minutes after switch-

ing off the engine before checking the

engine oil fill level.

Î

Raise waste container.

Î

Pull out the securing splint on the waste

container.

Î

Release the left and right safety sup-

ports and secure with splint.

Î

Unscrew the motor cover.

Î

Pull out oil dipstick.

Î

Wipe off oil dipstick and insert.

Î

Pull out oil dipstick.

Î

Read the value of the oil level.

Î

Insert the oil dip again.

– The oil level must lie between “MIN“ and

“MAX“ marking.

– Add motor oil if the oil level is below the

"MIN" marking.

– Do not fill oil above the "MAX" marking.

Î

Loosen the screw cap of the oil filling

opening.

Î

Fill in motor oil.

Oil grade: see Technical Data

Î

Close oil filler opening.

Î

Wait at least 5 minutes.

Î

Check engine oil level.



Danger

Risk of burns due to hot oil!

Î

Ready a catch bin for appr. 4 litre oil.

Î

Allow engine to cool down.

Î

Unscrew oil drain plug.

Î

Loosen the screw cap of the oil filling

opening.

Î

Drain off oil.

Î

Unscrew the right side-panelling.

Î

Unscrew the oil filter.

Î

Clean the intake and sealing areas.

Î

Coat the washer of the new oil filter with

oil before fitting it.

Î

Fit in the new oil filter and tighten it by

hand.

Î

Screw in the oil drain screw along with

the new washer.

Note

Tighten the oil drain screw using a torque

wrench to 25 Nm.

Î

Fill in motor oil.

Oil grade: see Technical Data

Î

Close oil filler opening.

Î

Let the motor run for approx. 10 sec-

onds.

Î

Check engine oil level.

Î

Unscrew the left side-panelling.

Î

Lock parking brake.

Î

Engine speed adjustment - pull out 1/3

Î

Start the motor.

Î

Check dirt indicator of hydraulic oil filter

when the oil is warm.

Î

Replace filter element if the indicator

has reached the red mark.

Î

Check hydraulic oil level in the looking

glass.

– The oil level must lie between “MIN“ and

“MAX“ marking.

– Add hydraulic oil if the oil level is below

the "MIN" marking.

Î

Clean the filling area.

Î

Loosen the screw cap of the oil filling

opening.

Î

Pull out the oil filter along with the oil fil-

ter housing.

Check engine oil level and top up, if re-

quired

Change the motor oil and the oil filter.

Check dirt indicator of hydraulic filter.

Check hydraulic oil level and refill hy-

draulic oil

English

 31

Î

Remove the oil filter from the oil filter

housing.

Î

Replace oil filter if required.

Î

Refill hydraulic oil.

Oil grade: see Technical Data

Î

Check all hydraulic hoses and connec-

tions and ensure that they are leak-

proof.

Only Kärcher Customer Service is author-

ised to carry out maintenance tasks on the

hydraulic unit.



Danger

Danger of scalding by boiling water! Let the

cooler cool down for at least 20 minutes.

Î

Raise waste container.

Î

Pull out the securing splint on the waste

container.

Î

Release the left and right safety sup-

ports and secure with splint.

Î

Fill in cold water in the cooling water

compensation tank.

– If the motor is cold: Cooling water status

above the lower marking.

– If the motor is warm: Cooling water sta-

tus below the upper marking.

– The percentage of anti-frost agent in the

cooling water should not be more than

50%.



Danger

Risk of explosion!

–

Do not carry out maintenance tasks in

closed rooms.

–

Smoking and naked flames are strictly

prohibited.

Î

Switch off engine.

Î

Raise waste container.

Î

Pull out the securing splint on the waste

container.

Î

Release the left and right safety sup-

ports and secure with splint.

Î

Unscrew the motor cover.

„

Only diesel appliance

Î

Close the fuel supply.

Î

Unscrew the fuel filter.

Î

Loosen covering nut and remove fuel fil-

ter along with the contents.

Î

Clean or replace fuel filter.

Î

Replace washer.

Î

Clean fuel filter casing.

Î

Replace washer.

Î

Tighten covering nut firmly.

Î

Fit the fuel filter again.

„

Only petrol device

Î

Close the fuel supply.

Î

Loosen the hose clips at the connection

nozzle of the fuel filter.

Î

Remove the fuel filter.

Î

Install a new fuel filter (check direction

of flow).

Î

Insert the new fuel filter in the connec-

tion hoses and fasten the hose clips.

General testing:

Î

Check fuel tubes and clamps for dam-

ages and make sure they are leak-

proof.

Î

Open the fuel supply.

Î

Deaerate the fuel system (only diesel

appliance):

Î

Raise waste container.

Î

Pull out the securing splint on the waste

container.

Î

Release the left and right safety sup-

ports and secure with splint.

Î

Unscrew the motor cover.

Î

Loosen the deaeration screws 1 and 2

by approx. 2 rotations.

Î

Keep a suitable catch bin ready.

Check hydraulic unit

Check water cooler and maintain it.

Clean and replace fuel filter

Deaerate the fuel system (only diesel ap-

pliance)

32

English

Î

Start engine until fuel free of air bubbles

is released.

Î

Tighten the deaeration screws.

Î

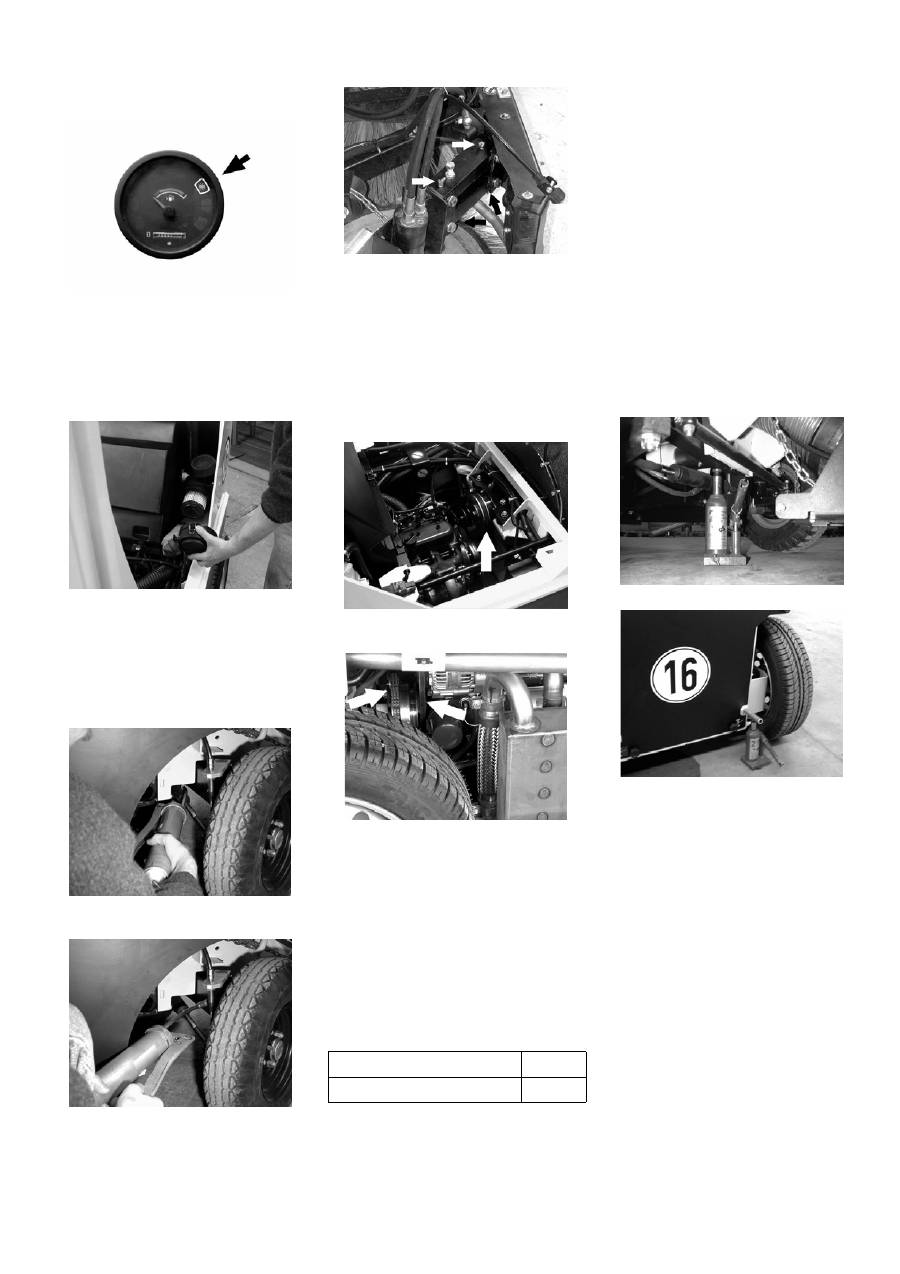

The air filter is to be cleaned or replaced

when the red air filter indicator glow.

Î

Raise waste container.

Î

Pull out the securing splint on the waste

container.

Î

Release the left and right safety sup-

ports and secure with splint.

Î

Loosen the clamps of the closing lid.

Î

Remove covering lid.

Î

Remove and clean the filter cartridge.

Î

Insert new filter cartridge, if required.

Î

Clean the screw cap.

Î

Replace the screw cap and clamp it.

Î

Grease the lubricating nipple in the cen-

tre of the front axle.

Î

Grease the right lubrication nipples of

the front axle.

Î

Grease the left lubrication nipples of the

front axle.

Î

Grease both the lubrication nipples on

the top and at the bottom of the mecha-

nism to raise the side-brushes.

Î

Raise waste container.

Î

Pull out the securing splint on the waste

container.

Î

Release the left and right safety sup-

ports and secure with splint.

Î

Unscrew the motor cover.

Î

Check the V-Belt of the bloweer system

for damage and wear and tear.

Î

Check the V-Belt drive of the hydraulic

pump and the light machine for damage

and wear and tear.

Note

The V-Belt is tightened with the help of a

spring.

Î

Park the sweeper on an even surface.

Î

Connect air pressure testing device to

tyre valve.

Î

Check air pressure and adjust if re-

quired.



Danger

When carrying out repairs on public high-

ways, wear warning clothing when working

close to passing traffic.



Danger

Risk of injury!

Î

Park the sweeper on an even surface.

Î

Remove ignition key.

Î

Check stability of ground. Also secure

the machine with wheel chock(s) to pre-

vent it rolling away.

Î

Lock parking brake.

Check tyres

Î

Check tyre contact face for foreign ob-

jects.

Î

Remove objects found.

Î

Use suitable, commercially available

materials to carry out tyre repairs.

Note

Observe the manufacturer's recommenda-

tions. The journey may be resumed provid-

ing that the directions supplied by the

product manufacturer have been observed.

The tyre/wheel change should nonetheless

be carried out as soon as possible.

Intake point for the jack (front wheels)

Intake point for the jack (rear wheels)

Î

Insert the steel rod with 20 mm diameter

in the prescribed hole.

Î

Position vehicle jack at the appropriate

mounting point for the front or rear

wheel.

Î

Loosen wheel nuts.

Î

Raise machine using vehicle jack.

Î

Remove wheel nuts.

Î

Remove wheel.

Î

Mount spare wheel.

Î

Fix the wheel nuts.

Î

Lower machine using vehicle jack.

Î

Tighten wheel nuts.

Note

Follow the symbol sticker (jack) at the re-

spective wheel changing point.

Note

Use a suitable commercially available vehi-

cle jack.

Î

Check tyre pressure.

Î

The side-brushes lift up.

Cleaning and replacing the fuel filter

Lubricating the front axle

Lubricte the raising mechanism of the

side-brushes

Checking the V-Belt

Check the tyre pressure

Air pressure, front

2.9 bar

Air pressure, rear

2.9 bar

Replacing wheel

Check and adjust sweeping track of the

side-brush

English

 33

Î

Drive sweeper on to a smooth, even

surface covered with a visible layer of

dust or chalk.

Î

Lower side-brushes and allow them to

briefly rotate.

Î

The side-brushes lift up.

Î

Drive machine backwards.

Î

Check sweeping mirror.

The width of the sweeping track should lie

between 40-50 mm.

Adjusting the sweeping track:

Î

Adjust the sweeping track width by ad-

justing the stopper.

– Turning the screw in clock-wise direc-

tion: Sweeping track becomes smaller

– Turn the screw in anti-clockwise direc-

tion: Sweeping track becomes bigger

Î

Check sweeping mirror.

Î

Lock parking brake.

Î

The side-brushes lift up.

Î

Loosen hand nuts.

Î

Remove the wiper blade.

Î

Fix in the new wiper blade.

Î

Unscrew the container lid.

Î

Fill up the water tank:

Note

Do not insert the water hose to fill the water

tank (avoids water getting sucked back in).

Water level indicator for the water tank

Î

Unscrew rear cover.

Î

Close locking tap.

Î

Loosen the union joint.

Î

Open locking tap.

Note

Ensure that the water flowing out does not

cause any damage.

Î

Unscrew rear cover.

Î

Close locking tap.

Î

Loosen the union joint.

Î

Unscrew the water filter casing.

Î

Clean or replace the water filter.

Î

Clean the water filter casing.

Î

Check rubber washers.

Î

Unscrew the covering nut.

Î

Pull out the spray nozzle.

Î

Remove washer ring.

Î

Clean the spray nozzle.

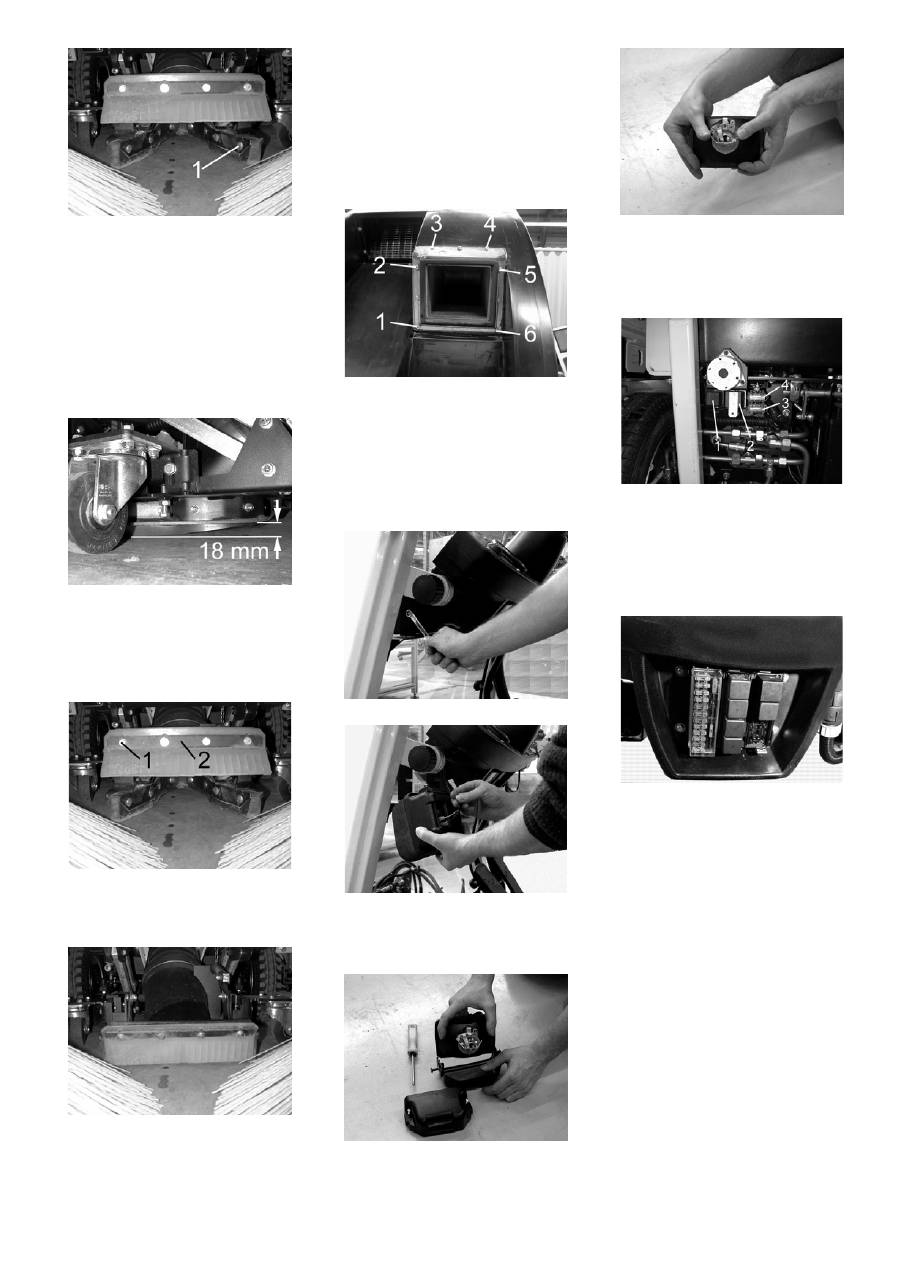

1 Union joint

2 Spray nozzle

3 Washer ring

Î

Drain off the suction opening.

Î

Loosen the fastening screws on the

sides of the rollers.

Î

Adjust the rollers using the adjustment

screw in such a way that the side-strips

touch the floor at the front and have a

clearance of 18 mm at the rear.

Î

Tighten the fastening screws of the roll-

ers.

Î

Raise suction opening.

Note

You need to replace the rollers if they can-

not be lowered up to the floor.

Î

Drain off the suction opening.

Replacing side brush

Filling up the water tank

Emptying the water tank

Cleaning and replacing the water filter

Cleaning the spray nozzles on the side-

brushes

Adjust suction opening

Replace sealing strip of suction opening

34

English

Î

Raise the suction opening by adjusting

the rollers.

Î

Remove the fastening screws (1) of the

sealing strip.

Î

Remove the stabilising plate.

Î

Insert the new sealing strip and fasten it

with screws along with the stabilising

plate.

Note

The sealing strip must be at the top

throughout the length of the intake.

Î

Adjust suction opening.

– At the rear of the suction opening, the

sealing strip must have a ground clear-

ance of 18 mm.

Adjusting the sealing strip:

Î

Drain off the suction opening.

Î

Loosen the fastening screws (1) of the

sealing strip.

Î

Adjust the sealing strip in such a way

that it touches the floor when the bulk

waste flap is closed.

Î

Fasten the sealing strip.

Replacing the sealing strip:

Î

Remove the fastening screws (1) of the

sealing strip.

Î

Remove the stabilising plate (2).

Î

Insert the new sealing strip and fasten it

with screws along with the stabilising

plate.

Î

Adjust the sealing strip.

Î

Raise waste container.

Î

Remove the fastening screws (1)  - (6)

of the holder plate.

Î

Remove holder plate and washer.

Î

Clean the sealing area.

Î

Fasten the new washer using the holder

plate.

Î

Unscrew the head lamps.

Î

Take out the head lamps and pull out

the plug.

Note

Note the positions of the plugs.

Î

Dismantle the head lamps.

Î

Dismantle the head lamp casing and

hold it horizontally because the lamp

unit is not fastened.

Î

Unlock the bracked and take out the

bulb.

Î

Insert new bulb.

Î

Reinstall in reverse sequence.

Fuses/ relays at the rear of the vehicle

1 Electrical ventilator relay

2 Pre-heating relay (only diesel applianc-

es)

3 Fuse for electrical ventilator

4 Fuse for ignition coil and preliminary

heating (only diesel appliances)

Fuse box below the steering wheel in the

fixtures panel

Î

Replace defective fuses.

Note

Only use fuses with identical safety ratings.

Adjust / replace sealing strip of bulk

waste flap

Changing the washer of the waste con-

tainer

Changing the headlight bulb

Replacing fuses
