Karcher ICC 1 D Adv: Operating and Functional Elements

English

 23

1 Steering wheel

2 Operator console

3 Lights

4 Right side brush

5 Left side brush

6 Bulk waste flap

7 Driver seat

8 Lever for seat adjustment

9 Unlocking the back-rest

10 Waste container

11 Fuel tank

12 Wiper

13 Right exterior mirror

14 Left exterior mirror

15 Water cooler

16 Fuse box driver cabin

17 Transport eyelet, front

18 Transport eyelet, rear

19 Side panel, right

20 Side panel, left

21 Rear cover

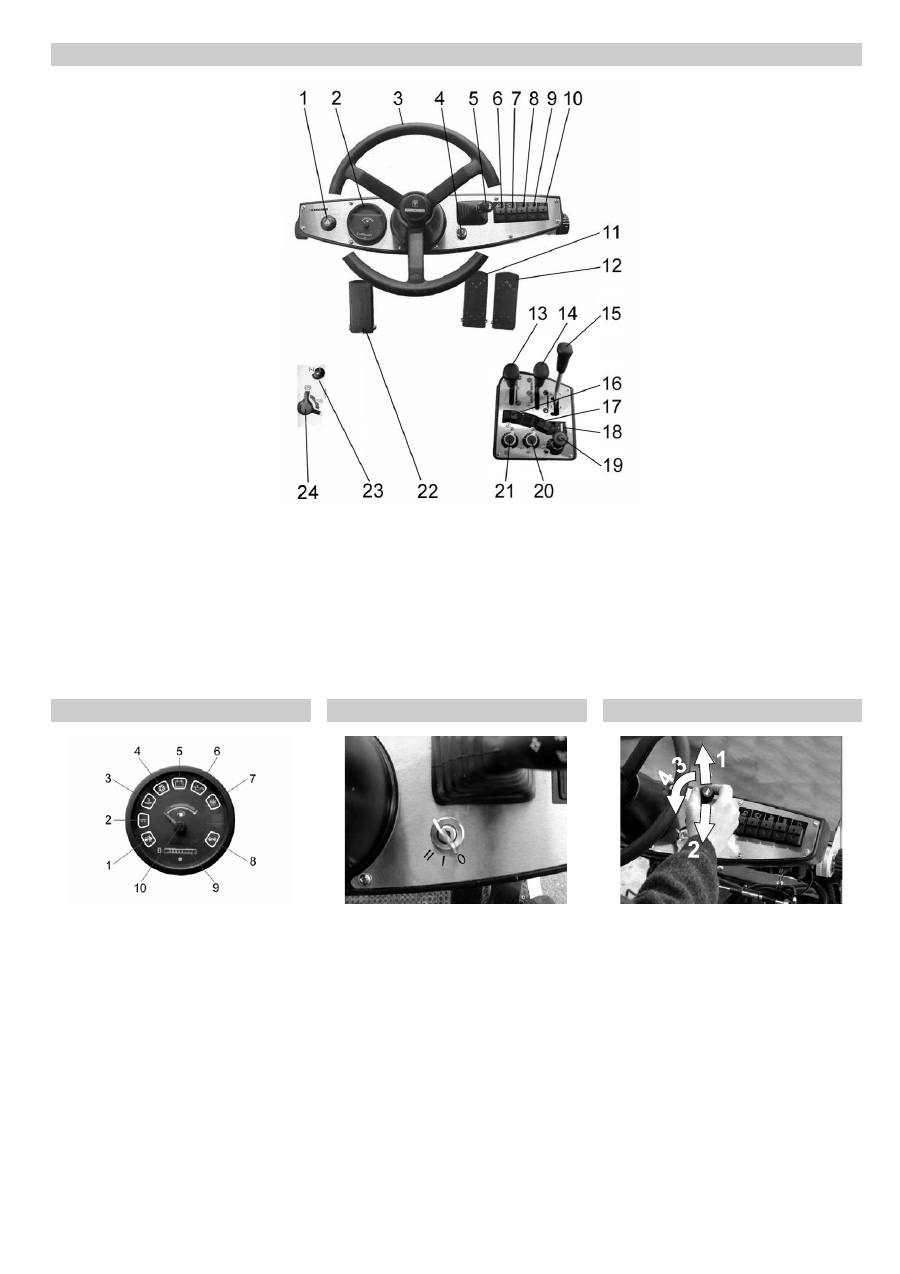

Operating and Functional Elements

24

English

1 Warning system

2 Display instrument

3 Steering wheel

4 Ignition lock

5 Combination switch

6 Working light of side-brushes (accesso-

ry)

7 Wiper

8 Heating (accessory)

9 Defroster blower for windscreen (acces-

sory)

10 Beacon (accessory)

11 Accelerator pedal, "reverse"

12 Accelerator pedal, "forwards"

13 Raise/lower waste container

14 Raise/lower side-brushes - speed ad-

justment

15 Raise/lower bulk waste flap

16 Suction blower

17 Water pump

18 Operation hours counter sweeping sys-

tem (accessory)

19 Motor speed adjustment

20 Water quantity in side-brushes

21 Water quantity in suction channel

22 Parking brake/ foot brake pedal

23 Choke (only for petrol appliances)

24 Switching Parking brake/ foot brake

1 Waste container is raised

2 Pre-heating (only diesel appliances)

3 Excess temperature of cooling water

(additional beep)

4 Suction blower on

5 Battery charger control

6 Oil pressure display

7 Change air filter indicator

8 Direction-indicator lamp

9 Operating hours meter for motor

10 Tank indicator

– 0 = Ignition off /Motor off

– I = Pre-heating on (only diesel appli-

ance) and operations

– II = Start motor

1 Left indicator

2 Right indicator

3 Parking light

4 Dipped beam

Horn: Activate the switch

Operator console

Display instrument

Ignition lock

Combination switch
