Karcher IB 7-40 Adv: Operation

     -

4

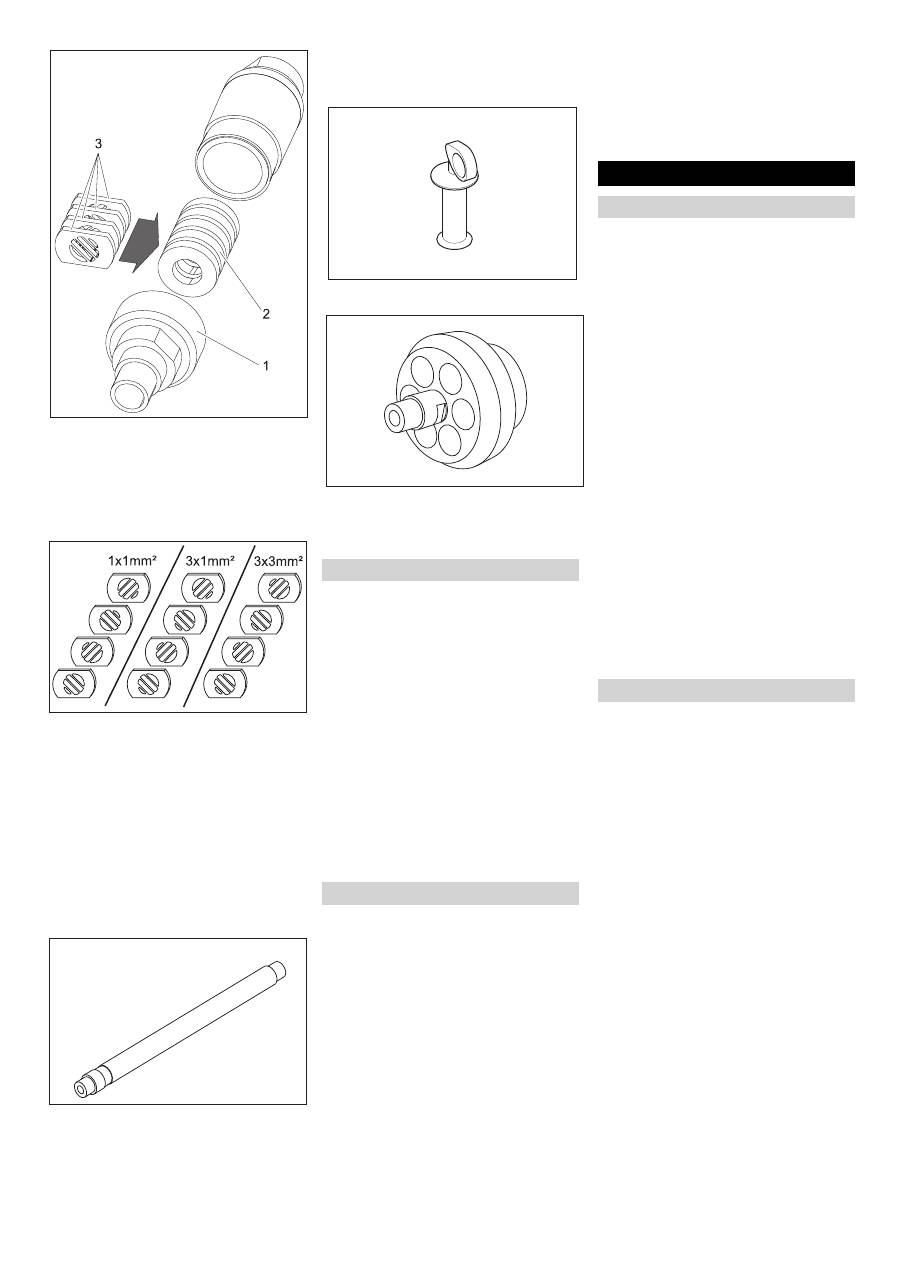

1 Screw connections

2 Magazine

3 Hole plate



Remove the screw connection.



Remove the magazine with hole plates.



Align the hole plates, as shown above,

in the magazine (3 possibilities). The

above specifications in the illustration

refer to the size of the permeation open-

ings.



Insert the magazine with hole plates

into the scrambler.



Unscrew the screw connection and

tighten it.

An extension piece can be inserted be-

tween the jet pistol and the nozzle.

The handle can be fastened on the exten-

sion piece.

The working light is connected between the

jet pistol and the nozzle. Switching on and

switching off is described in the chapter

"Operation/Basic Settings".

Note

To ensure smooth functioning of the ma-

chine, the compressed air must have a low

moisture content (max. 5% relative humidi-

ty, dewing point below 0°C). The com-

pressed air must also be free from oil, dirt

and foreign particles.

The compressed air must be dry and oil-

free, at least one aftercooler and a separa-

tor must be downstream of the compressor.



Close pressure relief valve.



Connect the compressed air inlet pipe

to the compressed air connection point

of the device.

The maximum permissible supply pres-

sure of 1 MPa (10 bar) must not be ex-

ceeded.



Danger

Risk of electric shock.

The socket to be used must have been in-

stalled by an electrician and be compliant

with IEC 60364-1.

The appliance may only be connected to a

electricity source with proper earthing.

The socket used must be accessible and at

a height between 0.6 m and 1.9 m off the

floor.

The socket used must be in the viewing

area of the operator.

The machine must have an FI fuse of type

B, 30 mA.

Check the mains cables of the machine

each time before using the machine to see

that it is not damaged.  Never operate a

machine with damaged cables.  Get the

damaged cables replaced  by an electri-

cian.

The extension cord must be protected by

IPX4 safety mechanism and the cables

must at least be compliant with  H 07 RN-F

3G1.5.



Insert the mains plug into the socket.



Danger

Risk of cold burns. Dry ice has a tempera-

ture of -79 °C. Never touch dry ice or cold

parts of the machine without appropriate

protection. Wear protective gloves and pro-

tective overalls.



Open the cover of the dry ice container.



Check the dry ice container for pres-

ence of foreign particles and conden-

sate, remove them if found.



Fill dry ice pellets into the container.

Caution

Risk of damage to the device. Use only dry

ice pellets as jet medium. The use of any

other spray agent will lead to loss of war-

ranty coverage.



Close the cover of the dry ice container.

Note

To avoid disruptions in operations on ac-

count of melted dry ice pellets, it would

make sense to fully use up the contents of

the dry ice container before adding fresh

dry ice. If the machine is to remain idle for

a longer time, operate the device until the

dry ice container is empty or empty the con-

tainer via the dry ice emptying function.

Note

The settings depend on the substances

contained in the detergent and the type of

dirt.



Release emergency-stop button by

turning.



Set the appliance switch to "I".



Turn the keyswitch in a clockwise direc-

tion.



Increase/reduce the jet pressure by us-

ing the respective keys.

Note

The higher you set the jet pressure, so

much greater (more agressive) will the

cleaning effect be.



Increase/reduce the dry ice dosing by

using the respective keys.



Turn the keyswitch counter-clockwise

and remove the key.

The automatic closure of the key hole

will prevent contamination during oper-

ation.

When the key is removed, the device is

protected against changes to the set-

tings and resetting the statistics values.

Nozzle extension (accessory)

Handle (accessory)

Working light (accessory)

Connect compressed air supply

Establish  mains contact

Operation

Filling dry ice

Settings

16

EN



-

5



Carry out maintenance jobs "daily be-

fore starting work" (see section "Mainte-

nance and Care").



Danger

Risk of injury on account of flying dry ice

pellets.  Do not direct the jet pistol on per-

sons.  Keep third persons away from the

place of use and when the machine is being

operated (by cordoning off the area).

Do not touch/hold the nozzle opening or the

dry ice jet when the machine is running.

First stop the compressed air supply before

disconnecting the jet gun from the spray

agent hose and the spray agent hose from

the device; remove all pressure from the

system and then pull the plug out of the

socket.



Cordon off the working area to prevent

persons coming close to the machine

when it is being operated.



Danger

Risk of suffocation on account of carbon di-

oxide. The dry ice pellets are made of solid-

ified carbon dioxide. The carbon dioxide

content in the air at the place where the ma-

chine is used will increase when the ma-

chine is running.  Ensure adequate

ventilation at the place of use; if possible,

use an alarm to warn persons. Symptoms

of high levels of carbon dioxide in the air

that is breathed in:

–

3...5%: headache, faster breathing.

–

7...10%: headache, nausea and per-

haps even unconsciousness.

If any of these symptoms occur, please

switch off the machine immediately and get

a breath of fresh air; improve the ventilation

before starting work again with the machine

or use respirators.

Follow the safety specifications of the man-

ufacturer of dry ice.



Danger

There is a danger because of dangerous to

your health materials. If dust that is danger-

ous to your health can be generated, the

appropriate safety measures will have to be

taken prior to beginning work.



Danger

Risk of explosion!

Do not work on light metals and iron-con-

taining substances simultaneously.

If you alternate between working on light

metals and iron-containing parts, the work

area and the suction device must be

cleaned between work cycles.



Ensure adequate ventilation while

working in closed rooms in order to

keep the carbon dioxide concentration

in the atmospheric air in the room below

the danger level.



Attach the object to be cleaned if neces-

sary.



Danger

Risk of injury on account of electro-static

discharge; risk of damage to the electronic

components. The object being cleaned can

get charged electrically during the cleaning

process.  Provide suitable earthing for the

object being cleaned and ensure that the

earthing remains intact during the entire

cleaning process.

몇

Warning

Risk of damage by foreign objects falling

into the dry ice container. Keep cover of the

dry ice container closed during operation.



Connect the grounding rope (with IB 7/

40 Advanced only) electrically conduc-

tive with the cleaning object or ground

the cleaning object in a different way.



Wear safety gear, safety gloves, close

fitting safety goggles and ear-protec-

tion.



Switch on the compressed air supply.



Release emergency-stop button by

turning.



Choose a safe place to stand, assume

a secure body stance to avoid being

thrown off-balance by the recoil pres-

sure of the jet pistol.

In order to prevent the sudden recoil, a

gradual increase of the jet pressure can

be set up (see "Operation/Basic Set-

ting", menu item "soft start").



Press in the safety knob of the jet pistol.



Activate the dry ice jet by pressing the

trigger of the jet pistol and carry out the

cleaning operation.

Note

With model IB 7/40 Advanced, the dosing

of dry ice pellets can be switched on or off

via the key dry ice dosing on/off on the jet

pistol. When the dosing is turned off, the

key illuminates red, the display shows "ice

off".

In addition,

with the IB 7/40 Advanced

model, the jet pressure and the dry ice vol-

ume can be changed on the jet pistol.

몇

Warning

Risk of damage to the dosing equipment on

account of dirt.  Keep the lid of the dry ice

container closed during the spraying oper-

ation to prevent sprayed off dirt from enter-

ing it.



Release the trigger of the jet pistol.



Press emergency-stop button.

The dry ice dosing is topped and the air

flow from the nozzle is interrupted.



Interrupt the compressed air supply.



Release emergency-stop button by

turning.



Release the trigger of the jet pistol.



During breaks in operation, you can in-

sert the jet pistol on the holder on the

machine.

Note

During longer breaks in operations, the dry

ice pellets can melt in the dry ice container.

As far as possible, do not interrupt opera-

tions for more than 20 minutes. In case of

extended interruptions, switch off the en-

gine.

A water separator cleans the compressed

air flowing to the device. This collects con-

densate in the water separator, that needs

to be drained once in a while.



Place the collection trough under the

condensate drain screw.



Open the pressure relief valve slowly

and wait until the condensate has been

drained from the device.

Note

Please dispose of condensate in an envi-

ronmentally friendly manner.



Set the appliance switch to "I".



Press the Statistics key briefly to dis-

play the operating duration.

t: Operation duration since the last re-

set.

T: Total operating duration.



Press the Statistics key briefly to dis-

play the processed dry ice amount.

m: Dry ice volume since the last reset.

M: Total dry ice volume.



Press the Statistics key briefly to dis-

play the average dry ice consumption.

q: Average dry ice consumption since

the last reset.

Q: Average total dry ice consumption.



Turn the keyswitch in a clockwise direc-

tion.



Press the statistics key for 4 seconds.

Note

The total values cannot be erased.



Press the keys to increase and de-

crease the jet pressure at the same

time and hold them, turn the keyswitch

clockwise.

In the operating mode basic settings, the

keys have the following functions:

1 Increase value

2 Decrease value

3 Menu point to the top

4 Menu point to the bottom

Operation

Switch-off in case of emergency

Switching on after emergency-stop

Interrupting operation

Drain off the condensate.

Statistics functions

Retrieving values

Reset values

Basic settings
