Инструкция к Кофеварке Siemens TE506209RW
TE 506.. / TE 509..
siemens-home.com/welcome
en Instruction manual
fr Mode d’emploi
pl Instrukcjaobsługi
nl Gebruiksaanwijzing
cs Návodkpoužití
ru Инструкцияпоэксплуатации
Register
your
product
online
c
a
b
E-Nr. ……… FD… …
TE509
d
e f g
A
4
1 2 3
18
17
16
15
14
5
13
12
11
6
10
9
TE509
22
8 7
en ���������������������������������������������������������������������������������������������������������������������������������2
fr �������������������������������������������������������������������������������������������������������������������������������22
pl �������������������������������������������������������������������������������������������������������������������������������43
nl �������������������������������������������������������������������������������������������������������������������������������65
cs �������������������������������������������������������������������������������������������������������������������������������86
ru �����������������������������������������������������������������������������������������������������������������������������106
Included in delivery (see page 2)
Contenu de l’emballage (voir page 22)
Zakres dostawy (patrz strona 43)
Leveringsomvang (zie pagina 65)
Součást dodávky (viz strana 86)
Объем поставки (см. стр. 106)
A
4
1 2 3
18
17
16
15
14
5
13
12
11
6
10
9
TE509
22
8 7
B
19
2021
C D
8a
8b
6e
6d
8e
6a
8c
6b
6c
8d
E
5c
2.
5f
5a
5b
5d
1.
5e
1.
2.
deen
Dear Coffee Connoisseur,
Table of Contents
Congratulations on purchasing this fully
Included in delivery ������������������������������������� 2
automatic espresso machine from Siemens�
Safety instructions ��������������������������������������3
These instructions describe various models
Overview�����������������������������������������������������5
with different features�
Controls ������������������������������������������������������5
Please also note the enclosed quick refer-
Display messages ��������������������������������������6
ence guide� It can be kept in the special
aromaDouble Shot��������������������������������������6
storage compartment (5c) until it is needed�
Before using for the rst time����������������������7
Water lter ��������������������������������������������������8
Menu settings ���������������������������������������������9
Included in delivery
Adjusting the grinding unit ������������������������10
Preparation using coffee beans ���������������� 10
(see overview image at the start of the
Preparation using ground coffee ������������� 11
instructions)
Dispensing hot water �������������������������������� 11
Preparing milk froth and warm milk ����������12
a Fully automatic espresso machine
Maintenance and daily cleaning ���������������12
TE506/TE509
Tips on energy saving ������������������������������15
b Quick reference guide
Service Programmes ��������������������������������15
c Instruction manual
Frost protection�����������������������������������������18
d Milk frother
Accessories ����������������������������������������������18
e Water hardness testing strip
Disposal ���������������������������������������������������� 19
f Measuring spoon
Guarantee�������������������������������������������������19
Technical data�������������������������������������������19
Only for TE509
Simple troubleshooting �����������������������������20
g Milk container
2
deen
Safety instructions
Please read and follow the operating instructions carefully and
keep them for later reference. Enclose these instructions when
you give this appliance to someone else. This appliance is
designed for the preparation of normal household quantities in
the home, or in household-like, non-commercial environments.
Household-like environments include staff kitchens in shops,
of ces, agricultural and other small businesses or for use by
guests at bed-and-breakfast establishments, small hotels and
similar residential facilities.
¡ Danger of electric shock!
Connect and operate the appliance only according to the type plate
speci cations. To avoid potential hazards, repairs such as replacing
a damaged cable must only be carried out by our customer service
personnel�
This appliance may be used by children aged 8 years and older and
by persons with reduced physical, sensory or mental capabilities
or who lack experience and/or knowledge if they are supervised or
have been given instruction in the safe use of the appliance and
have understood the dangers involved� Keep children under 8 years
of age away from the appliance and connecting cable and do not
allow them to use the appliance� Children shall not play with the
appliance� Cleaning and user maintenance shall not be made by
children unless they are older than 8 years and supervised�
Never immerse the appliance or mains cable in water� Use only if
power cord and appliance show no signs of damage� Should a fault
occur, pull the plug or disconnect from the mains immediately�
3
deen
¡ Risk of suffocation!
Do not allow children to play with packaging material�
¡ Risk of scalding!
The milk frother outlet (6a) gets very hot� After use, allow to cool
down rst before touching.
Use this appliance only after the milk frother (6) has been fully
assembled and installed�
¡ Risk of injury!
Do not reach into the grinding unit�
4
deen

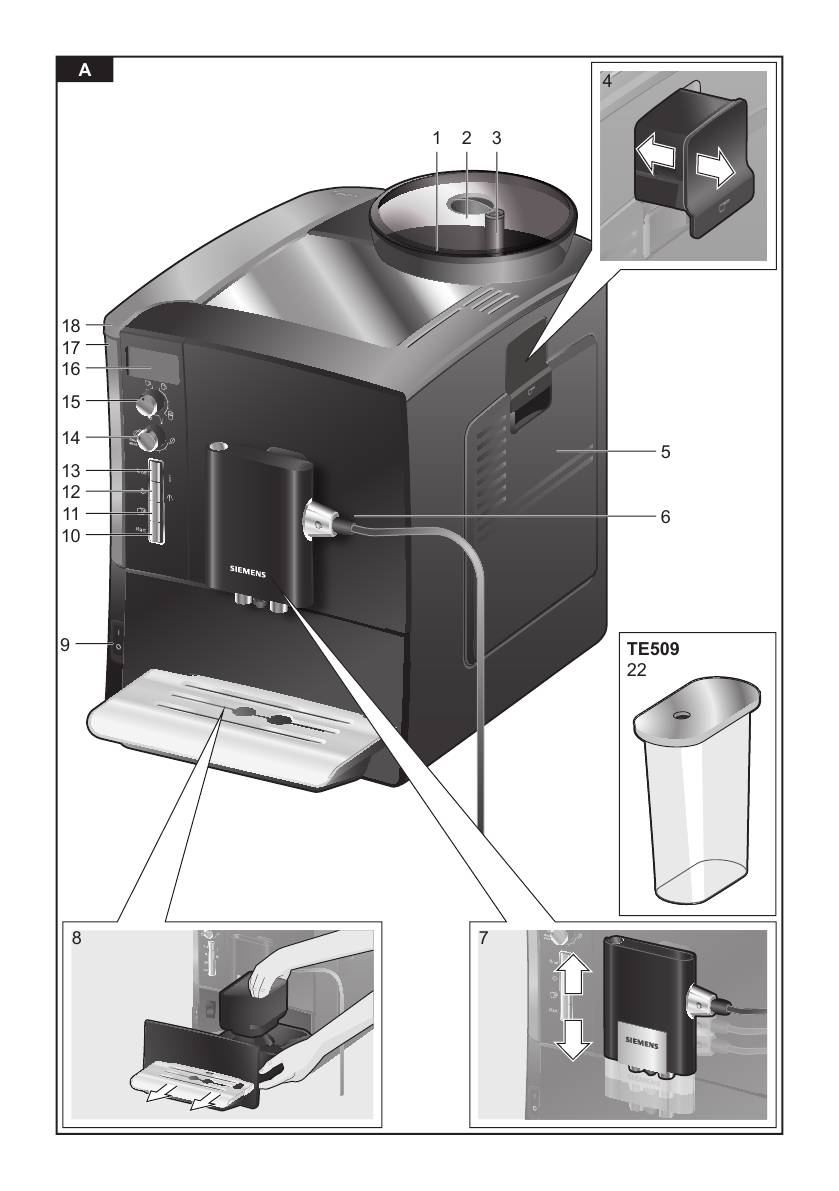

Overview
Controls

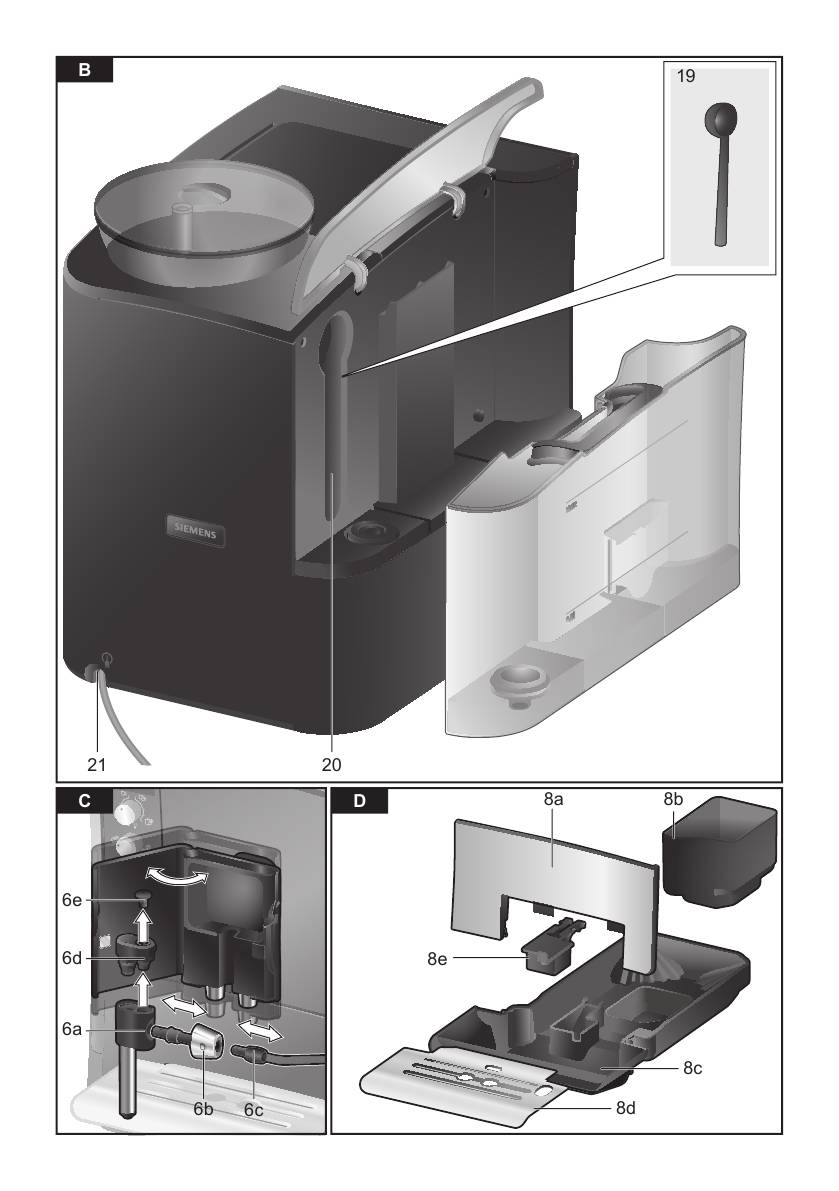

(see overview images A, B, C, D and E at
Power on/off switch O / I
the beginning of this instruction manual)
The power switch O / I (9) is used to switch
1 Bean container
the appliance on or to switch it off fully
2 Aroma cover
(power supply off)�
3 Selector for grind setting
Important: Before switching off, run the
4 Drawer (ground coffee/cleaning tablet)
cleaning programme or use the e off / j

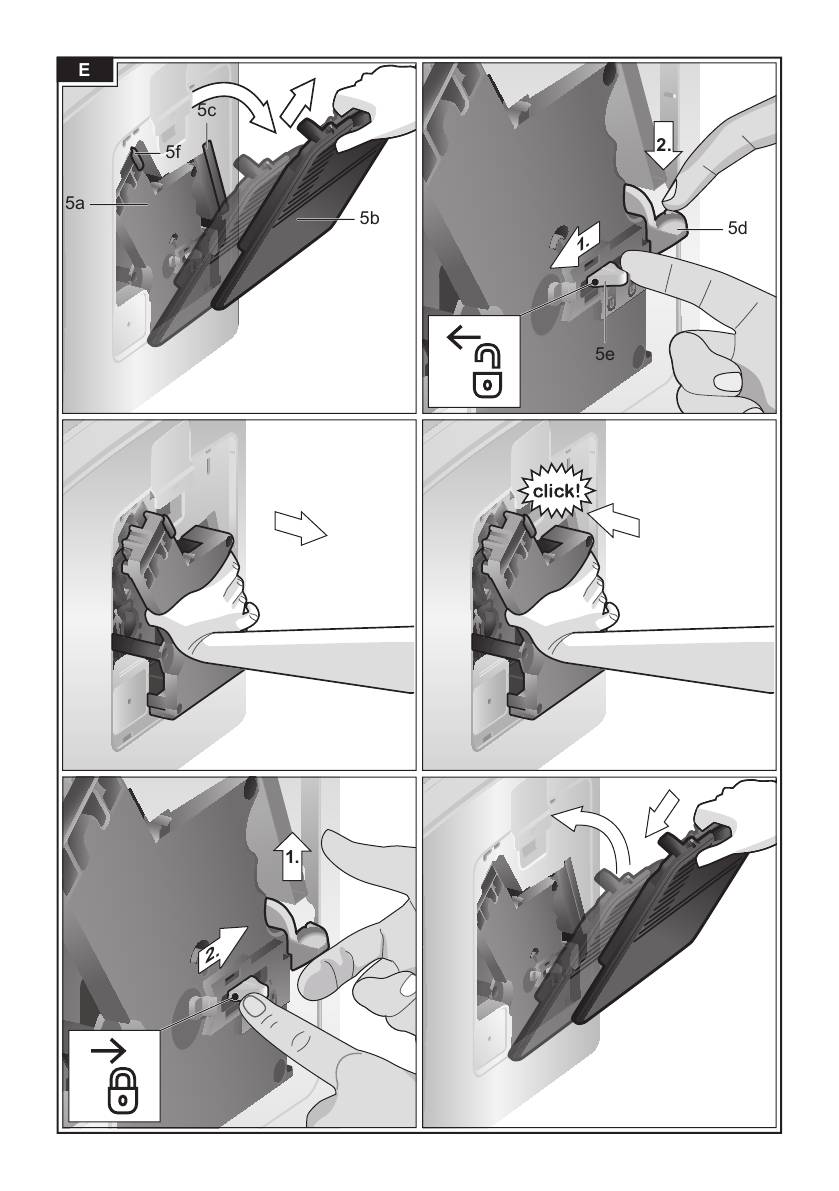

5 Brewing unit (Fig. E)
button (13) to switch off�
a) Brewing unit
b) Door
d button
c) Storage compartment for quick
Press the d button (11) to prepare
reference guide
two cups of the selected drink at the
d) Eject lever for brewing unit
same time� The button can be activated
e) Lock
for drinks without milk and without the
f) Cover
aromaDouble Shot function�
6 Milk frother (Fig. C) removable
a) Outlet
e off / j button
b) Rotary selector for warm milk/
When the e off / j button (13) is pressed
milk froth
briey, the appliance rinses and switches
c) Milk tube
off� Pressing and holding down the e off / j
d) Upper part
button (13) displays the user settings or
e) Air nozzle
starts the descaling and cleaning function�
7 Coffee outlet, height-adjustable
8 Drip tray (Fig. D)
h / g button
a) Drip tray panel
Press the h / g button (12) to generate
b) Coffee grounds container
steam for preparing milk froth or warm milk�
c) Drip tray for coffee outlet
This button is also used to dispense hot
d) Grate for coffee outlet
water�
9 Power on/off switch O / I
10 start button
start button
11
d
button
Press the start button (10) to begin drink
12
h / g button
preparation or to start a service programme�
13 e off / j button
Press the start button (10) again during
14 “Coffee strength” rotary knob
drink preparation to cut the dispensing
15 “Drink selection” rotary knob
process short�
16 Display
17 Removable water tank
18 Lid for water tank
19 Measuring spoon
(insertion aid for water lter)
20 Storage compartment for
measuring spoon
21 Power cable with storage compartment
ONLY FOR TE509
22 Milk container
5
deen
“Coffee strength” rotary knob
Rotary selector
To dispense milk froth – for example for a
This rotary knob (14) is used
latte macchiato or cappuccino – turn the
j
to set the coffee strength�
symbol to the front�
To dispense warm milk, turn the
i symbol
Very mild
h
to the front�
Mild
To dispense hot water, set the rotary
Normal
selector to the horizontal position�
to
Strong
DoubleShot strong+
g
DoubleShot strong++
With these coffee strengths
the coffee is brewed in
2 stages� See “aromaDouble
Shot”�
“Drink selection” rotary knob
This rotary knob (15) is used
to select the required drink
Display messages
and the per-cup quantity� It
is also used to change user
The display (16) shows not only the current
settings�
operating status, but also various messages
that give you status information or let
Coffee-based drinks without
you know when you need to take action�
milk:
As soon as you have taken the necessary
a
Small Espresso
action, the message disappears and the
Espresso
menu for drink selection is displayed again�
to
Small Café Crème
Café Crème
c
Large Café Crème
aromaDouble Shot
Coffee-based drinks with
milk:
The longer the coffee is brewed, the more
m
Small Cappuccino
bitter substances and undesired aromas
Large Cappuccino
are released� This has a negative effect on
to
Small Macchiato
the taste and makes the coffee less easily
Macchiato
digestible� So for extra strong coffee the
n
Large Macchiato
TE506/TE509 has a special aromaDouble
Shot function� When half the quantity
Rinse machine
e
has been prepared, coffee is ground and
brewed again so that only the pleasant,
Rinse milk system
f
aromatic scents are released�
N.B.: If a drink is selected that cannot be
prepared,
Invalid combination appears in
the display� Change the coffee strength or
the selected drink�
6
deen
The aromaDouble Shot function is activated
3� Pull the power cord out of the storage
with the following settings:
compartment (21) and plug in� Adjust
the length of the cable by pushing it
back in or pulling it out� The easiest way
to do this is to place the appliance so
that its back is ush with the edge of the
counter and either pull the cable down-
ward or push it upward�
4� Install the milk frother� Operate the
machine only after the milk frother (6)
has been fully assembled and installed�
Before using for
the rst time
General
Fill the appropriate container using only
pure, cold, uncarbonated water and only
roasted beans (preferably espresso or
coffee bean blends for fully automatic coffee
machines)� Do not use coffee beans that
have been glazed, caramelised or treated
with other additives containing sugar, since
5� Lift the lid of the water tank (18)�
they will block the brewing unit�
6� Remove and rinse the water tank (17)
The water hardness setting can be adjusted
and ll it with fresh cold water.
on this appliance� The factory default setting
Do not ll above the max mark�
for the water hardness is 4� Check the
7� Replace the water tank (17) and push it
water hardness with the enclosed test strip�
rmly downward into place.
If the check reveals a value other than 4,
8� Close the lid of the water tank (18)
change the setting on the appliance accord-
again�
ingly after switching on (see “Menu settings”
9� Fill the bean container (1) with coffee
Water hardness)�
beans (for preparation using ground
coffee, see “Preparation using
Switching on the appliance
ground coffee”)�
1� Remove the protective lm.
10� Press the power switch O / I (9)� The
2� Place the fully automatic espresso
display (16) shows the menu for setting
machine on a at, water-resistant
the display language�
surface that can take its weight� Make
11� Select the required display language
sure that the machine’s ventilation slots
with the upper rotary knob (15)�
remain unobstructured�
The following languages are available:
English Nederlands
Important: Only use the appliance in
Français Italiano
frost-free rooms� If the appliance has been
Svenska Español
transported or stored at temperatures below
Polski Magyar
0 °C, wait at least 3 hours before operation�
Türkçe Dansk
Norsk Suomi
Português Čeština
Ελληνικα Български
Русский
7
deen
12� Place a receptacle under outlet (6a)�
Water lter
13� Press the start button (10)�
The language you selected is saved�
A water lter can prevent scale buildup.
The appliance heats up and rinses� Some
Before a new water lter is used, it must be
water will run out of the coffee outlet�
rinsed� To do this, proceed as follows:
When the drink selection menu is shown in
1� Press the water lter rmly into the
the display, the appliance is ready for use�
water tank with the aid of the measuring
spoon (19)�
Switching off the appliance
The factory settings of the fully automatic
espresso machine are programmed for
optimal performance� The appliance
switches off automatically after a specic
time (time span can be programmed, see
“Menu settings” Shut off)�
Exception: The appliance switches off
without rinsing if only hot water or steam
were dispensed�
To switch the appliance off manually before
this, press the e off / j button (13)�
2� Fill the water tank (17) with water up to
The appliance rinses and switches off�
the max mark�
3� Press and hold the
e off / j button (13)
N.B.: If the appliance is being used for the
for at least three seconds� The menu
rst time, a service program has been run,
opens�
or the appliance has not been operated
4� Press the e off / j button (13)
for a long period, the rst beverage will
repeatedly until the display shows
not have the full aroma and should not be
No/Oldfilter�
consumed�
5� Select Activate filter with the upper
rotary knob (15)�
When using the espresso machine for the
6� Press the start button (10)�
rst time, you will achieve a suitably thick
7� Place a receptacle with a capacity of
and stable “crema” only after the rst few
0�5 litres under the outlet (6a)�
cups have been dispensed�
8� Press the start button (10)�
9� Water will now ow through the lter to
After extended use, water droplets may
rinse it�
form on the ventilation slots� This is normal�
10� Empty the container�
The appliance is ready to use once more�
Note: Rinsing the lter simultaneously
activates the setting for the Change filter!
display�
8
deen
The lter is no longer effective when the
You can set the following:
Change filter! display appears, or at
the latest after 2 months� It needs to be
Shut off: Here you can set the time
replaced for reasons of hygiene and so
span after which the appliance automati-
that there is no build-up of limescale (this
cally switches off following the last drink
could damage the appliance)� Replacement
preparation� A time between 15 minutes and
lters can be obtained from retailers or from
4 hours can be set� The default time can be
customer service (see “Accessories”)� If no
shortened to save energy�
new lter is used, turn the filter setting to
To save power you can specify a shorter
No / Old�
period�
Note: You can use the lter indicator to
Filter: Here you can set whether a water
mark the month in which you inserted the
lter is being used. If a water lter is not
lter. You can also mark the month in which
being used, turn the setting to
No / Old� If
you will need to replace the lter next (at
a water lter is being used, turn the setting
the latest after two months)�
to
Activate filter. New water lters have
to be rinsed before use (see “Water lter”).
Start Calc‘n‘Clean: The service
programmes (
Calc‘n‘Clean / descaling /
cleaning) can be selected manually
here� Press the start button (10) and run
the selected programme (see “Service
Programmes”)�
Note: If the appliance has not been used
Temp.: The brewing temperature (high /
for a prolonged period (e�g� vacation) the
middle / low) can be set here�
lter should be rinsed before the appliance
is used again� To do so, dispense a cup of
Language: The display language can be
hot water and pour it away�
set here�
Water hardness: The water hardness
Menu settings
setting can be adjusted on this appliance�
It is important to set the water hardness
You can adapt the appliance to your indi-
correctly, so that the appliance indicates
vidual needs in the menu settings�
accurately when the descaling programme
1� Hold the e off / j button (13) down for
should be run� The factory setting for the
at least 3 seconds�
water hardness is 4�
2� Press the e off / j button (13) repeat-
You can check the water hardness using
edly until the required menu item
the enclosed test strip or by asking your
appears in the display�
local water supplier�
3� Select the required setting with the
Dip the test strip briey in water, gently
upper rotary knob (15)�
shake off any drips, and check the result
4� Conrm by pressing the start
after one minute�
button (10)�
To leave the menu without making any
changes, turn the rotary selector to Exit and
press the start button (10)�
9
deen
Level Water hardness
Preparation using
German (°dH) French (°fH)
coffee beans
1
1-7
1-13
2
8-14
14-25
This fully automatic espresso machine
3
15-21
26-38
grinds beans freshly for each brew�
4
22-30
39-54
The appliance must be ready for use� To
Drink counter: This displays how many
prepare a coffee-based drink with milk, rst
drinks have been dispensed since the appli-
insert the milk tube into a milk container
ance was rst put into operation.
and turn the rotary selector (6b) to “Milk
froth” j�
Adjusting the
Important: Dried milk residue is difcult
to remove, so the milk frother (6) must be
grinding unit
cleaned with lukewarm water immediately
The rotary selector (3) adjusts the grind
after use and rinse using the Clean milk
settings from coarse to ne.
system programme�
A
Warning!
Tip: If possible, use only beans for fully
Adjust the grinding unit only while it is
automatic coffee and espresso machines�
running! Otherwise the appliance may be
For optimal quality, deep-freeze the beans
damaged� Do not reach into the grinding
or store in a cool place in sealed containers�
unit�
Coffee beans can be ground while frozen�
● While the grinding unit is running, adjust
the rotary selector (3) from ne (a: Turn
Important: Fill the water tank (17) with
anticlockwise) to coarse (b: Turn clock-
fresh water every day� The tank (17) should
wise) as required�
always contain sufcient water for operating
the appliance�
a b
Preparation
1� Place the pre-warmed cup(s) under the
coffee outlet (7)�
Tip: For a small espresso, always
preheat the cup, e�g� using hot water�
2� Select the required coffee and the
Note: The new setting will not become
required per-cup quantity by turning the
apparent until after the second cup of
upper rotary knob (15)� The selected
coffee�
coffee and the per-cup quantity are
shown in the display�
Note: If the message
Please adjust
3� Select the required coffee strength by
grinding unit to coarser setting!
turning the lower rotary knob (14)� The
appears in the display, the grind setting
selected coffee strength is shown in
for the coffee beans is too ne. Adjust the
the display� To prepare two cups at the
grinding unit to a coarser setting�
same time, press the d button (11)
(only for drinks without milk and without
Tip: For dark roast coffee beans, choose a
the aromaDouble Shot function)�
ner grind, for lighter beans a coarser grind.
4� Press the start button (10)�
10
deen
Coffee is brewed and then poured into the
4� Select the required drink by turning the
cup(s)�
upper rotary knob (15) (only one cup
possible)�
N.B.: With some settings the coffee is
5� Press the start button (10)�
prepared in two stages (see “aromaDouble
Coffee is brewed and then poured into the
Shot”)� Wait until the procedure is fully
cup�
completed�
N.B.: Repeat the procedure for another
Press the start button (10) again to cut the
cup of coffee� If no coffee is taken within
brewing process short�
90 seconds, the brewing chamber empties
automatically to avoid overlling. The appli-
ance rinses�
Preparation using
ground coffee
Dispensing hot water
This fully automatic espresso machine can
also be operated with ground coffee (not
A
Risk of burns!
instant coffee powder)�
The milk frother (6) gets very hot� Hold the
milk frother (6) by the plastic part only�
The appliance must be ready for use� To
prepare a coffee-based drink with milk,
The milk frother must be cleaned before
rst insert the milk tube into a milk container
drawing hot water�
and turn the rotary selector (6b) to “Milk
The appliance must be ready for use�
froth” j�
1� Place the pre-warmed cup or glass
under the outlet of the milk frother (6)�
N.B.: The aromaDouble Shot function
2� Set the rotary selector (6b) to the
cannot be used when coffee is prepared
horizontal position�
using ground coffee�
Important: Dried milk residue is difcult
to remove, so the milk frother (6) must be
cleaned with lukewarm water immediately
after use and rinse using the Clean milk
system programme�
Important: Fill the water tank (17) with
3� Press and hold the h / g button (12)
fresh water every day� The tank (17) should
for approx� 3 seconds� The appliance
always contain sufcient water for operating
heats up� Hot water runs out of the milk
the appliance�
frother outlet (6) for about 40 seconds�
4� Press the h / g button (12) again to
Preparation
cut the process short�
1� Open the drawer (4)�
2� Pour in no more than 2 level measuring
spoons of ground coffee�
Warning: Do not use whole beans or
instant coffee�
3� Close the drawer (4)�
11
deen
Important: Dried milk residue is difcult
Preparing milk froth and
to remove, so the milk frother (6) must be
warm milk
cleaned with lukewarm water immediately
after use and rinse using the Clean milk
A
Risk of burns!
system programme�
The milk frother (6) gets very hot� Hold the
milk frother (6) by the plastic part only�
Maintenance and daily
Tip: You can foam the milk rst and then
cleaning
dispense coffee, or foam the milk separately
and pour it onto the coffee�
A
Risk of electric shock!
Unplug the appliance before cleaning it�
The appliance must be ready for use�
Never immerse the appliance in water�
1� Place a pre-warmed cup under outlet
Do not use a steam cleaner�
(6a)�
2� Insert the milk tube (6c) into a milk
● Wipe the outside of the appliance with a
container�
soft, damp cloth�
3� Turn the rotary selector (6b) to “Milk
● Do not use abrasive cloths or cleaning
froth” j or “Warm milk” i�
agents�
● Always remove any limescale, coffee,
milk or descaling uid residue immedi-
ately� Such residue can cause corrosion�
4� Press the h / g button (12)�
● New sponge cloths may contain salts�
The h / g button (12) ashes and
Salts can cause rust lm on stainless
the appliance now heats up for approx�
steel and must therefore be washed out
20 seconds�
thoroughly before use�
● Pull the drip tray (8c) with the coffee
A
Risk of burns!
grounds container (8b) forward and out�
Milk froth or warm milk comes out of the
Remove the panel (8a) and the grate (8d)�
milk frother (6) at high pressure� Splashes
Empty and clean the drip tray and coffee
of milk can scald� Do not touch the outlet
grounds container�
(6a) or aim it at anyone�
● Remove drawer (4) and clean�
5� End the process by pressing the
h / g button (12)�
Tip: For optimal milk froth quality, use cold
milk with a fat content of at least 1�5 % if
possible�
12
deen
Do not put the following items in
The rinse procedure stops automatically
O
the dishwasher: drip tray panel (8a),
after about 1 minute�
drawer (4), brewing unit (5a)�
6� Empty the container and clean the milk
The following items are dishwasher-
tube (6c)�
N
safe: drip tray for coffee outlet (8c),
coffee grounds container (8b), grate
In addition to this, clean the milk system
for coffee outlet (8d), aroma cover (2)
thoroughly at regular intervals (by hand or
and measuring spoon (19)�
in the dishwasher)�
● Wipe out the inside of the appliance (tray
holders and drawer)�
Dismantling the milk system for cleaning:
Important: Drip tray for coffee outlet (8c)
1� Pull the milk frother (6) forward out of
and coffee grounds container (8b) should
the appliance�
be emptied and cleaned daily to prevent
mould from developing�
N.B.: If the appliance is cold when switched
on with the power switch O / I (9) or if it
switches off automatically after coffee has
been dispensed, it rinses automatically� In
other words the system cleans itself�
2� Dismantle the milk frother into its indi-
Important: If the appliance has not been
vidual parts (6a to 6d) (see gure C at
used for a prolonged period of time (e�g�
the start of the operating instructions)�
after a vacation), clean the entire appliance
thoroughly, including the milk system and
brewing unit�
Cleaning the milk system
If the milk system was not cleaned after
milk has been dispensed, after a certain
amount of time the message Clean milk
system! will appear on the display�
Clean the milk system immediately after
use! To clean, leave the rotary selector (6b)
in the same position it was in when last
3� Clean the individual parts with a deter-
used�
gent solution and a soft brush� If neces-
To pre-clean the milk system automatically:
sary, soak in a warm detergent solution�
1� Select f by turning the rotary knob (15)�
2� Place a tall, empty container under the
outlet (6a)�
3� Push the outlet as close as possible to
the container�
4� Place the end of the milk tube (6c) into
the container�
5� Press the start button (10)�
The machine automatically releases water
4� Rinse all parts with clear water and dry
into the container and vacuums it up again
them�
via the milk tube to rinse the milk system�
13
deen
5� Reassemble all the parts and replace
6� Remove the cover (5f) of the brewing
fully in the appliance�
unit and rinse the brewing unit (5a)
thoroughly under running water�
A
Risk of scalding!
7� Thoroughly clean the brewing unit sieve
Use this appliance only after the milk frother
under the running water�
(6) has been fully assembled and installed�
Cleaning the brewing unit
Clean the brewing unit regularly!
To pre-clean the brewing unit automatically:
1� Select e by turning the rotary knob (15)�
2� Place an empty glass under outlet (6a)�
3� Press the start button (10)�
The appliance rinses�
In addition to the automatic cleaning
programme, the brewing unit (5a) should
be removed regularly for cleaning� (See
Important: Do not clean with detergent or
gure E at the start of the operating
other cleaning agents and do not put it in
instructions�)
the dishwasher�
1� Switch the appliance off at the power
on/off switch O / I (9)� No buttons are lit�
8� Wipe out the inside of the appliance
2� Open the door (5b) to the brewing unit�
thoroughly with a damp cloth and
3� Slide the red lock (5e) on the brewing
remove any coffee residues�
unit (5a) completely to the left�
9� Allow the brewing unit (5a) and the
4� Press the eject lever (5d) down fully�
inside of the appliance to dry�
The brewing unit is released�
10� Replace the cover (5f) on the brewing
5� Grasp the brewing unit (5a) by the
unit and reinsert the brewing unit (5a)
recessed grips and remove carefully�
fully into the appliance�
11� Press the eject lever (5d) up fully�
12� Slide the red lock (5e) fully to the right
and close the door (5b)�
14
deen
Tips on energy saving
A
Warning!
Each time you run the service programme,
● Switch off the fully automatic espresso
you should follow the instructions for using
machine when not in use� To do this,
the descaling and cleaning agents� Please
press the e off / j button (13)� The
observe the safety instructions on the pack-
appliance rinses and switches off�
aging of the cleaning agent�
● If possible, do not interrupt coffee or milk
Never interrupt the service programme!
froth dispensing� Cutting the coffee or milk
Do not drink the liquids!
froth dispensing process short results in
Never use vinegar, vinegar-based products,
higher energy consumption and in more
citric acid or citric acid-based products!
residual water collecting in the drip tray�
Never put descaling tablets or other desca-
● Descale the appliance regularly to avoid
ling agents in the ground coffee drawer or
a build-up of limescale� Limescale residue
the drawer for cleaning tablets (4)!
results in higher energy consumption�
Specially developed descaling and
cleaning tablets are available from
Service Programmes
retailers or customer service (see
“Accessories”).
Tip: Refer also to the quick reference guide
in the storage compartment (5c)�
Descaling
Depending on usage, the following
Duration: approx� 25 minutes�
messages will appear on the display at
certain intervals:
Important: If there is a lter in the water
Descale required!
tank (17), it needs to be removed before the
or
descaling programme is run�
Clean required!
or
If the message Descale required! appears
Calc‘n‘Clean required!
on the display, press the e off / j button
(13) for 3 seconds and then press the start
The appliance should be cleaned or
button (10)� The descaling programme will
descaled immediately using the corre-
start� To descale the appliance before being
sponding programme� You also have the
prompted, press the e off / j button (13) for
option of combining both processes with the
at least 3 seconds� Then press the e off / j
Calc‘n‘Clean function (see “Calc‘n‘Clean”)�
button (13) briey twice. Turn the upper
If the service programme is not run as
rotary knob (15) until Start descaling
instructed, the appliance may be damaged�
appears in the display� To start the desca-
ling procedure, press the start button (10)�
The display will guide you through the
programme�
Empty drip tray
Insert drip tray
● Empty drip tray (8) and replace them�
15
deen
N.B.: If the water lter is activated, the
Salts can cause rust lm on stainless
display will prompt you to remove the lter
steel and must therefore be washed out
and then press the start button (10) again�
thoroughly before use�
Remove the lter now if you have not
already done so� Press the start button (10)�
Cleaning
Fill descaler
Duration: approx� 10 minutes�
Press start
● Pour lukewarm water into the empty
If the message
Clean required! appears
water tank (17) up to the 0.5 l mark and
on the display, press the
e off / j button
then dissolve 1 Siemens descaling tablet
(13) for 3 seconds and then press the start
TZ80002 in it� When using TZ60002,
button (10)�
2 tablets must be dissolved�
The cleaning programme will start�
● Press the start button (10)�
To clean the appliance before being
prompted, press the e off / j button (13) for
Place container
at least 3 seconds� Then press the e off / j
Press start
button (13) briey twice. Turn the upper
● Place a receptacle with a capacity of at
rotary knob (15) until
Start cleaning
least 0�5 litres under the outlet (6a)�
appears in the display� To start the cleaning
● Press the start button (10)�
procedure, press the start button (10)�
The display will guide you through the
Descale in progress
programme�
The descaling pro gramme will now run for
about 20 minutes�
Empty drip tray
Insert drip tray
Clean / Fill water tank
● Empty drip tray (8) and replace them�
Press start
● Rinse the water tank (17) and rell it with
Cleaning in progress
fresh water up to the max mark�
The appliance rinses twice�
● Press the start button (10)�
Open drawer
Descale in progress
● Open the drawer (4)�
The descaling pro gramme now runs for
about 3 minutes and rinses the appliance�
Fill cleaner
● Drop a Siemens cleaning tablet in the
Empty drip tray
drawer (4) and close�
Insert drip tray
● Empty drip tray (8) and replace them�
Cleaning in progress
Replace the lter if one is being used. The
The cleaning pro gramme will now run for
appliance has completed descaling and is
about 8 minutes�
ready for use again�
Empty drip tray
Important: Wipe down the appliance using
Insert drip tray
a soft, damp cloth to immediately remove
● Empty drip tray (8) and replace them�
any descaler residue� Such residue can
The appliance has nished cleaning is
cause corrosion� New sponge cloths may
ready for use again�
contain salts�
16
deen
Calc‘n‘Clean
Fill descaler
Duration: approx� 35 minutes�
Press start
● Pour lukewarm water into the empty
Calc‘n‘Clean combines the separate func-
water tank (17) up to the 0.5 l mark and
tions of descaling and cleaning� If both
then dissolve 1 Siemens descaling tablet
programmes are due to be run soon, the
TZ80002 in it� When using TZ60002,
espresso machine automatically suggests
2 tablets must be dissolved�
this service programme�
● Press the start button (10)�
Important: If there is a lter in the water
Place container
tank (17), it needs to be removed before the
Press start
service programme is run�
● Place a receptacle with a capacity of at
least 1 litre under the outlet (6a)�
If the message Calc‘n‘Clean required!
● Press the start button (10)�
appears on the display, press the e off / j
button (13) for 3 seconds and then
Calc‘n‘Clean in progress
press the start button (10)� The service
The descaling pro gramme will now run for
programme will start�
about 22 minutes�
To run Calc‘n‘Clean before being prompted,
press the e off / j button (13) for at
Clean / Fill water tank
least 3 seconds� Then press the e off / j
Press start
button (13) briey twice. Turn the upper
● Rinse the water tank (17) and rell it with
rotary knob (15) until Start Calc‘n‘Clean
fresh water up to the max mark�
appears in the display� To start
● Press the start button (10)�
Calc‘n‘Clean, press the start button (10)�
The display will guide you through the
Calc‘n‘Clean in progress
programme�
The descaling pro gramme now runs for
about 10 minutes and rinses the appliance�
Empty drip tray
Insert drip tray
Empty drip tray
● Empty drip tray (8) and replace them�
Insert drip tray
● Empty drip tray (8) and replace them�
Calc‘n‘Clean in progress
Replace the lter if one is being used. The
The appliance rinses twice�
appliance has nished cleaning is ready for
use again�
Open drawer
● Open the drawer (4)�
Important: Wipe down the appliance using
a soft, damp cloth to immediately remove
Fill cleaner
any descaler residue� Such residue can
● Drop a Siemens cleaning tablet in the
cause corrosion� New sponge cloths may
drawer (4) and close�
contain salts. Salts can cause rust lm
on stainless steel and must therefore be
N.B.: If the water lter is activated, the
washed out thoroughly before use�
display will prompt you to remove the lter
and then press the start button (10) again�
Remove the lter now if you have not
already done so�
Press the start button (10)�
17
deen
Frost protection
Accessories
A
To avoid damage from low
The following accessories can be obtained
temperatures during transport and
from retailers and customer service�
storage, the appliance must be
completely emptied rst.
Accessories Ordering number
Retail /
Note: The appliance must be ready for use
Customer service
and the water tank (17) lled.
Cleaning tablets TZ60001
1� Place a large receptacle under
00310575
outlet (6a)�
Descaling tablets TZ80002
2� Press the h / g button (12) and
00576693
allow the appliance to steam for about
Water lter TZ70003
15 seconds�
00575491
3� Switch the appliance off at the power
on/off switch O / I (9)�
Care set TZ80004
4� Empty the water tank (17) and the drip
00576330
tray (8)�
Milk container with
TZ80009N
“Fresh Lock” lid
00576166
18
