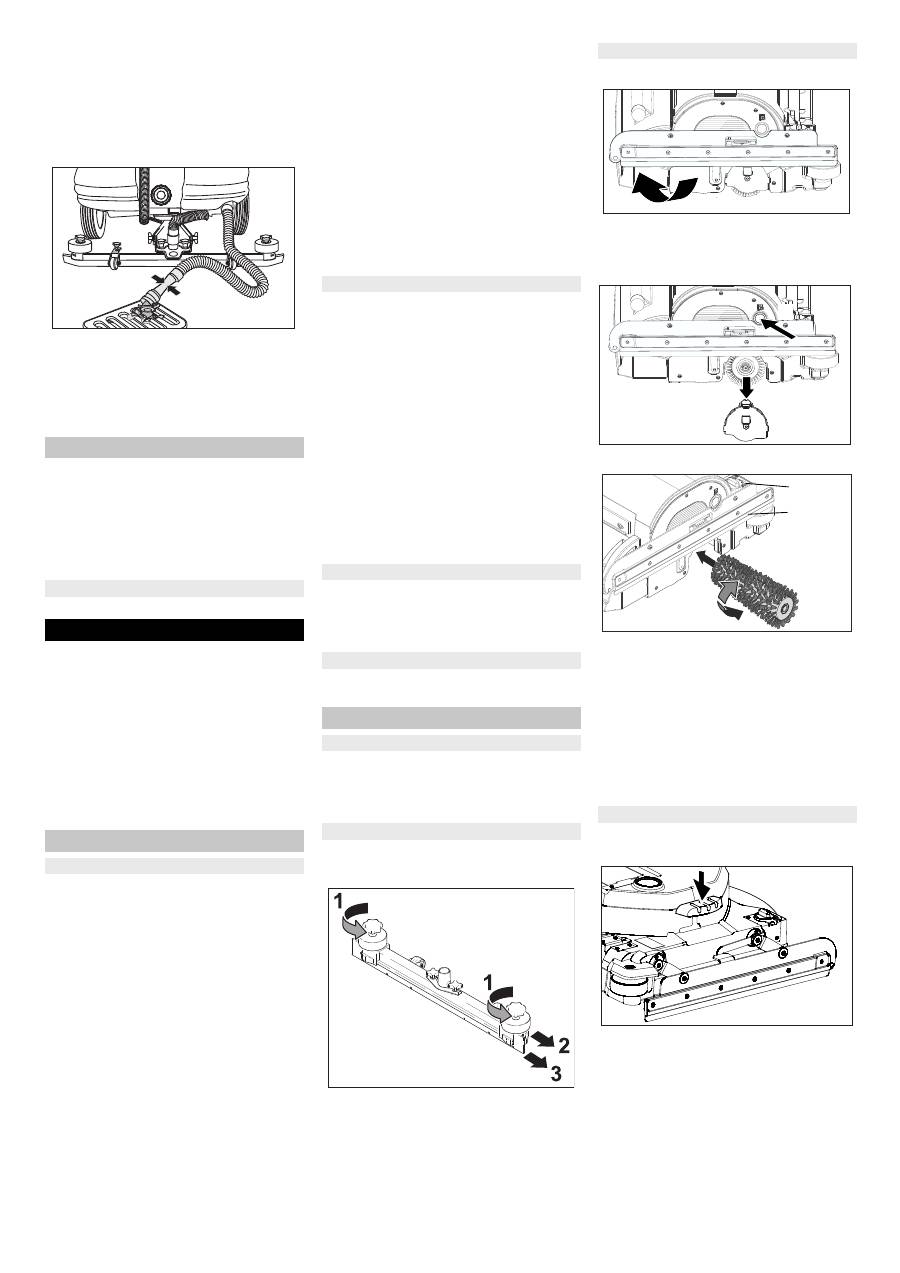

Karcher Autolaveuse B 250 R + R 120: Maintenance and care

     -

8

몇

CAUTION

Please observe the local provisions regard-

ing the wastewater treatment.



Take the fresh water drain hose or the

dirt water drain hose from the support

and lower it into a suitable collection de-

vice.



Let off water by opening the dosage de-

vice at the discharge hose.

The water flow can be reduced by

squeezing the dosing unit.



Then rinse the dirt water tank with clear

water.



DANGER

Risk of injury! When loading or unloading

the machine, it may only be operated on

gradients of max. 15%. Drive slowly.



If you want to transport the machine on

a vehicle secure it from slipping using

belts/ ropes.



Remove brushes from the brush head.



DANGER

Risk of injury. Before carrying out any tasks

on the machine, set the main key to "0" and

remove it.  Press emergency-stop button.

Suction turbine, side brushes and filter

cleaner continue to run for a while after

switching off. Carry out maintenance tasks

only after these components have come to

a halt.



Drain and dispose of the dirt water and

the residual fresh water.

ATTENTION

Risk of damage. Do not sluice the appli-

ance with water and do not use aggressive

detergents.



Drain off dirt water.



Check the flat folded filter, clean if re-

quired



Only BR model: Remove bulk waste

container and empty it.



Clean the outside of the appliance with

a damp cloth which has been soaked in

mild detergent.



Clean the vacuum lips and the wiping

lips, check for wear and replace if re-

quired.



Check the brushes for wear, replace if

required.



Charge battery.

If the dirt water tank is very dirty:



Remove the vacuum bar.



Cleaning the filter (optional recycling)



Unscrew the cover of the cleaning

opening of the dirt water tank.



Rinse the dirty water tank with clear wa-

ter.



Clean the edges of the cleaning open-

ing and replace the lid.



Install the vacuum bar.

Additionally for B 250 RI:



Pull out both the waste containers and

empty them.



Check the roller brush and the side

brush for wear, foreign bodies and

wrapped belts



Check battery poles for oxidation, brush

off if necessary. Ensure firm seating of

the connection cable.



Clean the seals between dirt water res-

ervoir and cover and check for tight-

ness, replace if required.



Check the acid density of the cells if the

batteries are not maintenance-free bat-

teries.



Clean the brush tunnel (only BR mod-

el).

Additionally for B 250 RI:



Check for smooth running of the

Bowden cables and the moveable parts



Check the sealing strips of the sweeper

for settings and wear.

For B 250 RI only:



Check tension, wear and function of

drive belts of the sweeper (V-belt and

circular belt).



Have the prescribed inspection carried

out by the customer service.

To ensure a reliable operation of the appli-

ance maintenance contracts can be con-

cluded with the competent Kärcher sales

office.



Remove the vacuum bar.



Loosen cross-handles.



Remove the plastic parts.



Remove the vacuum lips.



Insert new vacuum lips.



Insert the plastic parts.



Tighten the cross-handles.



Swivel up the wiper lip.



Press button.



Counter holder for brush roller is re-

leased and can be removed.



Remove brush roller, install new one.

1 Rotary knob

2 Wiping flap

Repeat the procedure in reverse order.



Install the counter holder for the brush

roller.



Swivel the scraper flap downward.



The height of the scraper flap is adjust-

ed via a rotary knob.



Repeat process on the opposite side.



Press the pedal for changing the brush-

es downward beyond its resistance.



Pull the disc brush out of the side below

the cleaning head.



Hold the new disc brush under the

cleaning head, push upward and lock.



The height of the scraper flap is adjust-

ed via a rotary knob.

Transport

BD model

Maintenance and care

Maintenance schedule

After the work

Monthly

Quarterly

Yearly

Maintenance Works

Maintenance contract

Replacing the vacuum lips

Replacing the brush rollers

Replacing the disk brushes

1.

2.

1

2

24 EN



-

9

1 Screw

2 Support

3 Wiping flap



Unscrew the screws.



Remove the holders.



Replace scraper wipe.



Attach and screw down holder.



DANGER

Risk of injury on account of belt drives. The

sweeper hood must compulsority be closed

and locked before recommissioning the

machine after maintenance tasks.

1 Belt suction turbine Sweeper

2 Belt of roller brush drive



Check both the belts for wear and prop-

er fitting.



Park the machine on an even surface.



Set main switch to “0”.



Secure the machine with wheel

chock(s) to prevent it from rolling away.



Remove waste containers on both

sides.



Front sealing strip



Loosen fastening nuts.



Align the sealing strip so that the bottom

edge trails behind at a distance of  35 to

40 mm.



Tighten nuts.



Rear sealing strip

The floor clearance of the rear sealing strip

is designed in such a way that the sealing

strip trails behind at a distance of 5 to 10

mm.



Replace sealing strip if worn out.



Dismantling the roller brush (see "Re-

placing the roller brush").



Loosen fastening nuts.



Screw on the new sealing strip.



Tighten nuts.



Side sealing strips



Loosen fastening nuts.



Set floor clerance by pushing in a sheet

of 1-2 mm thickness.



Adjust sealing strip.



Tighten nuts.



Install roller brush.

1 Lid of dust filter casing

2 Screws

3 Flange

4 Dust filter bearing

5 Dust filter



Loosen the lock of the hood of the

sweeper by turning it in.



Tilt up the sweeper hood.



Remove the lid of the dust filter casing.



Loosen both screws.



Turn the flange in an anticlockwise direc-

tion and remove the dust filter bearing.



Take out the dust filter.



Insert the new dust filter in such a way

that the holes point to the front of the

carrier.



Replace the dust filter bearing, turn in

clock-wise direction and fasten it with

screws.



Replace the lid and press it.



Close the sweeper hood.



Ensure proper locking of the hood by

turning.



Loosen 3 screws.



Remove the wiper blade.



Push in the new side brush.



Tighten 3 screws.

1 Screw

2 Tin cover



Pull out the waste container.



Loosen screws.



Tilt the tin cover upwards and remove it.

Replacing the wiper lips

Additional maintenance tasks for

the B 250 RI

Checking drive belt

Check sealing strips of sweeper

1

2

3

Replacing the dust filter

Replacing the side brushes

Replacing the roller brush

25 EN
