Karcher BDP 50/2000 RS Bp Pack: Start up

     -

4

While standing, the device is protected

against rolling off with the help of an electri-

cal immobilising brake.  To push the de-

vice, you need to first unlock the

immobilising brake.



Turn the steering wheel to the left so

that the release lever can be accessed

more easily.



Press the unlocking lever down to un-

lock the parking brake.



Danger

Risk of accident if the device rolls off. Apply

the immobilising brake again immediately

after finishing pushing the machine by

pushing the unlocking lever down.

Caution

Risk of damage. Never move the appliance

faster than 7 km/h.

Note

Take the foot off the aceelerator pedal,

press the emergency-stop button to imme-

diately deactivate all functions and turn the

key switch to the "0" position.



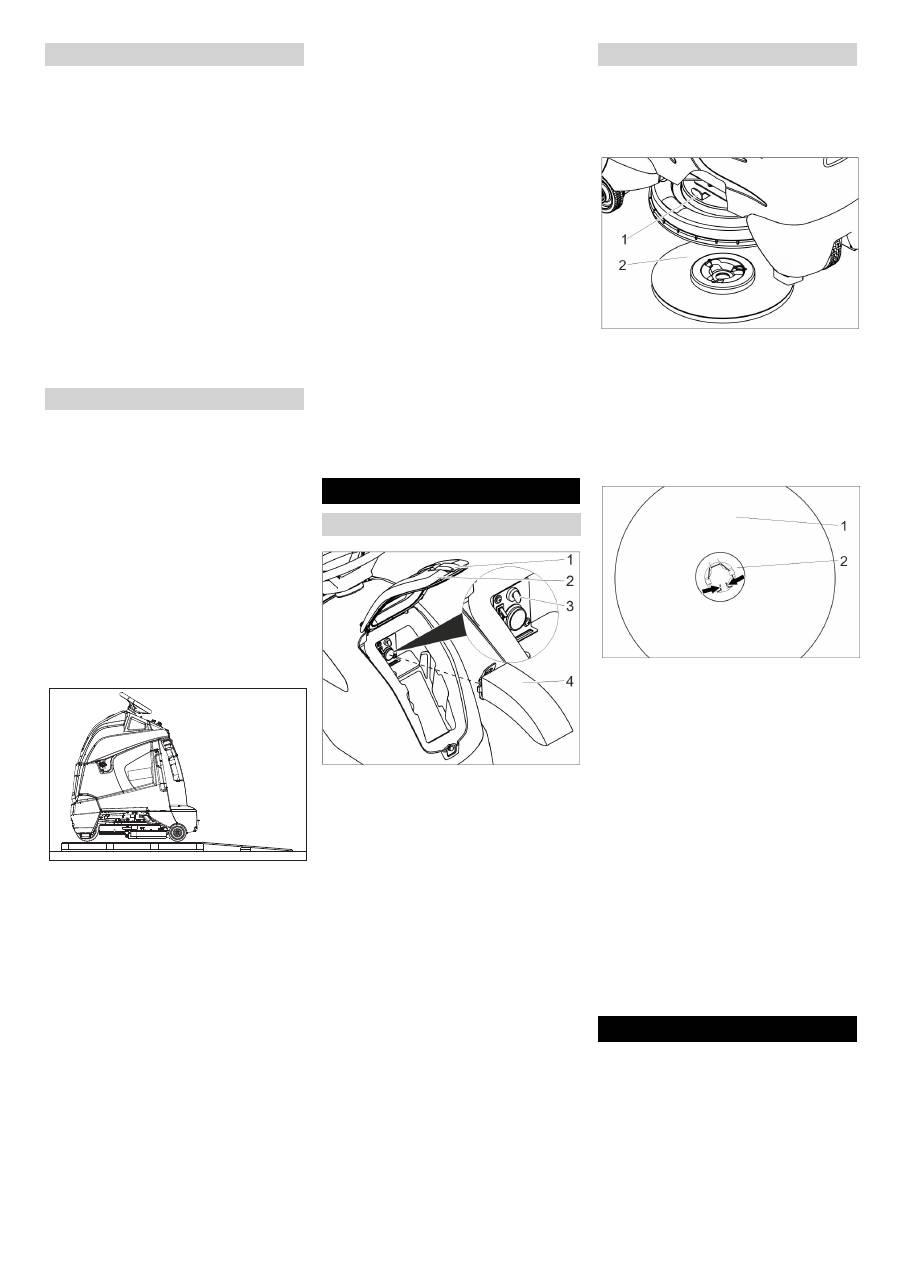

Unscrew the wooden board from the

top side of the packaging (will be need-

ed as a ramp later).



Loosen the screws and remove the

wooden cage.



Cut plastic packing belt and remove foil.



Loosen the fixing at the wheels.



Place the wooden board at the back of

the appliance on the pallet as a ramp

and attach with screws.



Remove both blocks from behind the

rear wheels.



Loosen the flexible steering shaft from

the pallet.



Swivel the top part of the appliance to

the front and remove the steering

wheel.



Remove the key from the steering

wheel.



Remove the nut and the sleeve from the

upper end of the steering shaft.



Leave the bushing and the plastic

washer on the shaft.



Push the upper end of the steering shaft

from the inside through the drilled hole

in the control panel.



Install the nut and the sleeve onto the

upper end of the steering shaft.



Slide the lower end of the steering shaft

onto the end of the rotary shaft on the

bottom of the appliance.



Swivel the top part of the appliance

back and check if the flexible steering

shaft slides down on the rotating axle.



Remove the nut from the upper end of

the steering shaft.

Caution

Risk of damage for the steering shaft. Only

turn the steering wheel when the top part of

the appliance is closed.



Insert the steering wheel and straight-

align the front wheel.



Pull out the steering wheel, align and in-

sert back.



Fasten the steering wheel using en-

closed nut.



Insert the cover in the steering wheel.



Press the unlocking lever down to un-

lock the parking brake.



Slide the appliance backwards to re-

move it from the pallet.



Push the lever for locking the the park-

ing brake upwards.

1 Closure filter chamber

2 Lid of filter chamber

3 Locking

4 Filter bag



Open the closure of the filter chamber.



Swivel the lid of the filter chamber up-

wards.



Turn the locking device into a horizontal

position.



Insert filter bag.



Turn the locking device into a vertical

position.



Close the lid.



Snap the closure into place.



Turn the programme selection switch to

Drive.



Turn main key to "0" and remove it.

1 Locking lever

2 Driver plate



Push the locking lever inwards and hold

it there.



Turn the driver plate in a counter-clock-

wise direction.

1 Polishing pad

2 Retaining ring



Compress the spring and remove the

retaining ring.



Place the pad on the driver plate and

align it on the collar in the middle of the

driver plate.



Attach retaining ring, push it down and

let it snap in place.



Press the pad down on the driver plate.



Push the locking lever inwards and hold

it there.



Lift the driver plate and push it against

the catch in the polishing head.



Turn the driver plate in a clockwise di-

rection until it has snapped into place in

the catch.



Release the locking lever.

Note

Take the foot off the aceelerator pedal,

press the emergency-stop button to imme-

diately deactivate all functions and turn the

key switch to the "0" position.



Carry out maintenance jobs "Prior to

operation" (see section "Maintenance

and Care").

Pushing the device

Unloading

Start up

Inserting filter bag (option)

Attaching the polishing pad

Removing the driver plate

Attaching the polishing pad

Inserting the driver plate

Operation

15 EN
