Karcher B 40 C Bp: Operating and Functional Elements

     -

2

1 Vacuum bar lowering lever

2 Cover dirt water reservoir

3 Holding rail for home base

4 Fluff filter

5 Wastewater reservoir rinsing system

(option)

6 Flexible lock of rinsing system (option)

7 Lock of wastewater reservoir

8 Float

9 Push handle

10 Coarse dirt sieve

11 Dirt water reservoir

12 Fresh water reservoir filler neck

13 Suction hose for detergent (only DOSE

model)

14 Detergent bottle (only DOSE model)

15 Lock of the fresh water reservoir with filter

16 Detergent bottle holder

17 Fresh water tank

18 Locking the tank

Secured with an additional plate and a

screw

19 Cleaning head (illustration is symbolic) *

20 Brush rollers (BR model) Disk brushes

(BD model) *

21 Waste container (only BR)

22 Battery pole fuse

23 Battery *

24 Fresh water level display

25 Pedal for raising/ lowering the cleaning

head

26 Rotary handle to incline the vacuum bar

27 Wing nuts for fastening the vacuum bar

28 Suction hose

29 Vacuum bar *

30 Connecting cable for charger

31 Automatic fill of fresh water reservoir

(option)

32 Water quantity regulator

33 Drive lever (B 40 W Bp)

Safety switch (B 40 C Bp)

34 Operator console

35 Storage surface for cleaning set "Home

base box“

36 Cable hook

37 Drain hose for wastewater with dosing

unit

* not included in the delivery

–

The operating elements for the cleaning

process are yellow.

–

The controls for the maintenance and

service are light gray.

Operating and Functional Elements

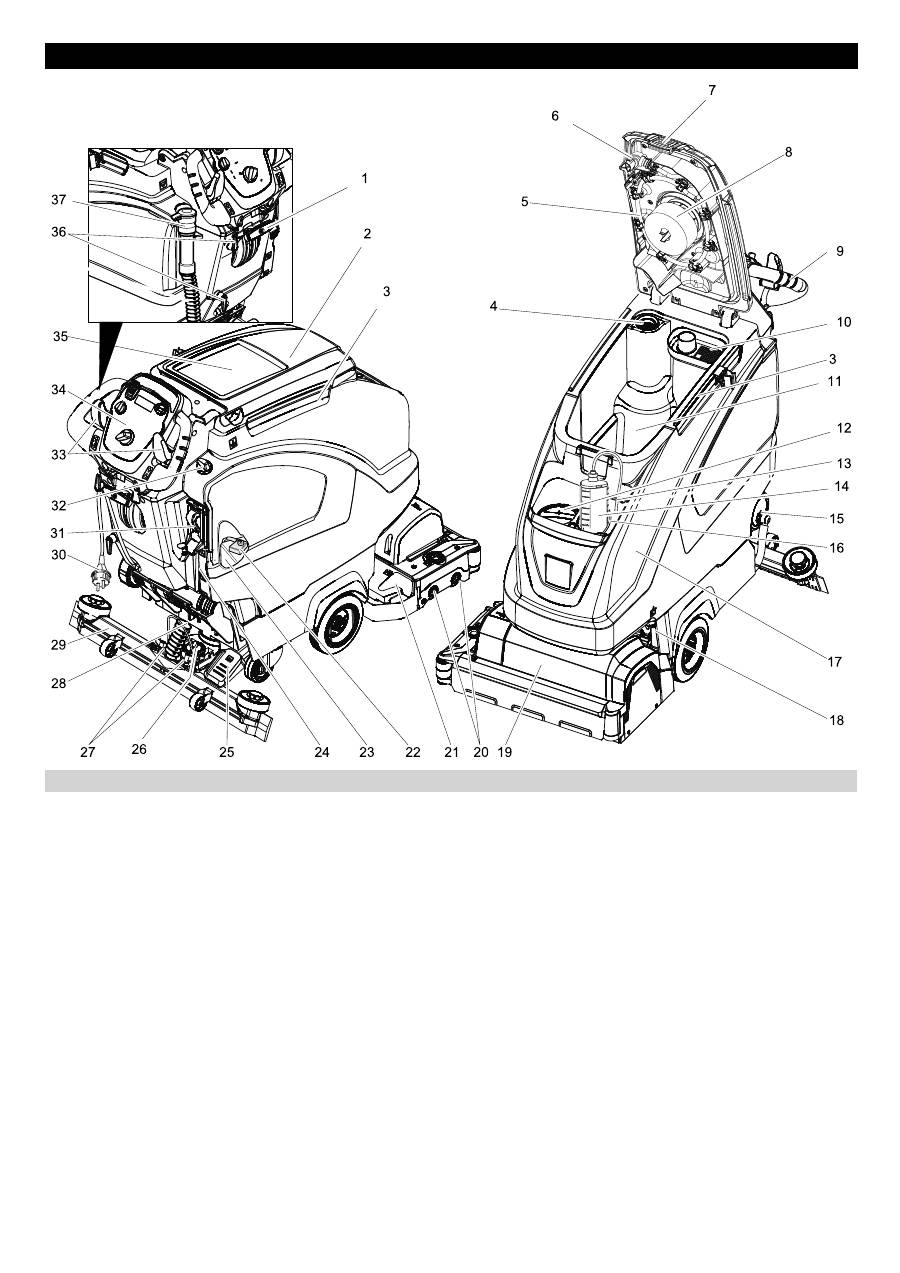

Illustration of scrubbing vacuum

Colour coding

15 EN
