English

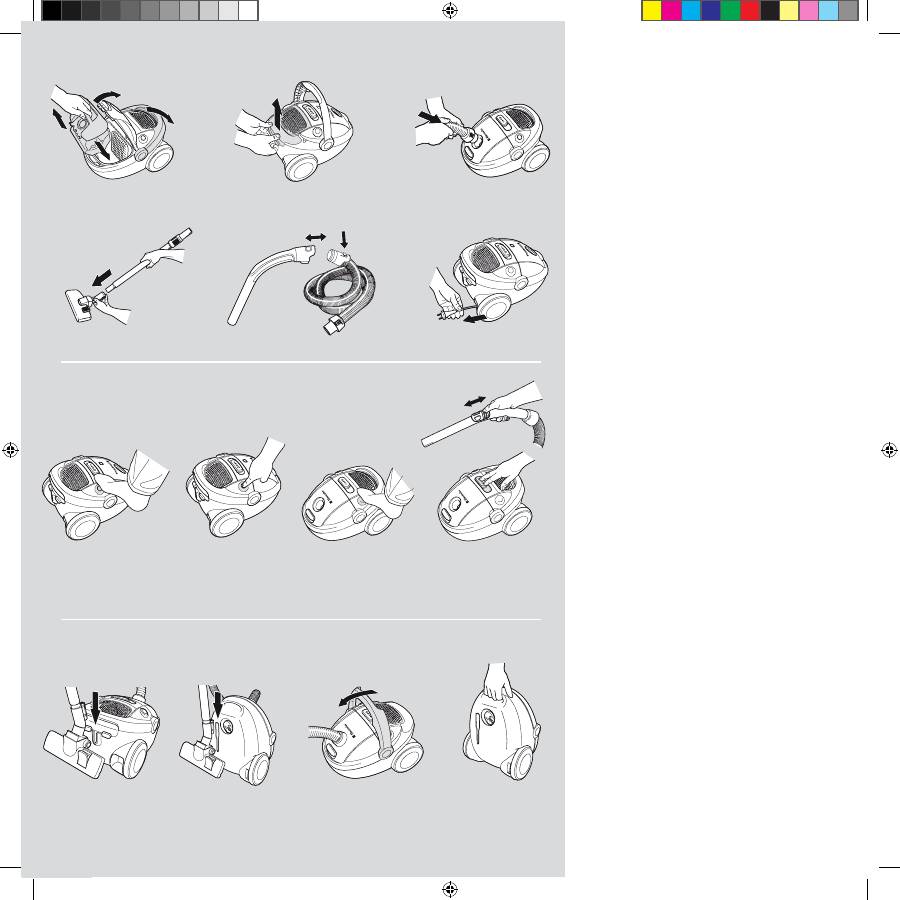

BEFORE STARTING

1 a  Ensure that the machine’s carrying handle is folded

down. Then open the front cover on the machine and

check that the dust bag, s-bag®, and the motor filter

are in place.

1 b  Fold up the carrying handle until it clicks into place.

Then open the back lid on the machine and check

that the exhaust filter is in place.

2  Insert the hose until the catches click to engage (press

the catches to release the hose).

3  Attach the extension tubes or telescopic tube (certain

models only) to the hose handle and hard floor nozzle

by pushing and twisting together. (Twist and pull

apart to dismantle.)

4

Insert the hose into the hose handle until the

catches

click to engage (press the catches to release the

hose).

5  Extend the electric cable and connect it to the mains.

The vacuum cleaner is fitted with a cable winder.

6a   Press the foot pedal to rewind the cable (take hold of

the plug to prevent it striking you).

6b  Press the small button on the pedal to activate

Autoreverse (on certain models only). The length

of the cable will now be continually adjusted to

requirements. Press the whole pedal to de-activate

Autoreverse. The cable is now fixed, as on a normal

cable winder.

7  Press the On/Off button with the foot to start the

vacuum cleaner.

8  Adjust suction power using the suction control on the

vacuum cleaner or the suction control on the hose

handle.

9  A practical parking position (and at the same time a

backsaving feature) when you pause during cleaning.

10  A parking position which makes it easy to carry and

store the vacuum cleaner.

11 a When you want to carry the vacuum cleaner, lift the

carrying handle until it clicks into place.

11b You can also carry the vacuum cleaner using the

handle on the lower front edge of the machine.
