Installation

!

 Before operating your new appliance please read this

instruction booklet carefully. It contains important information

for safe use, installation and care of the appliance.

!

 Please keep these operating instructions for future reference.

Pass them on to possible new owners of the appliance.

Positioning

!

 Keep packaging material out of the reach of children. It can

become a choking or suffocation hazard (see Precautions

and tips).

!

 The appliance must be installed by a qualified professional

according to the instructions provided. Incorrect installation

may cause harm to people and animals or may damage

property.

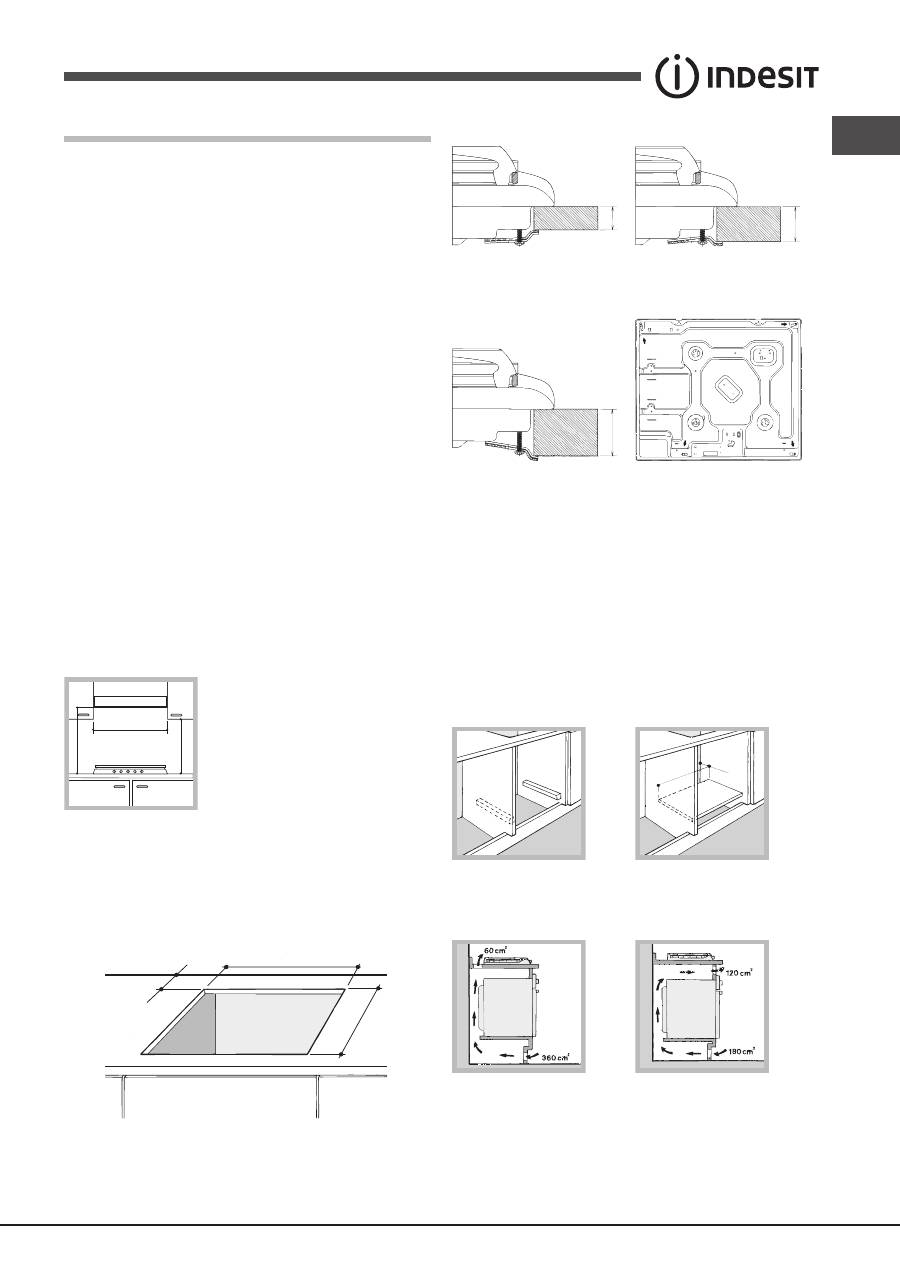

Fitting the appliance

For a correct installation of the cooking top the following

precautions must be followed:

•  Kitchen cabinets adjacent to the appliance and taller than

the top of the hob must be at least 600 mm from the edge

of the hob.

•  Hoods  must  be  installed  according  to  their  relative

installation instruction manuals and at a minimum

distance of 650 mm from the hob (see figure).

•  Place the wall cabinets adjacent to the hood at a minimum

height of 420 mm from the hob (see figure).

If the hob is installed beneath a wall

cabinet, the latter must be situated

at a minimum of 700 mm above

the hob.

•  The  installation  cavity  should  have  the  dimensions

indicated in the figure.

  Fastening hooks are provided, allowing you to fasten

the hob to tops that are between 20 and 40 mm thick.

To ensure the hob is securely fastened to the top, we

recommend you use all the hooks provided.

555 mm

55 mm

475 mm

600mm min.

420mm min.

650mm min.

Hook fastening diagram

20

30

Hooking position

Hooking position

for top

H=20mm

for top

H=30mm

Front

40

Hooking position

Back

for top

H=40mm

!

 Use the hooks contained in the “accessory pack”.

•  Where  the  hob  is  not  installed  over  a  built-in  oven,  a

wooden panel must be installed as insulation. This must

be placed at a minimum distance of 20 mm from the lower

part of the hob.

Ventilation

To ensure adequate ventilation, the back panel of the cabinet

must be removed. It is advisable to install the oven so that it

rests on two strips of wood, or on a completely flat surface

with an opening of at least 45 x 560 mm (see diagrams).

560 mm

.

45 mm.

Where a hob is installed above an oven without a forced

ventilation cooling system, adequate ventilation must be

provided inside the cabinet by means of air holes through

which air can pass (see figure).

Electrical connection

The electric hobs are supplied without power supply

cable since the cable must be sized according to the type

of electrical connection used (see attached connection

diagram). Follow these steps to connect the cable:
