Pioneer VSX-322-K: instruction

Quick Start Guide

Guide rapide

Guida di avvio rapido

Snelstartgids

Guía de inicio rápido

Kurzanleitung

What’s in the box

Contenu du carton d’emballage

Contenuto della confezione

Inhoud van de doos

Contenido de la caja

Lieferumfang

Комплект поставки

VSX-322

-K

AV Receiver

Amplificateur AV

Sintoamplificatore AV

AV Receiver

Receptor AV

AV Receiver

AV-

ресивер

Thank you for buying this Pioneer product. This Quick Start Guide includes instructions for basic connections and operations to allow simple use of the

receiver. For detailed descriptions of the receiver, see the “Operating Instructions” provided on the included CD-ROM (    ).

Merci pour l’achat de ce produit Pioneer. Ce guide rapide contient les instructions relatives aux raccordements et opérations de base permettant une

utilisation simple de ce récepteur. Pour des descriptions plus détaillées du récepteur, référez-vous au “Mode d’emploi” sur le CD-ROM (    ) fourni.

Vi ringraziamo per avere acquistato questo prodotto Pioneer. Questa Guida di avvio rapido comprende istruzioni per i collegamenti fondamentali e per le

operazioni essenziali di questo ricevitore. Per una descrizione dettagliata del ricevitore, vedere le “Istruzioni per l’uso” contenute nel CD-ROM (    ) accluso.

Hartelijk dank voor de aanschaf van dit Pioneer product. In deze snelstartgids vindt u de instructies voor de basisaansluitingen en de basisbediening voor een

eenvoudig gebruik van de receiver. Voor meer gedetailleerde informatie wordt u verwezen naar de “Handleiding” die op de bijgeleverde CD-ROM (    ) staat.

Muchas gracias por haber adquirido este producto de Pioneer. Esta Guía de inicio rápido incluye instrucciones para hacer las conexiones y operaciones

básicas que le permitirán hacer un uso sencillo del receptor. Para conocer una descripción detallada del receptor, consulte el “Manual de instrucciones”

suministrado con el CD-ROM (    ) incluido.

Vielen Dank, dass Sie sich für dieses Pioneer-Produkt entschieden haben. Die Kurzanleitung enthält Anweisungen für grundlegende Verbindungen und

Bedienvorgänge, um eine einfache Bedienung des Receivers zu ermöglichen. Detaillierte Beschreibungen des Receivers finden Sie in der „Bedienungsanlei-

tung“ auf der mitgelieferten CD-ROM (    ).

Благодарим вас за приобретение данного изделия Pioneer. В данном Кратком руководстве пользователя содержатся инструкции по основным

подключениям и операциям для упрощенного использования ресивера. Подробное описание ресивера см. в «Инструкции по эксплуатации»,

содержащихся на поставляемом CD-ROM

 (    )

.

Remote Control

Télécommande

Telecomando

Afstandsbediening

Mando a distancia

Fernbedienung

Пульт дистанционного

управления

AAA size IEC R03 dry cell batteries x2

Piles à anode sèche AAA IEC R03 x 2

Pile a secco AAA IEC R03 x2

AAA/IEC/R03 drogecelbatterijen x2

Pilas secas AAA, IEC R03 x 2

IEC R03 Trockenbatterien der Größe AAA x2

Сухие батарейки размера AAA IEC R03, 2 шт.

AM loop antenna

Antenne cadre AM

Antenna AM a telaio

AM-raamantenne

Antena de cuadro de AM

MW-Rahmenantenne

Рамочная антенна АМ

FM wire antenna

Antenne filaire FM

Antenna FM a filo

FM-draadantenne

Antena de hilos de FM

UKW-Drahtantenne

Проволочная антенна FM

These quick start guide

Le présent Guide de démarrage

Guida per l’avvio rapido

Deze Quick Start-gids

Esta guía de inicio rápido

Diese Kurzanleitung

Это краткое руководство пользователя

Power cord

Cordon d’alimentation

Cavo di alimentazione

Netsnoer

Cable de alimentación

Netzkabel

Кабель питания

Warranty card

Carte de garantie

Documento di garanzia

Garantiebewijs

Tarjeta de garantía

Garantiekarte

Гарантийный сертификат

CD-ROM (Operating instructions)

CD-ROM (Mode d’emploi)

CD-ROM (Istruzioni per l’uso)

CD-ROM (Handleiding)

CD-ROM (Manual de instrucciones)

CD-ROM (Bedienungsanleitung)

CD-ROM (Инструкции по эксплуатации)

MA

DE

 IN

 CH

INA

FABR

IQUÉ E

N CHINE

ᷧᷚᷛᷡᷖᷣᷤᴾᷘᴾᷠᷞᷨᷖᷛ

  © 20

12 P

ION

EER

 CO

RP

OR

AT

IO

N

6517-00000-077-0S

VSX-322-K

RECEIVER

SOURCE

SLEEP

TV

CONTROL

RECEIVER

RECEIVER

DTV/TV

PHASE

SIGNAL SEL

S.RETRIEVER

CH

VOL

DIMMER

INPUT

MIDNIGHT

HDD

+10

SPEAKERS

LEV

LEV

SB CH

TEST TONE

DVD

CH SELECT

VCR

SHIFT

1

2

DISP

3

4

5

6

CH

7

8

9

CH

CLR

0

ENTER

INPUT SELECT

BD

DVD

TV

DVR/BDR

CD

CD-R

ADAPTER TUNER PORTABLE

BD MENU

ADV  SURR

AUTO/

DIRECT

ALC/

STANDARD

STEREO

MUTE

RETURN

AUDIO

PARAMETER

TUNER EDIT

TOOLS

BAND

MENU

HOME

MENU

SETUP

PTY SEARCH

TOP

MENU

TUNE

TUNE

PR

ES

ET

PR

ES

ET

ENTER

TRE

BASS

MASTER

VOLUME

2

En

For detailed descriptions of the receiver, see the “Operating Instructions” provided on the included CD-ROM. The operating instructions can also be downloaded from the Pioneer website

(http:// www.pioneer.eu). See below for instructions on handling the CD-ROM.

0

Operating Environment

 — This CD-ROM can be used with Microsoft® Windows® 95/98/Me/NT/2000/XP/Vista/7 and Apple Mac OS X 10.4. Adobe Reader (Version 4.0 or later) is required to

read this CD-ROM.

0

Precautions For Use

 — This CD-ROM is for use with a personal computer. It cannot be used with a DVD player or music CD player. Attempting to play this CD-ROM with

a DVD player or music CD player can damage speakers or cause impaired hearing due to the large volume.

0

License

 — Please agree to the “Terms of Use” indicated below before using this

CD-ROM. Do not use if you are unwilling to consent to the terms of its use.

0

Terms of Use

 — Copyright to data provided on this CD-ROM belongs to PIONEER CORPORATION. Unauthorized

transfer, duplication, broadcast, public transmission, translation, sales, lending or other such matters that go beyond the scope of “personal use” or “citation” as defined by Copyright Law may

be subject to punitive actions. Permission to use this CD-ROM is granted under license by PIONEER CORPORATION.

0

General Disclaimer

 — PIONEER CORPORATION does not guarantee

the operation of this CD-ROM with respect to personal computers using any of the applicable OS. In addition, PIONEER CORPORATION is not liable for any damages incurred as a result of use

of this CD-ROM and is not responsible for any compensation. The names of private corporations, products and other entities described herein are the registered trademarks or trademarks of

their respective firms.

* When Using a Mac OS:

 Place this CD-ROM in a CD drive and then double-click on the CD-ROM icon to start up the application.

English

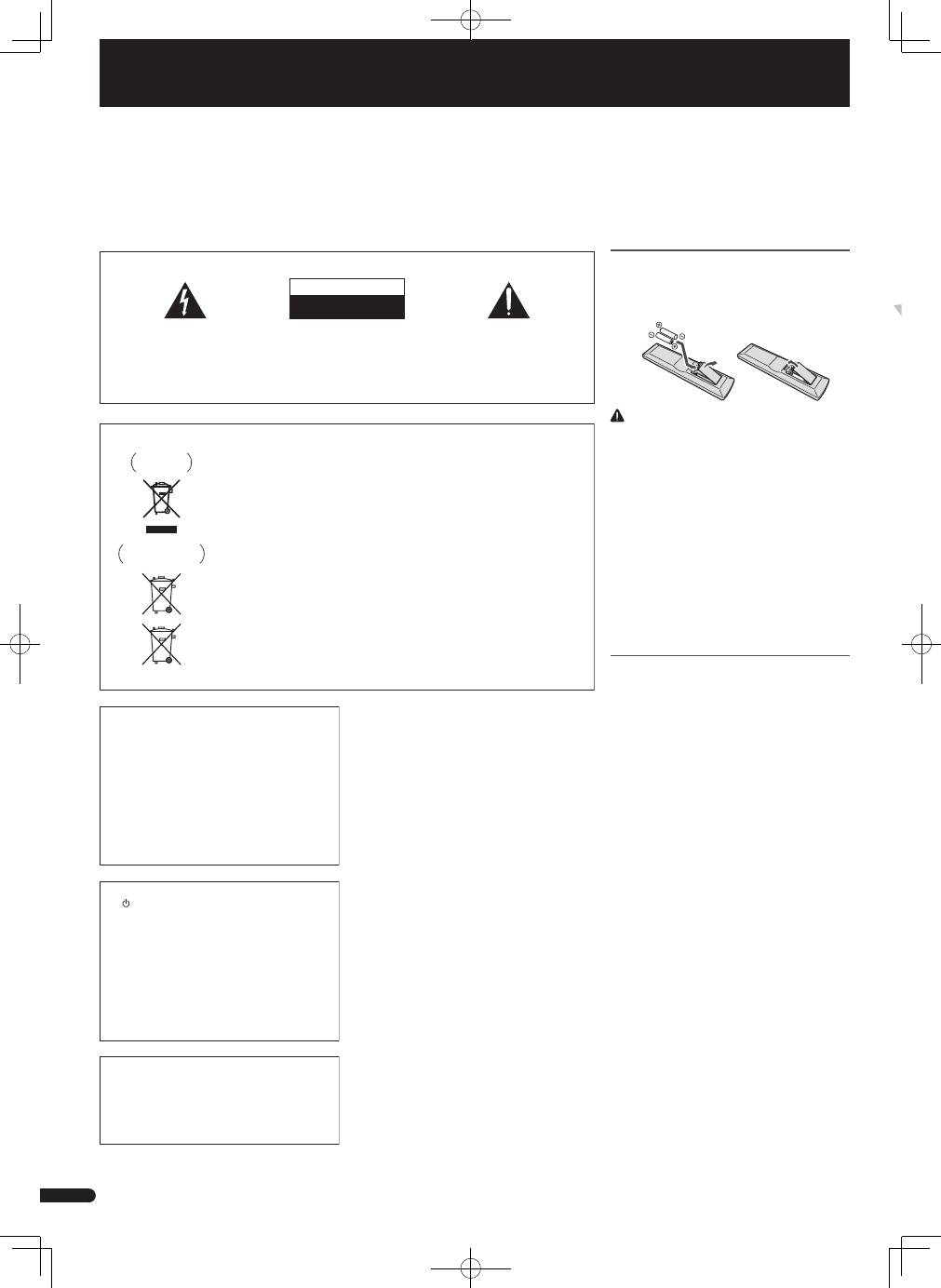

Loading the batteries

The batteries included with the unit are to check initial

operations; they may not last over a long period. We

recommend using alkaline batteries that have a longer

life.

 CAUTION

• Incorrect use of batteries may result in such hazards

as leakage and bursting. Observe the following

precautions:

– Never use new and old batteries together.

– Insert the plus and minus sides of the batteries

properly according to the marks in the battery

case.

– Batteries with the same shape may have different

voltages. Do not use different batteries together.

– When disposing of used batteries, please comply

with governmental regulations or environmental

public institution’s rules that apply in your country

or area.

– Do not use or store batteries in direct sunlight or

other excessively hot place, such as inside a car

or near a heater. This can cause batteries to leak,

overheat, explode or catch fire. It can also reduce

the life or performance of batteries.

Installing the receiver

• When installing this unit, make sure to put it on a

level and stable surface.

Don

’

t install it on the following places:

– on a color TV (the screen may distort)

– near a cassette deck (or close to a device that

gives off a magnetic field). This may interfere with

the sound.

– in direct sunlight

– in damp or wet areas

– in extremely hot or cold areas

– in places where there is vibration or other

movement

– in places that are very dusty

– in places that have hot fumes or oils (such as a

kitchen)

The exclamation point within an equilateral

triangle is intended to alert the user to the

presence of important operating and

maintenance (servicing) instructions in the

literature accompanying the appliance.

The lightning flash with arrowhead symbol,

within an equilateral triangle, is intended to

alert the user to the presence of uninsulated

“dangerous voltage” within the product’s

enclosure that may be of sufficient

magnitude to constitute a risk of electric

shock to persons.

CAUTION:

TO PREVENT THE RISK OF ELECTRIC

SHOCK, DO NOT REMOVE COVER (OR

BACK). NO USER-SERVICEABLE PARTS

INSIDE. REFER SERVICING TO QUALIFIED

SERVICE PERSONNEL.

CAUTION

RISK OF ELECTRIC SHOCK

DO NOT OPEN

IMPORTANT

D3-4-2-1-1_A1_En

Information for users on collection and disposal of old equipment and used batteries

These symbols on the products, packaging, and/or accompanying documents mean

that used electrical and electronic products and batteries should not be mixed with

general household waste.

For proper treatment, recovery and recycling of old products and used batteries,

please take them to applicable collection points in accordance with your national

legislation.

By disposing of these products and batteries correctly, you will help to save valuable

resources and prevent any potential negative effects on human health and the

environment which could otherwise arise from inappropriate waste handling.

For more information about collection and recycling of old products and batteries,

please contact your local municipality, your waste disposal service or the point of sale

where you purchased the items.

These symbols are only valid in the European Union.

For countries outside the European Union:

If you wish to discard these items, please contact your local authorities or dealer and

ask for the correct method of disposal.

K058a_A1_En

Symbol examples

for batteries

Symbol for

equipment

Pb

If the AC plug of this unit does not match the AC

outlet you want to use, the plug must be removed

and appropriate one fitted. Replacement and

mounting of an AC plug on the power supply cord of

this unit should be performed only by qualified

service personnel. If connected to an AC outlet, the

cut-off plug can cause severe electrical shock. Make

sure it is properly disposed of after removal.

The equipment should be disconnected by removing

the mains plug from the wall socket when left unused

for a long period of time (for example, when on

vacation).

D3-4-2-2-1a_A1_En

CAUTION

The

   STANDBY/ON

 switch on this unit will not

completely shut off all power from the AC outlet.

Since the power cord serves as the main disconnect

device for the unit, you will need to unplug it from the

AC outlet to shut down all power. Therefore, make

sure the unit has been installed so that the power

cord can be easily unplugged from the AC outlet in

case of an accident. To avoid fire hazard, the power

cord should also be unplugged from the AC outlet

when left unused for a long period of time (for

example, when on vacation).

D3-4-2-2-2a*_A1_En

WARNING

This equipment is not waterproof. To prevent a fire or

shock hazard, do not place any container filled with

liquid near this equipment (such as a vase or flower

pot) or expose it to dripping, splashing, rain or

moisture.

D3-4-2-1-3_A1_En

WARNING

Before plugging in for the first time, read the following

section carefully.

The voltage of the available power supply differs

according to country or region. Be sure that the

power supply voltage of the area where this unit

will be used meets the required voltage (e.g., 230 V

or 120 V) written on the rear panel.

D3-4-2-1-4*_A1_En

WARNING

To prevent a fire hazard, do not place any naked flame

sources (such as a lighted candle) on the equipment.

D3-4-2-1-7a_A1_En

Operating Environment

Operating environment temperature and humidity:

+5 °C to +35 °C (+41 °F to +95 °F); less than 85 %RH

(cooling vents not blocked)

Do not install this unit in a poorly ventilated area, or in

locations exposed to high humidity or direct sunlight (or

strong artificial light)

D3-4-2-1-7c*_A1_En

This product is for general household purposes. Any

failure due to use for other than household purposes

(such as long-term use for business purposes in a

restaurant or use in a car or ship) and which requires

repair will be charged for even during the warranty

period.

K041_A1_En

English

Français

Italiano

Español

Nederlands

Deutsch

3

En

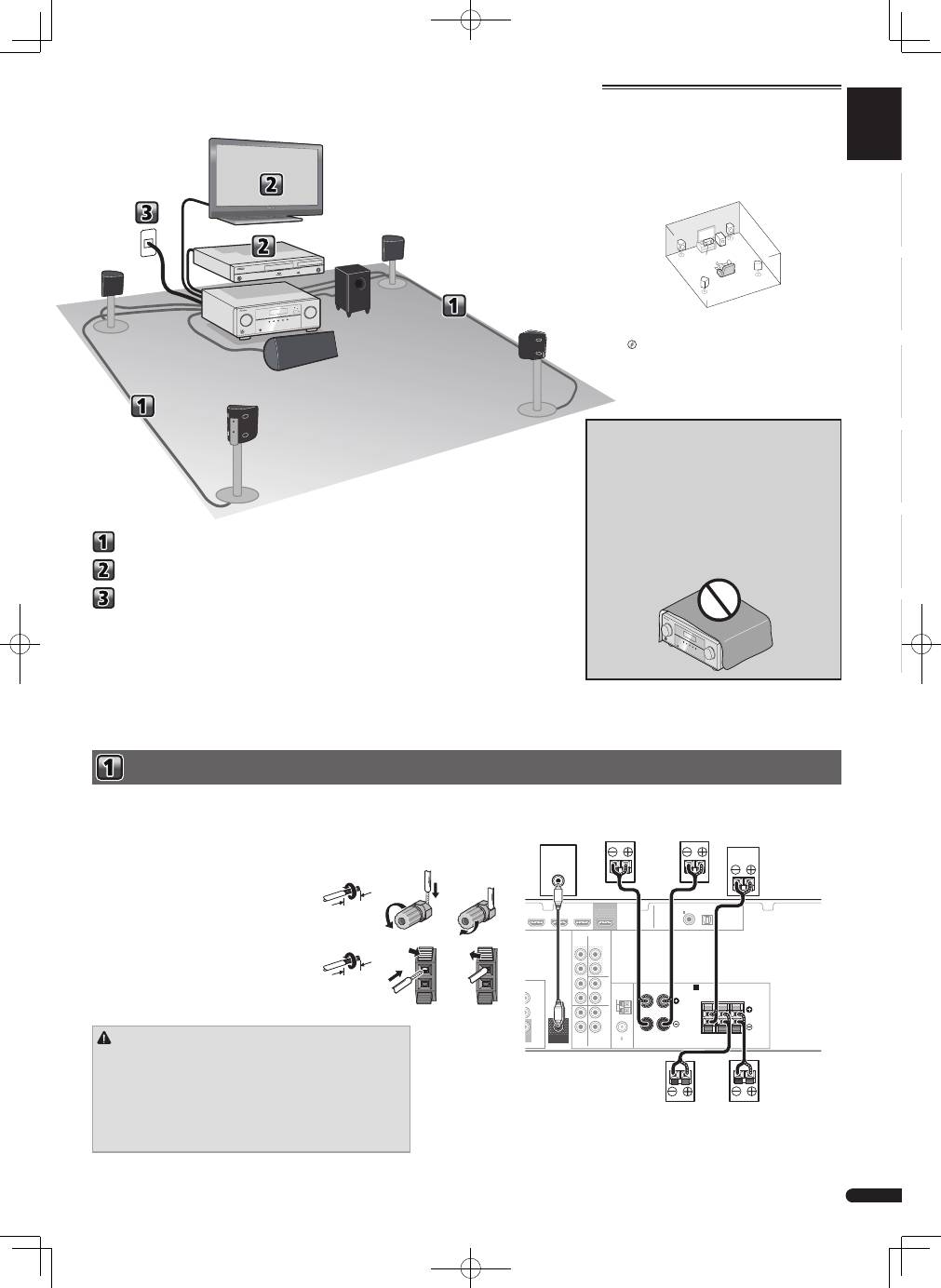

 Connecting the speakers

 Connecting the speakers

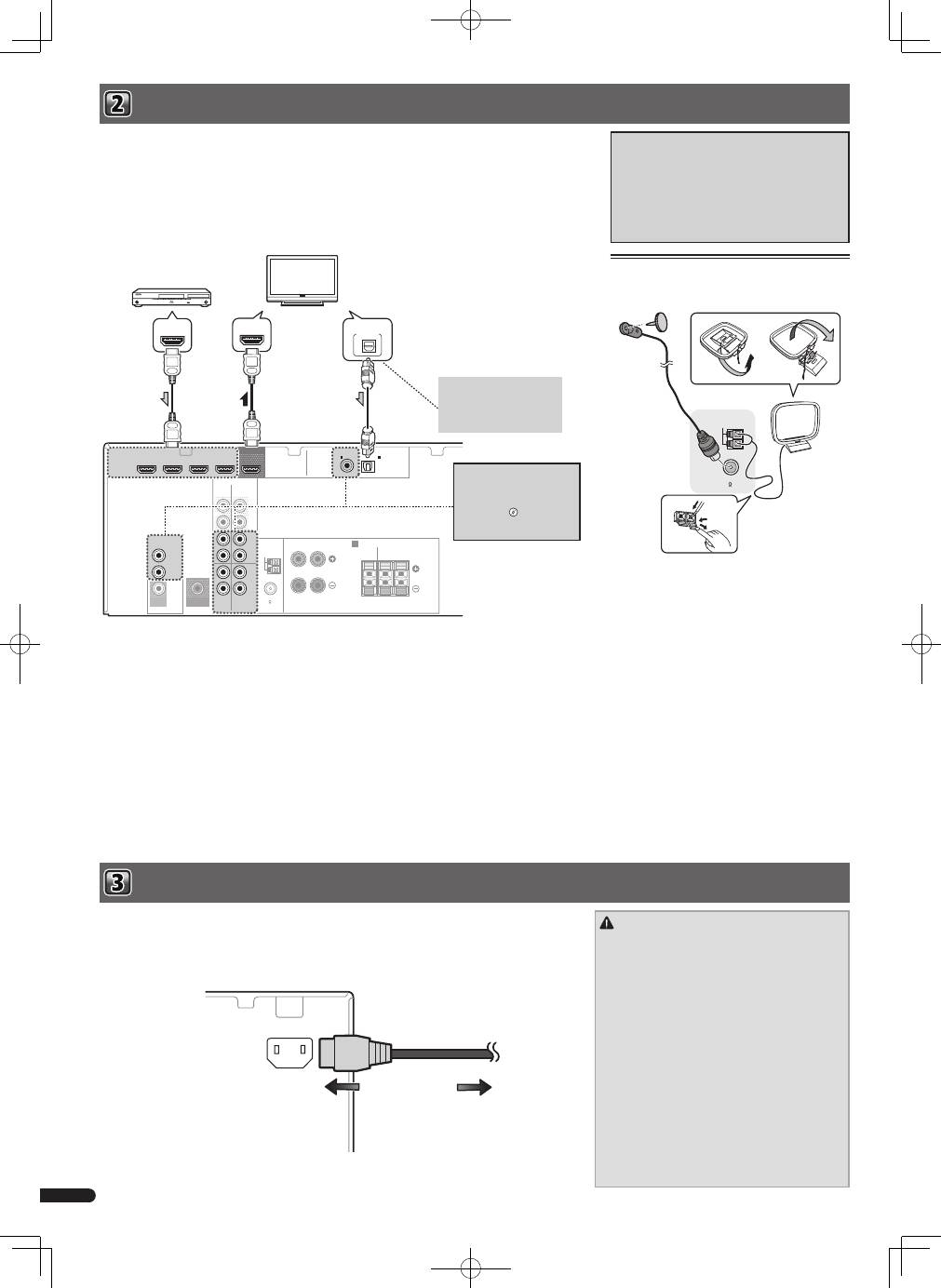

 Connecting a TV and playback component

 Plugging the receiver

 CAUTION

• These speaker terminals carry HAZARDOUS LIVE voltage. To prevent

the risk of electric shock when connecting or disconnecting the

speaker cables, disconnect the power cord before touching any

uninsulated parts.

• Make sure that all the bare speaker wire is twisted together and

inserted fully into the speaker terminal. If any of the bare speaker

wire touches the back panel it may cause the power to cut off as a

safety measure.

Make sure you connect the speaker on the right to the right (R) terminal and the speaker on the left to the left (L) terminal. Also make sure the positive and negative (+/–)

terminals on the receiver match those on the speakers.

You can use speakers with a nominal impedance between 6

Ω

 and 16

Ω

.

Be sure to complete all connections before connecting this unit to the AC power source.

Bare wire connections

Front speaker terminals:

1

Twist exposed wire strands together.

2

Loosen terminal and insert exposed wire.

3

Tighten terminal.

Center and surround speaker terminals:

1

Twist exposed wire strands together.

2

Push open the tabs and insert exposed

wire.

3

Release the tabs.

Placing the speakers

The receiver will work with just two stereo speakers (the

front speakers in the diagram) but using at least three

speakers is recommended, and a complete setup is

best for surround sound.

To achieve the best possible surround sound, install

your speakers as shown below.

5.1 channel surorund system:

R

SL

L

SW

C

SR

• In addition, surround back speakers can also be

connected.

l

“Connect the surround back speakers”

1

2

3

1

2

3

Flow of settings on the receiver

VENTILATION CAUTION

When installing this unit, make sure to leave space

around the unit for ventilation to improve heat radiation

(at least 40 cm at top, 20 cm at rear, and 20 cm at each

side).

WARNING

Slots and openings in the cabinet are provided for

ventilation to ensure reliable operation of the product, and

to protect it from overheating. To prevent fire hazard, the

openings should never be blocked or covered with items

(such as newspapers, table-cloths, curtains) or by

operating the equipment on thick carpet or a bed.

D3-4-2-1-7b*_A1_En

O

L

R

R

L

COAXIAL

AUDIO

SPEAKERS

ANTENNA

OPTICAL

ASSIGNABLE

OUT

A

CD-R/TAPE SURR BACK

PRE OUT

L

R

(Single)

(

CD-R / TAPE)

IN

CD/SAT

TOR

T

CD/SAT

DVD

IN

TV

IN

IN

IN

DVD

DVD IN

BD IN

CD/SAT IN

(

TV)

IN

1

IN

1

FM UNBAL

75

AM LOOP

CENTER

SURROUND

R

L

SUBWOOFER

PRE OUT

FRONT

R

L

OUT

LINE LEVEL

INPUT

Front Right

10 mm

10 mm

Center

Front Left

Subwoofer

Surround

Right

Surround

Left

Be sure to complete

all connections before

connecting this unit to

the AC power source.

The unit is a full-fledged AV receiver equipped with an

abundance of functions and terminals. It can be used

easily after following the procedure below to make the

connections and settings.

L

Front left

SW

Subwoofer

C

Center

This receiver

(VSX-322-K)

Blu-ray Disc

player

TV

R

Front right

SL

Surround left

SR

Surround right

4

En

 Connecting a TV and playback component  Plugging the receiver

If you have an HDMI or DVI (with HDCP) equipped component (Blu-ray Disc player, etc.), you can connect it to this

receiver using a commercially available HDMI cable.

• The following connection/setting is required to listen to the sound of the TV over this receiver.

– If the TV does not support the HDMI Audio Return Channel function, connect the receiver and TV with audio

cables (as shown).

– If the TV supports the HDMI Audio Return Channel function, the sound of the TV is input to the receiver via the

HDMI terminal, so there is no need to connect an audio cable. In this case, set ARC at HDMI Setup to ON.

– The ARC function may not operate even with the above connections. If this is the case, connect the receiver

and the TV with an audio cable.

About video outputs connection

This receiver is not loaded with a video converter.

When you use HDMI cables for connecting to the

input device, the same cables should be used for

connecting to the TV.

The signals input from the analog (composite) video

input of this unit will not be output from the HDMI

OUT.

HDMI

VIDEO

L

R

R

L

COAXIAL

AUDIO

SPEAKERS

ANTENNA

OPTICAL

ASSIGNABLE

OUT

A

CD-R/TAPE SURR BACK

PRE OUT

L

R

(Single)

(

CD-R / TAPE

)

IN

CD/SAT

MONITOR

OUT

CD/SAT

DVD

IN

TV

IN

IN

IN

DVD

DVR/BDR IN

DVD IN

BD IN

CD/SAT IN

(

TV

)

IN

1

IN

1

FM UNBAL

75

AM LOOP

CENTER

SURROUND

R

L

SUBWOOFER

PRE OUT

FRONT

R

L

OUT

HDMI IN

HDMI OUT

DIGITAL AUDIO OUT

OPTICAL

HDMI/DVI-compatible components

(Blu-ray Disc player, etc.)

HDMI/DVI-compatible TV

If the TV does not support the

HDMI Audio Return Channel

function, this connection is

required to listen to the TV

sound over the receiver.

If the device you wish to

connect does not have an

HDMI output terminal, it

can be connected via these

terminals.

l

“

Connecting

your component with no HDMI

terminal”

 CAUTION

• Handle the power cord by the plug part. Do not pull

out the plug by tugging the cord, and never touch the

power cord when your hands are wet, as this could

cause a short circuit or electric shock. Do not place

the unit, a piece of furniture, or other object on the

power cord or pinch the cord in any other way. Never

make a knot in the cord or tie it with other cables. The

power cords should be routed so that they are not

likely to be stepped on. A damaged power cord can

cause a fire or give you an electric shock. Check the

power cord once in a while. If you find it damaged,

ask your nearest Pioneer authorized independent

service company for a replacement.

• Do not use any power cord other than the one

supplied with this unit.

• Do not use the supplied power cord for any purpose

other than that described below.

• The receiver should be disconnected by removing the

mains plug from the wall socket when not in regular

use, e.g., when on vacation.

Connecting antennas

Connect FM wire antenna and the the AM loop antenna

as shown below.

ANTENNA

FM UNBAL

75

AM LOOP

Only plug in after you have connected all your components to this receiver, including the speakers.

1

Plug the supplied power cord into the AC IN socket on the back of the receiver.

2

Plug the other end into a power outlet.

AC IN

To power outlet
