Indesit H593LIX: English

English

11

EN

Closely follow the instructions set out in this manual.

All responsibility,  for

any eventual inconveniences, damages or fires caused by not complying with the

instructions in this manual, is declined. The extractor hood has been designed

exclusively for domestic use.

!

It is important to conserve this booklet for consultation at any moment. In

the case of sale, cession or move, make sure it is together with the product.

!

Read the instructions carefully: there is important information about

installation, use and safety.

!

Do not carry out electrical or mechanical variations on the product or on the

discharge conduits.

GENERAL SAFETY

The minimum distance between the supporting surface for the cooking

equipment on the hob and the lowest part of the range hood must be not less

than 60cm from electric cookers and 70cm from gas or mixed cookers.

If the instructions for installation for the gas hob specify a greater distance, this

must be adhered to.

Expansion wall plugs are provided to secure the hood to most types of

walls/ceilings. However, a qualified technician must verify suitability of the

materials in accordance with the type of wall/ceiling. The wall/ceiling must be

strong enough to take the weight of the hood.

Do not tile, grout or silicone this

appliance to the wall. Surface mounting only.

WARNING!

Do not connect the appliance to the mains until the installation is

fully complete.

Before any cleaning or maintenance operation, disconnect hood from the mains

by removing the plug or disconnecting the mains electrical supply.

Always wear work gloves for all installation and maintenance operations.

The appliance is not intended for use by children or persons with impaired

physical, sensorial or mental faculties, or if lacking in experience or knowledge,

unless they are under supervision or have been trained in the use of the

appliance by a person responsible for their safety.

This appliance is designed to be operated by adults, children should be

monitored to ensure that they do not play with the appliance.

This appliance is designed to be operated by adults.  Children should not be

allowed to tamper with the controls or play with the appliance.

Never use the hood without effectively mounted grating!

The hood must NEVER be used as a support surface unless specifically

indicated.

The premises where the appliance is installed must be sufficiently ventilated,

when the kitchen hood is used together with other gas combustion devices or

other fuels.

The ducting system for this appliance must not be connected to any existing

ventilation system which is being used for any other purpose such as discharging

exhaust fumes from appliances burning gas or other fuels.

The flaming of foods beneath the hood itself is severely prohibited.

The use of exposed flames is detrimental to the filters and may cause a fire risk,

and must therefore be avoided in all circumstances.

Any frying must be done with care in order to make sure that the oil does not

overheat and ignite.

Accessible parts of the hood may became hot when used with cooking

appliance.

With regards to the technical and safety measures to be adopted for fume

discharging it is important to closely follow the regulations provided by the local

authorities.

The hood must be regularly cleaned on both the inside and outside (AT LEAST

ONCE A MONTH).

This must be completed in accordance with the maintenance instructions

provided in this manual). Failure to follow the instructions provided in this user

guide regarding the cleaning of the hood and filters will lead to the risk of fires.

Do not use or leave the hood without the lamp correctly mounted due to the

possible risk of electric shocks.

We will not accept any responsibility for any faults, damage or fires caused to the

appliance as a result of the non-observance of the instructions included in this

manual.

ELECTRICAL CONNECTION

The mains power supply must correspond to the rating indicated on the plate

situated inside the hood. If provided with a plug connect the hood to a socket in

compliance with current regulations and positioned in an accessible area, after

installation. If it not fitted with a plug (direct mains connection) or if the plug is not

located in an accessible area, after installation,  apply a double pole switch in

accordance with standards which assures the complete disconnection of the

mains under conditions relating to over-current category III, in accordance with

installation instructions.

Warning!

 Before re-connecting the hood circuit to the mains supply and

checking the efficient function, always check that the mains cable is correctly

assembled.

Replacing the power cable

Warning!

Power cable replacement must be undertaken  by the authorised

service assistance centre or similar qualified person.

AIR VENT

(for the suction versions)

Connect the hood and discharge holes on the walls with a diameter equivalent to

the air outlet (connection flange).

Using the tubes and discharge holes on walls with smaller dimensions will cause

a diminution of the suction performance and a drastic increase in noise.

Any responsibility in the matter is therefore declined.

!

Use a duct of the minimum indispensible length.

!

Use a duct with as few elbows as possible (maximum elbow angle: 90°).

!

Avoid drastic changes in the duct cross-section.

!

Use a duct with an as smooth as possible inside.

!

The duct must be made of certified material.

!

The company declines any responsibility whenever these regulations are

not respected.

FILTERING OR DUCTING ?

!

Your cooker hood is ready to be used in suction version.

To use the hood in filtering version the special ACCESSORY KIT must be

installed.

Check on the first pages of this manual if the ACCESSORY KIT is furnished

or must be bought separately.

Note:

 If furnished, in certain cases, the additional activated carbon filtering

system may be installed on the hood.

Information about the conversion of the hood from suction version to filtering

version is present in this manual.

  Ducting version

In this case the fumes are conveyed outside of the building by means of a

special pipe connected with the connection ring located on top of the hood.

Attention

! The exhausting pipe is not supplied and must be purchased apart.

Diameter of the exhausting pipe must be equal to that of the connection ring.

In the horizontal runs the exhausting pipe must be slightly slanted (about 10°)

and directed upwards to vent the air easily from the room to the outside.

Attention! If the hood is supplied with active charcoal filter, then it must be

removed.

  Filter version

Order and install 2 active carbon filters (active carbon filters are available from

your dealer).

The filter removes the grease and smells from the extracted air before sending it

back into the room through the upper outlet grid.

12

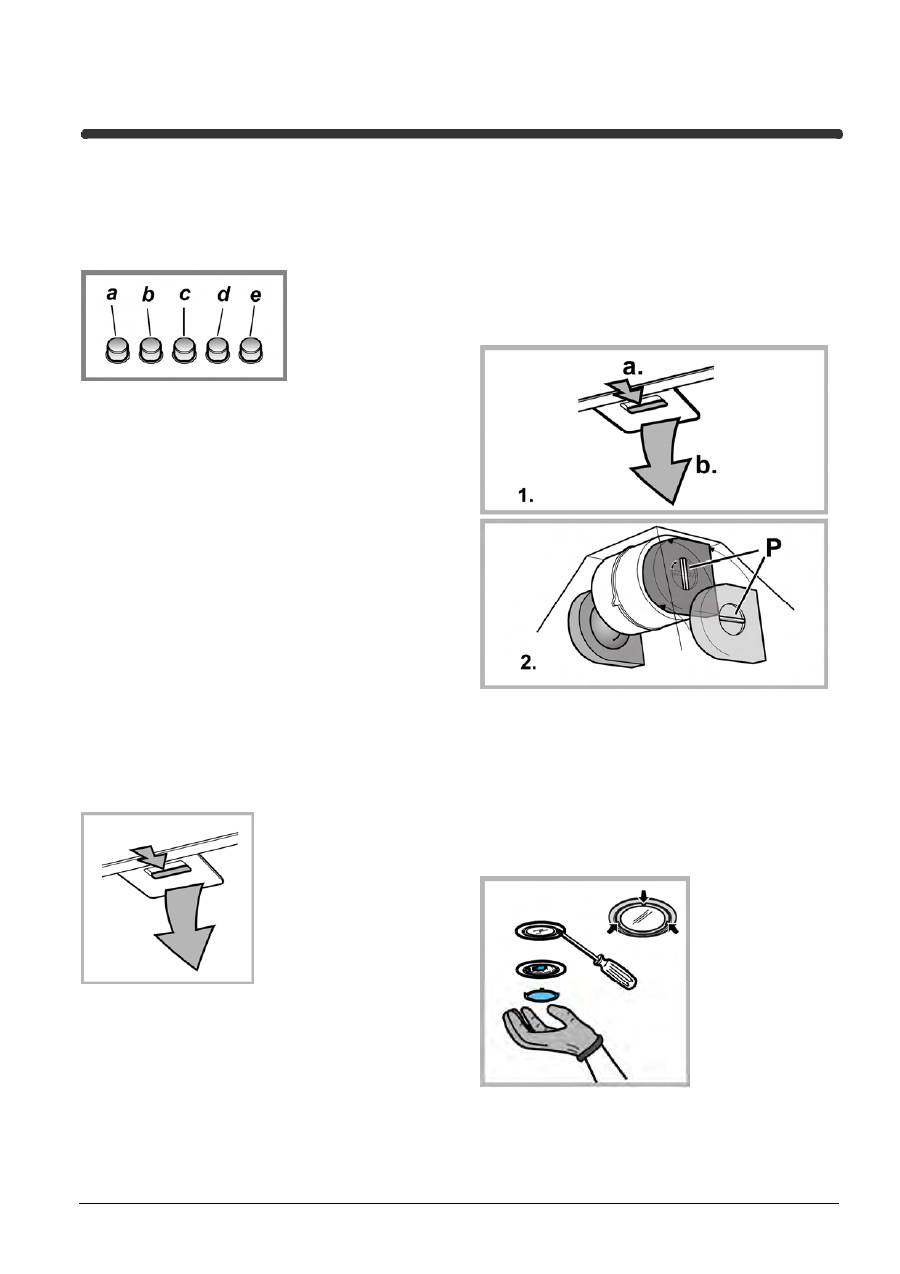

CONTROLS

a.

on/off light switch

b.

off aspiration switch

c.

minimum power selection aspiration switch

d.

medium power selection aspiration switch

e.

maximum power selection aspiration switch

MAINTENANCE

ATTENTION!

Before performing any maintenance operation, isolate the hood

from the electrical supply by switching off at the connector and removing the

connector fuse.

Or if the appliance has been connected through a plug and socket, then the plug

must be removed from the socket.

Cleaning

The cooker hood should be cleaned regularly (at least with the same frequency

with which you carry out maintenance of the fat filters) internally and externally.

Clean using the cloth dampened with neutral liquid detergent. Do not use

abrasive products.

DO NOT USE ALCOHOL!

WARNING:

Failure to carry out the basic cleaning recommendations of the

cooker hood and replacement of the filters may cause fire risks.

Therefore, we recommend observing these instructions.

The manufacturer declines all responsibility for any damage to the motor or any

fire damage linked to inappropriate maintenance or failure to observe the above

safety recommendations.

Maintenance of the anti-grease filters

Traps cooking grease particles.

The grease filter

 must be cleaned once a month using non aggressive

detergents, either by hand or in the dishwasher, which must be set to a low

temperature and a short cycle.  When washed in a dishwasher, the grease filter

may discolour slightly, but this does not affect its filtering capacity.

To remove the grease filter, pull the spring release handle.

Maintenance of the charcoal filter

It absorbs unpleasant odours caused by cooking.

The saturation of the

charcoal filter

 occurs after more or less prolonged use,

depending on the type of cooking and the regularity of cleaning of the grease

filter.

In any case it is necessary to replace the cartridge at least every four mounths.

The charcoal filter may NOT be washed or regenerated.

•

Remove the grease filters.

•

Apply one on each side covering both grills protecting the motor propeller,

then turn the filter central handles

P

 clockwise.

•

In order to dismantle turn the central handle

P

 anti-clockwise for each filter.

•

Put the grease filters back in place.

Replacing lamps

Disconnect the hood from the electricity.

Warning!

Prior to touching the light bulbs ensure they are cooled down.

1.

  Using a flat head screwdriver or equivalent tool, carefully pry loose the light

cover.

2.

  Remove the damaged light and replace with a new 12 Volt, 20 Watt

(Maximum) halogen light made for a G-4 base SUITABLE FOR USE IN

OPEN LUMINAIRES.  Follow package directions and do not touch new light

with bare hands.

3.

  Reinstall the light  cover. (it will snap shut).

13

EN

DISPOSAL

This appliance is marked according to the European directive 2002/96/EC on

Waste Electrical and Electronic Equipment (WEEE). By ensuring this product is

disposed of correctly, you will help prevent potential negative consequences for

the environment and human health, which could otherwise be caused by

inappropriate waste handling of this product.

The symbol

 on the product, or on the documents accompanying the

product, indicates that this appliance may not be treated as household waste.

Instead it should be taken to the appropriate collection point for the recycling of

electrical and electronic equipment. Disposal must be carried out in accordance

with local environmental regulations for waste disposal.

For further detailed information regarding the process, collection and recycling of

this product, please contact the appropriate department of your local authorities

or the local department for household waste or the shop where you purchased

this product.

MALFUNCTIONS

If something appears not to be working properly, do the following simple checks

before calling Technical Service:

•

If the hood is not working:

 Check

that:

- The power has not been disconnected.

- A speed has been selected.

•

If the hood performs inefficiently:

 Check

that:

- The motor speed selected is sufficient for the amount of smoke and

vapours released.

- The kitchen is sufficiently ventilated to allow air intake.

- The charcoal filter is not worn (hood in filtering version).

•

If the hood has turned off during normal functioning:

 Check

that:

- The power has not been disconnected.

- the omnipolar disconnection device has not tripped.

If the hood fails to operate correctly, briefly disconnect it from the mains power

supply for almost 5 sec. by pulling out the plug. Then plug it in again and try once

more before contacting the Technical Assistance Service.

TECHNICAL DATA

Model H 563 L

Height (Ducting version)

73,3-114,8 cm

Height (Filter version)

81,8-114,8 cm

Width

59,9 cm

Depth

51,5 cm

Gross weight:

12,15 Kg

Total absorption

160 W

Motor absorption

1x120 W

Lamp absorption

2x20 W (G4)

Exhaust pipe Ø

15 cm

Model H 573 L

Height (Ducting version)

73,3-114,8 cm

Height (Filter version)

81,8-114,8 cm

Width

69,9 cm

Depth

51,5 cm

Gross weight:

14 Kg

Total absorption

160 W

Motor absorption

1x120 W

Lamp absorption

2x20 W (G4)

Exhaust pipe Ø

15 cm

Model H 593 L

Height (Ducting version)

73,3-114,8 cm

Height (Filter version)

81,8-114,8 cm

Width

89,9 cm

Depth

51,5 cm

Gross weight:

14,85 Kg

Total absorption

160 W

Motor absorption

1x120 W

Lamp absorption

2x20 W (G4)

Exhaust pipe Ø

15 cm

This appliance conforms to the following EEC Directive:

•

“Low Voltage Equipment” Directive 2006/95/EC (12-12-2006)

• “Electromagnetic

Compatibility”

Directive 2004/108/EC (15-12-2004)

    Components not provided with the product
