Pioneer FH-P80BT: Installation

Installation

English

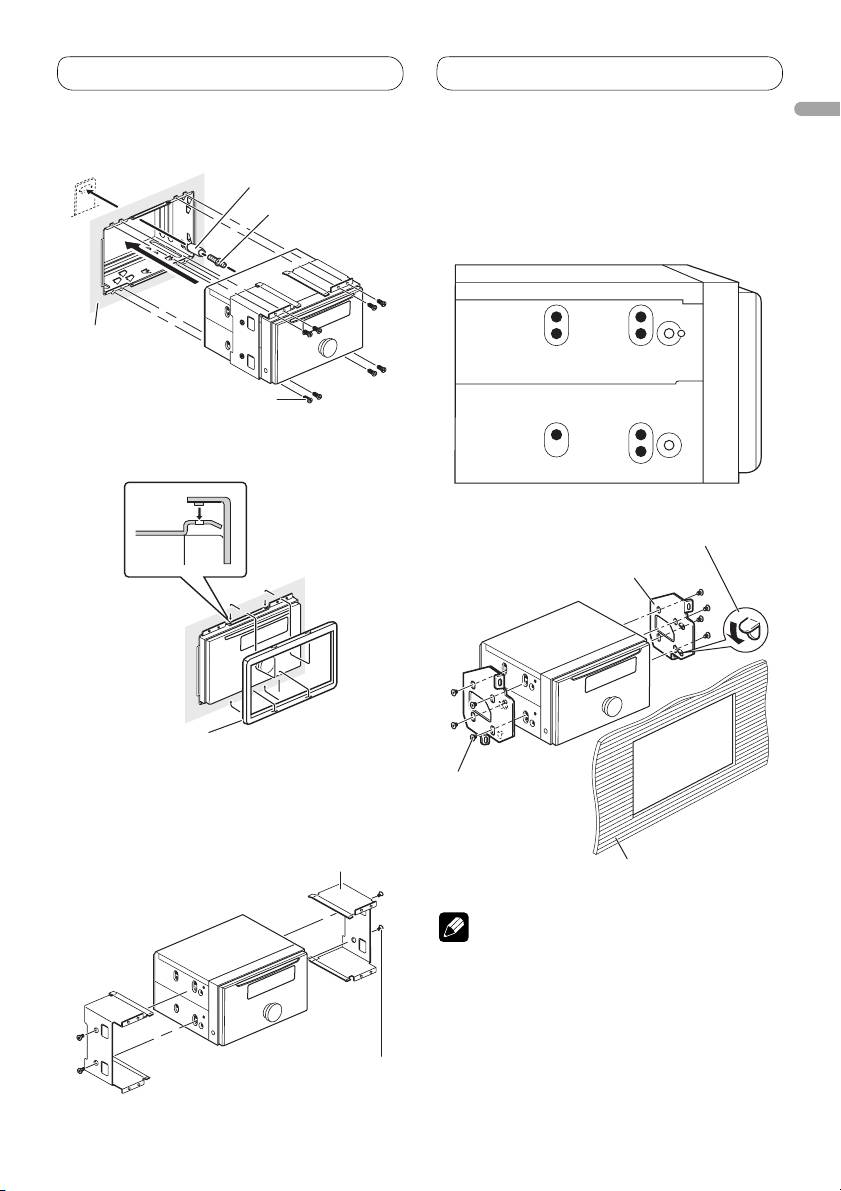

2. Install this unit and fasten the screws.

2. Fastening the unit to the factory

radio-mounting bracket.

Position the unit so that its screw holes are

Rubber bush

aligned with the screw holes of the bracket,

Double-ended screw

and tighten the screws at 3 or 4 locations on

each side.

Dashboard

Screw (3 × 6 mm)

3. Attach the trim ring.

If the pawl gets in the way,

bend it down.

Factory radio

mounting bracket

Trim ring

Installation using the screw

Binding screw or

holes on the side of the unit

flush surface screw

1. Remove the side brackets.

Be sure to use the

screws supplied

Side bracket

with this unit.

Dashboard or console

Note

In some types of vehicles, discrepancy may

occur between the unit and the dashboard. If this

happens, use the supplied frame to fill the gap.

Screw for fixing the side

bracket (5 × 8 mm)

9
