OSD (On Screen Display) Controls

SOUND Settings Menu

Adjusting the treble, bass and left/right

balance and audio input select

The treble, bass and left/right balance can be adjusted to

suit your tastes.

Example: Adjusting the bass

On “BASS” of “SOUND” menu, adjust the bass.

SOUND

BASS

TREBLE

BALANCE

AUDIO INPUT1

AUDIO INPUT2

AUDIO INPUT3

: VIDEO1

: COMPNT1

: PC1DSUB

SEL.

ADJ.

EXIT RETURN

Note :

If “CAN NOT ADJUST” appears...

Set “AUDIO INPUT” on the SOUND menu correctly.

Information

SOUND settings menu

BASS:

Controls the level of low frequency sound.

TREBLE:

Controls the level of high frequency sound.

BALANCE:

Controls the balance of the left and right

channels.

Setting the allocation of the audio connectors

Setting the AUDIO 1, 2, and 3 connectors to the desired

input.

Example: Setting “AUDIO INPUT1” to “VIDEO 2”

On “AUDIO INPUT1” of “SOUND” menu, select

“VIDEO2”.

The available sources depend on the settings of input.

SOUND

BASS

TREBLE

BALANCE

AUDIO INPUT1

AUDIO INPUT2

AUDIO INPUT3

VIDEO2

: COMPNT1

: PC1DSUB

SEL.

ADJ.

EXIT RETURN

Information

AUDIO INPUT

A single audio input cannot be selected as the audio

channel for more than one input terminal.

SCREEN Settings Menu

Adjusting the Position, Size, PHASE, CLOCK

The position of the image can be adjusted and flickering

of the image can be corrected.

Example: Adjusting the vertical position in the normal

mode

On “V.POSITION” of “SCREEN” menu, adjust the position.

The mode switches as follows each time the

button is

pressed:

4:3

↔

FULL

* The mode can also be switched by pressing the SCREEN

SIZE button on the remote control.

* The settings on the SCREEN menu are not preset at the

factory.

SCREEN

SCREEN SIZE

V. POSITION

H. POSITION

V. SIZE

H. SIZE

AUTO PICTURE

PHASE

CLOCK

: 4 : 3

: OFF

SEL.

ADJ.

EXIT RETURN

V.POSITION

+ 6 4

Information

When “AUTO PICTURE” is “OFF”

SCREEN

SCREEN SIZE

V. POSITION

H. POSITION

V. SIZE

H. SIZE

AUTO PICTURE

PHASE

CLOCK

FULL

: OFF

SEL.

ADJ.

EXIT RETURN

When Auto Picture is off, the PHASE and the CLOCK

items are displayed so that you can adjust them.

Adjusting the Auto Picture

ON:

The CLOCK, PHASE and Position adjustments

are made automatically.

Not available for digital ZOOM.

OFF:

The CLOCK, PHASE and Position adjustments

are made manually.

* If PHASE can’t be adjusted, set Auto Picture to OFF

and adjust manually.

Adjusting the position of the image

V.POSITION:

Adjusts the vertical position of the

image.

H.POSITION:

Adjusts the horizontal position of the

image.

V.SIZE:

Adjusts the vertical size of the image. (Except

for WIDE mode)

H.SIZE:

Adjusts the horizontal size of the image.

(Except for WIDE mode)

PHASE

Adjusts for flickering.

CLOCK

Adjusts for striped patterns on the image.

* The CLOCK and PHASE features are available only

when the “Auto Picture” is off.

* The AUTO PICTURE, PHASE and CLOCK are

available only for RGB signals.

But, these features are not available for moving pictures

on RGB, VIDEO or COMPONENT.

English

OSD (On Screen Display)

Controls

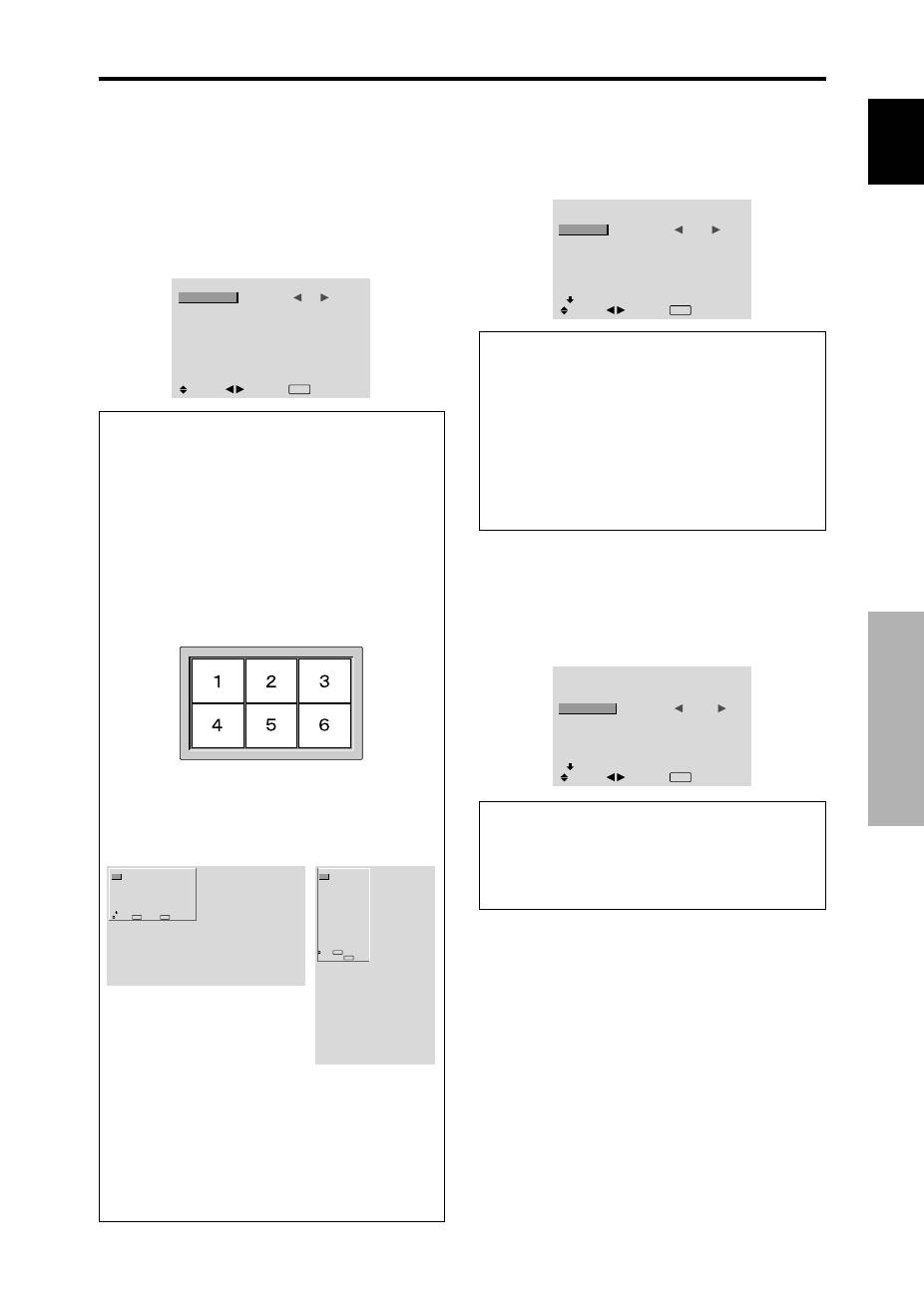

Option1 Settings Menu

Setting the on-screen display

This sets the position of the menu, the display format

(horizontal or vertical) etc.

Example: Turning the DISPLAY OSD off

On “OPTION1” menu, select “OSD”, then press the MENU/

SET button.

The “OSD” menu appears.

On “DISPLAY OSD” of “OSD” menu, select “OFF”.

OSD

DISPLAY OSD

OSD ADJUST

OSD ANGLE

OSD ORBITER

OSD CONTRAST

OFF

: 1

: H

: OFF

: LOW

SEL.

ADJ.

EXIT RETURN

Information

DISPLAY OSD settings

ON:

The informations on screen size, volume control,

etc. will be shown.

OFF:

The informations on screen size, volume control,

etc. will not be shown.

The DISPLAY button on the remote control will not

function either.

OSD ADJUST settings

Adjusts the position of the menu when it appears on

the screen.

The position can be set between 1 to 6.

OSD ANGLE settings

Sets the display format (landscape “H” or portrait “V”).

When the unit is installed vertically set the OSD

ANGLE at “V”.

“H”

“V”

OSD ORBITER settings

ON:

The position of the menu will be shifted by eight

dots each time OSD is displayed.

OFF:

OSD will be displayed at the same position.

OSD CONTRAST settings

NORMAL:

OSD brightness is set to normal.

LOW:

OSD brightness is set to lower.

Setting the PC2/COMPONENT2 connectors

Select whether to set the PC2/COMPONENT2 to RGB,

component or SCART1, 2.

Example: Set the BNC INPUT mode to “COMP.”

On “BNC INPUT” of “OPTION1” menu, select “COMP.”.

OPTION1

1 / 3

OSD

BNC INPUT

D-SUB INPUT

RGB SELECT

HD SELECT

INPUT SKIP

ALL RESET

COMP.

: RGB

: AUTO

: 1080B

: OFF

SEL.

ADJ.

EXIT RETURN

Information

BNC INPUT Settings

RGB:

Use the 5BNC terminals for HD, VD and RGB

signals.

COMPONENT:

Use the 3BNC terminals for

component signals.

SCART1:

Use the 4BNC terminals for RGB with

composite sync. See page 6.

SCART2:

Use the 3BNC terminals for RGB and the

VIDEO1 terminal for composite sync. See page 6.

OPTION1

1 / 3

OSD

BNC INPUT

D-SUB INPUT

RGB SELECT

HD SELECT

INPUT SKIP

ALL RESET

: RGB

: AUTO

: 1080B

: OFF

SEL.

EXIT RETURN

OPTION1

OSD

BNC INPUT

D-SUB INPUT

RGB SELECT

HD SELECT

INPUT SKIP

ALL RESET

: RGB

: AUTO

: 1080B

: OFF

1024

768

SEL.

EXIT RETURN

Setting the PC1 connector

Select one of the signals being transmitted to the PC1

terminal.

Example: Set the D-SUB INPUT mode to “SCART3”

On “D-SUB INPUT” of “OPTION1” menu, select

“SCART3”.

OPTION1

1 / 3

OSD

BNC INPUT

D-SUB INPUT

RGB SELECT

HD SELECT

INPUT SKIP

ALL RESET

: RGB

SCART3

: AUTO

: 1080B

: OFF

SEL.

ADJ.

EXIT RETURN

Information

D-SUB INPUT Settings

RGB:

Use the D-SUB terminal for RGB signals.

SCART3:

Use the D-SUB terminal for RGB signal fed

from SCART. See page 6.

English

OSD (On Screen Display) Controls

Setting high definition images to the suitable

screen size

Use this procedure to set whether the number of vertical

lines of the input high definition image is 1035 or 1080.

Example: Setting the “HD SELECT” mode to “1035I”

On “HD SELECT” of “OPTION1” menu, select “1035I”.

OPTION1

1 / 3

OSD

BNC INPUT

D-SUB INPUT

RGB SELECT

HD SELECT

INPUT SKIP

ALL RESET

: RGB

: AUTO

1035

: OFF

SEL.

ADJ.

EXIT RETURN

Information

HD SELECT modes

These 3 modes are not displayed in correct image

automatically.

1080B:

Standard digital broadcasts

1035I:

Japanese “High Vision” signal format

1080A:

Special Digital broadcasts (for example :

DTC100)

Setting the Input Skip

When this is ON, signals which are not present will be

skipped over and only pictures whose signals are being

transmitted will be displayed.

This setting is valid only for the INPUT/EXIT button on

the unit.

Example: Set to “ON”

On “INPUT SKIP” of “OPTION1” menu, select “ON”.

OPTION1

1 / 3

OSD

BNC INPUT

D-SUB INPUT

RGB SELECT

HD SELECT

INPUT SKIP

ALL RESET

: RGB

: AUTO

: 1080B

: OFF

SEL.

ADJ.

EXIT RETURN

Resetting to the default values

Use these operations to restore all the settings (PICTURE,

SOUND, SCREEN, OPTION1~3, etc) to the factory

default values.

Refer to page 12 for items to be reset.

On “ALL RESET” of “OPTION1” menu, select “ON”, then

press the MENU/SET button.

OPTION1

1 / 3

OSD

BNC INPUT

D-SUB INPUT

RGB SELECT

HD SELECT

INPUT SKIP

ALL RESET

: RGB

: AUTO

: 1080B

: OFF

SEL.

EXIT RETURN

ALL RESET

SETTING NOW

When the “SETTING NOW” screen disappears, then all the

settings are restored to the default values.

Information

INPUT SKIP settings

OFF:

Regardless of the presence of the signal, scan

and display all signals.

ON:

If no input signal is present, skip that signal.

* “SETTING NOW” will appear during the input search.

Setting a computer image to the correct RGB

select screen

With the computer image, select the RGB Select mode

for a moving image such as (video) mode, wide mode or

digital broadcast.

Example: Setting the “RGB SELECT” mode to

“MOTION ”

On “RGB SELECT” of “OPTION1” menu, select

“MOTION”.

OPTION1

1 / 3

OSD

BNC INPUT

D-SUB INPUT

RGB SELECT

HD SELECT

INPUT SKIP

ALL RESET

: RGB

MOTION

1024

768

: OFF

SEL.

ADJ.

EXIT RETURN

Information

RGB SELECT modes

One of these 8 modes must be selected in order to

display the following signals correctly.

AUTO:

Select the suitable mode for the specifications

of input signals as listed in the table “Computer input

signals supported by this system” on page 29.

STILL:

To display VESA standard signals. (Use this

mode for a still image from a computer.)

MOTION:

The video signal (from a scan converter)

will be converted to RGB signals to make the picture

more easily viewable. (Use this mode for a motion

image from a computer.)

WIDE1:

When an 852 dot

480 line signal with a

horizontal frequency of 31.7kHz is input, the image may

be compressed horizontally. To prevent this, set RGB

SELECT to WIDE1.

WIDE2:

When an 848 dot

480 line signal with a

horizontal frequency of 31.0 kHz is input, the image

may be compressed horizontally. To prevent this, set

RGB SELECT to WIDE2.

WIDE3:

When an 1920 dot

1200 line signal with a

horizontal frequency of 74.0 kHz is input, the image

may be compressed horizontally. To prevent this, set

RGB SELECT to WIDE3.

WIDE4:

When an 1280 dot

768 line signal with a

horizontal frequency of 59.8 kHz or an 1680 dot

1050

line signal with a horizontal frequency of 60 kHz is

input, the image may be compressed horizontally. To

prevent this, set RGB SELECT to WIDE4.

DTV:

Set this mode when watching digital broadcasting

(480P).

See page 29 for the details of the above settings.

English

OSD (On Screen Display) Controls

Option2 Settings Menu

Setting the power management for computer

images

This energy-saving (power management) function

automatically reduces the monitor’s power consumption

if no operation is performed for a certain amount of time.

Example: Turning the power management function on

Set “ADVANCED OSD” to “ON” in the main menu (1/

2), then perform the following operations.

On “PWR. MGT.” of “OPTION2” menu, select “ON”.

OPTION2

2 / 3

PWR. MGT.

PURECINEMA

LONG LIFE

SIDE MASK

S1/S2

DVI SET-UP

: ON

: 3

: OFF

SEL.

ADJ.

EXIT RETURN

Information

Power management function

* The power management function automatically reduces

the monitor’s power consumption if the computer’s

keyboard or mouse is not operated for a certain amount

of time. This function can be used when using the

monitor with a computer.

* If the computer’s power is not turned on or if the

computer and selector tuner are not properly connected,

the system is set to the off state.

* For instructions on using the computer’s power

management function, refer to the computer’s operating

instructions.

Power management settings

ON:

In this mode the power management function is

turned on.

OFF:

In this mode the power management function is

turned off.

Power management function and STANDBY/

ON indicator

The STANDBY/ON indicator indicates the status of

the power management function. See below for

indicator status and description.

STANDBY/ON indicator

Power

management

mode

Off

Turning the picture

back on

Picture already on.

Operate the keyboard or

mouse. The picture

reappears.

STANDBY/

ON indicator

Green

Red

Power

management

operating status

Not activated.

Activated.

Description

Horizontal and vertical

synchronizing signals

are present from the

computer.

Horizontal and/or

vertical synchronizing

signals are not sent

from the computer.

Setting the picture to suit the movie

The film image is automatically discriminated and

projected in an image mode suited to the picture.

[NTSC, PAL, PAL60, 480I (60Hz), 525I (60Hz), 576I

(50Hz), 625I (50Hz), 1035I (60Hz), 1080I (60Hz) only]

Example: Setting the “PURECINEMA” to “OFF”

Set “ADVANCED OSD” to “ON” in the main menu (1/

2), then perform the following operations.

On “PURECINEMA” of “OPTION2” menu, select “OFF”.

OPTION2

2 / 3

: OFF

OFF

: 3

: OFF

SEL.

ADJ.

PWR. MGT.

PURECINEMA

LONG LIFE

SIDE MASK

S1/S2

DVI SET-UP

EXIT RETURN

Information

PURECINEMA

ON:

Automatic discrimination of the image and

projection in PURECINEMA.

OFF:

PURECINEMA does not function.

Reducing burn-in of the screen

The brightness of the screen, the position of the picture,

positive/negative mode and screen wiper are adjusted to

reduce burn-in of the screen.

Set “ADVANCED OSD” to “ON” in the main menu (1/

2), then perform the following operations.

On “OPTION2” menu, select “LONG LIFE”, then press the

MENU/SET button.

The “LONG LIFE” screen appears.

LONG LIFE

ABL

ORBITER

INVERSE

SCREEN WIPER

SOFT FOCUS

AUTO

: OFF

SEL.

ADJ.

EXIT RETURN

ABL (Auto Brightness Limiter)

Use this to activate the brightness limiter.

Example: Setting “ABL” to “LOCK1”

On “ABL” of “LONG LIFE” menu, select “LOCK1”.

LONG LIFE

ABL

ORBITER

INVERSE

SCREEN WIPER

SOFT FOCUS

LOCK1

: OFF

SEL.

ADJ.

EXIT RETURN

Information

ABL settings

AUTO:

The brightness of the screen is adjusted

automatically to suit the picture quality.

LOCK1, 2, 3:

Sets maximum brightness.

The brightness level decreases in the order of LOCK 1,

2, 3. LOCK 3 provides minimum brightness.

English

OSD (On Screen Display) Controls

ORBITER

Use this to set the picture shift.

Example: Setting “ORBITER” to “AUTO1”

On “ORBITER” of “LONG LIFE” menu, select “AUTO1”.

LONG LIFE

ABL

ORBITER

INVERSE

SCREEN WIPER

SOFT FOCUS

: AUTO

AUTO1

: OFF

SEL.

ADJ.

EXIT RETURN

Information

ORBITER settings

OFF:

Orbiter mode does not function.

This is the default setting when PC signal is input.

AUTO1:

The picture moves around the screen

intermittently, making the picture smaller. This is the

default setting when a Video or a COMPONENT signal

is input. Set to “OFF” when these signals are not used.

AUTO2:

The picture moves around the screen

intermittently, making the picture bigger.

MANUAL:

User can adjust the orbiter function

(Horizontal Dot, Vertical Line and Time) manually.

See the following explanation.

* When a Video or a COMPONENT signal is input, the

AUTO1 and 2 functions will affect only the moving

picture and will not make the screen smaller or bigger.

Adjust the ORBITER function manually

Set the amount of shift and the time between movement.

Example: Setting so that the picture moves 2 dots

horizontally and 4 lines vertically every 3 minutes.

On “ORBITER” of “LONG LIFE” menu, select

“MANUAL”, then press the MENU/SET button.

THE “ORBITER” screen appears.

Adjust the items.

ORBITER

H-DOT

V-LINE

TIME

2 DOT

: 4 LINE

: 3 M

SEL.

ADJ.

EXIT RETURN

Information

ORBITER Function settings

H-DOT:

Moves from 1 to 20 dots in the horizontal

direction.

V-LINE:

Moves from 1 to 20 lines in the vertical

direction.

TIME:

Interval of 1~5 minutes (1 horizontal dot or 1

vertical line per interval).

INVERSE

Use this to set the inverse mode or to display a white

screen.

Example: Setting “INVERSE” to “WHITE”

On “INVERSE” of “LONG LIFE” menu, select “WHITE”.

LONG LIFE

ABL

ORBITER

INVERSE

SCREEN WIPER

SOFT FOCUS

: AUTO

: OFF

WHITE

: OFF

SEL.

ADJ.

EXIT RETURN

Information

INVERSE Settings

ON:

The picture is displayed alternately between

positive image and negative image.

You can set the time by pressing the MENU/SET button

while “ON” is set.

OFF:

Inverse mode does not function.

WHITE:

The entire screen turns white.

You can set the time by pressing the MENU/SET button

while “ON” is set.

Setting the time for INVERSE/WHITE

Set a time duration.

Example: Setting to that the INVERSE mode starts

in 2 hours and proceeds for one hour and a half.

On “INVERSE” of “LONG LIFE” menu, select “ON”, then

press the MENU/SET button.

THE “INVERSE/WHITE” screen appears.

Adjust the times.

INVERSE/WHITE

WORKING TIME

WAITING TIME

01H30M

: 02H00M

SEL.

ADJ.

EXIT RETURN

Information

Setting the time

WORKING TIME:

Set the time duration for

“INVERSE/WHITE”.

When the WORKING TIME is set to “ON” the mode

will stay on.

WAITING TIME:

Set the standby time until the

“INVERSE/WHITE” mode starts.

* The “WAITING TIME” can not be set when the

“WORKING TIME” is ON.

* THE “WORKING TIME” and “WAITING TIME” can be

set for up to 12 hours and 45 minutes in units of 3 minutes.

* Ending a WORKING TIME function, the monitor will

be STAND BY.

[Example]

WORKING TIME: 01H30M

WAITING TIME: 02H00M

To select “ON” for the “WORKING TIME”...

Set the hours of the working time to 0H and the minutes

to 0M. “ON” will be displayed.

←−−−−

2 H

−−−−→←−−

1.5 H

−−→←−−−−

Start

INVERSE/WHITE Start

STAND BY

English

OSD (On Screen Display) Controls

SCREEN WIPER

When this is set to ON, a white vertical bar moves

repeatedly from the left and of the screen to the right end

at a constant speed.

Example: Setting “SCREEN WIPER” to “ON”

On “SCREEN WIPER” of “LONG LIFE” menu, select

“ON”.

LONG LIFE

ABL

ORBITER

INVERSE

SCREEN WIPER

SOFT FOCUS

: AUTO

: OFF

SEL.

ADJ.

EXIT RETURN

Information

SCREEN WIPER

ON:

The white vertical bar appears.

You can set the time by pressing the MENU/SET button

while “ON” is set.

OFF:

Screen wiper mode does not function.

Setting the time for SCREEN WIPER

Set a time duration and the speed.

Example: Setting so that the SCREEN WIPER mode

starts in 30 minutes and proceeds for one and a half

hours.

On “SCREEN WIPER” of “LONG LIFE” menu, select

“ON”, then press the MENU/SET button.

THE “SCREEN WIPER” screen appears.

Adjust the times and speed.

SCREEN WIPER

WORKING TIME

WAITING TIME

SPEED

01H30M

: 00H30M

: 3

SEL.

ADJ.

EXIT RETURN

Information

Setting the time

WORKING TIME:

Set the time duration for “SCREEN

WIPER”.

When the WORKING TIME is set to “ON” the mode

will stay on.

WAITING TIME:

Set the standby time until the

“SCREEN WIPER” mode starts.

SPEED:

Set the moving speed for the “SCREEN

WIPER”. The speed decreases as the number increases.

* The “WAITING TIME” can not be set when the

“WORKING TIME” is ON.

* THE “WORKING TIME” and “WAITING TIME” can

be set for up to 12 hours and 45 minutes in units of 3

minutes.

To select “ON” for the “WORKING TIME”...

Set the hours of the working time to 0H and the minutes

to 0M. “ON” will be displayed.

SOFT FOCUS

Reduces edges and softens the image.

Example: Setting “SOFT FOCUS” to “2”

On “SOFT FOCUS” of “LONG LIFE” menu, select “2”.

LONG LIFE

ABL

ORBITER

INVERSE

SCREEN WIPER

SOFT FOCUS

: AUTO

: OFF

SEL.

ADJ.

EXIT RETURN

Information

SOFT FOCUS settings

OFF:

Turns the SOFT FOCUS function off.

1, 2, 3, 4:

Activates the SOFT FOCUS setting. The

higher numbers create a softer image.

“SHARPNESS” can not be adjusted in the “PICTURE”

menu.

Setting the gray level for the SIDE MASK

Use this procedure to set the gray level for the parts on the

screen on which nothing is displayed when the screen is

set to the 4:3 size or 14:9 size.

Example: Setting “SIDE MASK” to “5”

Set “ADVANCED OSD” to “ON” in the main menu (1/

2), then perform the following operations.

On “SIDE MASK” of “OPTION2” menu, select “5”.

OPTION2

2 / 3

: OFF

: ON

: OFF

PWR. MGT.

PURECINEMA

LONG LIFE

SIDE MASK

S1/S2

DVI SET-UP

SEL.

ADJ.

EXIT RETURN

Information

SIDE MASK settings

This adjusts the brightness of the black (the gray level)

for the sides of the screen.

The standard is 0 (black). The level can be adjusted

from 0 to 15. The factory setting is 3 (dark gray).

English

OSD (On Screen Display) Controls

Setting the screen size for S1/S2 video input

If the S-video signal contains screen size information, the

image will be automatically adjusted to fit the screen when

this S1/S2 is set to AUTO.

This feature is available only when an S-video signal is

input via the VIDEO3 terminal.

Example: Setting “S1/S2” to “AUTO”

Set “ADVANCED OSD” to “ON” in the main menu (1/

2), then perform the following operations.

On “S1/S2” of “OPTION2” menu, select “AUTO”.

OPTION2

2 / 3

: OFF

: ON

: 3

AUTO

PWR. MGT.

PURECINEMA

LONG LIFE

SIDE MASK

S1/S2

DVI SET-UP

SEL.

ADJ.

EXIT RETURN

Information

S1/S2 settings

AUTO:

Adjusts the screen size automatically according

to the S1/S2 video signal.

OFF:

Turns the S1/S2 function off.

Setting the signal and black level for DVI

signal

Choose the signal for the DVI connector (PC or STB/DVD)

and set the black level.

Example: Setting the “PLUG/PLAY” mode to “STB/

DVD”

Set “ADVANCED OSD” to “ON” in the main menu (1/

2), then perform the following operations.

On “OPTION2” menu, select “DVI SET-UP”, then press the

MENU/SET button.

The “DVI SET-UP” screen appears.

On “PLUG/PLAY” of “DVI SET-UP” menu, select “STB/

DVD”.

DVI SET-UP

STB/DVD

: HIGH

SEL.

ADJ.

EXIT RETURN

PLUG/PLAY

BLACK LEVEL

Information

PLUG/PLAY settings

PC:

When connected to the PC signal.

BLACK LEVEL is set to “LOW” automatically.

STB/DVD:

When connected to the SET TOP BOX, DVD etc.

BLACK LEVEL is set to “HIGH” automatically.

BLACK LEVEL settings

LOW:

When connected to the PC signal.

HIGH:

When connected to the SET TOP BOX, DVD etc.

Change “HIGH” into “LOW” if the black level appears gray.

Option3 Settings Menu

Using the timer

This function sets the monitor to turn ON/OFF

automatically at a set time.

Set “ADVANCED OSD” to “ON” in the main menu (1/

2), then perform the following operations.

On “OPTION3” menu, select “TIMER”, then press the

MENU/SET button.

The “TIMER” screen appears.

TIMER

: OFF

SEL.

EXIT RETURN

PRESENT TIME

PROGRAM

PRESENT TIME

This sets the day of the week and present time.

Example: Setting “WEDNESDAY”, “22:05”

On “TIMER” menu, select “PRESENT TIME”, then press

the MENU/SET button.

The “PRESENT TIME” screen appears.

Adjust the items.

SEL.

PRESENT TIME

WEDNESDAY

22 : 05 : 00

RETURN

DAYLIGHT

SAVING TIME

SET

: OFF

ADJ.

EXIT RETURN

Select “SET”, then press the MENU/SET button.

The adjustments are stored and return to the TIMER menu.

* If you press the EXIT button instead of the MENU/SET

button, the settings can not be made.

SEL.

PRESENT TIME

WEDNESDAY

22 : 05 : 00

: OFF

RETURN

DAYLIGHT

SAVING TIME

SET

EXIT RETURN

Information

PRESENT TIME settings

DAYLIGHT SAVING TIME:

Use to set DAYLIGHT

SAVING TIME.

ON:

The present time + 1 hour.

OFF: Cancelled

Day:

Set the day of the week (e.g. Sunday).

Hour:

Set the hour in the 24-hour format (range 00 to

23).

Minutes:

Set the minutes (range 00 to 59).

English

OSD (On Screen Display) Controls

PROGRAM TIMER

This sets the day and time at which the power will be

switched ON/OFF as well as the input mode.

Example: Setting so that the power will be switched

on at 8:30 A.M., Monday, displaying PC2 source, and

switched off at 10:30 A.M.

On “PROGRAM” of “TIMER” menu, select “ON”, then

press the MENU/SET button.

The “PROGRAM TIMER” screen appears.

Adjust the items.

Each mode switches each time the ZOOM

button is

pressed.

PROGRAM TIMER

DATE

MON

—

SEL.

08 : 30

- - : - -

OFF

10 : 30

- - : - -

INPUT

PC2

—

FUNCTION

INVERSE

—

EXIT RETURN

ZOOM ADJ.

Information

PROGRAM TIMER settings

DATE:

Set the day of the week (e.g. Sunday).

ON (hour, minutes):

Set the time at which the power

will be turned on in the 24-hour format.

OFF (hour, minutes):

Set the time at which the power

will be turned off in the 24-hour format.

INPUT:

Set the input mode that will be displayed when

the timer is on.

FUNCTION:

Set the LONG LIFE function.

To reset the program

Align the cursor with the DATE field that you wish to

reset, then press the CLEAR button.

To reset the data

Align the cursor with the field (ON/OFF/INPUT/

FUNCTION) that you wish to reset, then press the

CLEAR button.

Special characters in the PROGRAM TIMER

screen

PROGRAM TIMER

DATE

MON

TUE

SAT

FRI

—

SAT

SEL.

08 : 30

- - : - -

08 : 30

- - : - -

08 : 30

15 : 30

OFF

10 : 30

18 : 15

12 : 15

10 : 00

- - : - -

12 : 15

16 : 00

INPUT

PC2

—

VIDEO1

COMP.1

—

VIDEO1

PC1

FUNCTION

INVERSE

—

WHITE

—

WHITE

—

EXIT RETURN

ZOOM ADJ.

• An asterisk “

” in the DATE field

An asterisk “*” means “every”. For example, “*FRI”

means every Friday and “*” means everyday.

• A hyphen “

” in the ON field or OFF field

If any hyphen remains in the ON field or OFF field, the

FUNCTION can not be set.

• A hyphen “

” in the FUNCTION field

A hyphen “-” means last mode (the mode that was last

selected at the time the power was switched off).

Setting the power on mode

This function sets the input mode at the time the power is

switched on.

Example: Setting “VIDEO2”

Set “ADVANCED OSD” to “ON” in the main menu (1/

2), then perform the following operations.

On “PWR. ON MODE” of “OPTION3” menu, select

“VIDEO2”.

The available inputs depend on the setting of input.

OPTION3

3 / 3

TIMER

PWR. ON MODE

KEY LOCK

IR REMOTE

LOOP OUT

ID NUMBER

VIDEO WALL

VIDEO2

: OFF

: ON

: OFF

: ALL

SEL.

ADJ.

EXIT RETURN

Information

PWR. ON MODE settings

LAST:

Last mode (the input that was last selected at

the time the power was switched off).

VIDEO1, 2, 3:

VIDEO input mode.

PC1, 2, 3:

PC input mode.

COMPONENT1, 2:

COMPONENT input mode.

Follow the procedure used for PROGRAM TIMER.

Enabling/disabling the front panel controls

This function enables/disables the front panel controls.

Example: Setting “ON”

Set “ADVANCED OSD” to “ON” in the main menu (1/

2), then perform the following operations.

On “KEY LOCK” of “OPTION3” menu, select “ON”, then

press the MENU/SET button.

OPTION3

3 / 3

TIMER

PWR. ON MODE

KEY LOCK

IR REMOTE

LOOP OUT

ID NUMBER

VIDEO WALL

: LAST

: ON

: OFF

: ALL

SEL.

ADJ.

EXIT RETURN

Information

KEY LOCK settings

ON:

Disables the buttons on the front panel.

OFF:

Enables the buttons on the front panel.

* Even when the KEY LOCK is set, the POWER switch

will not be locked.

* This becomes effective when the OSD goes out.

English

OSD (On Screen Display) Controls

Enabling/disabling remote control wireless

transmission

This function enables/disables remote control wireless

transmission.

Example: Setting “OFF”

Set “ADVANCED OSD” to “ON” in the main menu (1/

2), then perform the following operations.

On “IR REMOTE” of “OPTION3” menu, select “OFF”, then

press the MENU/SET button.

OPTION3

3 / 3

TIMER

PWR. ON MODE

KEY LOCK

IR REMOTE

LOOP OUT

ID NUMBER

VIDEO WALL

: LAST

: OFF

OFF

: OFF

: ALL

SEL.

ADJ.

EXIT RETURN

Information

IR REMOTE settings

ON:

Enables remote control wireless transmission.

OFF:

Disables remote control wireless transmission.

Set “OFF” to avoid unwanted control from other remote

controls.

Loop Out setting

When this feature is set to ON, the received signal will be

looped out.

Example: Setting “ON”

Set “ADVANCED OSD” to “ON” in the main menu (1/

2), then perform the following operations.

On “LOOP OUT” of “OPTION3” menu, select “ON”.

OPTION3

3 / 3

TIMER

PWR. ON MODE

KEY LOCK

IR REMOTE

LOOP OUT

ID NUMBER

VIDEO WALL

: LAST

: OFF

: ON

: ALL

SEL.

ADJ.

EXIT RETURN

Information

LOOP OUT settings

ON:

The received signal will be looped out via PC1

terminal or VIDEO1 terminal.

OFF:

The received signal will not loop out.

* Even if LOOP OUT is ON, signals won’t be sent out if

POWER is being turned off.

To connect another display...

See page 3.

If the PC1 signal is present at the time the

power switched on...

The PC1 input will be displayed regardless of the setting

of LOOP OUT.

ID number setting

When using more than one of these displays, this function

sets ID numbers so that operation of the remote control

does not cause multiple monitors to operate at the same

time.

Example: Setting “2”

Set “ADVANCED OSD” to “ON” in the main menu (1/

2), then perform the following operations.

On “ID NUMBER” of “OPTION3” menu, select “2”.

OPTION3

3 / 3

TIMER

PWR. ON MODE

KEY LOCK

IR REMOTE

LOOP OUT

ID NUMBER

VIDEO WALL

: LAST

: OFF

: ON

: OFF

SEL.

ADJ.

EXIT RETURN

To reset back to ALL

Press the CLEAR button.

Information

ID NUMBER settings

ALL:

ID NUMBER will not be set.

1 to 256:

ID NUMBER will be set.

When the ID NUMBER have been set

You can also set ID NUMBER for each remote control

to operate the plasma display individually. To do so,

see below.

To set the ID number for the remote control

Example: Setting “2”

Press the ID NO. SET button on the remote control.

The “ID NO. SET” screen appears.

On “ID NUMBER” of “ID NO. SET” menu, select “2”.

ID NO.SET

POSITION : 1

ID NUMBER

ADJ.

EXIT RETURN

To reset back to ALL

Press the CLEAR button.

Video Wall setting

Use this feature to configure a 4-25 video wall.

Set “ADVANCED OSD” to “ON” in the main menu (1/

2), then perform the following operations.

On “OPTION3” menu, select “VIDEO WALL”, then press

the MENU/SET button.

The “VIDEO WALL” screen appears.

VIDEO WALL

DIVIDER

POSITION

DISP. MODE

AUTO ID

SCREEN

P. ON DELAY

ABL LINK

REPEAT TIMER

: NORMAL

: OFF

SEL.

ADJ.

EXIT RETURN

Note:

A contingency method of shutting off the electric

power should be used in cases of emergency during video

wall setup.

English

OSD (On Screen Display) Controls

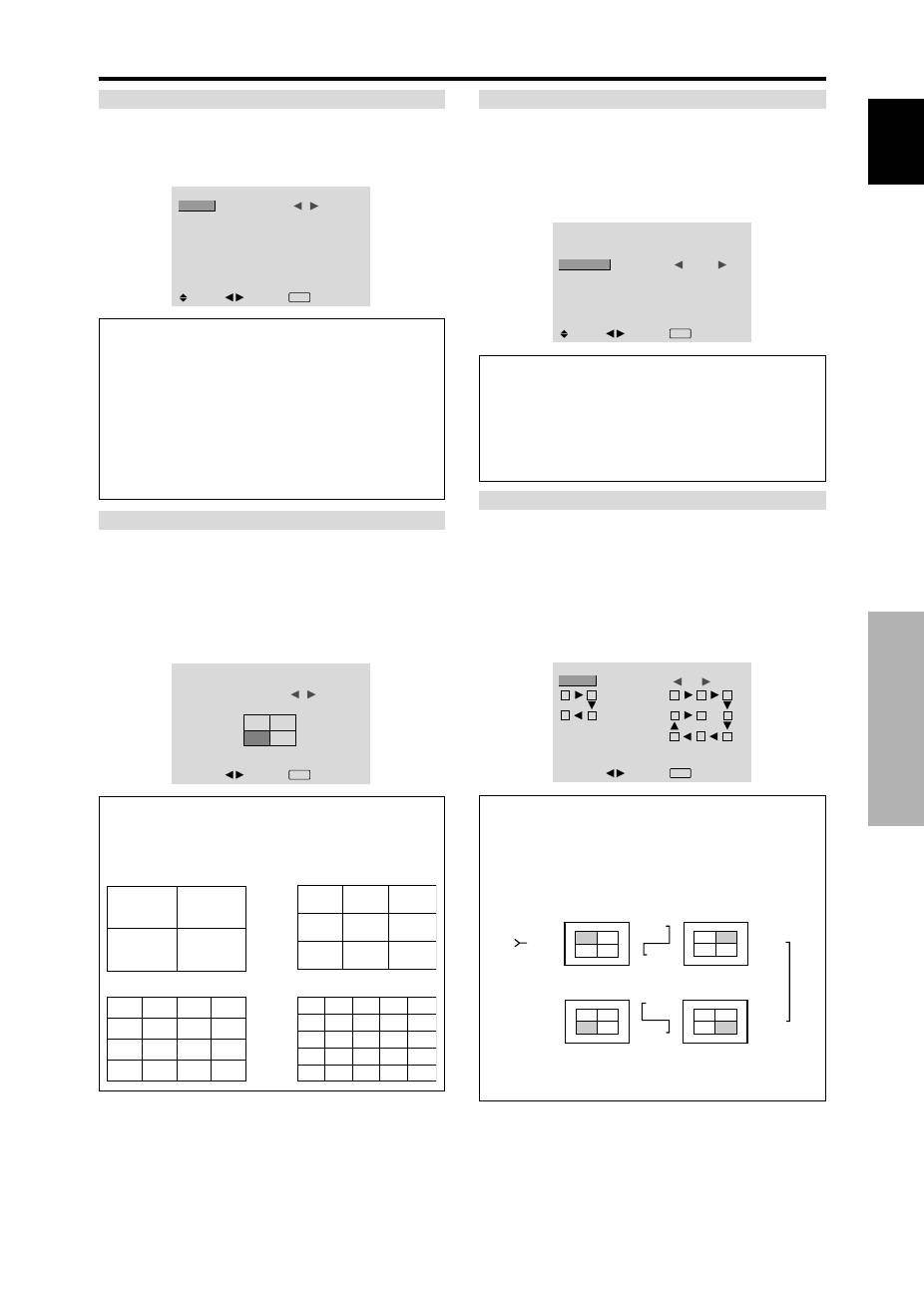

VIDEO WALL POSITION

Set the position of each display.

Example: Setting “4”

On “VIDEO WALL” menu, select “POSITION”, then press

the MENU/SET button.

The “VIDEO WALL POSITION” screen appears.

Select “NO. 4” of “POSITION NO.”.

VIDEO WALL POSITION

POSITION NO.

ADJ.

EXIT RETURN

Information

VIDEO WALL POSITION settings

1 Screen:

There is no need to set POSITION.

4 Screens

9 Screens

16 Screens

25 Screens

NO. 7

NO. 8

NO. 9

NO. 10

NO. 11

NO. 12

NO. 13

NO. 14

NO. 15

NO. 16

NO. 17

NO. 18

NO. 19

NO. 20

NO. 21

NO. 22

NO. 23

NO. 24

NO. 25

NO. 26

NO. 27

NO. 28

NO. 29

NO. 30

NO. 31

NO. 32 NO. 33 NO. 34 NO. 35 NO. 36

NO. 37 NO. 38 NO. 39 NO. 40 NO. 41

NO. 42 NO. 43 NO. 44 NO. 45 NO.46

NO. 47 NO. 48 NO. 49 NO. 50 NO. 51

NO. 52 NO. 53 NO. 54 NO. 55 NO. 56

DIVIDER

Set the 4-25 video wall.

Example: Setting “4”

On “DIVIDER” of “VIDEO WALL” menu, select “4”.

VIDEO WALL

DIVIDER

POSITION

DISP. MODE

AUTO ID

SCREEN

P. ON DELAY

ABL LINK

REPEAT TIMER

: NORMAL

: OFF

SEL.

ADJ.

EXIT RETURN

Information

DIVIDER settings

OFF, 1:

1 Screen (Matrix display function does not work)

4 Screens (2

2 video wall)

9 Screens (3

3 video wall)

16:

16 Screens (4

4 video wall)

25:

25 Screens (5

5 video wall)

* When you select 4-25, set the VIDEO WALL

POSITION.

AUTO ID

This feature automatically sets the ID numbers of multiple

displays connected to each other.

Example: Setting “ON”

Set the ID number for the No. 1 display on ID NUMBER

menu.

On “AUTO ID” of “VIDEO WALL” menu, select “ON”,

then press the MENU/SET button.

AUTO ID

WIRED CABLE

CONNECTION TURN

ADJ.

EXIT RETURN

AUTO ID

Information

AUTO ID settings

ON:

Enables Auto ID function. In the case shown below,

display 1 will be set as ID 1, display 2 as ID2, etc.

This can be set only when a 2

2 or 3

3 video wall is

selected.

REMOTE

OUT

REMOTE

OUT

REMOTE

OUT

REMOTE

OUT

REMOTE

No.1 No.2

No.3

No.4

No.1 No.2

No.3

No.4

No.1 No.2

No.3

No.4

No.1 No.2

No.3

No.4

Display 1

Display 2

Display 4

Display 3

OFF:

Disables Auto ID function.

DISP. MODE

Select the screen mode from between two options

(NORMAL, ADJUST).

Example: Setting “ADJUST”

On “DISP. MODE” of “VIDEO WALL” menu, select

“ADJUST”.

VIDEO WALL

DIVIDER

POSITION

DISP. MODE

AUTO ID

SCREEN

P. ON DELAY

ABL LINK

REPEAT TIMER

: 1

ADJUST

: OFF

SEL.

ADJ.

EXIT RETURN

Information

DISP. MODE settings

NORMAL:

Combines enlarged screens and creates

multiple screens.

ADJUST:

Corrects misalignment of combined screen

portions and creates multiple screens

NO. 1

NO. 2

NO. 4

NO. 3

English

OSD (On Screen Display) Controls

SCREEN

The position of the image can be adjusted and flickering

of the image can be corrected.

Example: Adjusting the vertical position

On “VIDEO WALL” menu, select “SCREEN”, then press

the MENU/SET button.

The “SCREEN” screen appears.

On “V.POSITION” of “SCREEN” menu, adjust the position.

SCREEN

SCREEN SIZE

V. POSITION

H. POSITION

V. SIZE

H. SIZE

AUTO PICTURE

PHASE

CLOCK

: 4 : 3

: OFF

SEL.

ADJ.

EXIT RETURN

V.POSITION

+ 6 4

Information

SCREEN settings

These are the same functions as the SCREEN menu on

page 16.

P. ON DELAY (Power on delay)

Use this function to activate power-on delay.

Turn on the AUTO ID before the following operations.

Example: Setting “ON”

On “P. ON DELAY” of “VIDEO WALL” menu, select “ON”.

VIDEO WALL

DIVIDER

POSITION

DISP. MODE

AUTO ID

SCREEN

P. ON DELAY

ABL LINK

REPEAT TIMER

: 1

: NORMAL

: OFF

SEL.

ADJ.

EXIT RETURN

Information

P. ON DELAY settings

ON:

Turns on the main power of each display after a

delay time.

OFF:

Turns on the main power of all displays at the

same time.

(Only for 16 and 25 screens)

MODE1:

Turns on the main power of each display

delayed.

MODE2:

Turns on the main power of each display more

delayed.

* Once this function has been set to “ON”, the POWER

ON/OFF button on the remote control does not function

except for the No.1 monitor.

By pressing the POWER ON button on the remote

control the No.1 monitor will turn on and the others

will be turned on one by one automatically.

* From the second monitor onward, neither the POWER

button on the unit nor the POWER ON button on the

remote control works. However, by pressing and holding

the POWER ON button for more than 3 seconds, the

monitor will be turned on.

ABL LINK

Use this function to set a uniform brightness for each

display.

Turn on the AUTO ID and set the DIVIDER (at 1, 4 or 9)

before the following operations.

Example: Setting “ON”

On “ABL LINK” of “VIDEO WALL” menu, select “ON”,

then press the MENU/SET button.

VIDEO WALL

DIVIDER

POSITION

DISP. MODE

AUTO ID

SCREEN

P. ON DELAY

ABL LINK

REPEAT TIMER

: 1

: NORMAL

: OFF

SEL.

ADJ.

EXIT RETURN

Information

ABL LINK settings

ON:

Sets a uniform brightness for each screen in a video

wall. This can be set only when a 2

2 or 3

3 video

wall is selected.

OFF:

Sets the individual screen brightness for each

screen in a video wall.

* When this function is set “ON”, connect your plasma

displays with the remote cable (optional) in the order of

the position numbers for the 2

2 video wall. See the

drawing below.

* If there are changes in the DIVIDER or POSITION,

the ABL LINK will automatically turn OFF.

REMOTE

OUT

REMOTE

OUT

REMOTE

OUT

REMOTE

OUT

REMOTE

No.1 No.2

No.3

No.4

No.1 No.2

No.3

No.4

No.1 No.2

No.3

No.4

No.1 No.2

No.3

No.4

Display 1

Display 2

Display 4

Display 3

* With the 3

3 video wall, connect the final display to the

first display the same way as with 2

2 video wall.

Note:

The remote control can be operated unless the IR

REMOTE is set to “OFF”.

English

OSD (On Screen Display) Controls

REPEAT TIMER

Use this to set two timers. Each timer can use the

DIVIDER, SOURCE and WORK TIME functions.

Turn on the AUTO ID and set the DIVIDER (at 1, 4 or 9)

before the following operations.

Example:

TIMER1...VIDEO1 will be displayed for 3 minutes.

TIMER2...PC1 will be displayed for 6 minutes in a

2 video wall.

On “REPEAT TIMER” of “VIDEO WALL” menu, select

“ON”, then press the MENU/SET button.

The “REPEAT TIMER” screen appears.

Adjust the items.

REPEAT TIMER

: 1

: VIDEO1

: 00H03M

: 4

: PC1DSUB

00H06M

SEL.

ADJ.

EXIT RETURN

1 DIVIDER

SOURCE

WORK TIME

2 DIVIDER

SOURCE

WORK TIME

Information

REPEAT TIMER settings

DIVIDER:

Divide the screen into 1, 4 or 9 sections.

SOURCE:

Set the input mode to be displayed.

WORK TIME:

Can be set to up to 4 hours 15 minutes

in units of 1 minute.

If you set both timers, Timer 1 and Timer 2 run

consecutively.

In the case of the Video wall, timer No.1 can be used to

control all the displays simultaneously.

* This becomes effective when the OSD goes out.

Advanced OSD Settings Menu

Setting the menu mode

This allows you to access full menu items.

When P. ON DELAY or ABL LINK is ON, this won’t be

turned OFF.

Example: Setting “ON”

On “ADVANCED OSD” of “MAIN MENU”, select “ON”.

MAIN MENU

1 / 2

OFF

SEL.

ADJ.

EXIT EXIT


SOUND

SCREEN

OPTION1

ADVANCED OSD

MAIN MENU

1 / 2

SEL.

ADJ.

EXIT EXIT


SOUND

SCREEN

OPTION1

OPTION2

OPTION3

ADVANCED OSD

Information

ADVANCED OSD settings

ON:

All of the main menu items are available for

advanced users.

OFF:

Some of the main menu items are not available

(e.g. OPTION2 and OPTION3).

Color System Settings Menu

Setting the video signal format

Use these operations to set the color systems of composite

video signals or Y/C input signals.

Example: Setting the color system to “3.58 NTSC”

On the MAIN MENU, select “COLOR SYSTEM”, then press

the MENU/SET button.

The “COLOR SYSTEM” screen appears.

On “COLOR SYSTEM”, select “ 3.58NTSC ”.

COLOR SYSTEM

3.58NTSC

ADJ.

EXIT RETURN

Information

Video signal formats

Different countries use different formats for video

signals. Set to the color system used in your current

country.

AUTO:

The color systems are automatically identified

and the format is set accordingly.

PAL:

This is the standard format used mainly in the

United Kingdom and Germany.

SECAM:

This is the standard format used mainly in

France and Russia.

4.43 NTSC,

PAL60:

This format is used for videos in

countries using PAL and SECAM video signals.

3.58 NTSC:

This is the standard format used mainly

in the United States and Japan.

PAL-M:

This is the standard format used mainly in

Brazil.

PAL-N:

This is the standard format used mainly in

Argentina.

Source Information Menu

Checking the frequencies, polarities of input

signals, and resolution

Use this function to check the frequencies and polarities

of the signals currently being input from a computer, etc.

On “MAIN MENU”, select “SOURCE INFORMATION”,

then press the MENU/SET button.

The “SOURCE INFORMATION” is displayed.

SOURCE INFORMATION

: 48.4kHz

: 60.0Hz

: NEG.

: 24

: 1024

768

EXIT RETURN

H. FREQUENCY

V. FREQUENCY

H. POLARITY

V. POLARITY

MEMORY

RESOLUTION

PC:

MEMORY will be displayed.

Others: MODE will be displayed.

English

15 14 13 12 11

PC 1

Signal (Analog)

Red

Green or sync-on-green

Blue

No connection

Ground

Red ground

Green ground

Blue ground

No connection

Sync signal ground

No connection

Bi-directional DATA (SDA)

Horizontal sync or Composite sync

Vertical sync

Data clock

Pin No.

9 10 11 12 13 14 15 16

21 22 23 24

PC 3

Pin No.

Signal (Digital)

T.M.D.S Data 2 -

T.M.D.S Data 2 +

T.M.D.S Data 2 Shield

No connection

DDC Clock

DDC Data

No connection

T.M.D.S Data 1 -

T.M.D.S Data 1 +

T.M.D.S Data 1 Shield

No connection

+5V Power

Ground

Hot Plug Detect

T.M.D.S Data 0 -

T.M.D.S Data 0 +

T.M.D.S Data 0 Shield

No connection

T.M.D.S Clock Shield

T.M.D.S Clock +

T.M.D.S Clock -

mini D-Sub 15-pin connector

(Analog)

DVI-D 24-pin connector (Digital)

The unit is equipped with a type of connector commonly

used for digital.

(This cannot be used for an analog input.)

(TMDS can be used for one link only.)

Pin Assignments

English

Table of Signals Supported

Supported resolution

• When the screen mode is NORMAL, each signal is converted to a 640 dots

480 lines signal. (Except for *

)

• When the screen mode is FULL, each signal is converted to a 853 dots

480 lines signal. (Except for *

)

Computer input signals supported by this system

Screen mode

Dots

lines

640

400

640

480

848

480

852

480*

800

600

1024

768

1152

864

1280

768

1280

768*

1280

800*

1280

854*

1360

765

1360

768

1376

768

1280

1024

1680

1050*

1600

1200

1920

1200*

1920

1200RB*

640

480

832

624

1024

768

1152

870

1440

900*

1280

1024

1280

1024

1152

900

1280

1024

768

1280

1024

768

576

640

480

Vertical

frequency

(Hz)

70.1

59.9

72.8

75.0

85.0

100.4

120.4

60.0

56.3

60.3

72.2

75.0

85.1

99.8

120.0

60.0

70.1

75.0

85.0

100.6

75.0

56.2

59.8

69.8

60.0

59.9

60.0

75.0

85.0

100.1

60.0

65.0

70.0

75.0

85.0

60.0

66.7

74.6

74.9

75.1

60.0

71.2

72.0

66.0

76.0

76.1

60.0

50.0

59.9

Horizontal

frequency

(kHz)

31.5

37.9

37.5

43.3

51.1

61.3

31.0

31.7

35.2

37.9

48.1

46.9

53.7

63.0

75.7

48.4

56.5

60.0

68.7

80.5

67.5

45.1

48.0

56.0

49.7

53.1

47.7

48.3

64.0

80.0

91.1

108.5

65.3

75.0

81.3

87.5

93.8

106.3

74.6

74.0

35.0

49.7

60.2

68.7

56.0

64.6

75.1

78.1

61.8

71.7

81.1

49.7

63.9

31.4

31.5

NORMAL

(4:3)

YES*

– –

YES

– –

YES*

– –

YES

– –

YES*

YES

– –

YES*

YES

YES*

YES

YES*

FULL

(16:9)

YES

YES*

YES

YES*

RGB

select

– –

STILL

– –

STILL

– –

WIDE2

WIDE1

STILL

– –

STILL

– –

STILL

– –

STILL

WIDE1

WIDE3

WIDE1

WIDE2

WIDE1

WIDE2

STILL

– –

WIDE4

– –

WIDE2

WIDE3

– –

WIDE1

– –

MOTION

Apple

Macintosh*

Horizontal

NEG

POS

NEG

POS

NEG

POS

NEG

POS

NEG

POS

NEG

POS

NEG

POS

NEG

Sync on G

NEG

– –

C Sync

– –

NEG

Work Station

(EWS4800)*

Work Station (HP)*

Work Station

(SUN)*

Work Station

(SGI)

IDC-3000G

Signal Type

IBM PC/AT

compatible

computers*

Vertical

NEG

POS

NEG

POS

NEG

POS

NEG

POS

NEG

POS

NEG

POS

NEG

POS

NEG

Sync on G

NEG

– –

C Sync

– –

NEG

Sync Polarity

Presence

Horizontal

YES

– –

YES

– –

YES

Vertical

YES

– –

YES

– –

YES

PAL625P

NTSC525P

Model

DVI

YES

– –

YES

Memory

English

Table of Signals Supported

*1 Only when using a graphic accelerator board that is capable of displaying 852

480.

*2 Display only 400 lines with the screen center of the vertical orientation located at the center.

*3 The picture is displayed in the original resolution. The picture will be compressed for other signals.

*4 Aspect ratio is 5:4. This signal is converted to a 600 dots

480 lines signal.

*5 Normally the RGB select mode suite for the input signals is set automatically. If the picture is not displayed properly, set the

RGB mode prepared for the input signals listed in the table above.

*6 To connect the monitor to Macintosh computer, use the monitor adapter (D-Sub 15-pin) to your computer's video port.

*7 Other screen modes (ZOOM and WIDE) are available as well.

*8 When viewing a moving picture at a vertical frequency greater than 65Hz, the picture may sometimes be unstable (jumpy).

If this occurs, please set the refresh rate of the external equipment to 60Hz.

To view 480I@60Hz (480 interlaced lines, 60Hz refresh rate) or 576I@50Hz (576 interlaced lines, 50Hz refresh rate) when

sync polarity is “Sync on Green”, set “RGB SELECT” to “MOTION”.

*9 CVT standard compliant.

NOTE:

•

While the input signals comply with the resolution listed in the table above, you may have to adjust the position and size

of the picture or the fine picture because of errors in synchronization of your computer.

•

This monitor has a resolution of 853 dots

480 lines. It is recommended that the input signal be VGA, wide VGA or

equivalent.

•

With digital input some signals are not accepted.

•

The sync may be disturbed when a nonstandard signal other than the aforementioned is input.

•

If you are connecting a composite sync signal, use the HD terminal.

What is HDCP/HDCP technology?

HDCP is an acronym for High-bandwidth Digital Content Protection. High bandwidth Digital Content Protection (HDCP) is a system

for preventing illegal copying of video data sent over a Digital Visual Interface (DVI).

If you are unable to view material via the DVI input, this does not necessarily mean the PDP is not functioning properly. With the

implementation of HDCP, there may be cases in which certain content is protected with HDCP and might not be displayed due to the

decision/intention of the HDCP community (Digital Content Protection, LLC).

* “IBM PC/AT” and “VGA” are registered trademarks of International Business Machines, Inc. of the United States.

* “Apple Macintosh” is a registered trademark of Apple Computer, Inc. of the United States.

English

Troubleshooting

Remedy

• If there are no abnormalities in the image and sound,

the noise is caused by the cabinet reacting to

changes in temperature. This will not affect

performance.

• Leave some space between the display and the

connected components.

• Replace both batteries with new ones.

• Set IR REMOTE OFF on OPTION3 menu.

• Set an ID number with the ID NO. SET button, or set

the ID number to ALL.

• Plug the monitor’s power cord into a power outlet.

• Press the power button on the monitor to turn on the

power.

• Replace both batteries with new ones.

• Set IR REMOTE ON.

• Set an ID number with the ID NO. SET button, or set

the ID number to ALL.

• Point the remote control at the monitor’s remote

control sensor when pressing buttons, or remove the

obstacle.

• Eliminate the light by closing curtains, pointing the

light in a different direction, etc.

• Replace both batteries with new ones.

• Unplug the remote cable from the monitor.

• Set the KEY Lock to OFF.

• Plug the monitor’s power cord into a power outlet.

• Increase the volume.

• Press the remote control’s MUTING button.

• Connect the speakers properly.

• Set AUDIO INPUT on the SOUND menu correctly.

• Adjust picture control as needed.

Try another location for the monitor.

Be sure all connections are secure.

• Adjust picture controls as needed.

Check pin assignments and connections.

• Adjust the tint and color (under PICTURE).

• Turn on the computer’s power.

• Connect source to the monitor.

• Operate the computer (move the mouse, etc.).

• Set LOOP OUT OFF.

• Adjust the SCREEN properly.

• Press the SCREEN SIZE button on the remote

control and adjust properly.

• Set to the proper resolution.

• Check the input signal.

• Promptly switch off the power of the main unit and

wait until the internal temperature drops. See*1.

• Prompty switch off the power of the main unit. See

*2.

If the picture quality is poor or there is some other problem, check the adjustments, operations, etc., before requesting service.

Symptom

The unit emits a crackling sound.

Picture is disturbed.

Sound is noisy.

Remote control operates erroneously.

The remote control does not work.

Monitor’s power does not turn on when the

remote control’s power button is pressed.

Monitor does not operate when the remote

control’s buttons are pressed.

The front panel buttons of the main unit do

not function.

No sound or picture is produced.

Picture appears but no sound is produced.

Poor picture with VIDEO signal input.

Poor picture with RGB signal input.

Tint is poor or colors are weak.

Nothing appears on screen.

Part of picture is cut off or picture is not

centered.

Image is too large or too small.

Picture is unstable.

STANDBY/ON indicator is lighted in red.

STANDBY/ON indicator is blinking in red.

STANDBY/ON indicator is blinking in green

and red, or green.

Checks

• Are the image and sound normal?

• Is a connected component set directly in front or at

the side of the display?

• Are the remote control’s batteries worn out?

• Is IR REMOTE set to ON?

• Has an ID number been set for the main unit?

• Is the monitor’s power cord plugged into a power

outlet?

• Are all the monitor’s indicators off?

• Are the remote control’s batteries worn out?

• Is IR REMOTE set to OFF?

• Has an ID number been set for the main unit?

• Is the remote control pointed at the monitor, or is

there an obstacle between the remote control and

the monitor?

• Is direct sunlight or strong artificial light shining on

the monitor’s remote control sensor?

• Are the remote control’s batteries worn out?

• The remote cable is plugged into the REMOTE IN

terminal (Wired).

• The front panel buttons do not function during KEY

Lock.

• Is the monitor’s power cord plugged into a power

outlet?

• Is the volume set at the minimum?

• Is the MUTING mode set?

• Are the speakers properly connected?

• Is AUDIO INPUT set correctly?

• Improper control setting.

Local interference.

Cable interconnections.

Input impedance is not correct level.

• Improper control setting.

Incorrect RGB connector pin connections.

• Are the tint and colors properly adjusted?

• Is the computer’s power turned on?

• Is a source connected?

• Is the power management function in the standby

or off mode?

• Is LOOP OUT set to ON?

• Is the position adjustment appropriate?

• Is the screen size adjustment appropriate?

• Is the computer’s resolution setting appropriate?

• Horizontal and / or vertical sync signal is not

present when the Intelligent Power Manager

control is on.

• The temperature inside the main unit has become

too high and has activated the protector.

——————

*1 Overheat protector

If the monitor becomes too hot, the overheat protector will be activated and the monitor will be turned off. If this happens, turn off the power to the monitor

and unplug the power cord. If the room where the monitor is installed is particularly hot, move the monitor to a cooler location and wait for the monitor

to cool for 60 minutes. If the problem persists, contact your dealer.

*2 In the following case, power off the monitor immediately and contact your dealer or authorized Service Center.

The monitor turns off 5 seconds after powering on and then the STANDBY/ON indicator blinks. It indicates that the power supply circuit, plasma display

panel

temperature sensor has been damaged.

Troubleshooting

English

Specifications

Screen Size

921(H)

518(V) mm

36.3"(H)

20.4"(V) inches

diagonal 42"

Aspect Ratio

16 : 9

Resolution

853(H)

480(V) pixels

Signals

Synchronization Range

Horizontal : 15.5 to 110 kHz

(automatic : step scan)

Vertical : 50.0 to 120 Hz

(automatic : step scan)

Input Signals

RGB, NTSC (3.58/4.43), PAL (B,G,M,N),

PAL60, SECAM, HD*

, DVD*

, DTV*

Input Terminals

(VIDEO1 and PC1 can also be used as OUTPUT terminals)

Visual 1 (Analog)

mini D-sub 15-pin

Visual 2 (Analog)

BNC (R, G, B, H/CS, V)

Visual 3 (Digital)

DVI-I 24-pin

Video

Visual 1

BNC

Visual 2

RCA-pin

Visual 3

S-Video: DIN 4-pin

COMPONENT

Visual 1

RCA-pin (Y, PB[CB], PR[CR])

Visual 2

BNC (Y, PB[CB], PR[CR])

Audio

Stereo RCA

3(Selectable)

RS-232C

D-sub 9-pin

Sound output

8W+8W at 6 ohm

Power Supply

AC100-240V 50/60Hz

Current Rating

4.5A (maximum)

Power Consumption

270W (standby 0.9W)

Dimensions

1018 (W)

610 (H)

89(D) mm

40 (W)

24 (H)

3.5 (D) inches

Weight

28.5 kg / 62.8 lbs (without stand)

Environmental Considerations

Operating Temperature

0°C to 40°C / 32°F to 104°F

Other Features

Motion compensated 3D Scan Converter (NTSC,

PAL, 480I, 576I, 525I, 625I, 1035I, 1080I), 2-3

pull down Converter (NTSC, 480I, 525I, 1035I,

1080I (60Hz)), 2-2 pull down Converter (PAL,

576I, 625I, NTSC, 480I, 525I), Digital Zoom

Function (100-900% Selectable), Video Wall 4-25

multi screen, Self Diagnosis, Image Burn

reduction tools (ABL LOCK1~3, INVERSE,

WHITE, ORBITER (Auto1,2/Manual), SCREEN

WIPER), Color Temperature select (high/mid/mid

low/low, user has 4 memories), Key lock (Except

power SW), Auto Picture, Input Skip, Color

Detail Adjustment, Low Tone (3 mode), Auto ID,

Programmable Timer, Gamma Correction

(4 mode), Loop through interface, Plug and play

(DDC1, DDC2b, RGB3: DDC2b only)

HD/DVD/DTV input signals supported on this

system

480P (60 Hz)

480I (60 Hz)

525P (60 Hz)

525I (60 Hz)

576P (50 Hz)

576I (50 Hz)

625P (50 Hz)

625I (50 Hz)

720P (60 Hz)

1035I (60 Hz)

1080I (50 Hz)

1080I (60 Hz)

The 5-BNC connectors are used as PC2 and

COMPONENT2 input. Select one of them under

“BNC INPUT”.

Compatable with HDCP.

Supported Signals

• 640

480P @ 59.94/60Hz

• 1920

1080I @ 50Hz

• 1280

720P @ 59.94/60Hz

• 720

576P @ 50Hz

• 1920

1080I @ 59.94/60Hz

• 1440 (720)

576I @ 50Hz

• 720

480P @ 59.94/60Hz

• 1440 (720)

480I @ 59.94/60Hz

Note:

In some cases a signal on the plasma monitor may not be displayed

properly. The problem may be an inconsistency with standards from

the source equipment (DVD, Set-top box, etc...). If you do experience

such a problem please contact your dealer and also the manufacturer of

the source equipment.

Units are in mm

(inch)

(3.5")

(1.38")

(2.13")

1018 (40")

610 (24")

The features and specifications may be subject to change

without notice.

Mode d’emploi

Nous vous remercions d’avoir acquis cet appareilPIONEER.

Avant d’utiliser cet écran à plasma, veuillez lire attentivement

les “Recommandations importantes” et les “Mode d’emploi”

de façon à connaître comment employer convenablement

l’écran à plasma.

Conservez le mode d’emploi pour référence. Vous pourriez

en avoir besoin plus tard.

Remarque pour le revendeur:

Après l’installation, assurez-vous de remettre ce mode d’emploi à

l’utilisateur et de lui expliquer comme utiliser ce produit.

Remarques sur l’installation:

Ce produit est vendu en assumant qu’il sera installé par un

personnel suffisamment expérimenté et qualifié. Faites toujours

réaliser le montage et l’installation par un spécialiste ou par votre

revendeur.

PIONEER ne peut être tenu responsable pour tout dommage

causé par une erreur d’installation ou de montage, une mauvaise

utilisation ou un désastre naturel.

Français

Fran

ais

Recommandations importantes

Précaution

Veuillez lire avec attention ce manuel avant d’utiliser le moniteur à

plasma et le conserver accessible pour s’y référer ultérieurement.

ATTENTION

RISQUE D’ELECTROCUTION

NE PAS OUVRIR

ATTENTION:

POUR EVITER TOUT RISQUE

D’ELECTROCUTION, NE PAS OUVRIR LE

BOITIER. A L’INTERIEUR, AUCUNE PIECE

NE NECESSITE L’INTER-VENTION DE

L’UTILISATEUR. EN CAS DE PROBLEME,

S’ADRESSER A UN REPARATEUR

SPECIALISTE.

Ce symbole est une mise en garde contre les

risques d’électrocution que présentent certaines

parties dépourvues d’isolation à l’intérieur de

l’appareil. Il est donc dangereux d’établir le

moindre contact avec ces parties.

Ce symbole avertit l’utilisateur que d’importantes

informations sont fournies sur le fonctionnement

ou l’entretien de cet appareil. De ce fait, il faut

lire attentivement ces instruc-tions pour éviter

tout problèm

AVERTISSEMENT

AFIN D’EVITER TOUT RISQUE D’INCENDIE OU

D’ELECTROCUTION, NE PAS EXPOSER CET APPAREIL

A LA PLUIE OU A L’HUMIDITE. NE PAS BRANCHER LA

PRISE D’ALIMENTATION POLARISEE DANS UNE PRISE

MURALE AVEC UNE RALLONGE OU UN ADAPTATEUR

MULTIPRISE SI LES FICHES NE PEUVENT ETRE

INSEREES COMPLETEMENT. EVITER D’OUVRIR LE

BOITIER CAR CELUI-CI PROTEGE DES COMPOSANTS

FONCTIONNANT A HAUTE TENSION. EN CAS DE

PROBLEME, S’ADRESSER A UN REPARATEUR

SPECIALISTE.

Avertissements et précautions de

sécurité

Ce moniteur à plasma a été conçu et fabriqu pour une utilisation

fiable et durable. Il ne nécessite aucun entretien en dehors du

nettoyage. Voir la section “Méthode de nettoyage du moniteur à

plasma” plus loin.

Le panneau à affichage plasma est constitué de fines particules

d’images (cellules) dont plus de 99,99%sont actives. Certaines

d’entre elles ne produisent pas de lumière ou restent allumées.

Pour des raisons de sécurité et pour éviter d’endommager

l’appareil, lire attentivement les instructions suivantes.

Pour éviter les risques d’éléctrocution et d’incendie:

1. Laisser suffisamment d’espace autour de l’appareil pour la

ventilation et éviter toute augmentation excessive de la température

interne. Ne pas couvrir les fentes d’aération ou installer l’appareil

dans un endroit trop exigu.

Si vous installez l’appareil dans un espace clos, assurezvous qu’il y

ait suffisamment d’espace au dessus pour permettre l’air chaud de

s’élever et de s’évacuer.

Si la température du moniteur devient excessive, la protection contre

les surchauffes entrera en action et coupera l’alimentation. Dans ce

cas, éteindre l’appareil et débrancher le câble d’alimentation. Si la

température de la pièce dans laquelle se trouve le moniteur est

particulièrement élevée, déplacer celui-ci dans un endroit plus frais

et attendre environ 60 minutes qu’il refroidisse. Si le problème

persiste, prendre contact avec votre revendeur.

2. Ne pas raccorder la prise d’alimentation polarisée de ce périphérique

à une rallonge ou une prise murale si les fiches ne peuvent pas être

complètement insérées.

3. Ne pas exposer cet appareil à la pluie ou à l’humidité.

4. Eviter d’endommager le câble d’alimentation et ne pas le modifier.

5. Débrancher le câble d’alimentation électrique pendant les orages

ou les longues périodes d’inactivité.

6. Ne pas ouvrir le boîtier protégeant les parties dangereuses

fonctionnant hauts voltages. Si l’appareil est endommagé de cette

manière, la garantie sera annulée. De plus, les risques d’électrocution

grave sont grands.

7. Ne pas essayer d’intervenir ou de réparer l’appareil. Le fabricant

décline toute responsabilité en cas de blessure corporelle ou de dégâts

matériels résultant d’une opération d’entretien quelconque effectuée

par des personnes non qualifiées ou résultant de l’ouverture du

couvercle arrière. S’adresser au service après-vente autorisé.

Pour éviter tout dommage et assurer une utilisation durable:

1. Utiliser seulement une alimentation en courant de 100-240 V 50/60

Hz. Toute utilisation prolongée avec un courant supérieur à 100-

240 V risque de diminuer la durée de vie de l’appareil et même de

provoquer un incendie.

2. Manipuler l’appareil avec précautions lors de son installation, ne

pas le laisser tomber.

3. L’installer loin de toute source de chaleur ou de poussière. Ne pas

l’exposer au soleil.

4. Eviter la pénétration de liquides ou petits objets métalliques

l’intérieur de l’appareil. En cas d’incident de ce genre, débrancher

le câble d’alimentation électrique et confier le moniteur à un service

après-vente agréé.

5. Ne pas cogner ou rayer la surface de l’écran, des déformations de

l’image en résulteraient.

6. Pour un montage et une installation correcte, il est fortement

recommandé de faire appel à un revendeur agréé et qualifié .

7. Comme c’est le cas pour tout affichage à base de phosphore (comme

un moniteur CRT, par exemple), la puissance de lumière baisse

graduellement au cours de la vie du panneau d’affichage à plasma.

8. Pour éviter tout risque de sulfuration, il est fortement conseillé de

ne pas installer l’appareil dans un vestiaire, un bain public ou un

bain de source thermale.

9. Ne pas utiliser dans un véhicule en marche car l’unité pourrait tomber

ou glisser et provoquer des blessures.

10. Pour éviter l ‘inflammation ou les chocs électriques, ne pas placer l’unité

sur la tranche, à l’envers ou avec l’écran vers le bas ou vers le haut.

REMARQUE:

Pour raccorder un ordinateur à ce moniteur, procéder à

l’aide d’un câble RGB à âme de ferrite aux deux extrémités.

Sur les câbles DVI et les câbles d’alimentation électrique,

fixer les âmes de ferrite fournies aux extrémités. Si vous

ne faites pas cela, le moniteur ne sera pas conforme aux

normes obligatoires CE et C-Tick.

Fixation des tores en ferrite :

Monter les tores en ferrite aux deux extrêmités du câble

DVI (non fourni) et aux deux extrêmités du câble

d’alimentation électrique (fourni).

Refermez les agrafes jusqu’ entendre un déclic.

Fixer le tore en ferrite (fourni) au câble DVI à l’aide d’un

collier.

Câble DVI (non fourni)

Connecteur

noyau (petit)

Collier

Câble d’alimentation (fourni)

tore (grande)

Fran

ais

Recommandations importantes

Méthode de nettoyage du moniteur à plasma:

1. Utiliser un chiffon (fourni) ou un chiffon doux et sec pour nettoyer

le panneau avant et le cadre. Ne jamais utiliser de solvants de type

alcool ou diluant pour le nettoyage de ces surfaces.

2. Nettoyer les prises d’aération du plasma en procédant à l’aide d’une

brosse à poils doux fixée à un aspirateur.

3. Pour garantir la bonne ventilation du moniteur, nettoyer les prises

d’air tous les mois. Un nettoyage plus fréquent peut s’avérer

nécessaire selon les conditions environnantes dans lesquelles le

moniteur à plasma est utilisé.

Pour éviter les risques de brûlage du luminophore, les mesures

suivantes sont recommandées:

Comme tous les périphériques d’affichage à base luminophore et tous les

autres affichages gaz plasma, les moniteurs plasma peuvent être sujets au

brûlage du luminophore dans certaines circonstances. Certaines conditions

d’utilisation, telles que l’affichage continu d’une image statique pour une

durée prolongée, peuvent causer le brûlage du luminophore si aucune

précaution n’est prise. Pour protéger votre investissement dans ce moniteur

à plasma, veuillez suivre les directives et les conseils suivantes pour

minimiser l’occurence le marquage de l’écran

* S’assurer de mettre en marche et d’utiliser l’économiseur d’écran

chaque fois que c’est possible, pendant l’utilisation avec une source

d’entrée venant d’ un ordinateur.

* Afficher une image en mouvement aussi souvent que possible.

* Changer la position de l’affichage de menu de temps à autre.

* Toujours couper l’alimentation après la fin de l’utilisation du

moniteur.

Si le moniteur à plasma est en usage continu ou de longue durée, prendre

les mesures suivantes afin d’éviter l’occurence le brûlage du

luminophore:

* Abaisser le niveau de l’image (contraste, luminance) autant que

possible, sans faire perdre la lisibilit de l’image.

* Afficher une image avec de nombreuses couleurs et graduations de

couleur. (par ex. des images photo-graphiques ou photo-réalistes).

* Créer un contenu d’image avec un contraste minimal entre les zones

sombres et les zones claires, par exemple des caractères blancs sur

un fond noir. Utiliser des couleurs complémentaires ou pastels le

plus souvent possible.

* Eviter d’afficher des images avec peu de couleurs et des limites nettes

et clairement définies entre les couleurs.

* REMARQUE: Le brûlage de l’écran n’est pas couvert par la

garantie.

Contactez un revendeur agréé ou un revendeur de marque pour d'autres

procédures qui conviendront le mieux à vos besoins particuliers.

Attention

Cet modèle est fait pour être utilisé avec les accessoires

optionnels suivants. Toute utilisation avec d’autres

accessoires optionnels peut entraîner une instabilité pouvant

causer des blessures.

Haut-parleurs: PDP-S32-LR

Support plateau: PDK-TS09

Unité de montage mural: PDK-WM04

Unité de montage incliné: PDK-WT01

Unité de montage au plafond: PDK-CK01

AVERTISSEMENT:

EN POSITIONNANT L’EQUIPEMENT, S’ASSURER QUE

LA FICHE ET LA PRISE DE RACCORDEMENT DE

L’ALIMENTATION SONT FACILEMENT ACCESSIBLES.

Ce produit est conforme à la directive relative aux

appareils basse tension (73/23/CEE), à la directive

CE relative à la compatibilité electromagnétique (89/

336/CEE, amendements 92/31/CEE et 93/68/CEE).

Top 10 manuals

100.00

NZXT HALE90 1000W

99.99

Samsung SM-R380

99.97

AEG BSB 18C

99.97

Dell 2700W

99.97

Smeg KSEC70X

99.96

Beurer HDE 40

99.96

Pyramida KH 50 v.2

99.96

MSI CSM-H81M-P32

99.96

AEG HR 5627

99.95

Melissa 640-048

To the rating of instructions and manuals →

Additional manuals

Hama MF215-B1

Philips SRU 7140

Elica SINFONIA

Exido 235-020

Pioneer PDP-42MVE1 – page 2

Manual for Pioneer PDP-42MVE1

Table of contents

Pin Assignments

Table of Signals Supported

Troubleshooting

Specifications

Recommandations importantes

Top 10 manuals

Additional manuals
