Eee Box PC

User Manual

English

E3870

First Edition V1

May 2008

Copyright © 2008 ASUSTeK COMPUTER INC. All Rights Reserved.

No part of this manual, including the products and software described in it, may be

reproduced, transmitted, transcribed, stored in a retrieval system, or

translated into any language in any form or by any means, except

documentation kept by the purchaser for backup purposes, without the express

written permission of ASUSTeK COMPUTER, INC. (“ASUS”).

Products and corporate names mentioned in this manual may or may not be

registered trademarks or copyrights of their respective companies, and are used for

identification purposes only. All trademarks are the property of their

respective owners.

Every effort has been made to ensure that the contents of this manual are

correct and up to date. However, the manufacturer makes no guarantee regarding

the accuracy of its contents, and reserves the right to make changes without prior

notice.

Contents

Contents .......................................................................................................3

Notices ..........................................................................................................5

Safety information ....................................................................................7

English

Notes for this manual .............................................................................. 9

Welcome ....................................................................10

Package contents ....................................................................................10

Knowing your Eee Box PC ........................................11

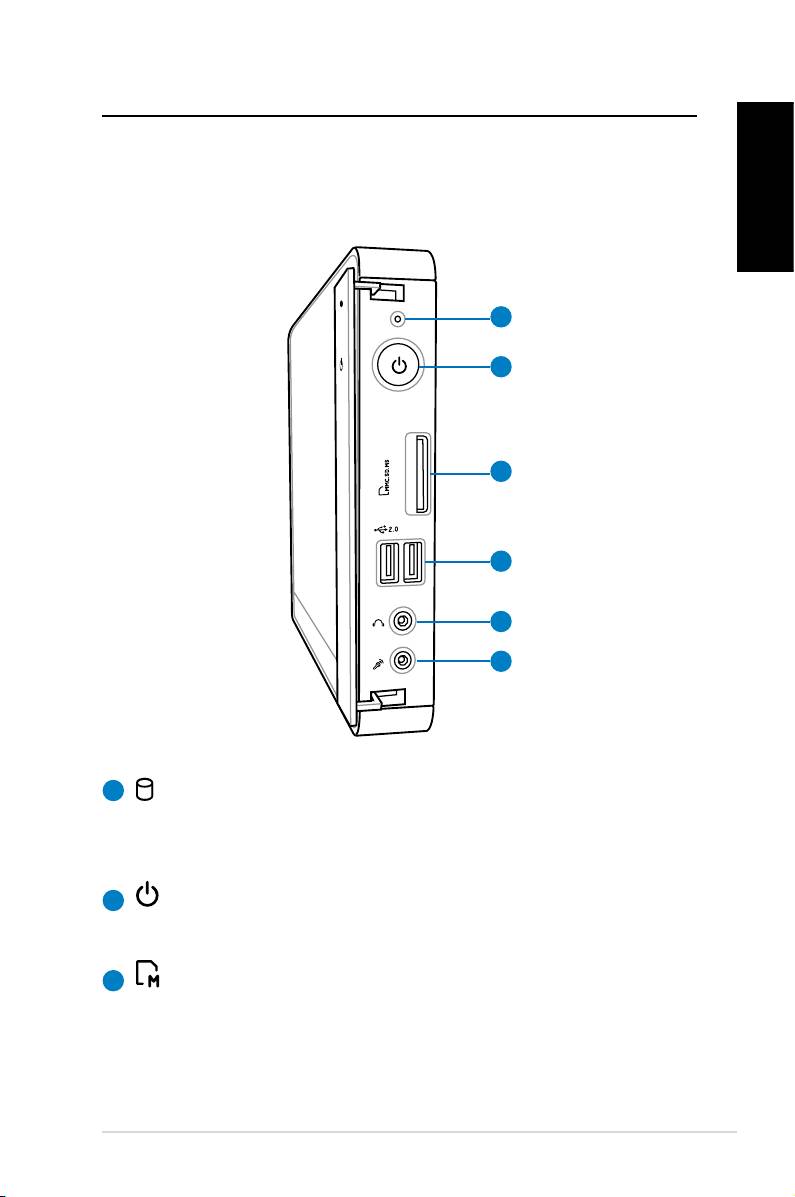

Front view ..................................................................................................11

Rear view ....................................................................................................13

Positioning your Eee Box PC ....................................15

Installing the stand .................................................................................15

Installing your Eee Box PC to a monitor .........................................16

Setting up your Eee Box PC ......................................17

Connecting to a display ........................................................................17

Connecting to USB devices .................................................................17

Connecting to a network device .......................................................18

Turning on the system ..........................................................................18

Using your Eee Box PC ..............................................19

Configuring wireless connection ......................................................19

Configuring wired connection ...........................................................20

Using a static IP .................................................................................20

Using a dynamic IP (PPPoE connection) ..................................21

ASUS Easy Update ..................................................................................24

Eee Box Express Gate .............................................................................25

The first screen ..................................................................................25

The Express Gate environment ...................................................25

Knowing the Express Gate keyboard shortcuts ....................26

Using the Configuration panel ....................................................27

Using the LaunchBar .......................................................................28

Eee Box PC 3

Contents

English

Recovering your system ...........................................30

Using the recovery DVD .......................................................................30

Using the hidden partition ..................................................................32

4 Eee Box PC

Notices

Federal Communications Commission Statement

This device complies with Part 15 of the FCC Rules. Operation is

English

subject to the following two conditions:

• This device may not cause harmful interference, and

• This device must accept any interference received including

interference that may cause undesired operation.

This equipment has been tested and found to comply with the limits

for a Class B digital device, pursuant to Part 15 of the FCC Rules.

These limits are designed to provide reasonable protection against

harmful interference in a residential installation. This equipment

generates, uses and can radiate radio frequency energy and, if not

installed and used in accordance with manufacturer’s instructions,

may cause harmful interference to radio communications. However,

there is no guarantee that interference will not occur in a particular

installation. If this equipment does cause harmful interference to

radio or television reception, which can be determined by turning

the equipment off and on, the user is encouraged to try to correct

the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.

• Increase the separation between the equipment and receiver.

• Connect the equipment to an outlet on a circuit different from

that to which the receiver is connected.

• Consult the dealer or an experienced radio/TV technician for

help.

The use of shielded cables for connection of the monitor to

the graphics card is required to assure compliance with FCC

regulations. Changes or modifications to this unit not expressly

approved by the party responsible for compliance could void the

user’s authority to operate this equipment.

Eee Box PC 5

Canadian Department of Communications Statement

English

This digital apparatus does not exceed the Class B limits for radio

noise emissions from digital apparatus set out in the Radio

Interference Regulations of the Canadian Department of

Communications.

This class B digital apparatus complies with Canadian ICES-003.

Macrovision Corporation Product Notice

This product incorporates copyright protection technology that is

protected by method claims of certain U.S. patents and other

intellectual property rights owned by Macrovision Corporation and

other rights owners. Use of this copyright protection technology

must be authorized by Macrovision Corporation, and is intended

for home and other limited viewing uses only unless otherwise

authorized by Macrovision Corporation. Reverse engineering or

disassembly is prohibited.

6 Eee Box PC

Safety information

Your Eee Box PC is designed and tested to meet the latest standards

of safety for information technology equipment. However, to ensure

your safety, it is important that you read the following safety

English

instructions.

Setting up your system

• Read and follow all instructions in the documentation before you

operate your system.

• Do not use this product near water or a heated source such as a

radiator.

• Set up the system on a stable surface with the provided stand.

Never use the system alone without the stand.

• Openings on the chassis are for ventilation. Do not block or cover

these openings. Make sure you leave plenty of space around the

system for ventilation. Never insert objects of any kind into the

ventilation openings.

• Use this product in environments with ambient temperatures

between 0˚C and 40˚C.

• If you use an extension cord, make sure that the total ampere

rating of the devices plugged into the extension cord does not

exceed its ampere rating.

Care during use

• Do not walk on the power cord or allow anything to rest on it.

• Do not spill water or any other liquids on your system.

• When the system is turned off, a small amount of electrical

current still flows. Always unplug all power, modem, and network

cables from the power outlets before cleaning the system.

• If you encounter the following technical problems with the

product, unplug the power cord and contact a qualified service

technician or your retailer.

• The power cord or plug is damaged.

Eee Box PC 7

• Liquid has been spilled into the system.

English

• The system does not function properly even if you follow

the operating instructions.

• The system was dropped or the cabinet is damaged.

• The system performance changes.

Lithium-Ion Battery Warning

CAUTION: Danger of explosion if battery is incorrectly

replaced. Replace only with the same or equivalent type

recommended by the manufacturer. Dispose of used batteries

according to the manufacturer’s instructions.

LASER PRODUCT WARNING

CLASS 1 LASER PRODUCT

NO DISASSEMBLY

The warranty does not apply to the products that

have been disassembled by users

This symbol of the crossed out wheeled bin indicates that the

product (electrical, electronic equipment, and mercury-containing

button cell battery) should not be placed in municipal waste.

Check local regulations for disposal of electronic products.

8 Eee Box PC

Notes for this manual

To make sure that you perform certain tasks properly, take note of

the following symbols used throughout this manual.

English

WARNING: Vital information that you MUST follow to prevent

injury to yourself.

IMPORTANT: Instructions that you MUST follow to complete a

task.

TIP: Tips and useful information that help you complete a task.

NOTE: Additional information for special situations.

Eee Box PC 9

Installing your Eee Box PC to a

English

monitor

You can also install your Eee Box PC to the back of a monitor. To do

so:

1. Secure the metal shelf (optional accessory) to your monitor with

four screws.

To fasten the metal shelf, your monitor must comply with VESA75

or VESA100 standard.

2

2. Place your Eee Box PC on the metal shelf noting the correct

alignment, and then secure the PC to the shelf with a coin.

Eee Box PC bottom view

16 Eee Box PC

Setting up your Eee Box PC

You need to connect peripherals before using your Eee Box PC.

Connecting to a display

English

Connect one end of a DVI cable to the display (

1

) and the other end

to the DVI port on the system rear panel (

2

).

2

1

Connecting to USB devices

Connect USB devices like keyboards, mouse devices, and printers to

the USB ports on the system rear panel.

Eee Box PC 17

Connecting to a network device

English

Connect one end of a network cable to the LAN port on the system

rear panel and the other end to a hub or switch.

Network cable with RJ-45 connectors

Network hub or switch

Turning on the system

Connect the supplied AC adapter to the DC IN jack on the system

rear panel, and then press the power switch on the front panel to

turn on the system.

3

4

2

1

18 Eee Box PC

Using your Eee Box PC

Conguring wireless connection

To connect to a wireless network, follow the instructions below:

English

Connect the supplied wireless antenna to your Eee Box PC to

enhance wireless signal reception.

1. From the Windows®

notification area, right-click

the wireless network icon

and select View Available

Wireless Networks.

2. Select the wireless network

you want to connect to from

the list and click Connect.

Enter the network security

key if necessary.

3. After connection was

established, you will see

Connected.

Eee Box PC 19

Conguring wired connection

English

To establish a wired network, follow the instructions below:

Using a static IP

1. Right-click the network icon

on the notification area and

select Open Network

Connections.

2. Right-click

Local Area

Connection and select

Properties.

3. Hightlight Internet Protocol

(TCP/IP) and click

Properties.

20 Eee Box PC

4. Select Use the following IP

address.

5. Enter your

IP address,

English

Subnet mask and Default

gateway.

6. If needed, enter the

Preferred DNS server

address.

7. After entering all of the

related values, click OK to

finish the configuration.

Using a dynamic IP (PPPoE connection)

1. Repeat Step 1–3 in the

previous section.

2 Select

Obtain an IP address

automatically and click OK.

3. Click Create a new

connection to start the New

Connection Wizard.

Eee Box PC 21

4. Click Next. 5. Select Connect to the

English

Internet and click Next.

6. Select Set up my

7. Select your connection

connection manually.

type and click Next.

8. Enter your ISP Name and

9. Enter your User name and

click Next.

Password. Click Next.

22 Eee Box PC

10. Click Finish to finish the

11. Enter your user name and

configuration.

password. Click Connect to

connect to the Internet.

English

Contact your Internet Service Provider (ISP) if you have problems

connecting to the network.

Eee Box PC 23

ASUS Easy Update

English

ASUS Easy Update is a software tool that automatically detects and

downloads the latest BIOS, drivers, and applications for your

Eee Box PC.

1. From the Windows® notification

area, right-click the ASUS Easy

Update icon.

2. Select

Schedule to set how

often you want to update your

system.

3. Select

Update to activate the

update.

4. Click

OK to display the items

you can download.

5. Check the item(s) you want to

download, and then click OK.

24 Eee Box PC

Eee Box Express Gate

Eee Box Express Gate is an instant-on environment that gives you

quick access to web, Skype, and your photo albums. A few seconds

after turning on your Eee Box PC, you will be at the Express Gate

English

menu where you can start the web browser, Skype, or other Express

Gate applications.

The first screen

Express Gate’s first screen appears right after you turn on your Eee

Box PC.

From here, you can start the web browser or Skype, manage your

photos, choose to enter Windows® OS or BIOS setup, or turn off the

system.

If you do not make any selection, Express Gate will terminate and the

system is ready to enter Windows® OS.

The Express Gate environment

The very first time you enter the Express Gate environment (by

clicking any of the Web, Photo, Chat, or Skype icons from the first

screen), a first-time wizard will guide you through several Express

Gate configurations, including language, date and time, and screen

resolution.

Eee Box PC 25

Using the hidden partition

English

The recovery partition includes an image of the operating system,

drivers, and utilities installed on your system at the factory. The

recovery partition provides a comprehensive recovery solution that

quickly restores your system’s software to its original working state,

provided that your hard disk drive is in good working order. Before

using the recovery partition, copy your data files (such as Outlook

PST files) to floppy disks or to a network drive and make note of any

customized configuration settings (such as network settings).

DO NOT delete the partition named “RECOVERY.” The recovery

partition is created at the factory and cannot be restored by the

user if deleted. Take your system to an authorized ASUS service

center if you have problems with the recovery process.

1. Press <F9> during bootup (requires a recovery partition).

2. Press

<Enter> to select Windows Setup [EMS Enabled].

3. The

ASUS Recovery System window appears. Select Recover

Windows to a partition.

4. Select a partition with min. 20GB space and click

Next.

5. Follow the on-screen instructions to complete the recovery

process.

6. Restart the computer after the system recovery is completed.

7. Set up your language, time zone, keyboard, computer name, and

user name to enter the Windows® OS.

32 Eee Box PC
