English

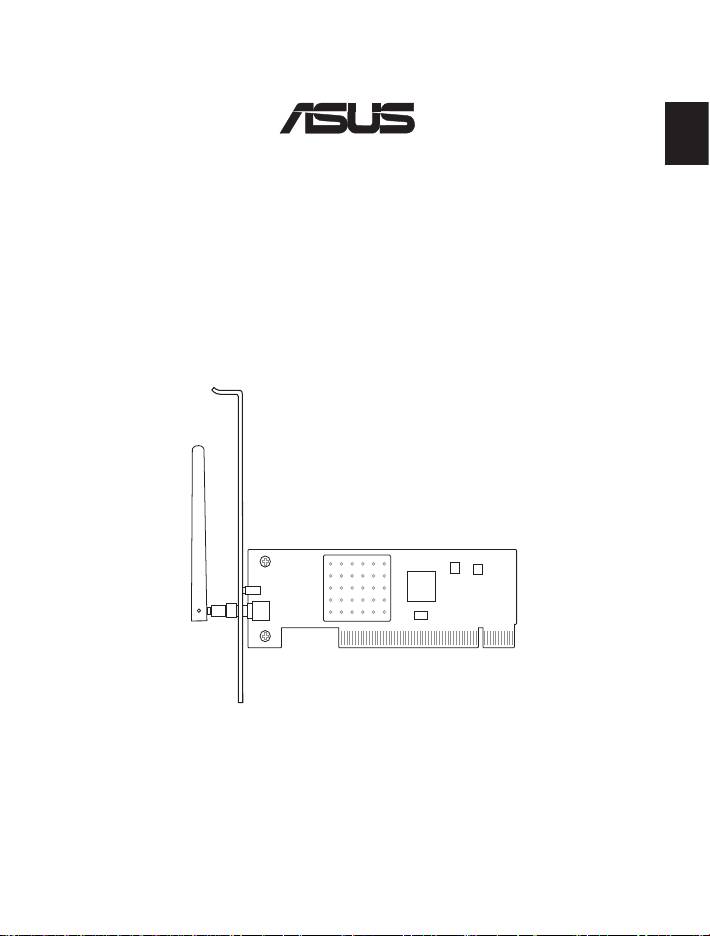

Wireless Local Area Network Card

WL-138g V2 / WL-138gE

(For 802.11g & 802.11b Wireless Networks)

Quick Start Guide

1

System Requirements

To begin using the ASUS WLAN Card, you must have the

following minimum requirements:

• Windows XP/2000/ME/98SE

• Standard 32-bit PCI Slot

• 32MB system memory or larger

• 300MHz processor or higher

The Product Package

When you receive the ASUS WLAN Card package, it should

contain the following items:

• ASUS WLAN PCI Card

• Dipole Antenna

• ASUS WLAN Card Quick Start Guide

• CD-ROM Disc (Drivers, Utilities, Documentation)

Note: If any of the above items are not included or damaged,

contact your local dealer for instructions.

Installation Procedures

Important: Install the ASUS WLAN card utilities before

inserting the ASUS WLAN Card into your computer.

Follow these instructions to setup the ASUS WLAN card.

1. Install the ASUS WLAN card utilities and driver from the

support CD.

2. Insert the ASUS WLAN card into your computer.

Quick Install Guide

Installing the ASUS WLAN Card Utilities &

English

Driver

1. Insert the ASUS WLAN Card support CD and an autorun menu will appear. If

your autorun is disabled, double click SETUP.EXE in the root directory of the

support CD.

2. From the autorun menu, select your

3. Click Next on the Welcome screen.

language and click Install ASUS

WLAN Card Utilities / Driver.

4. Click Next to use the default Destination

5. Click Next to place icons in the

Folder or click Browse to select another

default program folder or type

folder.

another folder name.

ASUS WLAN Card 3

7. When the program is launched for

the first time, you will be asked

which function to use. Select to

use our WLAN utilities for more

functionality.

6. When Setup is complete, click Finish

to exit the installation wizard.

Reading the ASUS WLAN Status Indicators

The ASUS WLAN card consists of one AIR indicator that shows

the status of the ASUS WLAN Card.

OFF: No wireless activity.

Blinking: Transmitting or receiving wireless data.

Orientating the Antenna

The ASUS WLAN Card has one

external antenna. It is recommended

that you adjust the external antenna

straight up for maximum range and

higher link quality.

Quick Install Guide

ASUS WLAN Utility Quick Start

After installing the ASUS WLAN driver and utility, you may

English

need to make some settings before being able to use your wireless

connection.

1. Set the Network Name (SSID) to

2. Use “Site Survey” if you don’t know

the same name as the SSID set in

the name of your access point(s).

your access point.

3. Encryption settings must also

4. You can also see the connection

match those set in the access

quality on the “Connection” page.

point. Talk with your network

Click OK to exit the utility.

administrator if necessary.

5. Click Apply to save your settings

and check the “Status” page to see

the “Association State”. It should

show “Connected - xx:xx:xx:xx:xx:

xx”.

ASUS WLAN Card 5
