Melissa exido 258-015: *

19

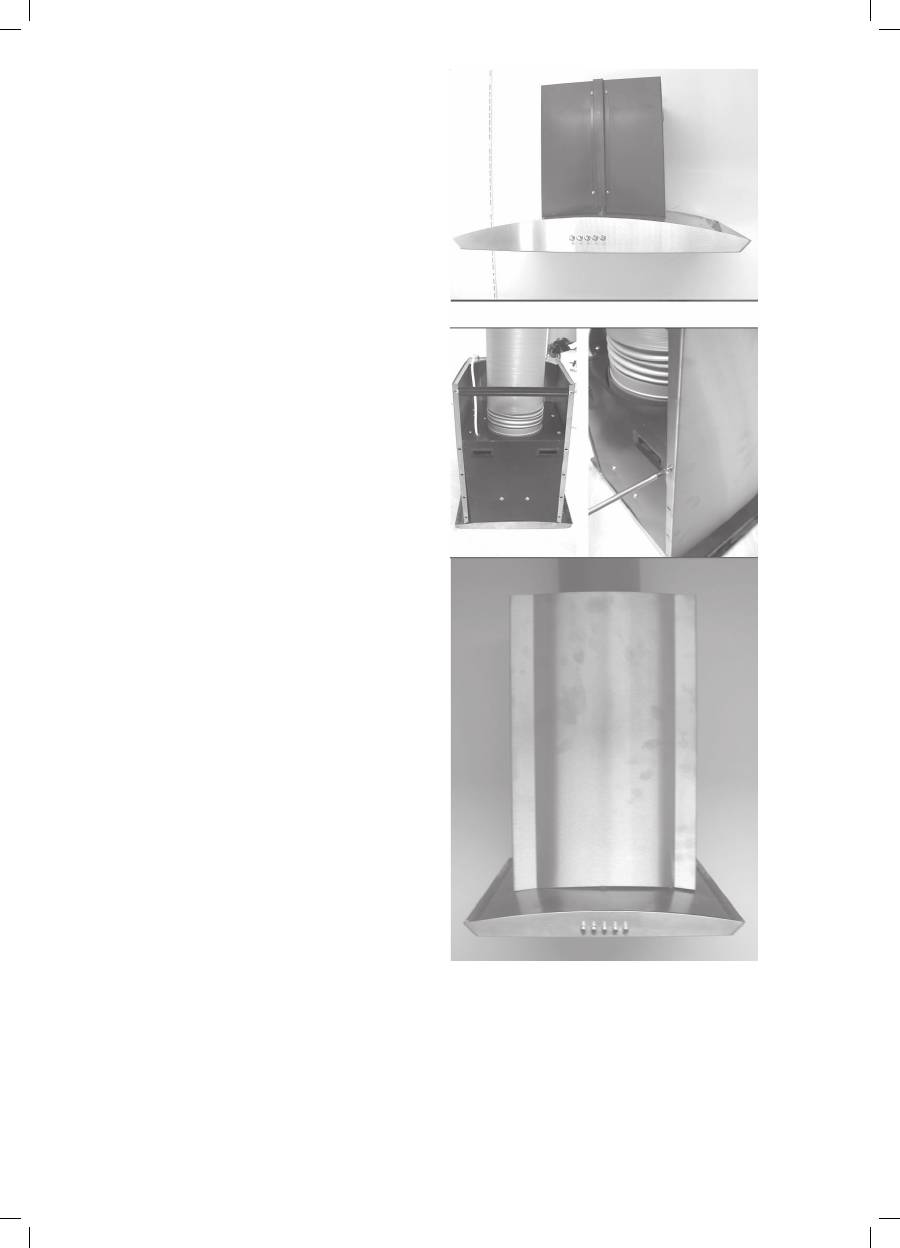

Hang appliance on wall bracket. Check it is level. Adjust the

two rubber spaces at back of appliance if required. Take ap-

pliance down again.

Use one M4X20 screw to fit the appliance on the screw hole

(

*

) on the bracket.

Make sure the appliance is fixed and can not be moved.

Connect flexible hose to extractor nozzle on top of appliance.

Note that hose ends have different diameters (printed on

outside of hose) Insert the 153 mm diameter end on nozzle. Fit

chimney on hood using the 8 small screws supplied on back

of appliance. Loosen protective film on back of chimney for

peeling off later.

Mount appliance on wall bracket. Extend upper part of chim-

ney from lower up to ceiling. Mark position of upper bracket

on wall. Push upper part of chimney down again. Screw

bracket firmly to wall where marked.

Fit flexible hose on extractor damper in wall or loft. Use an

adapter if necessary. Fit 150 mm diameter end to damper.

Electrical connection

Connect to mains socket (which must be accessible and com-

ply with relevant regulations).

If connected directly to mains, a multipole circuit-breaker

must be fitted between appliance and mains with a minimum

distance between contacts of 3 mm and with appropriate

ratings for the mains supply and in accordance with relevant

regulations.

20

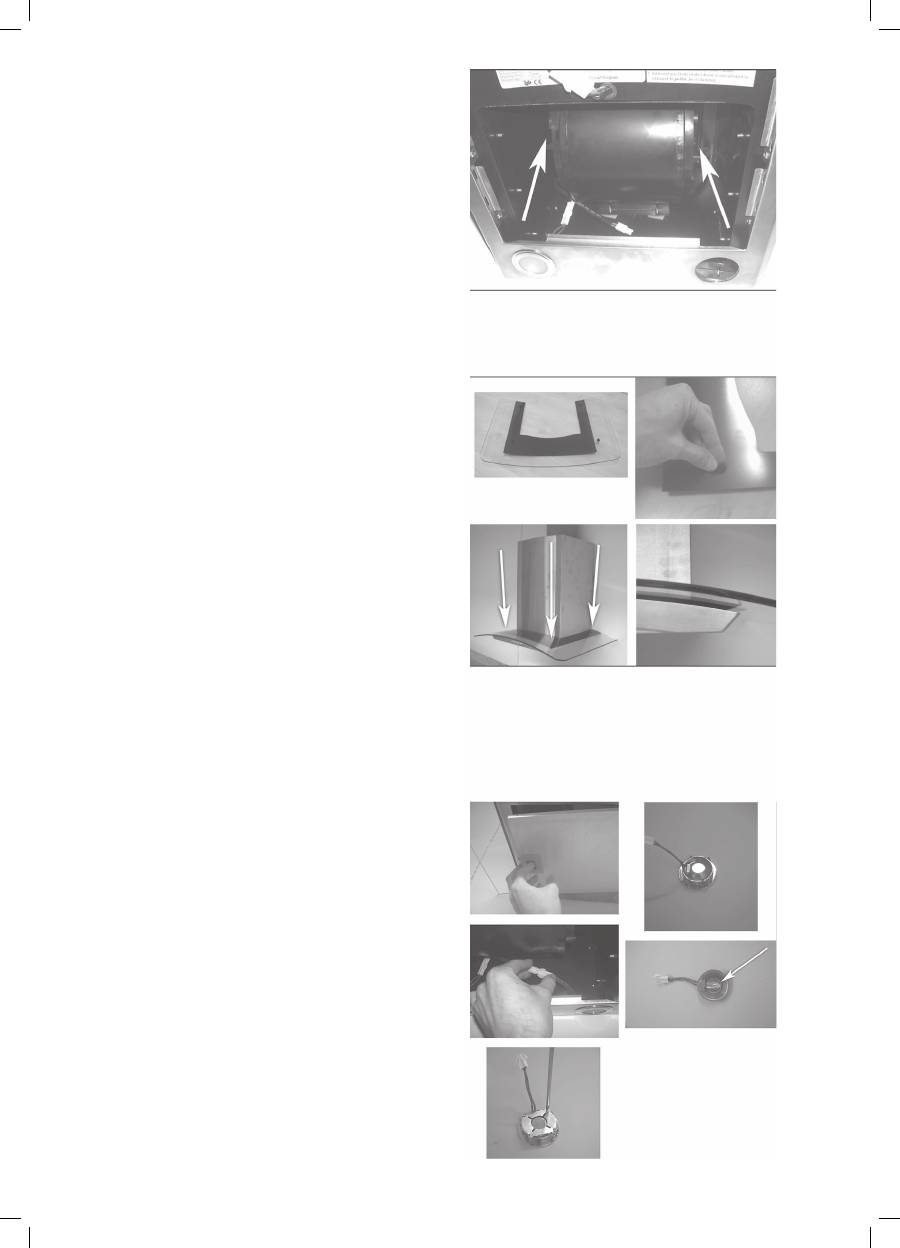

If active carbon filters are to be used instead of extraction

damper, they must be fitted on sides of motor:

•  Remove filter panel (6) by pressing lock button (5), on

lower panel and pull out. Fit carbon filters to motor sides.

•  Do not fit flexible hose if carbon filters are to be used.

Extend upper part of chimney from lower, secure to bracket

using 2 small screws. Peel protective film off.

Fit the four plastic washers to underside of holes in glass plate

(3), carefully place glass plate on appliance with washers

facing downwards. Align holes with those on top of appliance.

Screw plate to appliance with the 4 screws with rubber wa-

shers. Do not over-tighten screws!

Tip! If rubber washers are displaced, push back into place

with screwdriver before inserting screw.

OPERATION

•  Press light switch (a) to switch lights (7) on underside of

hood on or off.

•  Press one of the three suction power controls (b, c or d) to

activate hood at desired power setting:

o  b = high power

o  c = medium power

o  d = low power

•  Press off switch (e) to turn appliance off.

•  If two power controls are accidentally activated simulta-

neously, the appliance will start at the higher setting.

REPLACING LIGHT BULB

•  Switch appliance off.

•  Remove filter panel by pressing lock button, lower panel

and pull out.

•  Carefully insert a screwdriver under light housing edge

and lever free from hood underside. Detach light from

hood by pressing stud on one side of the white clip and

detaching clips.

•  Slacken the 4 screws in light back plate, detach plate and

detach light. Do not drop light lens!

•  Remove halogen bulb.

o  Warning! Bulbs in lights can become very hot when in

use.

o  Never touch bulbs with fingers. Always use a cloth or

similar to prevent sweat or dirt from fingers reducing bulb

life.

•  Insert new halogen bulb. Assemble and fit light housing in

reverse order.

21

CLEANING

•  Switch off before cleaning.

•  Never use scouring powder, steel scourers or other strong

cleaning agents to clean interior or exterior surfaces, as

they may scratch the surface.

•  Instead use a cloth dampened with hot water, and add

detergent if the appliance is very dirty.

•  Filter panel can be removed and washed in a dishwasher.

Allow to dry fully before replacing.

•  If active filters mounted on the motor are used, replace

when they no longer filter adequately and at least once

annually. New carbon filters can be supplied by your dea-

ler.

INFORMATION ON DISPOSAL AND RECYCLING OF THIS

PRODUCT

Please note that this Adexi product is marked with this sym-

bol:

This means that this product must not be disposed of together

with ordinary household waste, as electrical and electronic

waste must be disposed of separately.

In accordance with the WEEE directive, every member state

must ensure correct collection, recovery, handling and recy-

cling of electrical and electronic waste. Private households in

the EU can take used equipment to special recycling stations

free of charge. In some member states you can, in certain ca-

ses, return the used equipment to the retailer from whom you

purchased it, if you are purchasing new equipment. Contact

your retailer, distributor or the municipal authorities for further

information on what you should do with electrical and electro-

nic waste.

GUARANTEE TERMS

The guarantee does not apply:

•  if the above instructions are not followed

•  if the appliance has been interfered with

•  if the appliance has been mishandled, subjected to rough

treatment, or has suffered any other form of damage

•  if faults have arisen as a result of faults in your electricity

supply.

Due to the constant development of our products in terms of

function and design, we reserve the right to make changes to

the product without prior warning.

IMPORTER

Adexi Group

We cannot be held responsible for any printing errors.
