Melissa 640-062: KEY TO THE VACUUM CLEANER'S PARTS

IM 09/11/05 9:31 Side 19

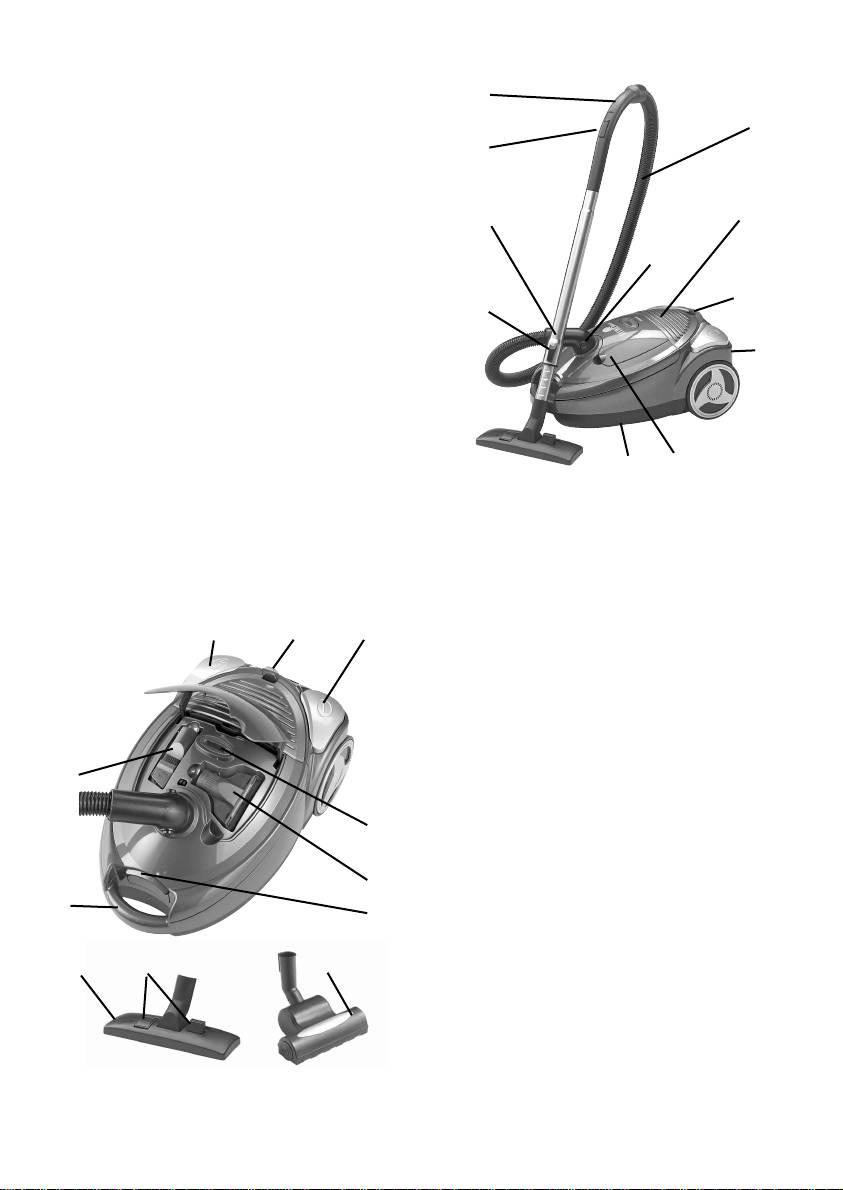

KEY TO THE VACUUM CLEANER'S

PARTS

1.

1. Handle

4.

2. Air valve

2.

3. Telescopic tube

4. Hose

5. Locking mechanism

6. Hose connector

3.

11.

7. Carrying handle

6.

8. Vertical parking holder

9. Storage compartment for special

nozzles

12.

5.

10. Handle for opening dust bag

container

17.

11. Exhaust grille

12. Handle for removal of exhaust grille

13. Start/stop button

14. Suction force regulation

15. Button for automatic cord rewind

16. Bag change indicator

8.

9.

17. Vertical parking holder

18. Floor nozzle

19. Brush change button

PREPARING THE VACUUM

20. Turbo nozzle

21. Furniture nozzle

CLEANER

22. Joint nozzle

• Fit the hose on the vacuum cleaner by

inserting the rotating hose connection

(6) into the vacuum cleaner until you

15.

14. 13.

hear a click. To remove the hose, press

the button at the side of the hose

connection and pull it out.

• Fit the telescopic tube (3) into the other

end of the hose, and fit a floor nozzle

(18 or 20) to the end of the tube.

21.

•You can adjust the length of the

telescopic tube by pushing the locking

16.

mechanism (5) down and pulling in the

bottom section of the tube to a suitable

length. When parking, shorten the tube

22.

7.

as far as possible.

10.

• The vacuum cleaner’s 2 special nozzles

(21& 22) are kept in the storage

18. 19. 20.

compartment (9). Remove the floor

nozzle and fit the special nozzle

required to the end of the telescopic

tube.
