Battery Slice Setup Guide

Vodič za postavljanje baterije

Instalační příručka k externí baterii

Οδηγός εγκατάστασης δευτερεύουσας μπαταρίας

Lapos akkumulátor telepítési útmutató

Instrukcja konfiguracji akumulatora cienkiego

Ghid de configurare pentru bateria suplimentară

Ðóêîâîäñòâî ïî óñòàíîâêå ïëîñêîãî àêêóìóëÿòîðà

Inštalačná príručka pre batériový panel

Vodič za namestitev ploščate baterije

Pil Dilimi Kurulum Kılavuzu

ﺔﻳﺭﺎﻄﺒﻟﺍ ﺔﺤﻳﺮﺷ ﺩﺍﺪﻋﺇ ﻞﻴﻟﺩ

book.book Page 2 Wednesday, July 20, 2011 7:09 PM

book.book Page 1 Wednesday, July 20, 2011 7:09 PM

Battery Slice Setup Guide

book.book Page 2 Wednesday, July 20, 2011 7:09 PM

Notes, Cautions, and Warnings

NOTE: A NOTE indicates important information that helps you make better use of your

computer.

CAUTION: A CAUTION indicates either potential damage to hardware or loss of data

and tells you how to avoid the problem.

WARNING: A WARNING indicates a potential for property damage, personal injury,

or death.

____________________

Information in this document is subject to change without notice.

© 2011 Dell Inc. All rights reserved.

Reproduction of these materials in any manner whatsoever without the written permission of Dell Inc. is

strictly forbidden.

Trademarks used in this text: Dell™, and the DELL logo are trademarks of Dell Inc. Microsoft®,

Windows®, and Windows Vista® are registered trademarks of Microsoft Corporation in the U.S. and other

countries.

Other trademarks and trade names may be used in this publication to refer to either the entities claiming

the marks and names or their products. Dell Inc. disclaims any proprietary interest in trademarks and trade

names other than its own.

2011 - 07 Rev. A00

book.book Page 3 Wednesday, July 20, 2011 7:09 PM

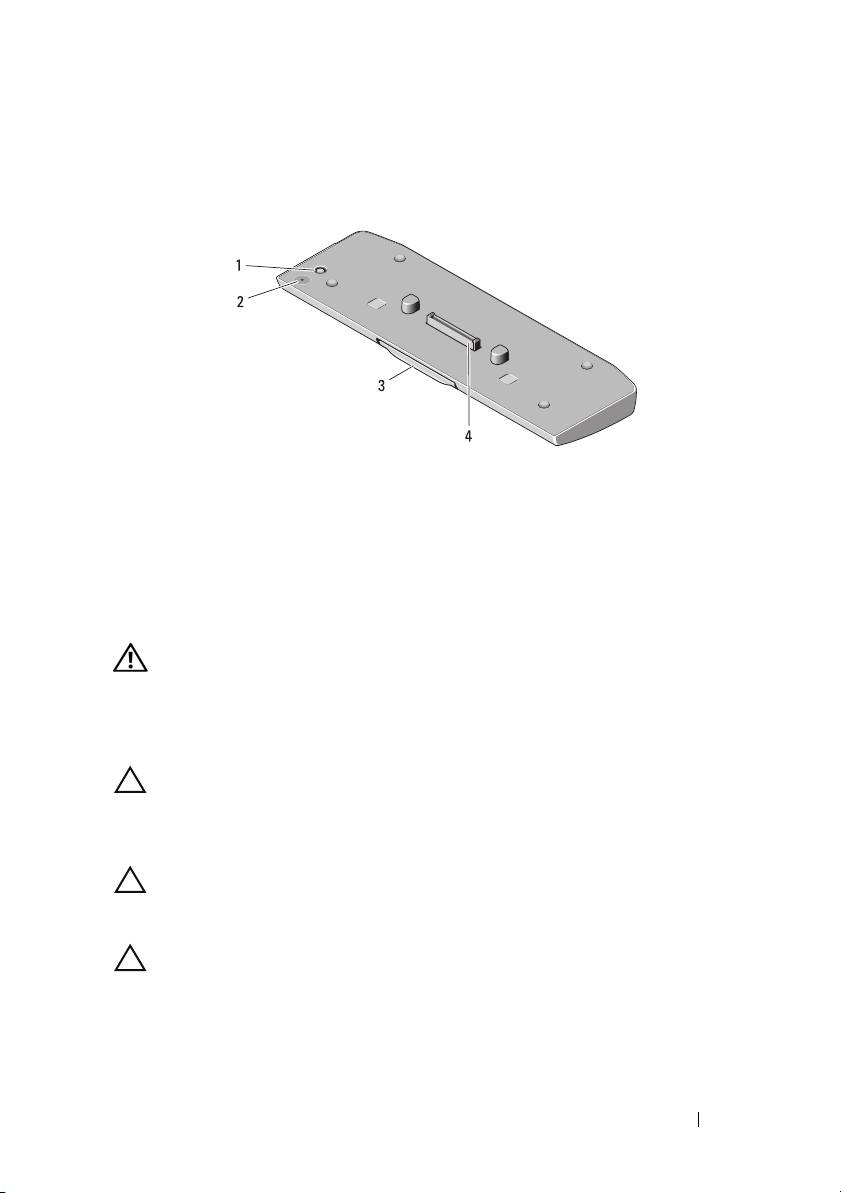

Battery Slice

Bottom View

1 AC adapter connector 2 battery-slice status LED

3 release lever 4 docking connector

Setting up Your Battery Slice

WARNING: The AC adapter works with electrical outlets worldwide. However,

power connectors and power strips vary among countries. Using an incompatible

cable or improperly connecting the cable to the power strip or electrical outlet

may cause fire or damage the equipment.

CAUTION: Always use the Dell AC adapter that came with your computer. If you

use any other commercially available AC adapter—or the AC adapter from earlier

models of Dell computers—you may damage the battery slice or the computer.

CAUTION: Use the battery slice with your computer only. If you use a battery slice

from other models of Dell computers you may damage the battery slice or the

computer.

CAUTION: When you disconnect the Dell AC adapter cable from the computer,

grasp the connector, not the cable itself, and pull firmly but gently to avoid

damaging the cable. When you wrap the AC adapter cable, ensure that you follow

the angle of the connector on the AC adapter to avoid damaging the cable.

1

Connect the AC adapter to the AC adapter connector on your computer.

2

Before you dock or undock your computer from the battery slice, save and

close any open files, and exit any open programs.

Battery Slice 3

book.book Page 4 Wednesday, July 20, 2011 7:09 PM

3

Before you undock your computer, set your computer’s power

management settings so that it does not enter sleep, standby, or hibernate

mode when you close (lower) the display:

Windows 7:

a

Click

Start

→

Control Panel

→

Hardware and Sound

→

Power

Options

→

Change what closing the lid does

.

b

Under the

When I close the lid drop-down

menu, select

Do nothing

.

Windows Vista:

a

Click

Start

→

Control Panel

→

Mobile PC

→

Power Options

→

Change what closing the lid does

.

b

Under the

When I close the lid drop-down

menu, select

Do nothing

.

Windows XP:

a

Click

Start

→

Control Panel

→

Performance and Maintenance

→

Power Options

→

Advanced

.

b

Under the

When I close the lid drop-down

menu, select

Do nothing.

Docking Your Computer to the Battery Slice

1

Follow the procedures in "Setting up Your Battery Slice" on page 3.

2

Turn over the computer and lower the battery slice until it clicks into

place.

3

Flip the computer and power it ON.

4 Battery Slice

book.book Page 5 Wednesday, July 20, 2011 7:09 PM

Undocking Your Computer From the Battery Slice

1

Disconnect all the cables connected to the computer.

2

Flip the computer on its back.

3

Press the release lever and lift the battery slice from the computer.

Charging Your Battery Slice

You can recharge your battery slice independent of the computer using the

AC adapter that shipped with your computer. A docked computer will also

charge the battery slice.

Battery Slice 5

book.book Page 6 Wednesday, July 20, 2011 7:09 PM

Battery Slice Power-Status LED Codes

Your battery slice includes a power status LED that can indicate the following

states:

LED code sequence Status

Blinking amber, off, white, off, amber,

You are trying to use an unsupported,

off, white, off

non-Dell AC adapter to power your

computer.

Blinking amber, off, white, off, amber,

Temporary battery failure with AC

off, amber, off, long white, long off

adapter present.

Blinking amber, off, white, off, amber,

Fatal battery failure with AC adapter

off, amber, off

present.

LED off Battery in full charge mode with AC

adapter present.

Steady white light Battery in charge mode with AC adapter

present.

Specifications

Type 9-cell lithium-ion cell

Height 22.60 mm (0.89 inch)

Width 94.89 mm (3.74 inches)

Depth 275.38 mm (10.84 inches)

Weight 605.00 g (1.33 lb)

Amp-hour capacity 3.0 Ah per cell

Watt-hour capacity 97 Wh

Temperature:

Operating

0° C to 60° C (32° F to 140° F)

NOTE: The battery slice will not start to charge, if

the temperature is above 50° C (122° F).

Non-operating

-20° C to 60° C (-4° F to 140° F)

Docking 144-pin connector

6 Battery Slice
