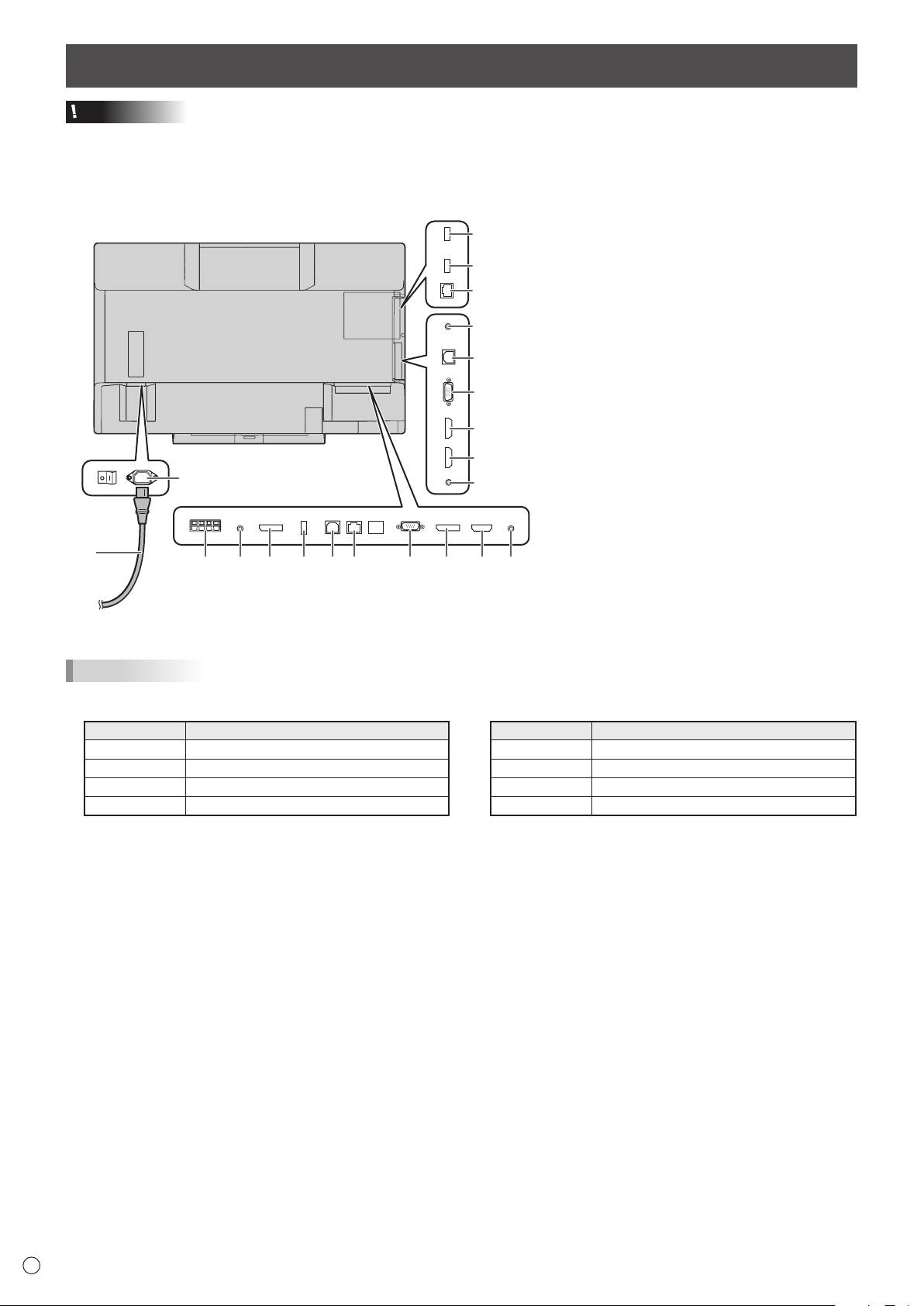

Sharp PN-70TW3: Connections

Connections

Caution

• Be sure to turn off the main power switch and disconnect the plug from the power outlet before connecting/disconnecting

cables. Also, read the manual of the equipment to be connected.

• Be careful not to confuse the input terminal with the output terminal when connecting cables. Accidentally reversing cables

connected to the input and output terminals may cause malfunctions and the other problems.

1

2

345678

For power outlet

TIPS

• Set the audio input terminal to be used in each input mode in AUDIO SELECT on the SETUP menu. The factory settings are

shown below.

E

8

1. AC input terminal

19

2. Power cord (Supplied)

3. External speaker terminals

20

4. Audio output terminal

21

5. DisplayPort output terminal

6. Touch pen adapter port

13

7. USB 1 port (for touch panel)

8. LAN terminal

14

9. D-sub 1 input terminal

10. DisplayPort input terminal

15

11. HDMI 1 input terminal

12. Audio 1 input terminal

16

13. RS-232C input terminal

14. USB 2 port (for touch panel)

17

15. D-sub 2 input terminal

18

16. HDMI 2 input terminal

17. HDMI 3 input terminal

18. Audio 2 input terminal

Wireless controller terminals

110 12

19. Wireless adapter port

20. USB port

21. LAN terminal

Input mode Audio input terminal (Factory setting)

Input mode Audio input terminal (Factory setting)

D-SUB1 Audio1 input terminal

HDMI2 HDMI 2 input terminal

D-SUB2 Audio2 input terminal

HDMI3 HDMI 3 input terminal

DisplayPort DisplayPort input terminal

Direct Drawing Audio1 input terminal

HDMI1 HDMI 1 input terminal

Wireless Wireless

• To use a touch panel with a computer connected to the video input terminal on this monitor, the touch panel and computer

must be connected, and Touch Panel Settings Tool, Touch Pen Utility, and Pen Software must be installed on the computer

from the supplied CD-ROM.

When the Touch Display Downloader is installed, you can check and download the most recent versions of the software

programs.

• To use a touch panel with a computer connected to the bottom, connect to the USB 1 port.

To use a touch panel with a computer connected to the side, connect to the USB 2 port.

(Factory setting. Can be changed in TOUCH INPUT SELECT in the SETUP menu.)

• Download the setup program for the Touch Viewing Software with the Touch Display Downloader.

• To display a computer screen on the monitor by wireless, use MirrorOp for SHARP and the built-in Wireless controller.

In Wireless mode, a touch panel can be used even with a computer that does not have Touch Panel Settings Tool or Touch

Pen Utility installed.

• To install and use the software, see the manual for each.

• The terms HDMI and HDMI High-Denition Multimedia Interface, and the HDMI Logo are trademarks or registered trademarks

of HDMI Licensing, LLC in the United States and other countries.

• DisplayPort is a registered trademark of Video Electronics Standards Association.

• Adobe, Acrobat, and Reader are either registered trademarks or trademarks of Adobe Systems Incorporated in the United

States and/or other countries.

• MirrorOp is a registered trademark of Awind, Inc.

• All other brand and product names are trademarks or registered trademarks of their respective holders.
