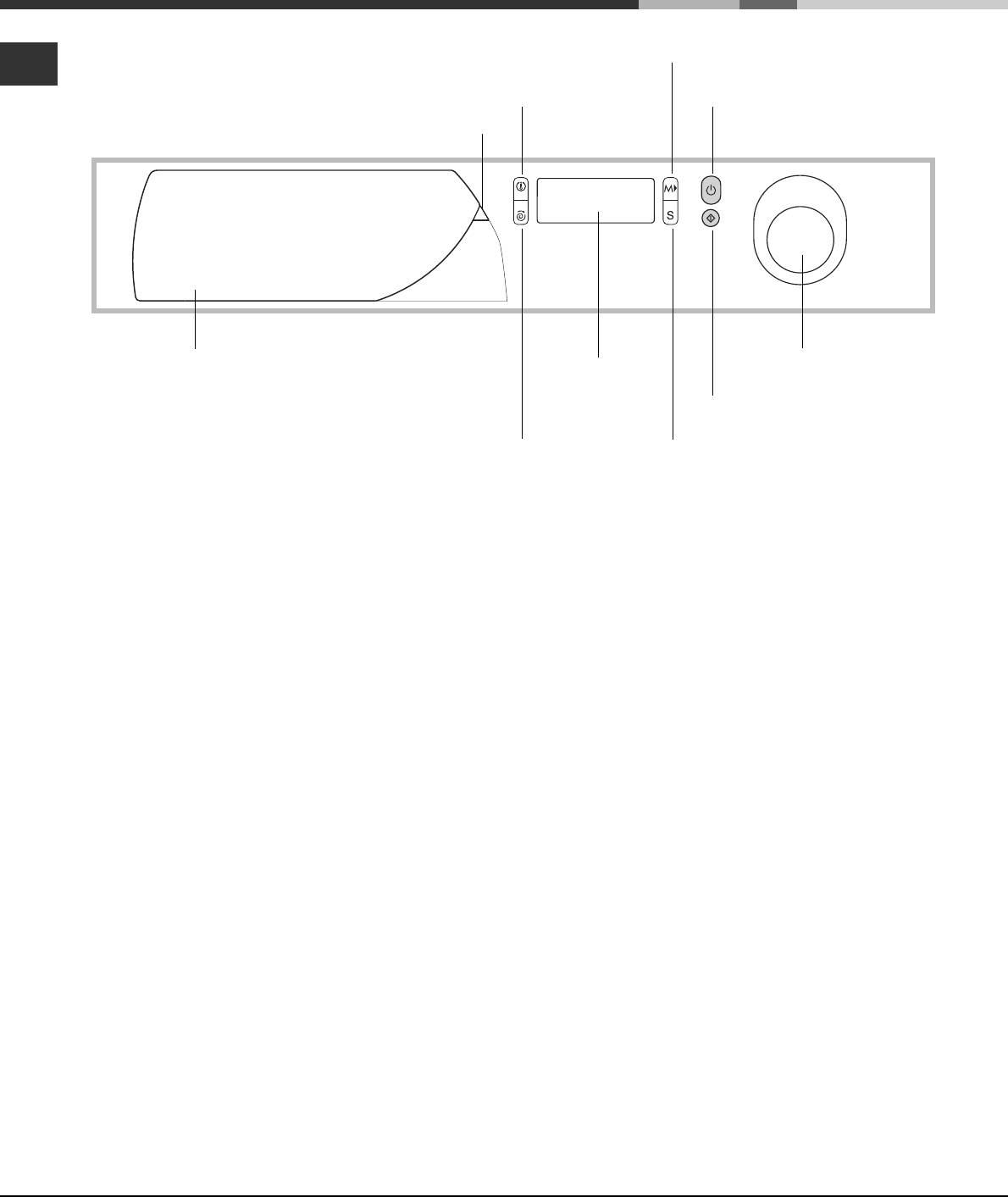

Control panel

GB

MODE

button

TEMPERATURE

START/STOP

button

button

Programme key

Detergent dispenser

Control knob

Display

START/RESET

button

SPIN

SELECT

button

button

Detergent dispenser to add detergent and fabric

MODE button to choose the options for the

softener (see page 8).

appliance personalisation (see page 7).

Programme key to consult a straightforward chart

SELECT button to set the options for the appliance

of the different programmes available: pull the grey

personalisation (see page 7).

tab outwards to open it.

START/STOP button to turn the washing machine

TEMPERATURE button to adjust the wash tempe-

on and off.

rature (see page 7).

START/RESET button to start the programmes or

SPIN button to adjust the spin speed or exclude it

cancel any incorrect settings.

altogether (see page 7).

Control knob to select the wash programmes. The

Display to programme the washing machine and

retractable control knob: press the centre of the

follow the wash cycle progress (see opposite page).

knob for it to pop out. The knob stays still during the

cycle.

4

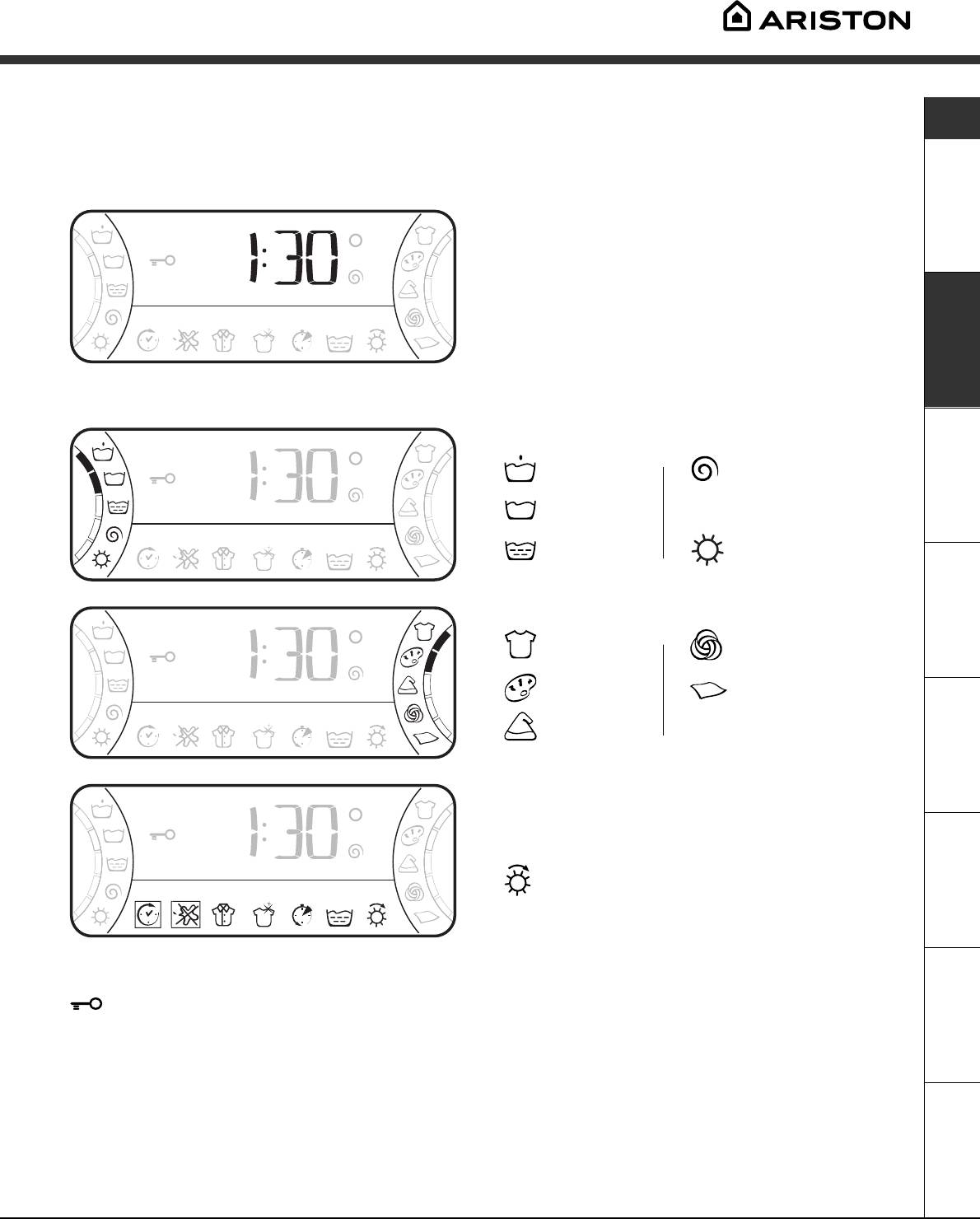

Display

GB

In addition to being a practical tool to programme your appliance (see page 7), the display provides useful

information concerning the wash cycle and status.

Once you have pressed the START/RESET button to

start the programme, the display will indicate the

amount of time left until the end of the wash cycle. If

a delayed start has been set (using the Delay Timer,

see page 7), the delay time will be indicated on the

display.

The following information is displayed during the

wash cycle:

Cycle phase under way:

Pre-wash Spin cycle

Wash cycle

Rinse Disabled symbol.

Fabric selected:

Cotton Wool

Colours Silk

Synthetics

Personalisation options:

The enabled options are bordered by a frame.

To choose the options, see page 7.

Disabled symbol.

Door lock:

If the symbol is on, the washing machine door is locked to prevent it from being opened accidentally. To avoid

any damages, wait for the symbol to switch itself off before you open the appliance door.

This model is fitted with a device that allows you to open the appliance door during some of the programme

phases. This is possible when the symbol is not on.

At the end of the programme, the word END is displayed.

ServiceTroubleshootingPrecautions CareProgrammes DetergentsInstallation Description

 In the event of an anomaly, an error code will appear, such as: F-01, which should be communicated to the

Service Centre (see page 12).
