Ariston CG64SG3: Installation

16

GB

!

 Before operating your new appliance please read

this instruction booklet carefully. It contains important

information concerning the safe installation and

operation of the appliance.

!

 Please keep these operating instructions for future

reference. Make sure that the instructions are kept with

the appliance if it is sold, given away or moved.

!

 The appliance must be installed by a qualified

professional according to the instructions provided.

!

 Any necessary adjustment or maintenance must be

performed after the cooker has been disconnected

from the electricity supply.

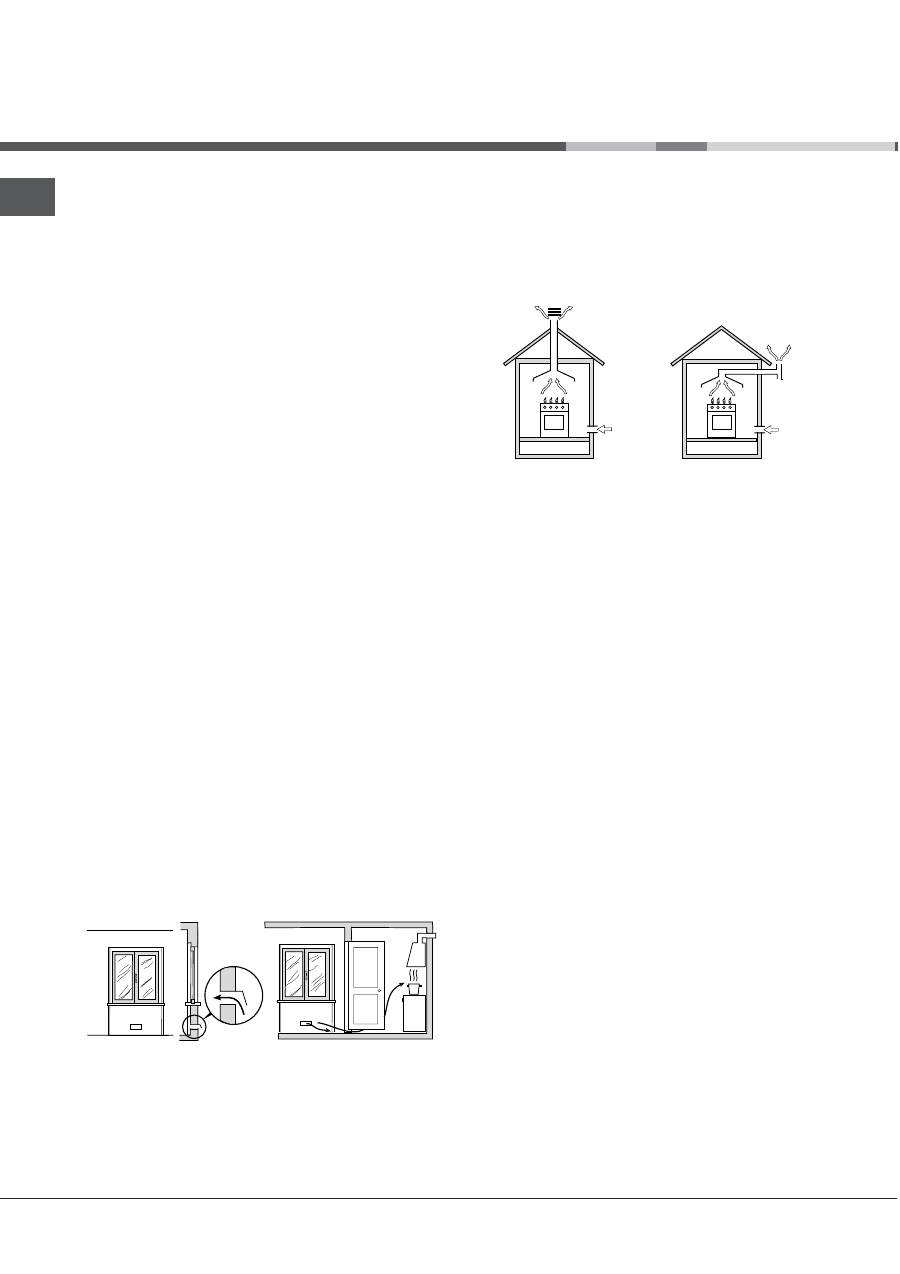

Room ventilation

The appliance may only be installed in permanently-

ventilated rooms, according to current national

legislation. The room in which the appliance is

installed must be ventilated adequately so as to

provide as much air as is needed by the normal gas

combustion process (the flow of air must not be lower

than 2 m

3

/h per kW of installed power).

The air inlets, protected by grilles, should have a duct

with an inner cross section of at least 100 cm

2

 and

should be positioned so that they are not liable to

even partial obstruction (

see figure A

).

These inlets should be enlarged by 100% - with a

minimum of 200 cm

2

 - whenever the surface of the hob

is not equipped with a flame failure safety device.

When the flow of air is provided in an indirect manner

from adjacent rooms (

see figure B

), provided that

these are not communal parts of a building, areas with

increased fire hazards or bedrooms, the inlets should

be fitted with a ventilation duct leading outside as

described above.

Adjacent room

Room requiring

 ventilation

A

        B

Disposing of combustion fumes

The disposal of combustion fumes should be

guaranteed using a hood connected to a safe and

efficient natural suction chimney, or using an electric

fan that begins to operate automatically every time the

appliance is switched on (

see figure

).

Installation

A

!

 After prolonged use of the appliance, it is advisable

to open a window or increase the speed of any fans

used.

!

 The liquefied petroleum gases are heavier than air

and collect by the floor, therefore all rooms containing

LPG cylinders must have openings leading outside so

that any leaked gas can escape easily.

LPG cylinders, therefore, whether partially or

completely full, must not be installed or stored in

rooms or storage areas that are below ground level

(cellars, etc.). Only the cylinder being used should be

stored in the room; this should also be kept well away

from sources of heat (ovens, chimneys, stoves) that

may cause the temperature of the cylinder to rise

above 50°C.

Positioning and levelling

!

 It is possible to install the appliance alongside

cupboards whose height does not exceed that of the

hob surface.

!

 Make sure that the wall in contact with the back of

the appliance is made from a non-flammable, heat-

resistant material (T 90°C).

To install the appliance correctly:

• Place it in the kitchen, dining room or the bed-sit

(not in the bathroom).

• If the top of the hob is higher than the cupboards,

the appliance must be installed at least 600 mm

away from them.

• If the cooker is installed underneath a wall cabinet,

there must be a minimum distance of 420 mm

between this cabinet and the top of the hob.

This distance should be increased to 700 mm if the

wall cabinets are flammable (

see figure

).

Ventilation opening

for comburent air

Increase in the gap

between the door and

the flooring

Fumes channelled

straight outside

Fumes channelled through

a chimney or a branched

flue system (reserved for

cooking appliances)

GB

17

• Do not position blinds behind the cooker or less

than 200 mm away from its sides.

• Any hoods must be installed according to the

instructions listed in the relevant operating manual.

Levelling

If it is necessary to level the

appliance, screw the adjustable

feet into the places provided on

each corner of the base of the

cooker (

see figure

).

The legs* fit into the slots on

the underside of the base of

the cooker.

Electrical connection

Install a standardised plug corresponding to the load

indicated on the appliance data plate (

see Technical

data table

).

The appliance must be directly connected to the mains

using an omnipolar circuit-breaker with a minimum

contact opening of 3 mm installed between the appliance

and the mains. The circuit-breaker must be suitable for

the charge indicated and must comply with current

national legislation (the earthing wire must not be

interrupted by the circuit-breaker). The supply cable must

be positioned so that it does not come into contact with

temperatures higher than 50°C at any point.

Before connecting the appliance to the power supply,

make sure that:

• The appliance is earthed and the plug is compliant with

the law.

• The socket can withstand the maximum power of the

appliance, which is indicated by the data plate.

• The voltage is in the range between the values

indicated on the data plate.

• The socket is compatible with the plug of the

appliance. If the socket is incompatible with the

plug, ask an authorised technician to replace it. Do

not use extension cords or multiple sockets.

!

 Once the appliance has been installed, the power

supply cable and the electrical socket must be easily

accessible.

!

 The cable must not be bent or compressed.

!

The cable must be checked regularly and replaced

by authorised technicians only.

!

The manufacturer declines any liability should

these safety measures not be observed.

Gas connection

Connection to the gas network or to the gas cylinder

may be carried out using a flexible rubber or steel hose,

in accordance with current national legislation and after

making sure that the appliance is suited to the type of

gas with which it will be supplied (see the rating sticker

on the cover:  if this is not the case

see below

). When

using liquid gas from a cylinder, install a pressure

regulator which complies with current national

regulations. To make connection easier, the gas supply

may be turned sideways*: reverse the position of the

hose holder with that of the cap and replace the gasket

that is supplied with the appliance.

!

 Check that the pressure of the gas supply is

consistent with the values indicated in the Table of

burner and nozzle specifications (

see below

). This will

ensure the safe operation and durability of your

appliance while maintaining efficient energy

consumption.

Gas connection using a flexible rubber hose

Make sure that the hose complies with current national

legislation. The internal diameter of the hose must

measure: 8 mm for liquid gas supply; 13 mm for

methane gas supply.

Once the connection has been performed, make sure

that the hose:

• Does not come into contact with any parts that

reach temperatures of over 50°C.

• Is not subject to any pulling or twisting forces and

that it is not kinked or bent.

• Does not come into contact with blades, sharp

corners or moving parts and that it is not

compressed.

HOOD

420

Min.

min.

650

 mm. with hood

min.

700

 mm. without hood

mm.

600

Min.

mm.

420

Min.

mm.

* Only available in certain models

18

GB

• Is easy to inspect along its whole length so that its

condition may be checked.

• Is shorter than 1500 mm.

• Fits firmly into place at both ends, where it will be

fixed using clamps that comply with current

regulations.

!

 If one or more of these conditions is not fulfilled or if the

cooker must be installed according to the conditions

listed for class 2 - subclass 1 appliances (installed

between two cupboards), the flexible steel hose must be

used instead (

see below

).

Connecting a flexible jointless stainless steel pipe

to a threaded attachment

Make sure that the hose and gaskets comply with

current national legislation.

To begin using the hose, remove the hose holder on

the appliance (the gas supply inlet on the appliance is

a cylindrical threaded 1/2 gas male attachment).

!

 Perform the connection in such a way that the hose

length does not exceed a maximum of 2 metres,

making sure that the hose is not compressed and

does not come into contact with moving parts.

Checking the tightness of the connection

When the installation process is complete, check the

hose fittings for leaks using a soapy solution. Never

use a flame.

Adapting to different types of gas

It is possible to adapt the appliance to a type of gas

other than the default type (this is indicated on the

rating label on the cover).

Adapting the hob

Replacing the nozzles for the hob burners:

1. Remove the hob grids and slide the burners off their

seats.

2. Unscrew the nozzles using a

7 mm socket spanner (

see

figure

), and replace them with

nozzles suited to the new type

of gas (

see Burner and nozzle

specifications table

).

3. Replace all the components

by following the above

instructions in reverse.

Adjusting the hob burners’ minimum setting:

1. Turn the tap to the minimum position.

2. Remove the knob and adjust the regulatory screw,

which is positioned inside or next to the tap pin, until

the flame is small but steady.

!

 If the appliance is connected to a liquid gas supply,

the regulatory screw must be fastened as tightly as

possible.

3. While the burner is alight, quickly change the position of

the knob from minimum to maximum and vice versa

several times, checking that the flame is not extinguished.

!

 The hob burners do not require primary air adjustment.

Adapting the oven

Replacing the oven burner nozzle:

1. Open the oven door fully

2. Pull out the sliding oven

bottom (

see diagram

).

3. Remove the oven burner

after unscrewing the screws V

(

see figure

).

4. Unscrew the nozzle using a

special nozzle socket spanner

(

see figure

) or with a 7 mm

socket spanner, and replace it

with a new nozzle that is suited

to the new type of gas (

see

Burner and nozzle specifications

table

).

Adjusting the gas oven burner’s minimum setting:

1. Light the burner (

see Start-up and Use

).

2. Turn the knob to the minimum position (MIN) after it

has been in the maximum position (MAX) for

approximately 10 minutes.

3. Remove the knob.

4. Tighten or loosen the adjustment screws on the

outside of the thermostat pin (

see figure

) until the

flame is small but steady.

!

 In the case of natural gas, the adjustment screw must be

unscrewed by turning it anti-clockwise.

V

GB

19

5. Turn the knob from the MAX position to the MIN

position quickly or open and shut the oven door,

making sure that the burner is not extinguished.

Adapting the grill

Replacing the grill burner nozzle:

1. Remove the oven burner

after loosening screw V (

see

figure

).

2. Unscrew the grill burner nozzle

using a special nozzle socket

spanner (

see figure

) or preferably

with a 7 mm socket spanner, and

replace it with a new nozzle that

is suited to the new type of gas

(

see Burner and nozzle

specifications table

).

!

 Be careful of the spark plug wires and the

thermocouple tubes.

!

 The oven and grill burners do not require primary air

adjustment.

!

 After adjusting the appliance so it may be used with

a different type of gas, replace the old rating label

with a new one that corresponds to the new type of

gas (these labels are available from Authorised

Technical Assistance Centres).

!

 Should the gas pressure used be different (or vary

slightly) from the recommended pressure, a suitable

pressure regulator must be fitted to the inlet hose in

accordance with current national regulations relating

to “regulators for channelled gas”.

TECHNICAL DATA

Oven Dimensions

HxWxD

31x43,5x43,5 cm

Volume

58 l

Useful

measurements

relating to the

oven compartment

width 46 cm

depth 42 cm

height 8,5 cm

Voltage and

frequency

see data plate

Burners

may be adapted for use with any

type of gas shown on the data

plate.

EC Directives 2006/95/EC dated

12/12/06 (Low Voltage) and

subsequent amendments -

04/108/EC dated 15/12/04

(Electromagnetic Compatibility)

and subsequent amendments -

2009/142/EC dated 30/11/09 (Gas)

and subsequent amendments -

90/68/EEC dated 22/07/93 and

subsequent amendments. -

2002/96/EC.

1275/2008(Stand-by/Off-mode)

V

I

20

GB

Table of burner and nozzle specifications

Table 1

Liquid Gas

Natural Gas

Diameter

(mm)

Thermal Power

kW (p.c.s.*)

By Pass

1/100

Nozzle

1/100

Flow*

g/h

Nozzle

1/100

Flow*

l/h

Nozzle

1/100

Flow*

l/h

Burner

 Nominal

Reduced

(mm) (mm)

*** **

(mm)  (mm)

Fast

(Large)(R)

100 3.00  0.7  41  86 218

214

116 286 143

286

Semi Fast

(Medium)(S)

75  1.90  0.4

30  70  138

136 106 181 118 181

Auxiliary

(Small)(A)

55  1.00 0.4  30  50 73

71 79 95 80 95

Oven

-  2.60  1.0

52  78  189

186 119 248 132 248

Grill

-  2.50  -

-

80  182

179 122 238 139 227

Supply

Pressures

Nominal (mbar)

Minimum (mbar)

Maximum (mbar)

28-30

20

35

37

25

45

20

17

25

13

6,5

18

*

At 15°C 1013 mbar-dry gas

***

Butane P.C.S. = 49,47 MJ/Kg

**

Propane P.C.S. = 50,37 MJ/Kg

Natural P.C.S. = 37,78 MJ/m³

S

S

R

A

CG64SG3 R /HA

WARNING! The glass lid can break in

if it is heated up. Turn off all the

burners and the electric plates before

closing the lid. *Applies to the models

with glass cover only.
