Sharp PN-60TW3: Connections

8

E

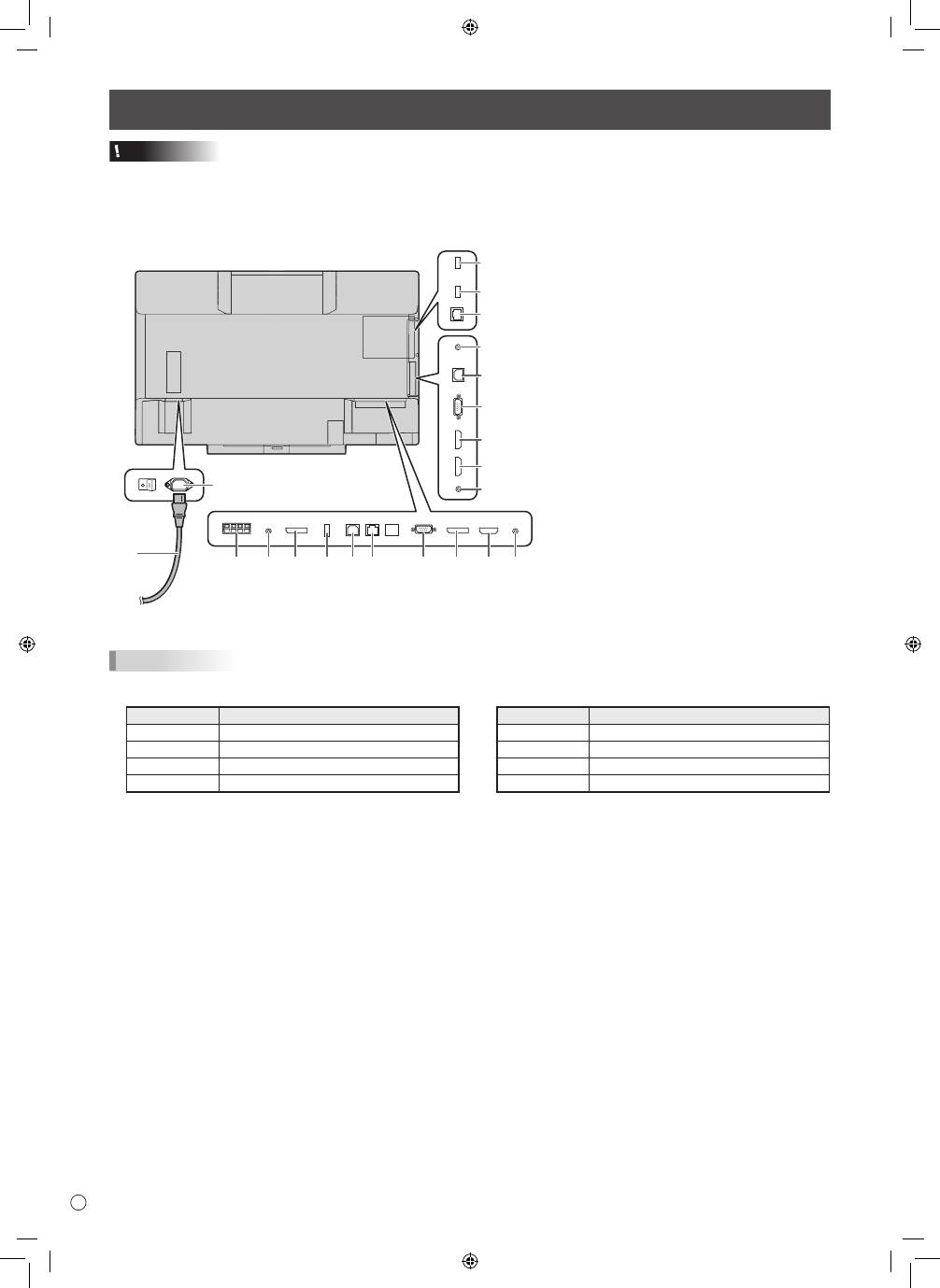

Connections

Caution

•  Be sure to turn off the main power switch and disconnect the plug from the power outlet before connecting/disconnecting

cables. Also, read the manual of the equipment to be connected.

•  Be careful not to confuse the input terminal with the output terminal when connecting cables. Accidentally reversing cables

connected to the input and output terminals may cause malfunctions and the other problems.

TIPS

•  Set the audio input terminal to be used in each input mode in AUDIO SELECT on the SETUP menu. The factory settings are

shown below.

1

2

For power outlet

3

4

5

6

7 8

9

11

10

12

13

14

15

16

17

18

20

21

19

  1.  AC input terminal

  2.  Power cord (Supplied)

  3.  External speaker terminals

  4.  Audio output terminal

  5.  DisplayPort output terminal

  6.  Touch pen adapter port

  7.  USB 1 port (for touch panel)

  8.  LAN terminal

  9.  D-sub 1 input terminal

 10.  DisplayPort input terminal

 11.  HDMI 1 input terminal

 12.  Audio 1 input terminal

 13.  RS-232C input terminal

 14.  USB 2 port (for touch panel)

 15.  D-sub 2 input terminal

 16.  HDMI 2 input terminal

 17.  HDMI 3 input terminal

 18.  Audio 2 input terminal

Wireless controller terminals

 19.  Wireless adapter port

 20.  USB  port

 21.  LAN  terminal

Input mode

Audio input terminal (Factory setting)

D-SUB1

Audio1 input terminal

D-SUB2

Audio2 input terminal

DisplayPort

DisplayPort input terminal

HDMI1

HDMI 1 input terminal

Input mode

Audio input terminal (Factory setting)

HDMI2

HDMI 2 input terminal

HDMI3

HDMI 3 input terminal

Direct Drawing Audio1 input terminal

Wireless

Wireless

•  To use a touch panel with a computer connected to the video input terminal on this monitor, the touch panel and computer

must be connected, and Touch Panel Settings Tool, Touch Pen Utility, and Pen Software must be installed on the computer

from the supplied CD-ROM.

When the Touch Display Downloader is installed, you can check and download the most recent versions of the software

programs.

•  To use a touch panel with a computer connected to the bottom, connect to the USB 1 port.

To use a touch panel with a computer connected to the side, connect to the USB 2 port.

(Factory setting. Can be changed in TOUCH INPUT SELECT in the SETUP menu.)

•  Download the setup program for the Touch Viewing Software with the Touch Display Downloader.

•  To display a computer screen on the monitor by wireless, use MirrorOp for SHARP and the built-in Wireless controller.

In Wireless mode, a touch panel can be used even with a computer that does not have Touch Panel Settings Tool or Touch

Pen Utility installed.

•  To install and use the software, see the manual for each.

•  The terms HDMI and HDMI High-Definition Multimedia Interface, and the HDMI Logo are trademarks or registered trademarks

of HDMI Licensing, LLC in the United States and other countries.

•  DisplayPort is a registered trademark of Video Electronics Standards Association.

•  Adobe, Acrobat, and Reader are either registered trademarks or trademarks of Adobe Systems Incorporated in the United

States and/or other countries.

•  MirrorOp is a registered trademark of Awind, Inc.

•  All other brand and product names are trademarks or registered trademarks of their respective holders.
