Introduction
Thank you for choosing this Sony FD Trinitron Colour Television.
Before operating the TV, please read this manual thoroughly and retain it for future
reference.
Symbols used in the manual:
• Important information
• Shaded buttons on the remote control
show you the buttons you have to
• Information on a feature.
press to follow the sequence of the
• 1,2...Sequence of instructions.
instructions.
• Informs you of the result of
instructions.
Table of Contents
Introduction............................................................................................................................................. 3
Safety Information .... ..............................................................................................................................4
Overview
Overview of Remote Control Buttons .... .............................................................................................5
Overview of TV Buttons ........................................................................................................................ 6
Installation
GB
Inserting Batteries into the Remote Control ....................................................................................... 6
Connecting an Outdoor Aerial and VCR ............................................................................................7
First Time Operation
Switching On the TV and Automatically Tuning .............................................................................. 8
Menu system
Introducing and Using the Menu System ......................................................................................... 10
Picture............................................................................................................................................... 10
Sound................................................................................................................................................ 11
Timer................................................................................................................................................. 12
Channel Set Up ............................................................................................................................... 13
Set Up ............................................................................................................................................... 15
Teletext................................................................................................................................................ 16
Additional Information
Connecting Optional Equipment ....................................................................................................... 17
Using Optional Equipment ................................................................................................................. 17
Specifications......................................................................................................................................... 18
Troubleshooting .................................................................................................................................... 19
Table of Contents
3
KV-21CL1K_Grp U14
4-097-194-11(1)
master page=left
01GBKV21CL1K.fm Page 4 Wednesday, June 11, 2003 3:16 PM
Safety Information
Never push objects of any kind
For environmental and safety
into the set as this could result in
This set is to operate on a 220-
reasons, it is recommended that
a fire or electric shock. Never
240V AC supply only. Take care
the TV set is not left in standby
spill liquid of any kind on the
not to connect too many
mode when not in use.
set. If any liquid or solid object
appliances to the same power
Disconnect from the mains.
does fall through, do not operate
socket as this could result in fire
the TV. Have it checked immedi-
or electric shock.
ately by qualified personnel.
Do not open the cabinet and the
For your own safety, do not
To prevent fire or shock hazard,
rear cover of the TV. Refer to
touch any part of the TV, power
do not expose the TV to rain or
qualified service personnel only.
lead or aerial lead during
moisture.
lightning storms.
Do not cover the ventilation
Never place the TV in hot, humid
To prevent fire, keep
openings of the TV. For
or excessively dusty places. Do
inflammable objects or naked
ventilation, leave a space of at
not install the TV where it may be
lights (e.g. candles) away from
least 10cm all around the set.
exposed to mechanical
the TV.
vibrations.
Clean the screen and cabinet with a
soft, lightly dampened cloth. Do
Pull out the power lead by the
Take care not to place heavy
not use any type of abrasive pad,
plug. Do not pull on the power
objects on the power lead as this
alkaline cleaner, scouring powder
lead itself.
could result in damage.
or solvent, such as alcohol or
We recommend you wind any
benzine, or antistatic spray. As a
excess lead around the holders
safety precaution, unplug the TV
provided on the rear of the TV.
before cleaning it.
Unplug the power lead before
Do not cover the ventilation
Place the TV on a secure stable
moving the TV. Avoid uneven
openings of the TV with items
stand. Do not allow children to
surfaces, quick steps or excessive
such as curtains or newspapers,
climb on to it. Do not place the
etc.
TV on its side or face up.
force. If the set has been dropped
or damaged, have it checked
immediately by qualified service
personnel.
4
Safety Information
KV-21CL1K_Grp U14
4-097-194-11(1)
master page=right
01GBKV21CL1K.fm Page 5 Wednesday, June 11, 2003 3:16 PM
Overview of Remote Control Buttons
Displaying on screen
To temporarily switch off TV
information
Press to temporarily switch off TV (the standby
Press to display all on-screen
indicator 1 on TV lights up). Press again to switch on
indications. Press again to
TV from standby mode.
cancel.
Muting the sound
To save energy we recommend
Press to mute TV sound.
switching off completely
Press again to restore the
when TV is not in use.
sound.
After 15 minutes
without a signal and
Selecting input source
without any button
Press repeatedly until the
being pressed, the TV
desired input symbol of the
switches automatically
source appears on the TV
into standby mode.
screen.
A/B
This button only works in
Selecting TV mode
Press to switch off teletext or
Teletext mode.
video input.
Function A/B associated to this
1
2
3
button does not work with this TV.
Back to the channel last
watched
Selecting channels
4
5
6
Press to watch the last
Press to select channels.
channel selected (watched for
For double-digit programme
7
8
9
at least 5 seconds).
numbers, enter the second
digit within 3 seconds.
Selecting channels
0
GB
Press to select the next or
or
PROG
previous channel.
Press -/-- and then the first
Displaying the menu
and second digit.
system
If you enter an incorrect first
Press to display the menu on
digit, this should be corrected
the TV screen. Press again to
by entering another digit (0-9)
MENU
remove the menu display
and then selecting -/-- button
from the TV screen.
again to enter the programme
number of your choice.
Menu selection
Scroll Up
On timer
Scroll Down
Set TV to switch on
Previous menu or selection
automatically.
Next menu or selection
Sleep timer
Confirm your selection
Set TV to switch off
automatically.
Selecting Teletext
Press to switch on teletext.
This button does not work
on this set.
TV
Selecting screen format
Press to view programmes in
Adjusting TV volume
Press to adjust the volume
16:9 mode. Press again to
of the TV.
return to 4:3 mode.
This button only works in
Teletext mode.
Function
9
associated to this
button does not work with this TV.
Selecting picture mode
Press repeatedly to change
the picture mode.
Besides TV functions, all coloured buttons as well as green symbols are also used for
Teletext operation. For more details, please refer to “Teletext” section of this instruction
manual (see page 16).
Overview
5
KV-21CL1K_Grp U14
4-097-194-11(1)
master page=left
01GBKV21CL1K.fm Page 6 Wednesday, June 11, 2003 3:16 PM
Overview of TV Buttons
Displaying
Selecting
Volume
Programme Up or
the menu
Input
control
Down buttons
system
source
buttons
(selects TV
channels)
Video Input
Audio Input
Headphone
Standby
On/Off
jack
jacks
jack
Lift up the door
indicator
switch
flap with
mark to reveal
the control
panel.
Inserting Batteries into the Remote Control
Make sure you insert the supplied batteries using the correct polarities.
Always remember to dispose of used batteries in an environmental friendly way.
6
Overview-Installation
KV-21CL1K_Grp U14
4-097-194-11(1)
master page=right
01GBKV21CL1K.fm Page 7 Wednesday, June 11, 2003 3:16 PM

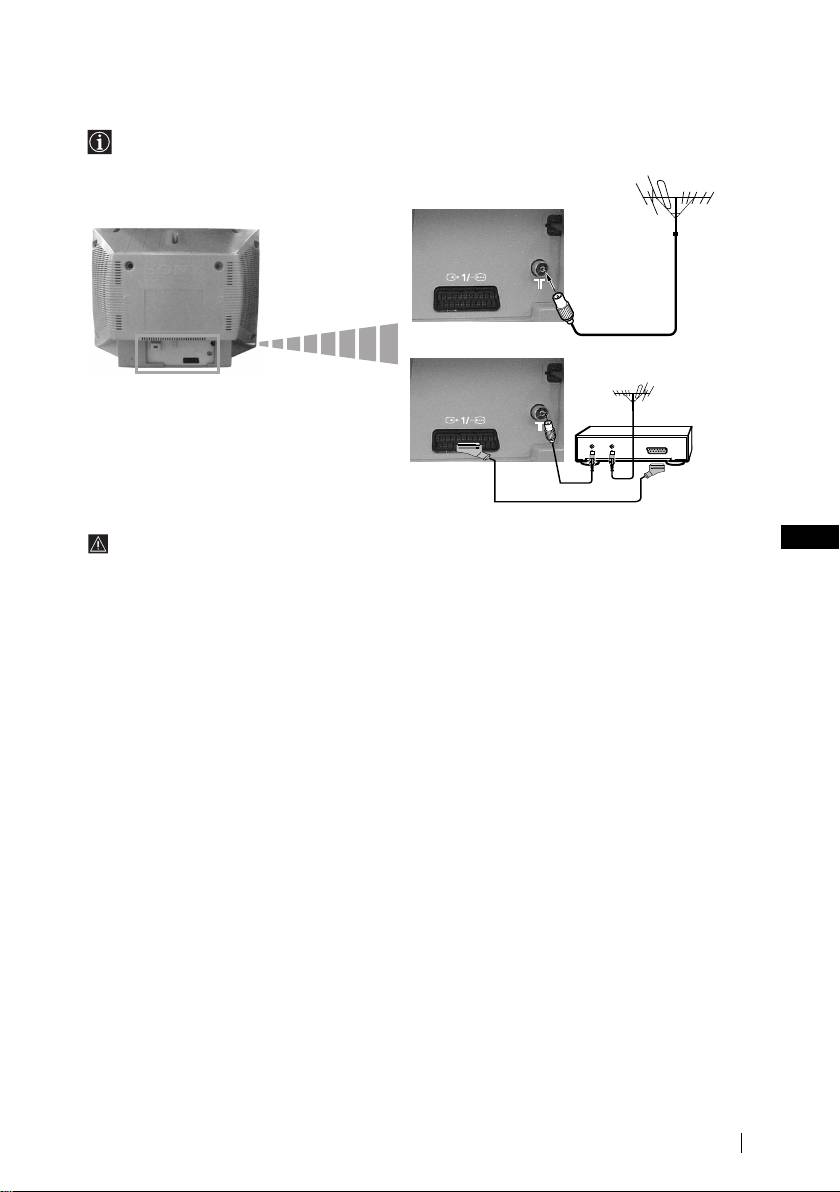

Connecting an Outdoor Aerial and VCR
Connecting cables are not supplied.
or
VCR
OUT IN
Scart lead is optional.
For more details of VCR connection, please refer to the section “Connecting Optional
GB
Equipment” of this instruction manual (see page 17).
Installation
7
KV-21CL1K_Grp U14
4-097-194-11(1)
master page=left
01GBKV21CL1K.fm Page 8 Wednesday, June 11, 2003 3:16 PM
Switching On the TV and Automatically Tuning
The first time you switch on your TV, a sequence of menu screens appear on the TV
enabling you to: 1) choose the language of the menu screen, 2) choose the country in which
you wish to operate the TV, 3) search and store all available channels (TV Broadcast), 4)
change the order in which the channels (TV Broadcast) appear on the screen and 5) adjust
the picture slant.
However, if you need to change any of these settings at a later date, you can do that by
selecting the appropriate option in the (Set Up) or (Channel Set Up) menu.
1 Connect the TV plug to the mains socket (220-240 V AC, 50 Hz).
Press ! On/Off button on the TV set to switch on the TV. The
first time you switch on the TV, a Language menu displays
automatically on the TV screen.
2 Press 2 +/– button on the top control panel to select the language,
Language
Svenska
then press t to confirm your selection. From now on all menus
Norsk
will appear in the selected language.
English
Nederlands
Français
Select language
Select
[
–
2+
]
Confirm
[
t
]
3 The Country menu appears automatically on the TV screen. Press
Country
Sverige
2 +/– button to select the country in which you will operate the
Norge
TV set, then press t to confirm your selection.
–
Italia
• If the country in which you want to use the TV set does not
Schweiz/Suisse/Svizzera
Select Country
appear in the list, select “-” instead of a country.
Select
[
–
2+
]
Confirm
[
t
]
• In order to avoid wrong teletext characters for Cyrillic
languages we recommend to select Russia in the case that
your own country does not appear in the list.
4 Ensure the aerial is connected as instructed, then press t to
Initial Set Up
confirm. The TV automatically starts searching and storing all
First please connect aerial
available broadcast channels for you.
Do you want to start automatic
tuning?
•This procedure could take some minutes. Please be patient
Yes
and do not press any buttons, otherwise automatic tuning
No
Select
[
–
2+
]
Confirm
[
t
]
End
will not be completed.
•If no channels were found during the auto tuning process, a
Auto Tuning
new menu appears automatically on the screen asking you
No channel found
to connect the aerial. Please connect the aerial (see page 7)
Please connect aerial
and press t. The auto tuning process will start again.
OK
Confirm
[
t
]
End
8
First Time Operation
KV-21CL1K_Grp U14
4-097-194-11(1)
master page=right
01GBKV21CL1K.fm Page 9 Wednesday, June 11, 2003 3:16 PM
5 After all available channels are captured and stored, the
Programme Sorting
Programme Sorting menu appears automatically on the screen
Programme:
01
TVE
enabling you to change the order in which the channels appear on
02
TVE2
03
TV3
the screen.
04 C33
Select channel
a) If you wish to keep the broadcast channels in the tuned order,
Select
[
–
2+
]
Confirm
[
t
]
Exit
press MENU.
b) If you wish to store the channels in a different order:
Programme Sorting
1 Press 2 +/– to select the programme number with the
Programme:
01 TVE
channel (TV Broadcast) you wish to rearrange, then press
02 TVE2
t.
03 TV3
04 C33 03 TV3
2 Press 2 +/– to select the new programme number position
Select new position
Select
[
–
2+
]
Confirm
[
]
for your selected channel (TV Broadcast), then press t.
t
Exit
3 Repeat steps b) 1 and b) 2 if you wish to change the order of
the other channels.
6 Because of the earth’s magnetism, the picture might slant. The
Picture Rotation menu allows you to correct the picture slants if it
is necessary.
Picture Rotation
[
–
2
]
[
2+
]
a) If it is not necessary, press t.
Select
[
–
2+
]
Confirm
[
t
]
End
b) If it is necessary, press 2 +/– to correct any slant of the picture
GB
between –10 and +10. Finally press t to store.
•To allow this menu to appear again, press and hold MENU button at top control panel for
about 5 seconds.
• The MENU, and / / / buttons on the remote control can also be used for the
operations above.
Your TV is now ready for use.
First Time Operation
9
KV-21CL1K_Grp U14
4-097-194-11(1)
master page=left
01GBKV21CL1K.fm Page 10 Wednesday, June 11, 2003 3:16 PM
Introducing and Using the Menu System
Your TV uses an on-screen menu system to guide you through the operations. Use the
following buttons on the Remote Control to operate the menu system:
1 Press MENU to switch the menu on.
2 • To highlight the desired menu or option, press or .
• To enter to the selected menu or option, press .
• To return to the last menu or option, press
.
• To alter settings of your selected option, press / / or .
• To confirm and store your selection, press .
3 Press MENU to remove the menu from the screen.
The “Picture” menu allows you to
Mode: Live
alter the picture adjustments.
Mode: Live
Picture Adjustment
Picture Adjustment
Intelligent Picture:
On
Intelligent Picture:
On
To do this:
After selecting the item you want to
alter, press , then press / /
Select
Confirm
End
Select
Confirm
End
or repeatedly to adjust it and
finally press to store the new
adjustment.
This menu also allows you to
customize the picture mode based
on the programme you are
watching:
Mode Live (for enhanced picture contrast and sharpness).
Movie (for a finely detailed picture).
Game (for a picture from game).
Personal (for your own custom settings).
Contrast Press or to reduce picture contrast.
Adjustment
Press or to enhance picture contrast.
Brightness Press or to darken the picture.
Press or to brighten the picture.
Colour Press or to decrease colour intensity.
Press or to increase colour intensity.
10
Menu System
KV-21CL1K_Grp U14
4-097-194-11(1)
master page=right
01GBKV21CL1K.fm Page 11 Wednesday, June 11, 2003 3:16 PM
Hue Press or to decrease the green tones.
Press or to increase the green tones.
Hue can only be adjusted for NTSC colour signal (e.g. USA video tapes).
Sharpness Press or to soften the picture.
Press or to sharpen the picture.
Reset Select to reset the picture to the factory preset levels.
Intelligent
On/Off Select to optimize the picture quality.
Once any changes are made to “Picture Adjustment”, “Mode” will switch automatically
to “Personal” and the new setting will be stored as “Personal”.
Sound
The “Sound” menu allows you to
Sound
Sound
alter the sound adjustments.
Auto Volume: Off
Auto Volume: Off
GB
Select
Confirm
End
Select
Confirm
End
Auto
On/Off
Volume
Volume level of the channels will stay the same, independent of the broadcast
signal (e.g. in the case of advertisements).
Menu System
11
KV-21CL1K_Grp U14
4-097-194-11(1)
master page=left
01GBKV21CL1K.fm Page 12 Wednesday, June 11, 2003 3:16 PM
Timer
The “Timer” menu allows you to alter
Timer
Timer
the timer adjustments.
Sleep Timer: Off
Sleep Timer: Off
On Timer:
Off
On Timer:
Off
Select
Confirm
End
Select
Confirm
End
Sleep Timer The “Sleep Timer” option in the “Timer” menu allows you to select
a time period for the TV to switch itself automatically into the
standby mode.
To do this:
After selecting the option, press , then press or to set the
time period delay (max. of 1 hour 30 minutes) and finally press
to store.
• While watching the TV, you can press the button on
the remote control to display the time remaining.
• One minute before the TV switches itself into standby
mode, “TV will turn off soon” is displayed on the TV
screen automatically.
On Timer The “On Timer” option in the “Timer” menu allows you to select a
time period for the TV to switch itself automatically on from
standby mode.
To do this:
After selecting the option, press , then press or to set the
time period delay (max. of 12 hours) and finally press to store.
Finally press the standby button &/1 on the remote control. After
the selected length of time, the TV switches on automatically and
“On Timer” will appear on the screen.
• The standby indicator 1 on the TV set lights up in amber
to indicate that “On Timer” is active.
• Any loss of power will cause these settings to be cleared.
• If no buttons are pressed for more than one hour after the
TV is turned on using the “On Timer”, the TV
automatically goes into standby mode.
12
Menu System
KV-21CL1K_Grp U14
4-097-194-11(1)
master page=right
01GBKV21CL1K.fm Page 13 Wednesday, June 11, 2003 3:16 PM
Channel Set Up
The “Channel Set Up” menu allows
Channel Set Up
Channel Set Up
Auto Tuning
Auto Tuning
you to preset channels on this TV.
Programme Sorting
Programme Sorting
Programme Labels
Programme Labels
Manual Programme Preset
Manual Programme Preset
Select
Confirm
End
Select
Confirm
End
Auto Tuning The “Auto Tuning” option in the “Channel Set Up” menu allows
you to automatically search and store all available TV channels.
To do this:
After selecting the option, press and then proceed in the same
way as in the step 4 of the section “Switching On the TV and
Automatically Tuning” (see page 8).
Programme
The “Programme Sorting” option in the “Channel Set Up” menu
Sorting
allows you to change the order in which the channels (TV
Broadcast) appear on the screen.
To do this:
After selecting the option, press and then proceed in the same
way as in step 5b) of the section “Switching On the TV and
GB
Automatically Tuning” (see page 9).
Programme Labels The “Programme Labels” option in the “Channel Set Up” menu
allows you to name a channel using up to five characters (letters or
numbers).
To do this:
1 After selecting the option, press . Press or to select the
programme number with the channel you wish to name, then
press .
2 Press . With the first element of the label column highlighted,
press or to select a letter or number (select “_” for a
blank), then press to confirm this character. Select the other
four characters in the same way. Finally press to store.
continued...
Menu System
13
KV-21CL1K_Grp U14
4-097-194-11(1)
master page=left
01GBKV21CL1K.fm Page 14 Wednesday, June 11, 2003 3:16 PM
Manual
The “Manual Programme Preset” option in the “Channel Set Up”
Programme
menu allows you to:
Preset
a) Preset channels or a video input source one by one to the
programme order of your choice.
To do this:
1 After selecting the “Manual Programme Preset” option, press
. Highlight the Programme option and press . Press or
to select a programme number on which you want to preset
the channel (for VCR, select programme number “0”), then
press
.
The following option is only available depending on the
country you have selected in the “Language/Country”
menu.
2 After selecting the System option, press . Press or to
select the TV Broadcast system (B/G for western European
countries or D/K for eastern European countries), then press
.
3 After selecting the Channel option, press . Then press or
to select the channel tuning (C for terrestrial channels or S
for cable channels). Next press . After that, press the number
buttons to directly enter the channel number of the TV
Broadcast. If you do not know the channel number, press or
to search for it. When you tune the desired channel, press
twice to store.
Repeat all the above steps to tune and store more channels.
b) Normally the automatic fine tuning (AFT) will give the best
possible picture, however you can manually fine tune the TV to
obtain a better picture if the picture is distorted.
To do this:
While watching the channel (TV Broadcast) you wish to fine
tune, select the AFT option and press . Next press or to
adjust the fine tuning between -15 and +15. Finally press
twice to store.
c) Skip any unwanted programme numbers when they are selected
with the PROG +/– button.
To do this:
Highlighting the Programme option, press PROG +/– to select
the programme number you want to skip. When the
programme you want to skip appears on the screen, select the
Skip option and press . Next press or to select Yes.
Finally press twice to confirm and store.
To cancel this function afterwards, select No instead of Yes in the step
above.
14
Menu System
KV-21CL1K_Grp U14
4-097-194-11(1)
master page=right
01GBKV21CL1K.fm Page 15 Wednesday, June 11, 2003 3:16 PM
Set Up
The “Set Up” menu allows you to
Set Up
Set Up
Language/Country
Language/Country
alter various options on this TV.
Picture Rotation
Picture Rotation
RGB Centring: 0
RGB Centring: 0
Select
Confirm
End
Select
Confirm
End
Language/
The “Language/Country” option in the “Set Up” menu allows you to
Country
select the language that the menus are displayed in.
To do this:
After selecting the option, press and then proceed in the same way
as in the step 2 and 3 of the section “Switching On the TV and
Automatically Tuning” (see page 8).
Picture Rotation Because of the earth’s magnetism, the picture might slant. In this case,
you can correct the picture slant by using the option “Picture
Rotation” in the “Set Up” menu.
To do this:
After selecting the option, press . Press or to correct any slant
of the picture between -10 and +10 and finally press to store.
RGB Centring When connecting an RGB source, such as a “PlayStation”, you may
GB
need to readjust the horizontal position of the picture. In that case, you
can readjust it through the “RGB Centring” option in the “Set Up”
menu.
To do this:
While watching an RGB source, select the “RGB Centring” option and
press . Press or to adjust the centre of the picture between -10
and +10. Finally press to confirm and store.
Menu System
15
KV-21CL1K_Grp U14
4-097-194-11(1)
master page=left
01GBKV21CL1K.fm Page 16 Wednesday, June 11, 2003 3:16 PM
Teletext
Teletext is an information service transmitted by most TV stations. The index page of the
Teletext service (usually page 100) gives you information on how to use the service. To
operate Teletext, use the remote control buttons as indicated below.
Be sure to use a channel (TV Broadcast) with a strong signal, otherwise Teletext errors may
occur.
To switch on Teletext:
After selecting the TV channel which carries the Teletext service you wish to
TELETEXT
TELETEXT
TELETEXT
TELETEXT
TELETEXT
TELETEXT
TELETEXT
TELETEXT
Index
Index
Index
Index
Index
Index
Index
Index
view, press .
Programme
Programme
Programme
Programme
Programme
Programme
Programme
Programme
25
25
25
25
25
25
25
25
News
News
News
News
News
News
News
News
153
153
153
153
153
153
153
153
Sport
Sport
Sport
Sport
Sport
Sport
Sport
Sport
101
101
101
101
101
101
101
101
To select a Teletext page:
Weather
Weather
Weather
Weather
Weather
Weather
Weather
Weather
98
98
98
98
98
98
98
98
Input 3 digits for the page number, using the numbered buttons.
• If you have made a mistake, retype the correct page number.
• If the counter on the screen continues searching, it is because this page is not available. In that case,
input another page number.
To check the contents of a Teletext service:
Press .
To access the next or preceding page:
Press or .
To superimpose teletext on to the TV:
Whilst you are viewing Teletext, press . Press it again to cancel Teletext mode.
To freeze a teletext page:
Some Teletext pages have sub-pages which follow on automatically. To stop them, press
. Press it again to cancel the freeze.
To reveal concealed information (e.g., answer to a quiz):
Press . Press it again to conceal the information.
To enlarge the Teletext display:
Press . Each time you press , the Teletext display changes as follows: Enlarge upper
half t Enlarge lower half t Normal size.
To stand by for a Teletext page while watching a TV program.
1 Enter the Teletext number that you want to refer to, then press .
2 When the page number is displayed, press to show the Text.
To switch off Teletext:
Press .
Fastext
Fastext service lets you access pages with one push of a button.
While you are in Teletext mode and Fastext is broadcast, a colour coded menu appears at
the bottom of the teletext page. Press the colour button (red, green, yellow or blue) to access
the corresponding page.
16
Teletext
KV-21CL1K_Grp U14
4-097-194-11(1)
master page=right
01GBKV21CL1K.fm Page 17 Wednesday, June 11, 2003 3:16 PM
Connecting Optional Equipment
Using the following instructions, you can connect a wide range of optional equipment to
your TV set (connecting cables are not supplied).
8mm/Hi8/
DVC
DVD/VCR
camcorder
1
2
“PlayStation”*
C
decoder
When you connect the
* “PlayStation”
is a product
A
B
headphones, the TV
of Sony Computer
speakers will
Entertainment, Inc.
automatically be muted
* “PlayStation
” is a trademark
GB
of Sony Computer
Entertainment, Inc.
Connecting a VCR:
To connect a VCR, please refer to the section “Connecting an outdoor aerial and VCR” of this
instruction manual. We recommend you connect your VCR using a Scart lead. If you do not
have a Scart lead, tune in the VCR test signal to the TV programme number “0” by using the
“Manual Programme Preset” option (for details on how to manually programme these presets,
see page 14, step a).
Refer to your VCR instruction manual to find out how to find the output channel of your VCR.
Using Optional Equipment
1 Connect your equipment to the designated TV socket, as indicated above.
2 Switch on the connected equipment.
3 To watch the picture of the connected equipment, press repeatedly until the correct
input symbol appears on the screen.
Symbol Input Signals
•Audio / video input signal through the Scart connector C
1
•RGB input signal through the Scart connector C. This symbol appears
1
only if a RGB source has been connected.
•Video input signal through the phono socket A and Audio input signal
2
through B.
4 Press button on the remote control to return to the normal TV picture.
Additional Information
17
KV-21CL1K_Grp U14
4-097-194-11(1)
master page=left
01GBKV21CL1K.fm Page 18 Wednesday, June 11, 2003 3:16 PM
Specifications
TV system:
Sound Output:
Depending on your country selection:
2 x 6 W (music power)
B/G/H, D/K
2 x 3 W (RMS)
Colour system:
Power Consumption:
PAL, SECAM
66 W
NTSC 3.58, 4.43 (only Video In)
Standby Power Consumption:
Channel Coverage:
< 1 W
VHF: E2-E12
Dimensions (w x h x d):
UHF: E21-E69
Approx. 630 x 460 x 492 mm
CATV: S1-S20
HYPER: S21-S41
Weight:
D/K: R1-R12, R21-R69
Approx. 25 kg
Picture Tube:
Accessories supplied:
Flat Display FD Trinitron
1 Remote Control (RM-W100)
2 Batteries (IEC designated)
Rear Terminals
i1/ 21-pin Scart connector
Other features:
(CENELEC standard) including
•Teletext, Fastext, TOPtext
audio/video input, RGB input,
•Sleep Timer
TV audio/video output.
•On Timer
Front Terminals
t2 video input – phono jack
2 audio input – phono jacks
headphones jack
Design and specifications are subject to change without notice.
Ecological Paper- Totally Chlorine Free
18
Additional Information
KV-21CL1K_Grp U14
4-097-194-11(1)
master page=right
01GBKV21CL1K.fm Page 19 Wednesday, June 11, 2003 3:16 PM
Troubleshooting
Here are some simple solutions to the problems which may affect the picture and sound.
Problem Solution
No picture (screen is dark) and no
•Check the aerial connection.
sound.
•Plug the TV in and press the ! button on the front of
TV.
•If the standby indicator 1 is on, press &/1 button on
the remote control.
Poor or no picture (screen is dark),
•Using the menu system, select the “Picture
but good sound.
Adjustment” menu and select “Reset” to return to the
factory settings (see page 10).
No picture or no menu information
•Check that the optional equipment is on and press
from equipment connected to the
repeatedly on the remote control until the correct
Scart connector.
input symbol is displayed on the screen (see page 17).
Good picture, no sound. •Press the + button on the remote control.
•Check that headphones are not connected.
No colour on colour programmes. • Using the menu system, select the “Picture
Adjustment” menu and select “Reset” to return to
factory settings (see page 10).
GB
Distorted picture when changing
•Turn off any equipment connected to the Scart
programmes or selecting teletext.
connector on the rear of the TV.
Wrong characters appear when
•Using the menu system, enter the “Language/
viewing teletext.
Country” option in the “Set Up” menu and select the
country in which you operate the TV set. For Cyrillic
languages, we recommend to select Russia in the case
that your own country does not appear in the list (see
page 15).
Picture slanted. •Using the menu system, select the “Picture Rotation”
option in the “Set Up” menu to correct the picture
slant (see page 15).
Noisy picture when viewing a TV
•Using the menu system, select the “Manual
channel.
Programme Preset” menu and adjust Fine Tuning
(AFT) to obtain better picture reception (see page 14).
•Using the menu system, select the “Intelligent
Picture” option in the “Picture” menu and select
“On” to reduce the noise in the picture (see page 10).
Remote control does not function. •Replace the batteries.
The standby indicator 1 on the TV
•Contact your nearest Sony service centre.
flashes red.
In case of problems, have your TV serviced by qualified personnel. Never open the casing
yourself.
Additional Information
19
KV-21CL1K_Grp U14
4-097-194-11(1)
