Sony KV-32FQ70K: instruction

R

FD Trinitron

Colour Television

Instruction Manual

GB

Инструкции за експлоатация

BG

Návod k obsluze

CZ

Kezelési útmutató

HU

Instrukcja obsługi

PL

Инструкция пo эксплyатации

RU

KV-32FQ70K

© 2003 by Sony Corporation

00CoverKV28/32FQ70K.fm Page 1 Wednesday, January 15, 2003 7:37 PM

05B.cover.fm Page 1 Tuesday, January 14, 2003 3:21 PM

01GBKV28/32FQ70K.fm Page 3 Wednesday, January 15, 2003 7:38 PM

Introduction

Thank you for choosing this Sony FD Trinitron Colour Television.

Before operating the TV, please read this manual thoroughly and retain it for future

reference.

• Symbols used in the manual:

• Important information

• Shaded buttons on the remote control show

you the buttons you have to press to follow

• Information on a feature.

the sequence of the instructions.

•

1,2...

Sequence of instructions.

• Informs you of the result of instructions.

Table of Contents

Introduction ..............................................................................................................................................3

Safety Information ...................................................................................................................................4

Overview

Overview of Remote Control Buttons...................................................................................................5

Overview of TV Buttons ........................................................................................................................6

Installation

Inserting Batteries into the Remote Control.........................................................................................6

Connecting the Aerial and VCR ...........................................................................................................6

GB

First Time Operation

Switching On the TV and Automatically Tuning ..............................................................................7

Menu system

Introducing and Using the Menu System ............................................................................................9

Menu Guide:

Picture Adjustment..............................................................................................................................9

Sound Adjustment .............................................................................................................................10

Sleep Timer .........................................................................................................................................11

Auto Format........................................................................................................................................11

AV3 Output.........................................................................................................................................12

PIP Input..............................................................................................................................................12

PIP Position.........................................................................................................................................13

Language.............................................................................................................................................13

Auto Tuning........................................................................................................................................13

Programme Sorting............................................................................................................................14

Programme Labels .............................................................................................................................14

AV Preset.............................................................................................................................................14

Manual Programme Preset ...............................................................................................................15

Picture Rotation..................................................................................................................................16

RGB Centring......................................................................................................................................16

Teletext

...............................................................................................................................................17

NexTView

...........................................................................................................................................18

Additional Information

Connecting Optional Equipment.........................................................................................................20

Using Optional Equipment...................................................................................................................21

Remote Control Configuration for VCR/DVD .................................................................................22

Specifications ..........................................................................................................................................23

Troubleshooting .....................................................................................................................................24

Table of Contents

3

01GBKV28/32FQ70K.fm Page 4 Wednesday, January 15, 2003 7:38 PM

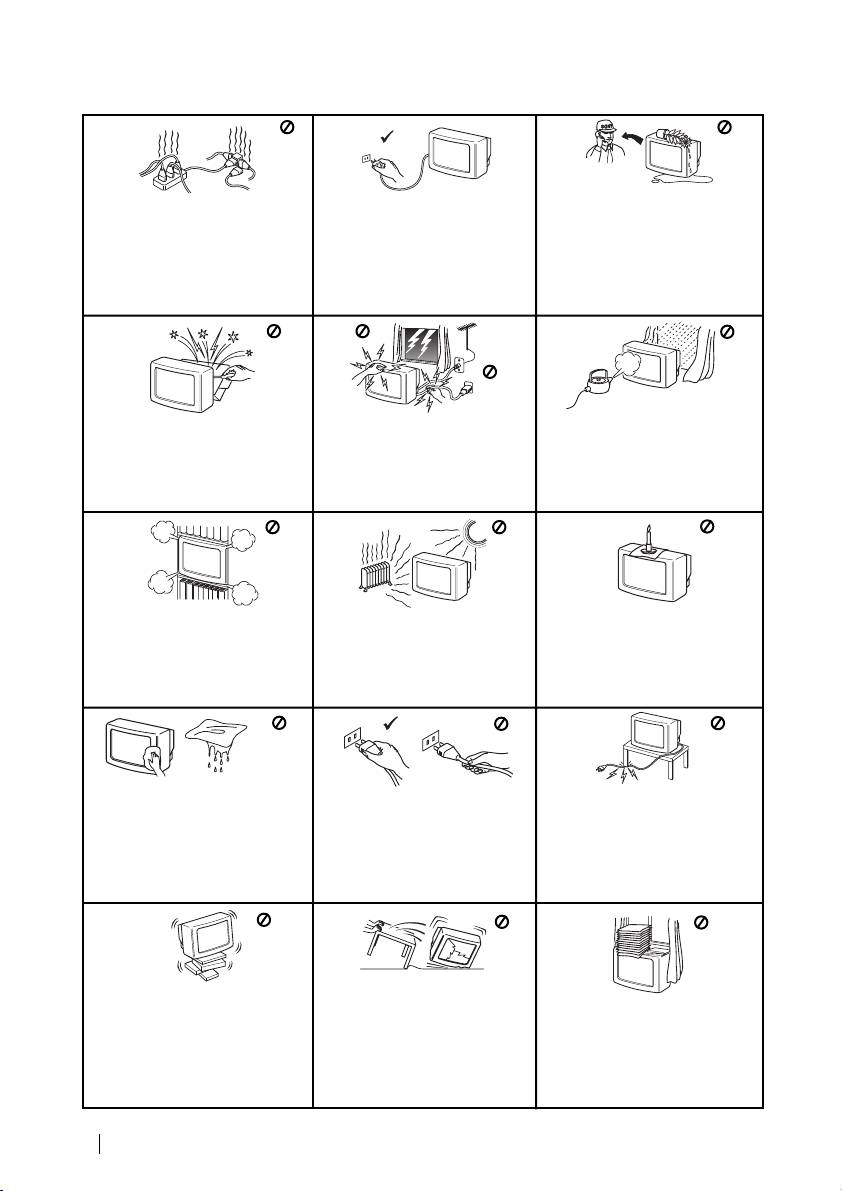

Safety Information

Never push objects of any kind into

For environmental and safety

This set is to operate on a 220-

the set as this could result in a fire

reasons, it is recommended that

240V AC supply only. Take care

or electric shock. Never spill liquid

the TV set is not left in standby

not to connect too many

of any kind on the set. If any liquid

mode when not in use. Disconnect

appliances to the same power

or solid object does fall into the

from the mains.

socket as this could result in fire

cabinet, do not operate the TV.

or electric shock.

Have it checked immediately by

qualified personnel.

Do not open the cabinet and the rear

For your own safety, do not touch

To prevent fire or shock

cover of the TV. Refer to qualified

any part of the TV, power lead or

hazard, do not expose the TV

service personnel only.

aerial lead during lightning

to rain or moisture.

storms.

Do not cover the ventilation

Never place the TV in hot, humid

To prevent fire, keep inflammable

openings of the TV For

or excessively dusty places. Do

objects or naked lights (eg

ventilation, leave a space of at

not install the TV where it may be

candles) away from the TV.

least 10cm all around the set.

exposed to mechanical vibrations.

Clean the screen and cabinet with a

Take care not to place heavy

soft, lightly dampened cloth. Do

Pull out the power lead by the

objects on the power lead as this

not use any type of abrasive pad,

plug. Do not pull on the power

could result in damage.

alkaline cleaner, scouring powder

lead itself.

We recommend you wind any

or solvent, such as alcohol or

excess lead around the holders

benzine, or antistatic spray. As a

provided on the rear of the TV.

safety precaution, unplug the TV

before cleaning it.

Unplug the power lead before

Place the TV on a secure stable

moving the TV. Avoid uneven

Do not cover the ventilation

stand. Do not allow children to

surfaces, quick steps or excessive

openings of the TV with items

climb on to it. Do not place the TV

force. If the set has been dropped

such as curtains or newspapers

on its side or face up.

or damaged, have it checked

etc.

immediately by qualified service

personnel.

4

Safety Information

01GBKV28/32FQ70K.fm Page 5 Wednesday, January 15, 2003 7:38 PM

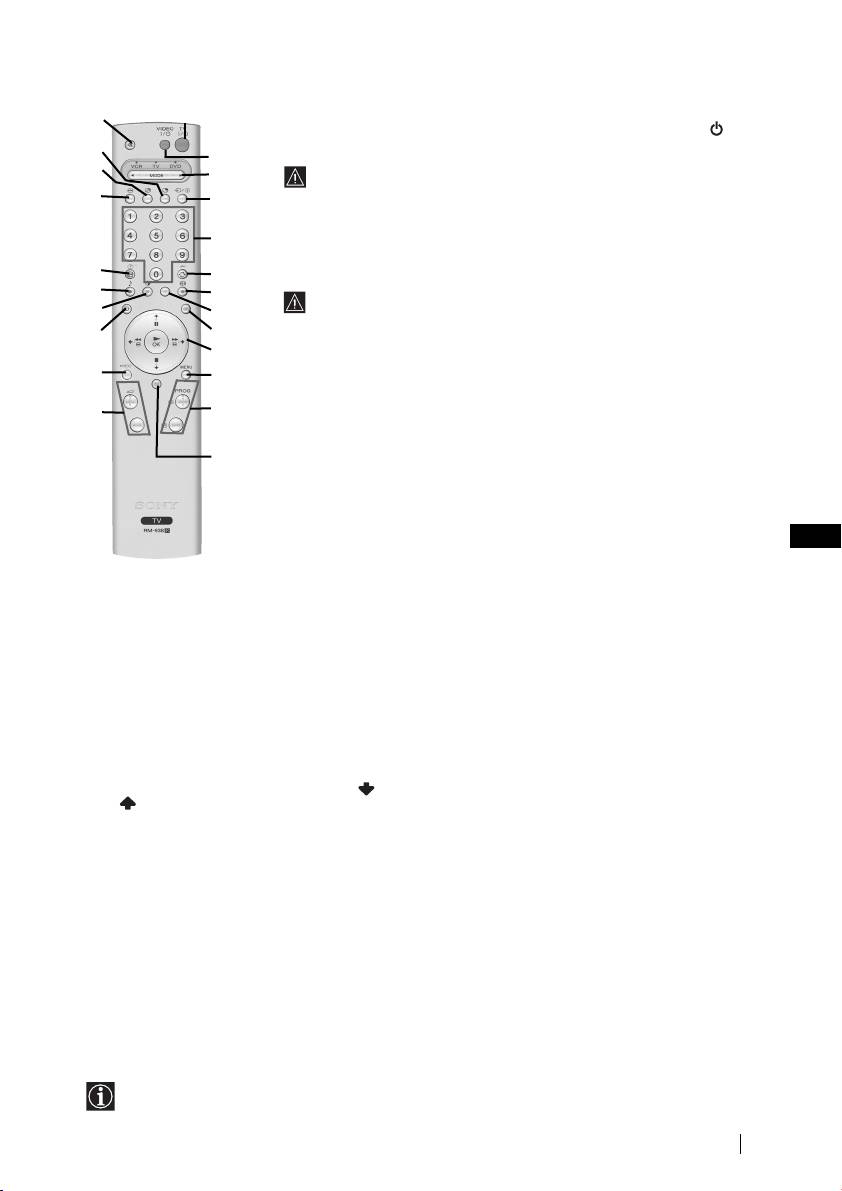

Overview of Remote Control Buttons

@£

1

1

To Temporarily Switch Off TV:

Press this button to temporarily switch off TV (the standby indicator on

the TV lights up). Press again to switch on TV from standby mode.

@™

2

To save energy we recommend switching off completely when TV is not in use.

@¡

3

After 15 minutes without a signal and without any button being

pressed, the TV switches automatically into standby mode.

@º

4

2

VCR or DVD on/off:

Press this button to switch your VCR or DVD on or off.

3

Media Selector:

5

With this remote control you can operate not only this TV but also the main

functions of your VCR or DVD. Switch on the device you want to operate and

!ª

next press this button repeatedly to select the VCR, TV or DVD. A green

6

light will be momentarily lit to indicate the chosen function.

!•

7

Before the first time you want to control a DVD or VCR by using this

!¶

8

remote control, you have to set it up depending on the brand of the

device to be used. For more details, refer to chapter “Remote Control

!§

9

Configuration for VCR or DVD” on page 22.

!º

4

Selecting input source:

Press this button repeatedly until the desired

!∞

!¡

input symbol of the source appears on the TV screen.

5

Selecting channels:

!™

If Media Selector is switched to TV or VCR, press this button to select

!¢

channels.

For double-digit programme numbers, enter the second digit within 2.5

seconds.

!£

6

a) If Media Selector is switched to TV:

Press this button to watch the last channel selected (the last channel

watched for at least 5 seconds).

b) If Media Selector is switched to VCR:

For Sony’s VCR double-digit programme numbers, e.g. 23, press -/- -

first and then the buttons 2 and 3.

GB

7

Selecting screen format:

Press this button

!¢

Adjusting TV volume:

Press these buttons to

repeatedly to change the format of the screen. For

adjust the volume of the TV.

more details refer to chapter “Auto Format” on

!∞

Recording button:

If Media Selector is

page 11.

switched to VCR, press this button to record

8

This button only works in Teletext mode.

programmes.

9

Selecting Teletext:

Press this button to switch

!§

Selecting TV mode:

Press this button to switch

on teletext.

off PIP, teletext or video input.

!º

Joystick:

!¶

Selecting Picture mode:

Press this button

repeatedly to change the picture mode.

a) If Media Selector is switched to TV:

• When MENU is switched on, use these buttons

!•

Selecting Sound effect:

Press this button

to operate the menu system. For details refer to

repeatedly to change the sound effect.

“Introducing and Using the Menu System” on

!ª

Displaying on Screen information:

Press

page 9.

this button to display all on-screen indications.

• When MENU is switched off, press OK to

Press again to cancel.

show a channel overview. Then press or

to select the channel and then press again

@º

Freezing the picture:

Press this button to

the OK button to watch the selected channel.

freeze the picture. The screen is divided into two

screens. On the left with the normal picture, on

b)If Media Selector is switched to VCR or

the right the picture is freezed. Press this button

DVD:

again to return to the normal picture.

Using these buttons you can control the main

functions of your VCR or DVD.

@¡

Swapping screens:

Whilst you are in “PIP”

mode, press this button to swap the two screens.

!¡

Displaying the menu system:

Press this

button to display the menu on the TV screen.

@™

PIP (Picture in Picture):

Press this button to

Press again to remove the menu display from the

watch another source in a small picture (PIP)

TV screen.

within the main TV picture. Press again to cancel.

To select the source you want to watch, refer to

!™

Selecting channels:

Press these buttons to

the chapter “PIP Input” on page 12.

select the next or previous broadcast channel.

@£

Muting the Sound:

Press this button to mute

!£

NexTView:

For more details refer to chapter

TV sound. Press again to restore the sound.

“NexTView” on page 18.

Besides TV functions, all coloured buttons as well as green symbols are also used for

Teletext operation. For more details, please refer to “Teletext” section on page 17.

Overview

5

01GBKV28/32FQ70K.fm Page 6 Wednesday, January 15, 2003 7:38 PM

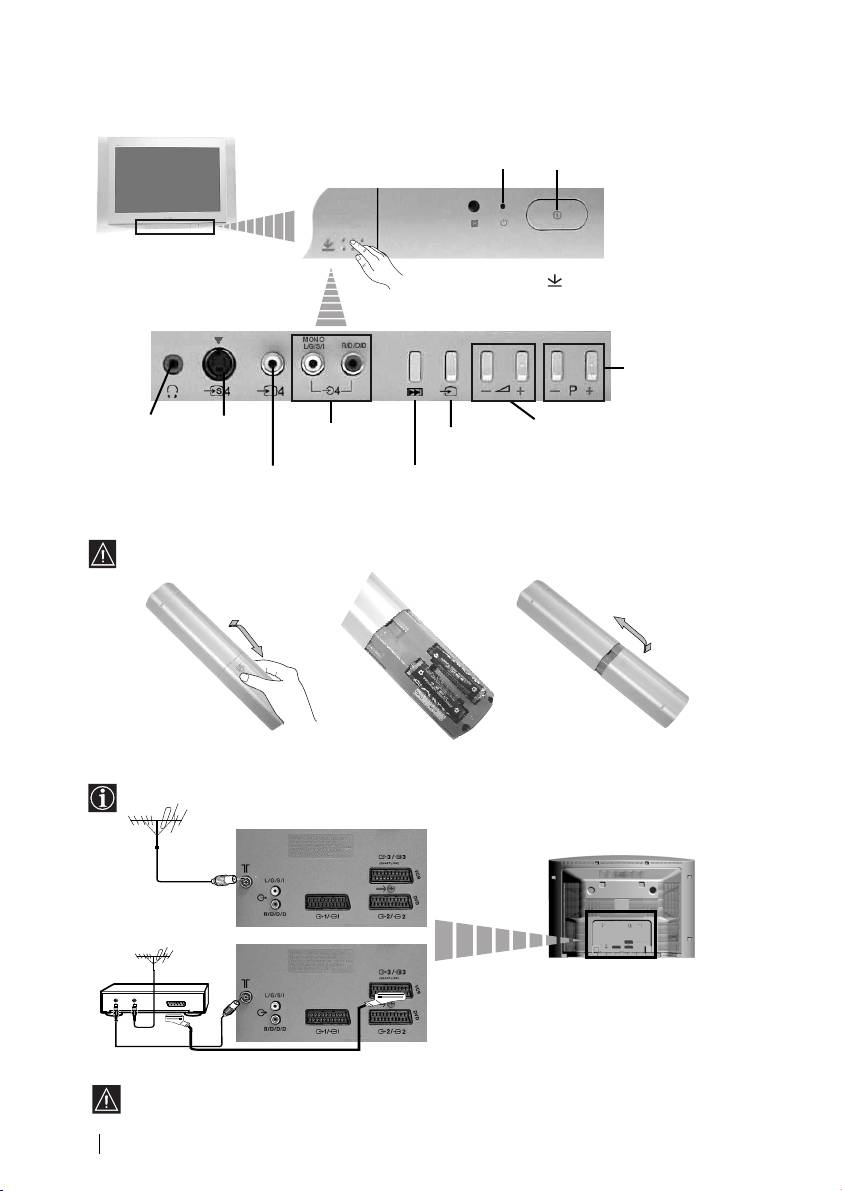

Overview of TV Buttons

Standby indicator

On/Off Switch

Press on the mark .

Programme

Up or Down

Buttons

(Selects TV

Volume

channels)

Headphones

S video

Audio Input

Selecting

control

jack

Input jack

jacks

Input source

buttons

Video Input jack

Auto Start Up Button

Inserting Batteries into the Remote Control

Make sure you insert the supplied batteries using the correct polarities.

Always remember to dispose of used batteries in an environmental friendly way.

Connecting the Aerial and VCR

Connecting cables are not supplied.

or

VCR

OUT IN

Scart lead is optional.

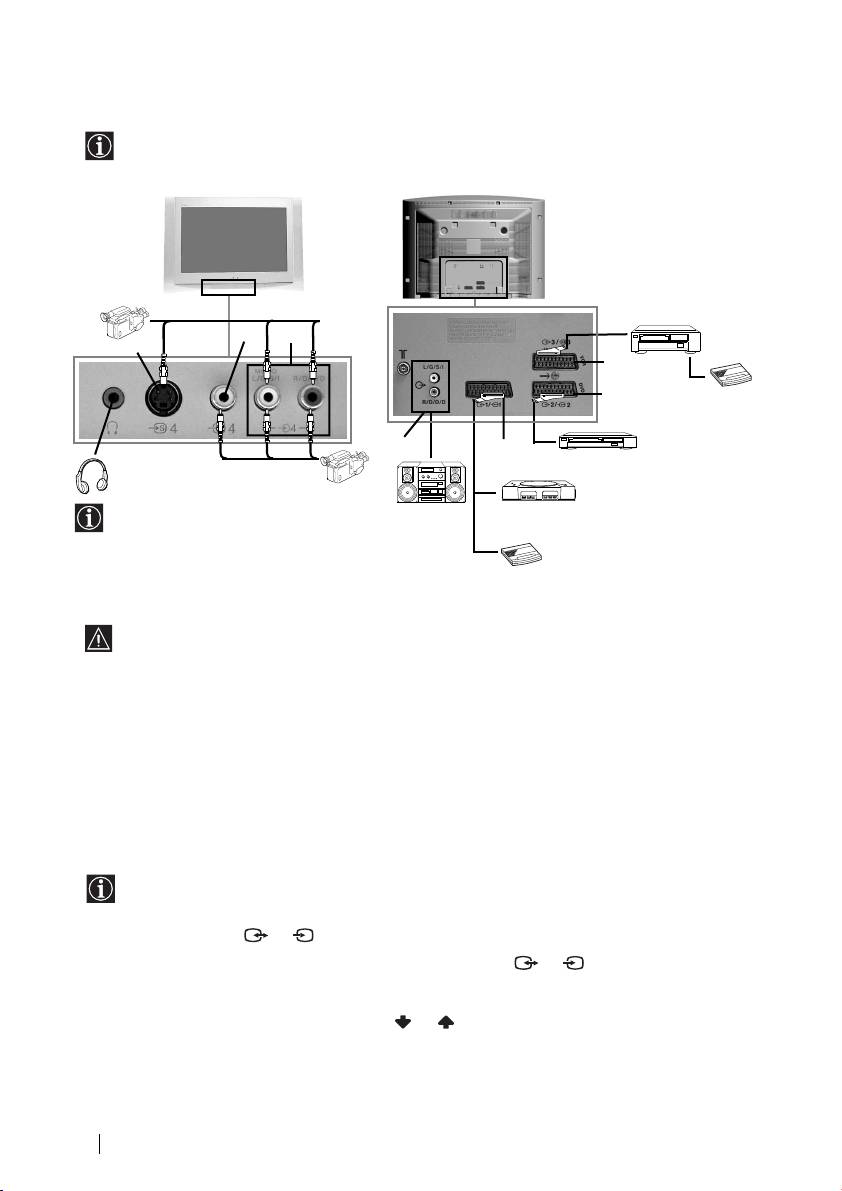

For more details of VCR connection, please refer to the section “Connecting Optional

Equipment” of this instruction manual (see page 20).

6

Overview-Installation

01GBKV28/32FQ70K.fm Page 7 Wednesday, January 15, 2003 7:38 PM

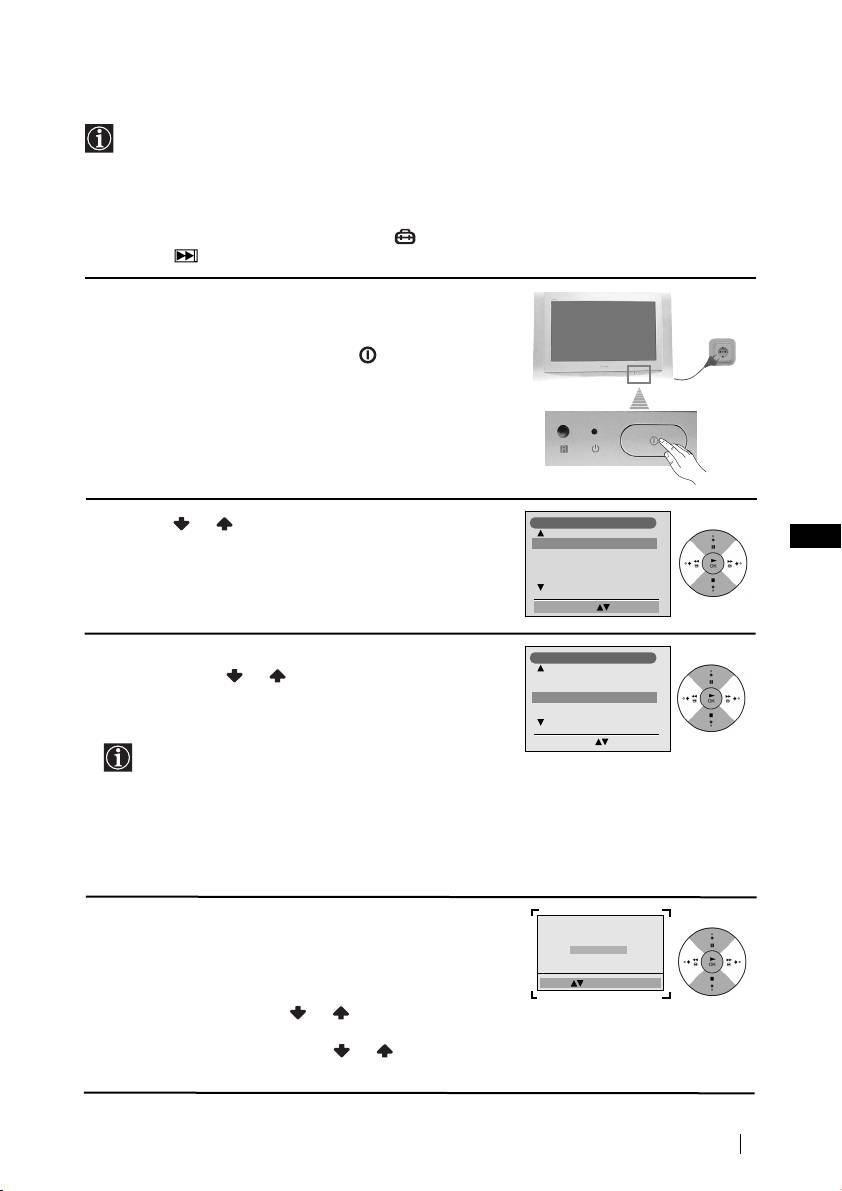

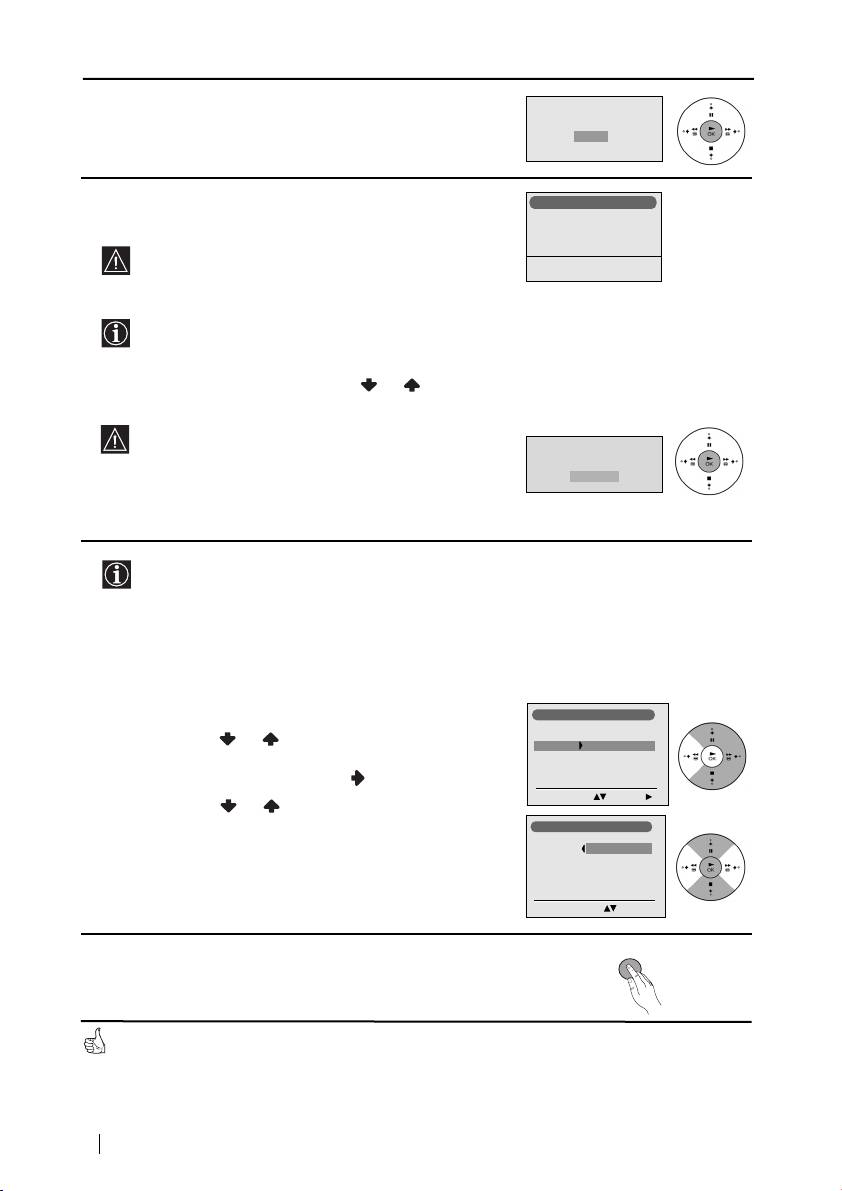

Switching On the TV and Automatically Tuning

The first time you switch on your TV, a sequence of menu screens appear on the TV

enabling you to: 1) choose the language of the menu screen, 2) choose the country in which

you wish to operate the TV, 3) adjust the picture slant, 4) search and store all available

channels (TV Broadcast) and 5) change the order in which the channels (TV Broadcast)

appear on the screen.

However, if you need to change any of these settings at a later date, you can do that by

selecting the appropriate option in the (Set Up menu) or by pressing the Auto Start Up

Button on the TV set.

1

Connect the TV plug to the mains socket (220-240V AC,

50Hz)

The first time that the TV set is connected, it is usually

turned on. If the TV is off, press the on/off button on

the TV set to turn on the TV.

The first time you switch on the TV, a

Language

menu

displays automatically on the TV screen.

2

Press the or button on the remote control to select

Language

GB

the language, then press the

OK

button to confirm your

English

Norge

selection. From now on all the menus will appear in the

Français

Italiano

Nederlands

selected language.

Select Language: Confirm: OK

3

The

Country

menu appears automatically on the TV

Country

screen. Press the or button to select the country in

Sverige

Norge

which you will operate the TV set, then press the

OK

-

Italia

button to confirm your selection.

Schweiz/Suisse/Svizzera

Select Language: Confirm: OK

• If the country in which you want to use the TV set

does not appear in the list, select “-” instead of a

country.

• To avoid wrong teletext characters for cyrillic

languages we recommend selecting Russia

country if your own country does not appear in

the list.

4

Because of the earth’s magnetism, the picture might slant.

If picture slants, please

adjust picture rotation

The

Picture Rotation

menu allows you to correct the

Not necessary

picture slant if it is necessary.

Adjust now

a)

If it is not necessary, press

OK

to select

Not necessary

.

Select: Confirm: OK

b)

If it is necessary, press or to select

Adjust now

,

then press

OK

and correct any slant of the picture be-

tween –5 and +5 by pressing or . Finally press

OK

to store.

continued...

First Time Operation

7

01GBKV28/32FQ70K.fm Page 8 Wednesday, January 15, 2003 7:38 PM

5 The Auto Tuning menu appears on the screen. Press the

Do you want to start

OK button to select Yes.

automatic tuning?

Yes

No

6The TV starts to automatically search and store all

Auto Tuning

Programme:

available broadcast channels for you.

1

Channel:

C 01

System

B/G

This procedure could take some minutes. Please be

patient and do not press any buttons, otherwise

Searching...

automatic tuning will not be completed.

In some countries the TV Broadcaster installs the

channels automatically (ACI system). In this case,

the TV Broadcaster sends a menu in which you can

select your city by pressing the or button and

OK to store the channels.

If no channels were found during the auto tuning

process then a new menu appears automatically on

No channel found

Please connect aerial

the screen asking you to connect the aerial. Please

Confirm

connect the aerial (see page 6) and press OK. The

auto tuning process will start again.

7 After all available channels are captured and stored,

the Programme Sorting menu automatically appears

on the screen enabling you to change the order in

which the channels appear on the screen.

a) If you wish to keep the broadcast channels in the

tuned order, go to step 8.

b) If you wish to store the channels in a different order:

Programme Sorting

Programme:

01 TVE2

1 Press the or button to select the programme

02 TVE

03 ANT3

number with the channel (TV Broadcast) you wish

04 TELE5

05 C+

to rearrange, then press the button.

06 C44

Select Channel Confirm:

2 Press the or button to select the new

programme number position for your selected

Programme Sorting

Programme:

channel (TV Broadcast), then press OK.

01 TVE2 41 TVE

02 TVE

03 ANT3

3 Repeat steps b)1 and b)2 if you wish to change

04 TELE5

05 C+

the order of the other channels.

06 C44

Select new position Move: OK

MENU

8 Press the MENU button to remove the menu from the

screen.

Your TV is now ready for use

8

First Time Operation

01GBKV28/32FQ70K.fm Page 9 Wednesday, January 15, 2003 7:38 PM

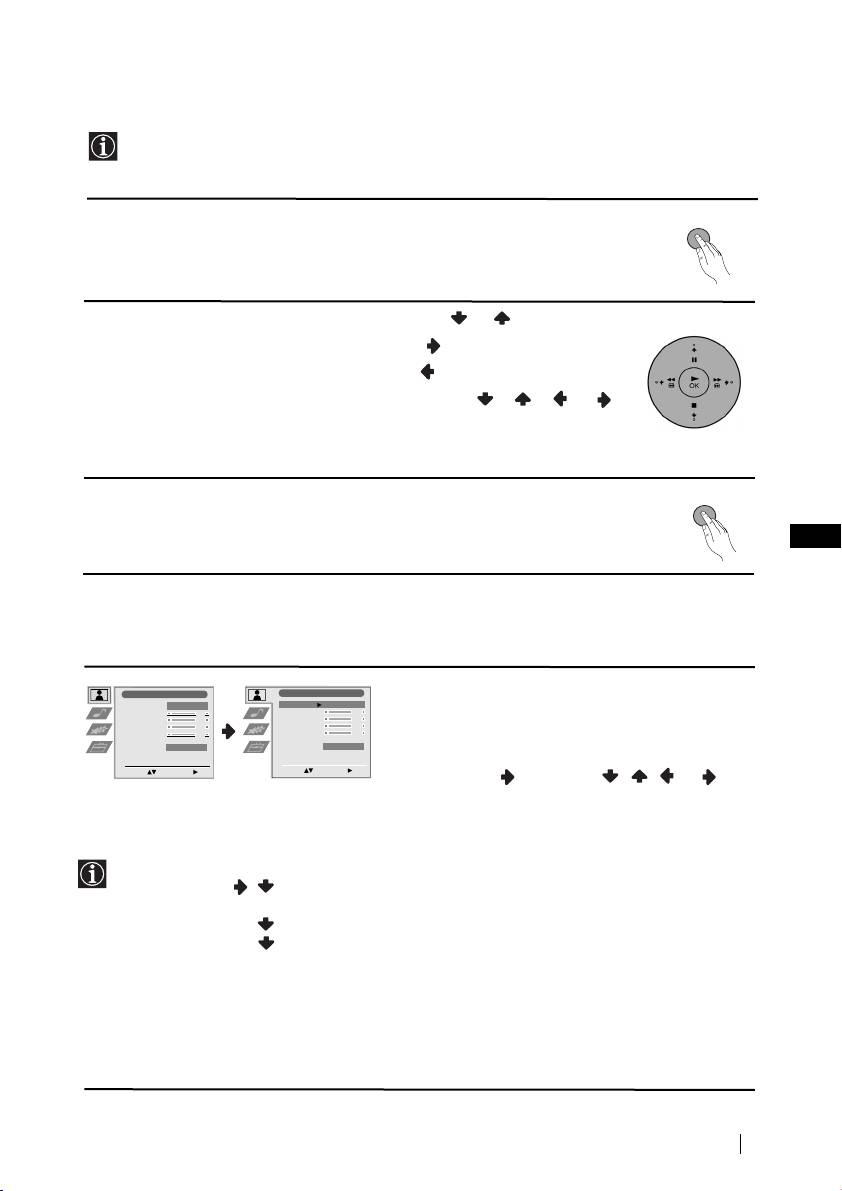

Introducing and Using the Menu System

Your TV uses an on-screen menu system to guide you through the operations. Use the

following buttons on the Remote Control to operate the menu system:

MENU

1 Press the MENU button to switch the first level menu on

2 • To highlight the desired menu or option, press or .

• To enter the selected menu or option, press .

• To return to the last menu or option, press .

• To alter the settings of your selected option, press //or.

• To confirm and store your selection, press OK.

MENU

3 Press the MENU button to remove the menu from the screen.

GB

Menu Guide

Level 1 Level 2 Level 3 / Function

PICTURE ADJUSTMENT

Picture Adjustment

Picture Adjustment

Picture Mode

Personal

Picture Mode

Personal

The “Picture Adjustment” menu allows you to

Contrast

Contrast

Brightness

Brightness

Colour

Colour

alter the picture adjustments.

Sharpness

Sharpness

Reset

Reset

Noise Reduction

AUTO

Noise Reduction

AUTO

To do this: after selecting the item you want to

Select: Enter Menu:

Select: Enter:

alter press , then press / / or

repeatedly to adjust it and finally press OK to

store the new adjustment.

• This menu also allows you to customise the picture mode based on the programme you are watching:

Picture Mode Live (for live broadcast programmes, DVD and Digital Set Top Box

receivers).

Personal (for individual settings).

Movie (for films).

• Brightness, Colour and Sharpness can only be altered if “Personal” mode is selected.

• Hue is only available for NTSC colour signal (e.g: USA video tapes).

• Select Reset and press OK to reset the picture to the factory preset levels.

• The Noise Reduction option is set to AUTO to automatically reduce the picture noise visible in

the broadcast signal. To cancel this function, select “Off” instead of “AUTO”.

continued...

Menu System

9

01GBKV28/32FQ70K.fm Page 16 Wednesday, January 15, 2003 7:38 PM

Level 1 Level 2 Level 3 / Function

Picture Adjustment

PICTURE ROTATION

Picture Mode

Personal

Because of the earth’s magnetism, the picture

Contrast

Brightness

Colour

may slant. If this is the case, you can correct the

Sharpness

Reset

Noise Reduction

AUTO

pictures slant by using the “Picture

Rotation” option in the “Detail Set Up” menu.

Select: Enter Menu:

To do this: after selecting the option, press .

Set Up

Set Up

Set Up

Language/Country

Auto Tuning

Auto Tuning

Detail Set Up

Then press or to correct any slant of the

Auto Tuning

Programme Sorting

Programme Sorting

Programme Sorting

Picture Rotation

0

Programme Labels

Select NexTView

Select NexTView

RGB Centring

0

picture between -5 and +5.

AV Preset

AV Preset

AV Preset

Manual Programme Preset

Manual Set Up

Manual Set Up

Detail Set Up

Select:

Select:

Select:

Enter Menu:

Enter Menu:

Enter Menu:

Select:

Enter:

RGB CENTRING

Picture Adjustment

Picture Mode

Personal

When connecting an RGB source, such as a

Contrast

Brightness

Colour

“PlayStation”, you may need to readjust the

Sharpness

Reset

AUTO

horizontal position of the picture. If this is the

Noise Reduction

case, you can adjust it through the “RGB

Select: Enter Menu:

Centring” option in the “Detail Set Up”.

Set Up

Set Up

Set Up

Detail Set Up

To do this: while watching an RGB source select

Language/Country

Auto Tuning

Auto Tuning

Auto Tuning

Programme Sorting

Programme Sorting

Picture Rotation

0

Programme Sorting

Programme Labels

Select NexTView

Select NexTView

RGB Centring

0

the “RGB Centring” option and press . Then

AV Preset

AV Preset

AV Preset

Manual Programme Preset

Manual Set Up

Manual Set Up

press or to adjust the centre of the

Detail Set Up

picture between –10 and +10. Finally press OK

Select:

Select:

Select:

Enter Menu:

Enter Menu:

Enter Menu:

Select:

Enter:

to confirm and store.

16

Menu System

01GBKV28/32FQ70K.fm Page 17 Wednesday, January 15, 2003 7:38 PM

Teletext

Teletext is an information service transmitted by most TV stations. The index page of the

teletext service (usually page 100) gives you information on how to use the service. To

operate teletext, use the remote control buttons as indicated below.

Teletext errors may occur if you use a channel (TV Broadcast) with a weak signal.

To switch on Teletext :

After selecting the TV channel which carries the teletext service you wish

TELETEXT

TELETEXT

TELETEXT

TELETEXT

TELETEXT

TELETEXT

TELETEXT

TELETEXT

Index

Index

Index

Index

Index

Index

Index

Index





























to view, press .

Programme

Programme

Programme

Programme

Programme

Programme

Programme

Programme

25

25

25

25

25

25

25

25

News

News

News

News

News

News

News

News

153

153

153

153

153

153

153

153

Sport

Sport

Sport

Sport

Sport

Sport

Sport

Sport

101

101

101

101

101

101

101

101

Weather

Weather

Weather

Weather

Weather

Weather

Weather

Weather

98

98

98

98

98

98

98

98

To select a Teletext page:

Input 3 digits for the page number, using the numbered buttons.

• If you make a mistake, retype the correct page number.

• If the counter on the screen continues searching, it is because the page is not available. If this is the

case, input another page number

To access the next or preceding page:

Press PROG + ( ) or PROG - ().

To superimpose teletext on to the TV:

GB

Whilst you are viewing teletext, press . Press it again to cancel teletext mode.

To freeze a teletext page:

Press / . Press it again to cancel the freeze.

To reveal concealed information (e.g: answer to a quiz):

Press / . Press it again to conceal the information.

To select a sub page:

A teletext page may consist of several sub pages. In this case the page number that appears

on the upper left corner will change from white to green and one or more arrows will appear

next to the page number. Repeatedly press the or buttons on the remote control to

watch the desired sub page.

To Switch Off Teletext:

Press .

Fastext

Fastext service lets you access Teletext pages with one button push.

When you are in Teletext mode and Fastext is broadcast, a colour coded menu appears at

the bottom of the teletext page. Press the appropriate coloured button (red, green, yellow

or blue) to access the page corresponding to your menu choice.

Teletext

17

01GBKV28/32FQ70K.fm Page 18 Wednesday, January 15, 2003 7:38 PM

NexTView*

*(depending on availability of service).

NexTView is an on-screen electronic programme guide, providing you with programme

information for different broadcasters.

When looking for information you can search by theme (sports, art, etc...) or date.

If wrong characters appear when viewing NexTView, use the menu system to enter the

“Language/Country” menu (see page 13) and select the same language as the NexTView

is broadcasted.

Displaying NexTView

1 Select a broadcast channel providing a NexTView service. In this case the indication

“NexTView” is displayed as soon as data is available.

2 To see NexTView service you have two different types of NexTView interface. These depend

on the % of available data:

a) “Programme List” interface:

Whilst you are watching TV, and after the indication “NexTView” (coloured white)

is displayed on the screen, press the button on the remote control to watch the

“Programme List” interface (see fig. 1).

b) “Overview” interface:

Whilst you are watching TV, and after more than 50% of NexTView data is available

(100% data may not be available depending on the area) the indication “NexTView”

(coloured black) is displayed on the screen. Press the button on the remote

control to watch the “Overview” interface (see fig. 2).

As soon as you enter the NexTView service the % of NexTView data available will be

shown in the bottom left corner of the screen. Once you have entered the service, the %

of data will not increase.

3 To navigate through NexTView:

• moving right or left press or .

• moving upwards or downwards, press or .

• to confirm a selection, press OK.

4 To switch NexTView off, press the button on the remote control.

continued...

18

NexTView

01GBKV28/32FQ70K.fm Page 19 Wednesday, January 15, 2003 7:38 PM

“Programme List” interface (fig. 1): “Overview” interface (fig. 2):

1

1

01

02

03

04

05

06

07

01

02

03

04

05

06

07

Mon

Tu e

Wed

Thu

Fri

Sat

Sun 7 : 07 : 01

Mon

Tu e

Wed

Thu

Fri

Sat

Sun 9 : 15 : 03

9 : 00 9 : 30 10 : 00

TV1

00 : 30

Songs from the shows

TV1

Magazine

|

Songs from the shows

2

TV2

01 : 30

Weather forecast informat i

2

TV2

Weather Forecast

|

Mike's show

TV3

05 : 30

A1 news magazine

TV3

Euronews

|

Fantasy film

|

Star Wars

TV4

06 : 30

Arts show

TV4

Home Shopping Europe

|

Euro Sports

TV5

07 : 30

Oclock news

TV5

News | Arts show

|

Magazine

TV6

08 : 30

Weather forecast informat i

Euro Sports

A1 news magazine

TV6

Larry King's live |

3

TV7

09 : 30

Euro magazine |

Euro Sports

TV8

10 : 30

Arts show

3

TV7

TV8

Home Shopping Europe |

Euronews

Songs from the shows

TV1 00:30 - 01:30 Thursday 04

Songs from the shows

Programme descriptio n

TV1 00:30 - 01:30 Thursday 04

Programme descriptio n

Record Remind

Record Remind

4

5

4

5

1 Icons for different themes

4 Record*

(see the “Icons’ key”

This function only works if you have connected

below)

a VCR which supports SmartLink and Timer

Programming feature.

2 Date

If you wish to record the selected programme,

press the red button on the remote control.

3 Programme list

5 Remind*

If you wish to be reminded when the selected

programme is broadcast, press the green button on the

remote control. At the time that programme should be

broadcast a reminder message is displayed on the TV.

GB

* “Record” and “Remind” options will be shown on the screen as soon as a programme

have been selected, but they will not be shown if you are watching the NexTView service

on a TV channel which is not a NexTView provider.

* “Record” and “Remind” will not be available if the programme that you have selected

has already started.

Icons’ key:

full selection list:

channel selection:

All the programme information is

If the NexTView provider sends

listed by time and broadcast

information of more than 8

channels order.

broadcast channels, you can select 8

of them to create your personal list.

entertainment

After you have created your

personal list, the default list can be

children

restored. To restore it, select “Auto

(” by pressing button on the

arts

remote control.

sports

remind list:

news

Shows you the list with all the

programmes (maximum 5

movies

programmes) that you have selected

to be reminded about.

music

NexTView

19
