GB

Safety Information

All TVs operate on extremely high voltages. To prevent fire or electric shock, please follow the safety procedures indicated

below.

For your safety

For General Safety

•

Do not expose the TV set to rain or moisture.

•

Do not remove the rear cover.

•

For your protection, refer all servicing to qualified personnel only.

For Safe Installation

•

Do not install the TV in hot, humid or excessively dusty places.

•

Do not block or cover the ventilation openings.  For ventilation, leave a space of at least 10

cm all around the set.

•

Do not install the TV where it may be exposed to mechanical vibrations.

•

Place the TV set only on a stable stand designed for the weight and dimensions of the TV.

For Safe Operation

•

Do not operate the TV set on anything other than a 220-240V AC, 50Hz supply.

•

Do not operate the TV if any liquid or solid objects fall in through the ventilation slots.

Have it checked immediately.

•

For environmental and safety reasons, it is recommended that the TV set is not left in

standby mode when not in use. Switch off at the mains.

•

Do not disconnect the TV by pulling on the power cable. Disconnect by removing the

mains plug.

•

In case of a thunderstorm, disconnect the TV set from the main supply and the aerial.

Otherwise the set may be damaged by a stroke of lightning.

For Maintenance

•

Clean the TV screen with a soft dampened cloth. Do not use any abrasive cleaners.

•

Dust and nicotine deposits may cause heat accumulation inside the TV set. In the long term

this could be a safety risk and may shorten the lifetime of your TV set. Therefore have your

set serviced about every five years.

1

Safety Information

All televisions operate on extremely high voltages. To prevent fire or electric shock, please follow the safety guidelines indicated

in the blue sheet supplied.

Always use TV stands that are strong and stable enough to support the weight and size of this TV. Due to the unique floating

design of this TV, Sony highly recommend you use their designated stand,  SU-29FQ1. If this recommended option is not taken,

it is vitally important to ensure that any cabinet or table has a large enough surface area to accommodate all three legs of the TV

without any overlap.

Safety Information

Table of Contents

Table of Contents

Installation

1. Checking the accessories supplied

2. Inserting batteries into the remote control

3. Connecting the TV

4. Switching on the TV

5. Using the joystick

6. Tuning your TV

7. Finding your video channel

2

2

3

4

4

5

5

Operation

Overview of the TV set buttons

Overview of the remote control buttons

NexTView

Teletext

Using the TV menu system

Adjusting the picture and sound

Using the Features menu

Re-arranging the TV channels

Manually tuning the TV

Naming a channel

Skipping programme positions

Using the ‘Further Programme Preset’ feature

Adjusting the picture rotation

Adjusting the picture geometry for an RGB source

Inputting your personal ID

Presetting and naming input signals

6

7

8

10

12

12

14

15

15

16

16

17

18

18

19

19

Additional Equipment

Connecting additional equipment to the TV

Additional information when connecting equipment

Smartlink

Remote control of other Sony equipment

20

21

21

21

Additional Information

Specifications

Channel Display Table

Troubleshooting

22

22

23

2

Follow steps 1-7 to install the TV and  view TV programmes. Installation

1. Checking the accessories supplied

2. Inserting batteries into the remote control

Batteries

Always observe the correct polarity when inserting batteries.

Always remember to dispose of used batteries in an environmentally friendly way.

-

+

+

-

Remote control

+

- -

+

3

Installation

3. Connecting the TV

The scart lead is

optional.  If it can be

used however, this

additional

connection can

improve picture and

sound quality when

in play mode.

1. Connect your existing aerial lead to the socket marked

 on the rear of the TV set.

Connecting an aerial to your TV

Connecting an aerial and VCR to your TV

1. Connect your existing aerial lead to your VCR as shown.

2. Connect the VCR aerial lead from the RF OUT socket on the back of the VCR to the aerial

socket on the back of the TV as shown.

3. Connect the scart lead (if used) to the AV2 socket on the rear of the TV set.

4. Connect the VCR set to the mains and switch on.

5. Insert a pre-recorded tape into the VCR and press the ‘PLAY’ button. This enables the TV

set to locate and store the video channel during the ‘Tuning your TV’ procedure on page 5.

If you are not connecting

your TV to a VCR,

please connect the aerial

lead (as shown left) and

proceed to section

‘4.Switching on the TV’.

If you are connecting

your TV to a VCR please

refer to the section

below.

OUT

IN

AERIAL

ANTENNA

AC IN

existing aerial lead

scart lead

(not supplied)

4

Installation

1. Connect the TV plug to the mains socket (220-240V AC, 50Hz).

2. Push in the on/off button

 on the front of the TV.

If the standby mode indicator on the front of the TV is lit, press the TV

 button on

the remote control to switch on the TV set. Please be patient as the picture may take a

few moments to appear on the TV screen.

4. Switching on the TV

5. Using the joystick

/

To select an item in a menu press

the OK button down in the middle.

To move around the menus press

the relevant arrow button.

Moving the joystick

Pressing the joystick

5

Installation

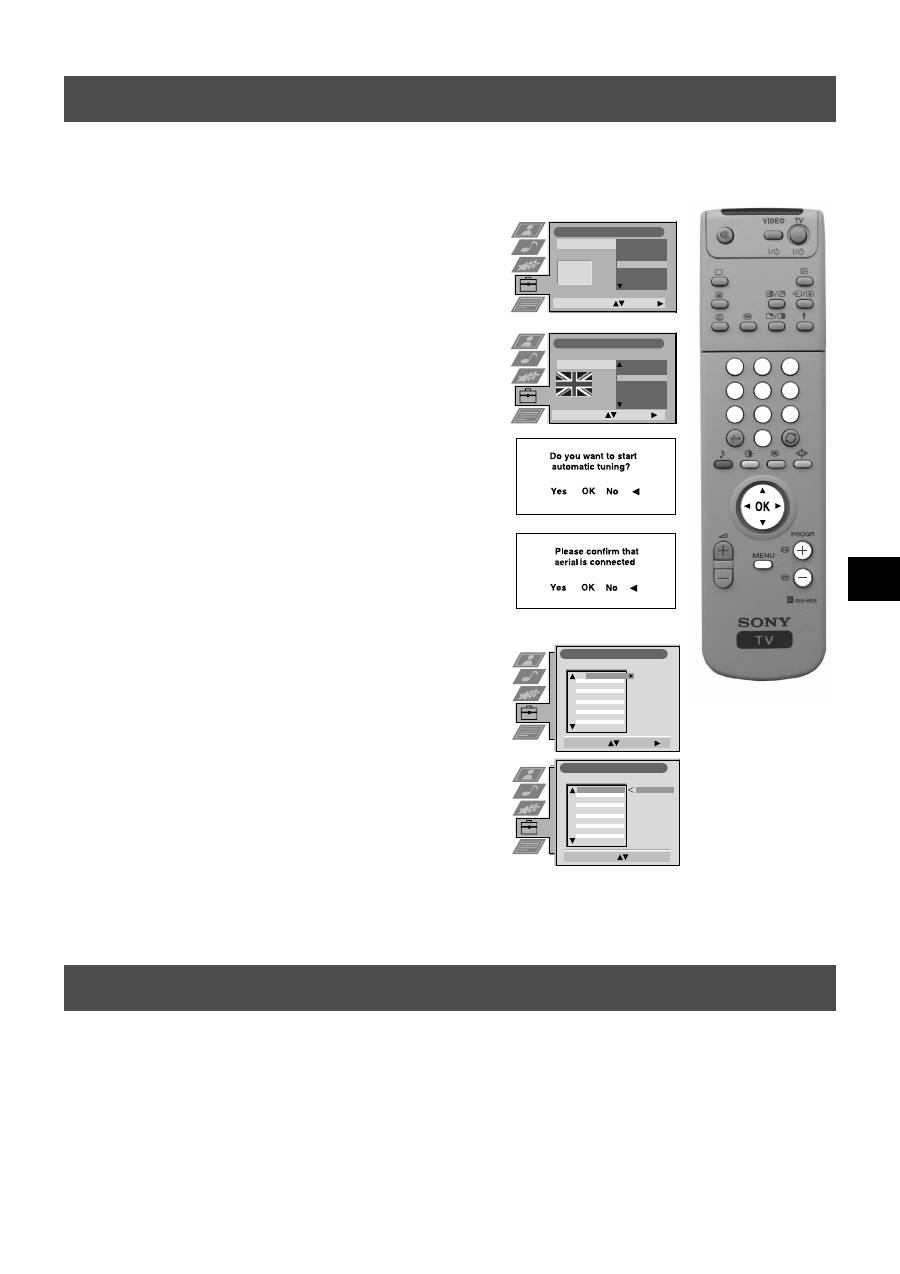

Before you tune your TV, you will be asked to set your language and country.

6. Tuning your TV

:

:

:

:

Language/Country

Select Language:

Confirm:

Language

Country

Čeština

Dansk

Deutsch

English

Espa

ñ

ol

Français

Italiano

Language/Country

Select Country:

Confirm:

Language

Country

France

Germany

Great Britain

Greece

Hungary

Ireland

Italy

English

1. The Language/Country menu appears on the TV screen with the

word ‘English’ highlighted.

2. Press the

v

or

V

buttons on the remote control to select your

chosen language then press the OK button to confirm. The

country menu appears on screen with the word ‘OFF’ highlighted.

Select ‘OFF’ if you do not want your channels stored in a given

channel sequence starting from programme position 1.

3. Press

v

or

V

to select the country in which you wish to operate

the TV then press the OK button to confirm your choice.

4. The  ‘autotune’ menu appears on the TV screen in your selected

language. Press the OK button to confirm.

5. Ensure the aerial is connected as instructed, then press the OK

button to confirm. The TV starts to automatically search and store

all available channels for you. This may take a few minutes -

please be patient and do not press any buttons.

6. Once the TV has tuned all available channels the ‘Programme

Sorting’ menu appears on the TV screen enabling you to change

the order of the channels on your TV. If you wish to change the

channel order, press the

v

or

V

buttons to select the channel you

want to move, then press

B

. Press the

v

or

V

buttons to select the

new programme number position for your selected channel then

press the OK button to confirm. The selected channel now moves

to its new programme position and the other channels move

accordingly. Repeat this procedure if you wish to sort the order of

other channels on your TV.

7. Press the MENU button to remove the menu from the TV screen.

8. Press the PROGR+/- or the numbered buttons to view the TV

channels.

Note: If you would like to stop the autotune process at any stage,

press the OK button.

If you have connected a VCR to your TV, you now need to find your video channel.

1. Press the PROGR+/- buttons on the TV remote control until your video picture appears on the TV screen.

Note: If you wish to move your video channel to a different programme position, refer to the ‘Re-arranging the TV channels’

section of this instruction manual.

7. Finding your video channel

Programme Sorting

Select Prog:

Confirm:

PROG CH

LABEL

Programme Sorting

Select Position:

Move: OK

C03

TV 5

PROG CH

LABEL

 1

 2

 3

 4

 5

 6

 7

 8

 9

10

11

C03

C05

C07

C08

C09

C11

C12

C13

C14

C15

C16

TV 5

PRO 7

EU-SP

SWF

RTL

SAT

MDR

DDI

DSF

RTL 2

KAB 1

C03

C05

C07

C08

C09

C11

C12

C13

C14

C15

C16

TV 5

PRO 7

EU-SP

SWF

RTL

SAT

MDR

DDI

DSF

RTL 2

KAB 1

1

 2

 3

 4

 5

 6

 7

 8

 9

10

11

1

2

3

6

5

4

7

8

9

0

6

Operation

Overview of the TV set buttons

Volume control buttons.

Press to increase (+) /decrease

(-) volume.

Video input button.

Press to select

the input

signals from VCR etc.

Programme Up (+) or

Down (-) buttons.

Press to select TV

channels.

Master Reset button.

Press to return the picture and sound

levels to factory settings. The Sony logo

will appear on the screen followed by the

‘Autotune’ screen. If you do not wish to

retune your TV, press the

b

button on

your remote control.

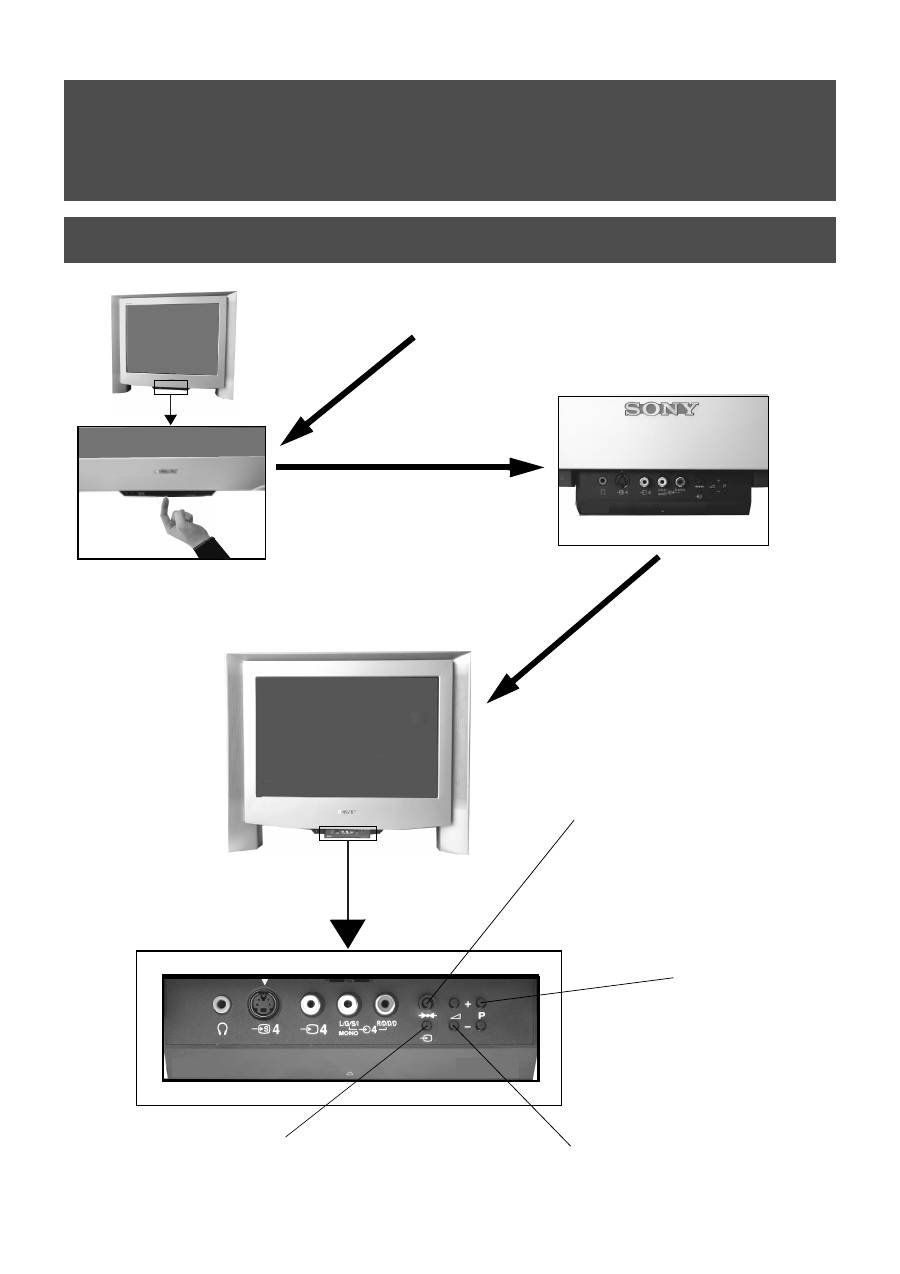

Push up on the control panel (as shown)

to access the front input sockets and TV

buttons.

The control panel drops down.

100Hz

100Hz

7

Operation

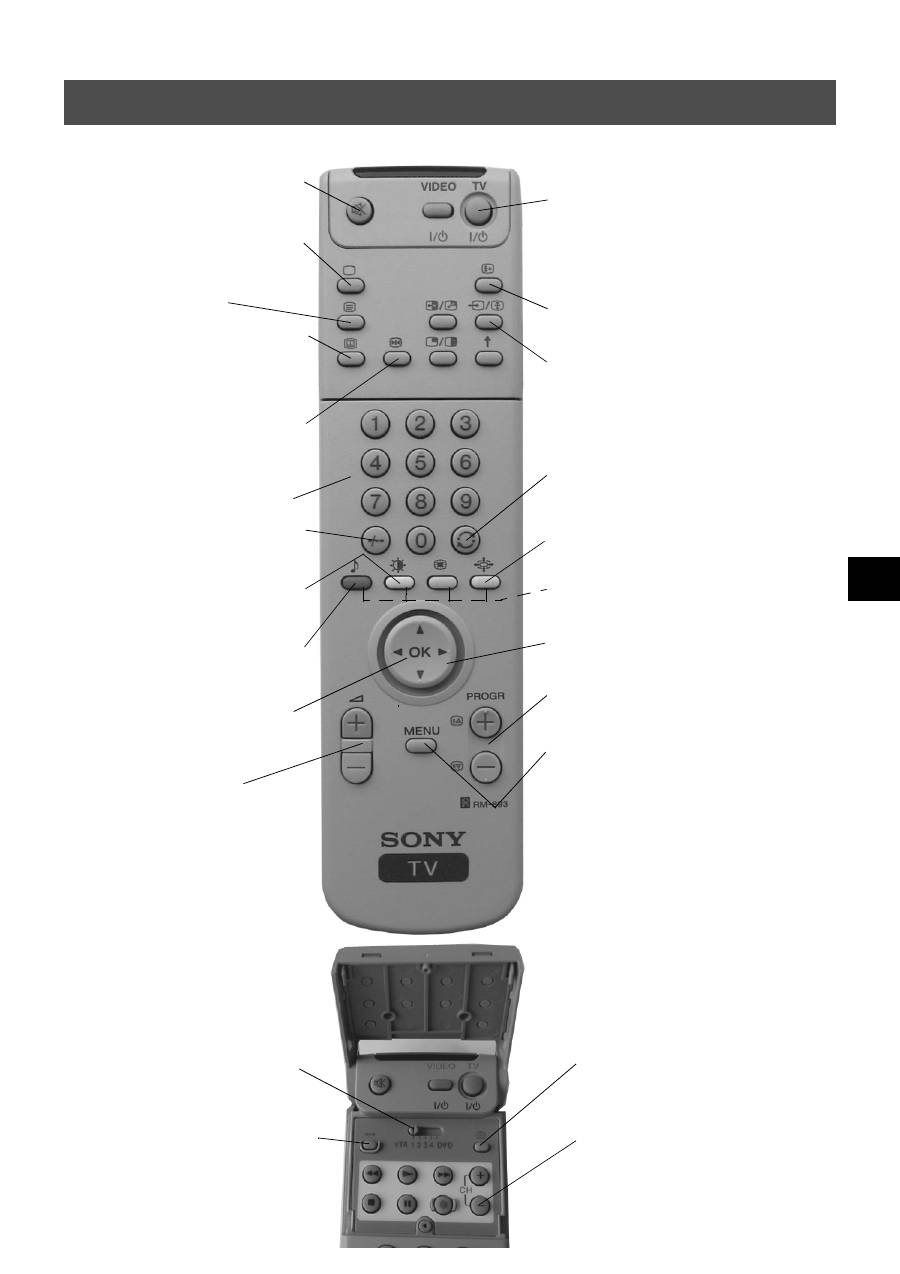

Overview of the remote control buttons

To temporarily switch off TV

Press to temporarily switch off TV. Press again to switch on

from standby mode. To save energy, we recommend

switching off completely when TV is not in use.

NOTE: After 15-30 minutes without a TV signal and without

any button being pressed, the TV switches automatically into

standby mode.

To reveal on screen information

Press to reveal all on-screen indications. Press again to

cancel. In Teletext mode, press to reveal the index page

(normally page 100).

To select input signal or freeze teletext

Press to select inputs from the TV sockets (see Using

Optional Equipment section). In Teletext mode, press to

freeze the displayed page. Press once again to cancel.

To return to previous channel

Press to return to the previous channel you were watching.

Note: This can be done only after watching the present

channel for 5 seconds.

To change screen format

Press repeatedly to select 4:3 mode or 16:9 mode (imitation

of wide screen format).

Fastext keys

See Teletext section of manual for details.

To select menu items

Use the OK button and arrow keys to select the options

available in the menu system of this TV.

To select channels

Press to select channels.

To display the menu

Press if you wish to use the TV menu system. Press again to

remove the menu from the TV screen.

To mute sound

Press to mute TV sound. Press again to restore the

sound.

To return to TV mode

Press to return to the normal operation from teletext

mode or standby mode.

To select Teletext

Press to switch Teletext on and off.

To select Electronic Programme Guide

(EPG)

Press to switch EPG on and off.

To freeze the picture

Press if you wish to make a note of some

information on the TV screen eg a telephone

number. Press again to return to normal TV mode.

To select channels

Press the numbered buttons to select channels.

For double digit programme numbers, e.g.23, press

-/-- first, then the buttons 2 and 3.

To display picture menu

Press to change the picture settings. Press the OK

button to remove the display.

To display sound menu

Press to change the sound settings. Press the OK

button to remove the display.

To display the Channel Table

Press the OK button. Press

v

or

V

 to select the

desired channel then press

B

 to confirm.

To adjust TV volume

Press to adjust the volume of the TV.

To reset to factory set levels.

Open the remote control lid and press to return

picture and sound settings to factory-set levels.

After the ‘Installation’ menu has appeared on

the TV screen, refer to the ‘Selecting Language

and Country’ section of the instruction manual

to change your choice of language and country

if desired.

To display the time.

Open the remote control lid and press to display the

time on screen. Press again to cancel.

To operate video equipment

Open the remote control lid and press these buttons to

operate your video equipment (please refer to your

VCR manual).

To operate other Sony equipment.

Open the remote control lid and set the selector VTR 1234

DVD according to the equipment you want to control:

VTR 1: Beta VCR

VTR 2: 8mm VCR

VTR 3: VHS VCR

VTR 4 Digital Video (DCR-VX 1000/9000E, VHR-1000)

DVD Digital Video Disk

Use the buttons on the remote control to operate the

equipment.

8

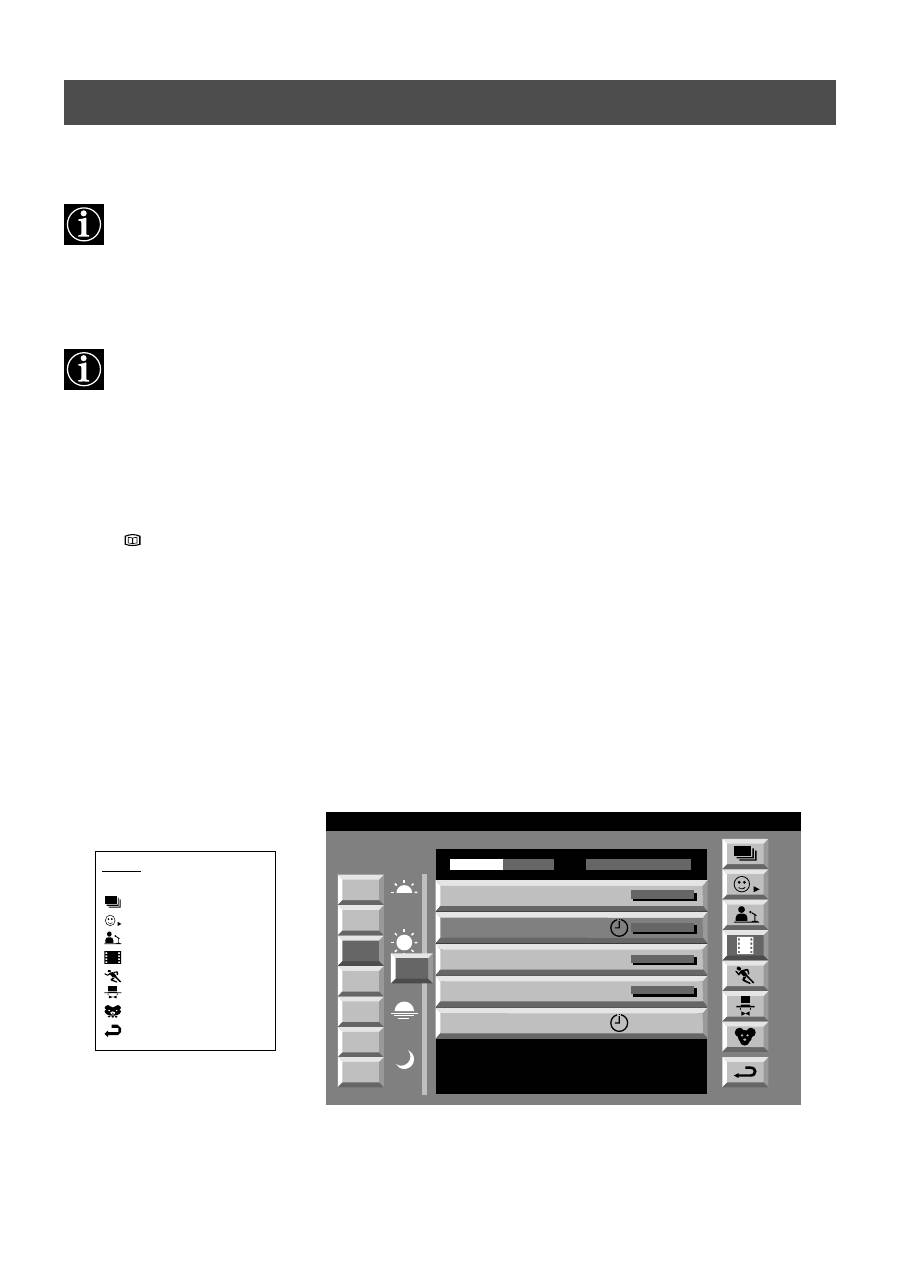

Operation

NexTView is an electronic programme guide with up to 1 week* of programme information on those channels included

in the selected provider.

*If the data exceeds the memory of NexTView, you will get information on less than 7 days.

When looking for information you can search by theme (sports, art etc.), date or time (e.g. broadcasts between 8 and 9

p.m.). When you’ve found a programme you can go directly to this programme, use the timer to remind you of it or preset

your VCR with Smartlink.

The NexTView provider is responsible for the contents of the guide. The TV set is responsible for the presentation, that

is the menu structure and the navigation, if there is none from the provider. If there is a navigation from the provider the

basic operation with the joystick is the same as described in the Sony navigation.

At first you need to select a channel providing a NexTView service. In this case the indication “NexTView” is displayed

as soon as all data is available. When you later change the channel you can still select this NexTView service.

NexTView*

Index

full list of selection

personal selection

news broadcasts

movies

sports

entertainment

children

return to last menu

* depending on availability of service

Operation using the Sony navigation

1. Press

 to switch NexTView on and off.

2. Use the joystick buttons as follows

(a)

while in the columns date, time or icon (themes), the programme list changes according to the selection.

(b)

while in the programme list, confirming a running broadcast brings you directly to the TV programme or confirming

a future programme brings you to the long info menu.

•

moving up or downwards within a column: Use

v

 or

 V

.

•

going to the left columns time and date: Use

b

.

•

going to the right column icons: Use

B

.

•

Confirming a selection: Press OK.

7

Tue

07 Tue

12:38

8

Wed

10

Fri

11

Sat

12

Sun

13

Mon

9

Thu

12

SWISS

Star Wars

Super RTL

Fantasy film, USA, 1996

Werner - Beinhart

Pro 7

Flui grüsst den Rest der Welt

Kabel 1

Once upon a time in the West

Euronews

International News

RTL Plus

10:35 - 12:45

10:20 - 12:00

10:45 - 10:50

11:00 - 11:20

11:45 - 12:50

TXT

TPS / RINGIER

Tue 07. 04 .98

9

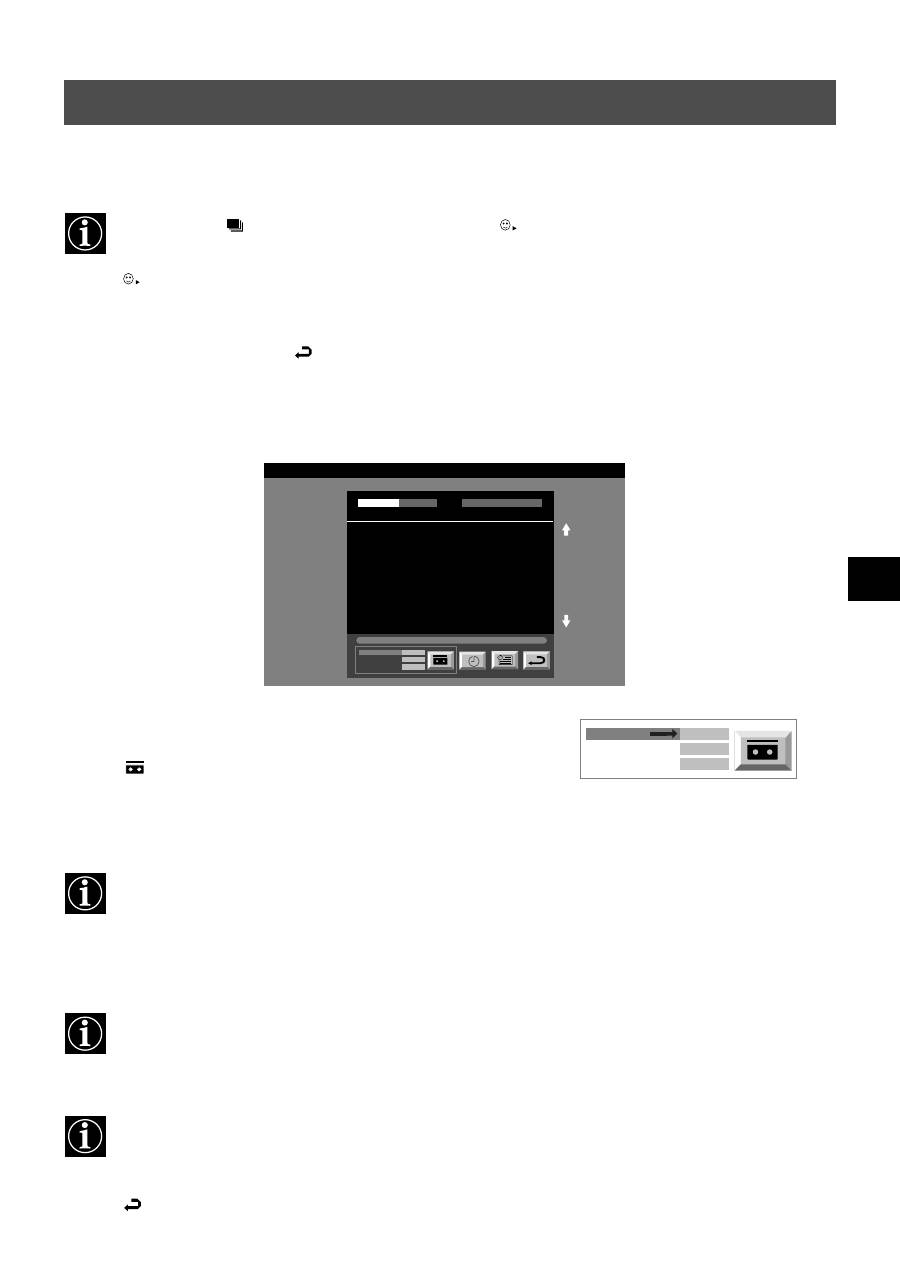

Individual Setting

When you select          there will be no personal pre-selection.          lets you make your own individual selection of

themes, limiting the search to the marked ones.

1. Select       using

v

or

V

. Push

B

 to enter.

The menu Individual Settings is displayed.

2. Select the item you wish to mark using

v

or

V

. Confirm by pressing OK.

Repeat step 2 for all the items you wish to have in your list.

3. When finished with the list, select        using

B

 and press OK.

Using the ‘Long Info’ menu

1. Select a future programme in the column programme list using

v

or

V

. Press OK.

The long info menu is displayed.

You may wish to record the selected programme with your VCR.

(only with Smartlink VCRs)

2. Select        using

b

 and press OK.

This information is transferred to the VCR connected to your set.

Setting up your VCR

3. Select VPS/PDC by pushing

b

 repeatedly.

4. Select Speed using

V

.

5. Select VCR Setup using

V

.

6. Select       using

B

. Press OK.

You are back in the last menu.

07 Tue

12:38

Address Mapping

The position of the addresses in the

OSDA is shown in the following diagram.

The position values of the DPW are set

to '0'.

If other values are set, the complete

combination will be scrolled.

Example:

if the DPWC is set to '63', the char-

Speed

Timer Prog

VPS/PDC

SP

VCR1

On

This channel has been set for a timer

First nextTView/EPG-Providers in Europe

SWISS

TXT

TPS / RINGIER

nexTView

Tue 07. 04 .98

With this setting on, you have the guaranteed recording of the whole broadcast

should there be a change in the TV programme. This only works if the selected

channel broadcasts a VPS/PDC signal.

•

Select On or Off using OK.

Select between standardplay (SP) or longplay (LP) mode.With longplay you can

record twice as much on a videotape. The picture quality, however, may suffer.

•

Select SP or LP using OK.

Operation

NexTView*

Select which of the connected Smartlink VCRs you wish to programme.

•

Select VCR 1 or 2 using OK.

Speed

VPS/PDC

VCR1

On

SP

VCR Setup

10

Operation

Most TV channels broadcast information via Teletext. The index page of the teletext service (usually page 100) gives

you information on how to use the service. Please use a TV channel with a strong signal, otherwise there may be Teletext

errors.

Teletext

Switching Teletext on and off

1. Select the TV channel which carries the teletext service you want to view.

2. Press the

 button once to get Teletext only.

3. Press

 twice for Mix mode.

4. Press

  or press

 a third time to switch off Teletext.

Selecting a Teletext page

Input three digits for the page number using the numbered buttons on the remote control. If

you make a mistake, type in any three digits then re-enter the correct page number.

Using Other Teletext Functions

Selecting the next or preceding page

Press the

 or

 buttons on the remote control to select the previous or next page.

To freeze a Teletext page

Press the

 button to freeze the page. Press again to cancel the freeze.

Revealing the index page

Press the

 button to reveal the index page (normally page 100).

Selecting a sub page

A teletext page may consist of several sub pages. In this case an information line is displayed,

showing the number of subpages. It may take a few seconds for the information line to appear.

Select the sub page by pressing

v

or

V

.

Using colour buttons to access pages (Fastext)

(only available if the TV station broadcasts Fastext signals)

When the colour coded menu appears at the bottom of a page, press a coloured button on the

remote control (green, red, yellow or blue) to access the corresponding page.

Using the feature ‘Page Catching’

1. Press the numbered buttons on the remote control to select a teletext page which has

several page numbers on it (eg the index page).

2. Press the OK button.

3. Press

v

or

V

 to select the desired page number then press the OK button.  The requested

page is displayed after some seconds.

Index

TELETEXT

Programme

News

Sport

Weather

  25

153

101

  98

Index

TELETEXT

Programme

News

Sport

Weather

  25

153

101

  98

m

m

m

216-02

01

03

04

05

06

07

08

02

11

Operation

Teletext

Using the Teletext menu

1. With Teletext switched on, press the MENU button on the remote control to display the

menu on the TV screen.

2. Press

v

or

V

 to select your chosen item on the screen then press

B

 to display the relevant

sub menu.

3. To remove the Teletext menu from the screen, press the MENU button.

Top/Bottom/Full

The Top/Bottom/Full sub menu allows you to enlarge different sections of the Teletext page.

Press

v

 to enlarge the upper half of the screen, Press

V

 to enlarge the lower half. Press the OK

button to restore the page to normal size. Press

b

 to return to the Teletext menu screen.

Text Clear

Text Clear is a function that displays a TV channel while a Teletext page is being searched for.

Reveal

Some Teletext pages contain hidden information (eg for a quiz), which can be revealed.

Time Page*

*depending on availability of service.

Time Page allows a time-coded Teletext page (such as an alarm page), to be displayed at a set

time.

Top:

Bottom:

Full: OK

Teletext

Top / Bottom / Full

Text Clear

Reveal

Time  Page

Page Overview

Select:

Enter Menu:

1. Press the

 button on the remote control twice to select full screen text.

2. Press the MENU button to display the ‘Teletext’ menu.

3. Press

v

or

V

 to highlight ‘Text Clear’ and press

B

 to select.

4. The current TV channel is displayed. Once the text page has been found a blue

symbol will appear in the top left hand corner of the screen.

5. Press the

 button on the remote control to view the page.

1. In text mode press the MENU button on the remote control to access the ‘Teletext’ menu.

2. Press

v

or

V

 to highlight ‘Reveal’ and press

B

 to select. The hidden information is

displayed on the screen.

1. In Text mode press the MENU button on the remote control to access the ‘Teletext’

menu.

2. Press

v

or

V

 to highlight ‘Time Page’ and press

B

 to select. The ‘Time Page’ sub menu

is displayed.

3. Enter the desired page number using the numbered buttons on the remote control.

4. Enter the desired time using the remote control.

5. Press OK to confirm the settings. The TV will exit Teletext mode and the time will be

displayed in the top left hand corner of the screen. At the requested time the desired page

is displayed.

Time  Page

PAGE

TIME

Select Page: 0-9

Next:

- - : - -

– – –

Page Overview*

*only available if TOP-Text is transmitted by the TV station.

In this menu the TOP-Text pages are divided into two columns, the first column showing

‘blocks’ of pages and the second showing ‘groups’ of pages.

1. Press

b

or

 B

 to select the first or second column.

2. Press

v

or

V

 to select the relevant ‘group’ or ‘block’ of pages.

3. Press the OK button to display the chosen pages.

12

Operation

The TV consists of a menu system which is based on a series of user friendly on-screen displays and menus. These displays will

help you get the most from your TV, helping you to change picture and sound settings, to alter the size of the TV picture and to

rearrange the TV channels etc.

Adjusting the picture and sound

The picture and sound are preset at the factory. You can however adjust them to suit your own taste.

Using the TV menu system

Picture Adjustment

Picture Mode

  Contrast

  Brightness

  Colour

  Sharpness

     Reset

AI

Noise Reduction

Colour Tone

Personal

On

On

Normal

Picture Mode

Live

Personal

Movie

AI

On

Off

Noise Reduction

On

Off

Contrast

Select:

Enter:

Colour Tone

Warm

Normal

Cool

1. Press the MENU button on the remote control to display the menu on the TV screen.

2. Press the

v

or

V

 buttons to select

for picture settings or

for sound settings then

press

B

 to enter either the ‘Picture Adjustment’ menu or the ‘Audio Adjustment’ menu.

3. Press the

v

or

V

 buttons to select the item on the screen you wish to adjust then press

B

 to

confirm. For a description of the menu items and their effects, see the table below.

4. Press the

v

,

V

,

B

 or

b

 buttons to adjust your selected item.

5. As soon as you have adjusted the item, press the OK button to store the new setting.

6. Repeat steps 3-5 if you wish to adjust any of the other items.

7. Press the MENU button to remove the menu from the TV screen.

Picture Control

Item

Effect/Operation

Picture Mode

V

Live  (for live broadcasts)

Personal  (for individual settings)

v

Movie  (for movie broadcasts)

Contrast

Less

b B

More

Brightness*

Darker

b B

Brighter

Colour*

Less

b B

More

Hue**

Reddish

b B

Greenish

Sharpness*

Softer

b B

Sharper

*Only available if ‘Personal’ is selected in ‘Picture Mode’

**Only available for NTSC colour signal (eg. US video tapes)

Reset

Resets picture to the factory preset levels

AI

V

On:

Automatic optimization of contrast level

(Artificial Intelligence)

according to the TV signal.

v

Off: Normal.

Noise Reduction

V

On:

Reduces picture noise in case of a weak

broadcasting signal.

v

Off:

No noise reduction.

Colour Tone

V

Warm:

Gives a warm tint to the picture.

Normal:

Normal.

v

Cool:

Gives a cool tint to the picture.

13

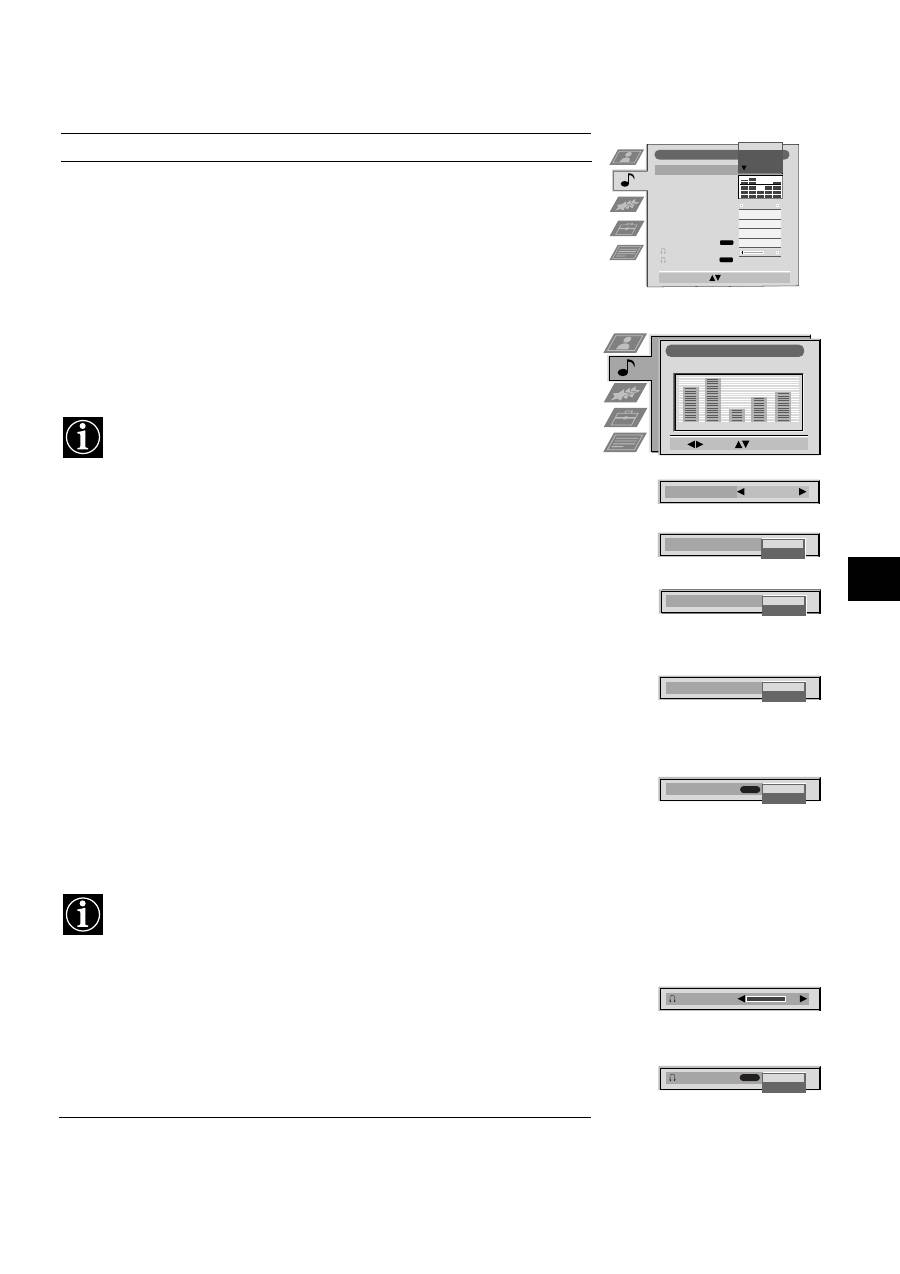

Using the TV menu system:

Audio Adjustment

Equaliser Mode

Equaliser

    Adjustment

Balance

Loudness

Space

Auto Vol. Control

Dual Sound

     Volume

     Dual Sound

Stereo

Off

Off

Stereo

Select Mode :

Off

Confirm: OK

Personal

Vocal

Jazz

Rock

0

NICAM

NICAM

Equaliser Adjustment

Sel:

Adjust:

Confirm:OK

(Personal)

+

0

–

120

150

1,5K

5 K

10 K

Auto Vol. Control

Off

On

Dual Sound

Mono

Stereo

Volume

Dual Sound

B

A

Space

Off

On

Loudness

Off

On

NICAM

NICAM

Balance

0

Sound Control

Item

Effect/Operation

Equaliser Mode

V

Personal

Vocal

Jazz

Rock

Pop

v

Flat (fixed setting, cannot be adjusted)

Equaliser adjustment

You can adjust the mode selected in Equaliser mode by

cutting and boosting the 5 selected frequency bands.

Press

b

 or

B

 to select the frequency band then

V

 or

v

 to

adjust the frequency. Finally, press the OK button to store

the new adjustment.

If you want to store the new setting, you need to set the Equaliser mode to

‘Personal’.  Personal mode permanently stores the setting, all other modes

(Vocal, Jazz, Rock, Pop) store only until the next mode change.

Balance

b

 More

left

B

More right

Loudness

V

Off:

Normal

v

On:

For music broadcasts

Space

V

Off:

Normal

v

On:

Special acoustic effect

Auto Vol. Control

V

Off:

Volume level changes according to the

broadcast signal.

v

On:

Volume level of the channels will stay the

same independent of the broadcast signal (eg

in the case of advertisements).

Dual Sound

For a bilingual broadcast:

V

A for channel 1

v

B for channel 2

For a stereo broadcast:

V

Mono

v

Stereo

When NICAM stereo is being broadcast, the indication NICAM appears briefly

on the screen.

Headphones

i

Volume

Adjusts headphone volume.

Can also adjust the volume level of additional equipment

connected to the RCA sockets on the rear of the TV.

i

Dual Sound

For a bilingual broadcast:

V

A for channel 1

v

B for channel 2

14

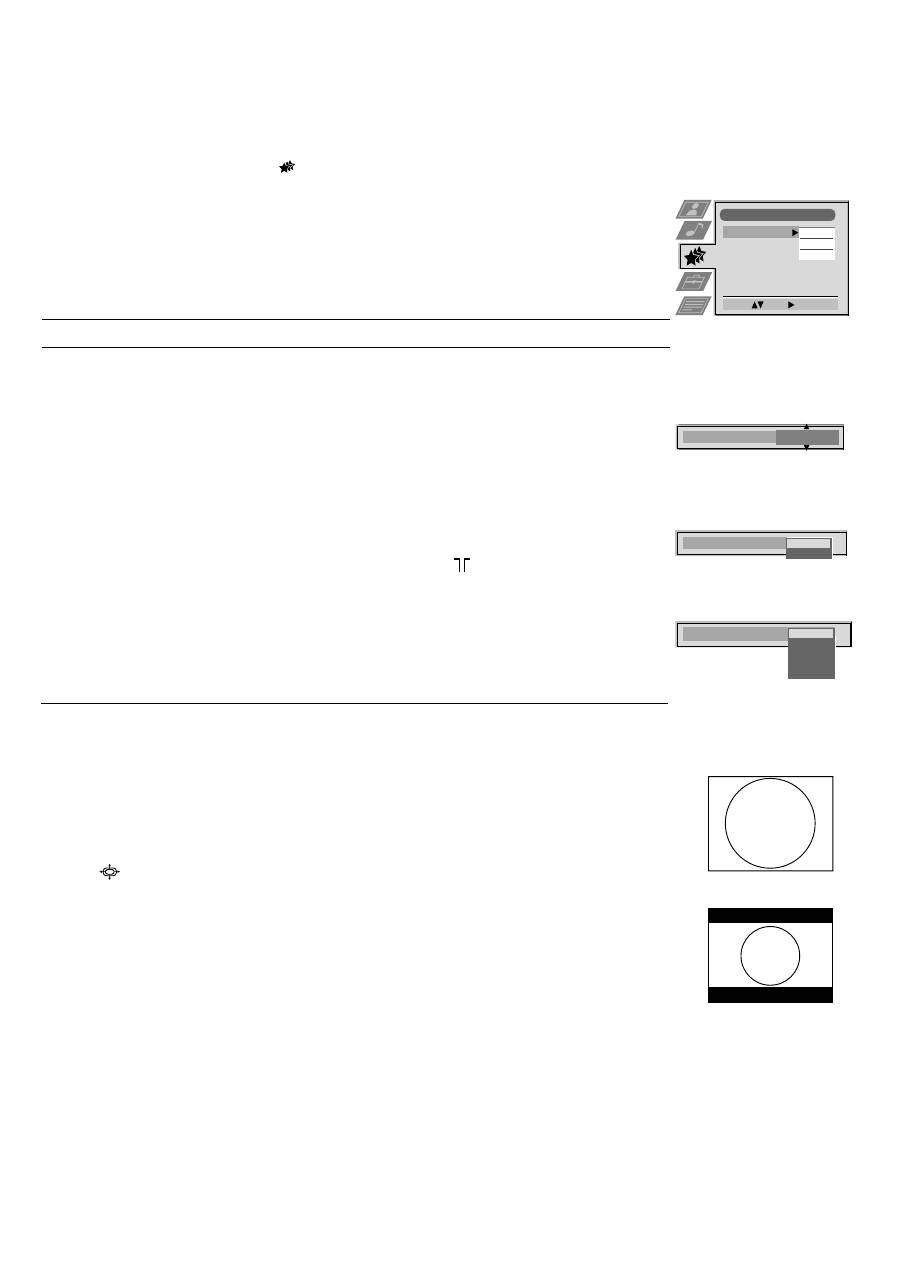

Using the TV menu system:

Using the Features menu

1. Press the MENU button on the remote control to display the menu on the TV screen.

2. Press the

v

or

V

 buttons to select

 for the ‘Features’ menu then press

B

 to enter the ‘Features’

menu.

3. Press the

v

or

V

 buttons to select the desired menu item then press

B

 to confirm.  For a description

of the menu items and their effects, see the table below.

4. Press the

v

,

V

,

B

 or

b

 buttons to select the desired setting.

5. Press the OK button to confirm your choice of setting.

6. Repeat steps 3-5 if you wish to select any of the other items.

7. Press the MENU button to remove the menu from the TV screen.

Item

Effect/Operation

Sleep Timer

You can select a time after which the TV switches itself into

standby mode.

V

Off

v

90 min

Parental Lock

V

Off:   No parental lock.

v

On:

This feature disables the TV buttons when the set is in standby mode.

It is only possible to switch the set back on by pressing a button on

the remote control.

AV2 Output

V

TV audio/video signal from the aerial

AV1 audio/video signal from scart 1

AV2 audio/video signal from scart 2

AV3 audio/video signal from scart 3

v

AV4 audio/video signal from connectors on front of the TV

Features

Select:

Enter:

Sleep Timer

Parental Lock

AV 2 Output

Off

Off

TV

10 min

Sleep Timer

Parental Look

Off

On

AV 2 Output

TV

 AV 1

AV 2

AV 3

AV 4

Changing the screen size

This feature allows you to change the size of the TV picture.

Press the

 button on the remote control repeatedly or use the

v

or

V

 buttons to select one of the

following formats then press the OK button to confirm your selection:

4:3

conventional 4:3 picture size, full picture information.

16:9

for 16:9 broadcasts.

4:3

16:9

15

Using the TV menu system:

Re-arranging the TV channels

After tuning the TV, you can use this feature to change the order of the channels on the TV.



1. Press the MENU button on the remote control to display the menu on the TV screen.

2. Press the

V

button to select the

 symbol on the menu screen then press

B

 to enter the ‘Set Up’

menu.

3. Press the

V

button to select ‘Programme Sorting’ then press

B

 to enter the ‘Programme Sorting’

menu.

4. Press the

v

or

V

buttons to select the channel you want to move then  press

B

 to confirm.

5. Press the

v

or

V

 buttons to select the new programme position (eg PROG 4) for your selected

channel then press the OK button to confirm. The selected channel now moves to its new

programme position and the other channels move accordingly.

6. Repeat steps 4 and 5 if you wish to sort the other channels.

7. Press the MENU button to remove the menu from the TV screen.

Programme Sorting

Select Prog:

Confirm:

Set Up

Auto Tuning

Programme Sorting

AV Preset

Manual Set Up

Select:

Enter:

PROG CH

LABEL

Programme Sorting

Select Position:

Move: OK

C03

TV 5

PROG CH

LABEL

 1

 2

 3

 4

 5

 6

 7

 8

 9

10

11

C03

C05

C07

C08

C09

C11

C12

C13

C14

C15

C16

TV 5

PRO 7

EU-SP

SWF

RTL

SAT

MDR

DDI

DSF

RTL 2

KAB 1

C03

C05

C07

C08

C09

C11

C12

C13

C14

C15

C16

TV 5

PRO 7

EU-SP

SWF

RTL

SAT

MDR

DDI

DSF

RTL 2

KAB 1

1

 2

 3

 4

 5

 6

 7

 8

 9

10

11

Manually tuning the TV

You have already tuned the TV automatically using the instructions at the start of this manual. You can however carry

out this operation manually, adding channels to the TV, one at a time.

1. Press the MENU button on the remote control to display the menu on the TV screen.

2. Press the

V

button to select the

 symbol on the menu screen then press

B

 to enter the ‘Set Up’

menu.

3. Press the

V

button to select ‘Manual Set Up’ on the menu screen then press

B

 to enter the ‘Manual

Set Up’ menu.

4. Press the

V

button to select ‘Manual Programme Preset’ on the menu screen then press

B

 to enter

the ‘Manual Programme Preset’ menu.

5. Press the

v

or

V

buttons to select a programme number for your channel (eg PROGR 1 for BBC1)

then press

B

 to highlight the ‘SKIP’ column.

6. Press

v

to select ‘OFF’ then press

B

 to highlight the ‘SYS’ column.

7. Press the

v

or

V

buttons to select the TV broadcast system or ‘EXT’ for a video input source

(AV1, AV2, ...) then press

B

 to confirm.

8. Press the

v

or

V

buttons to select ‘C’ for terrestrial channels, ‘S’ for cable channels, or ‘F’ for

direct frequency inputs then press

B

 to confirm.

9. Select the first number digit of ‘CH’ (channel) then the second number digit of ‘CH’ with the

number buttons on the remote control or Press the

V

button to search for the next available

channel.

10. If you do not wish to store this channel on the programme number you selected, press the

V

button

to continue searching for the desired channel.

11. If this is the channel you wish to store, press the OK button.

12. Repeat steps 5-11 if you wish to store more channels then press the MENU button to remove the

menu from the TV screen.

PROG

SYS

Off

SKIP

LABEL

1

B/G

Manual Set Up

Select:

Enter:

Language/Country

Manual Programme Preset

Further Programme Preset

RGB Set Up

Picture Rotation

Personal ID

Manual Programme Preset

Select:

Enter:

PROG

CH

SYS

SKIP

LABEL

TV5

TV

Off

Off

Off

Off

Off

Off

Off

Off

Off

Off

Off

1

 2

 3

 4

 5

 6

 7

 8

 9

10

11

PROG

CH

SYS

Off

SKIP

LABEL

1

B/G

D/K

IRL

EXT

CH

C

S

F

PROG

SYS

Off

SKIP

LABEL

1

B/G

CH

03

SEARCH

PROG

CH

SYS

Off

SKIP

LABEL

0

EXT

AV1

C09

C10

B/G

B/G

B/G

B/G

B/G

B/G

B/G

B/G

B/G

B/G

B/G



C21

C33

CXX

CXX

CXX

CXX

CXX

CXX

CXX

AV1

AV2

AV3

AV4

O

- - - - - - -

Set Up

Auto Tuning

Programme Sorting

AV Preset

Manual Set Up

Select:

Enter:

16

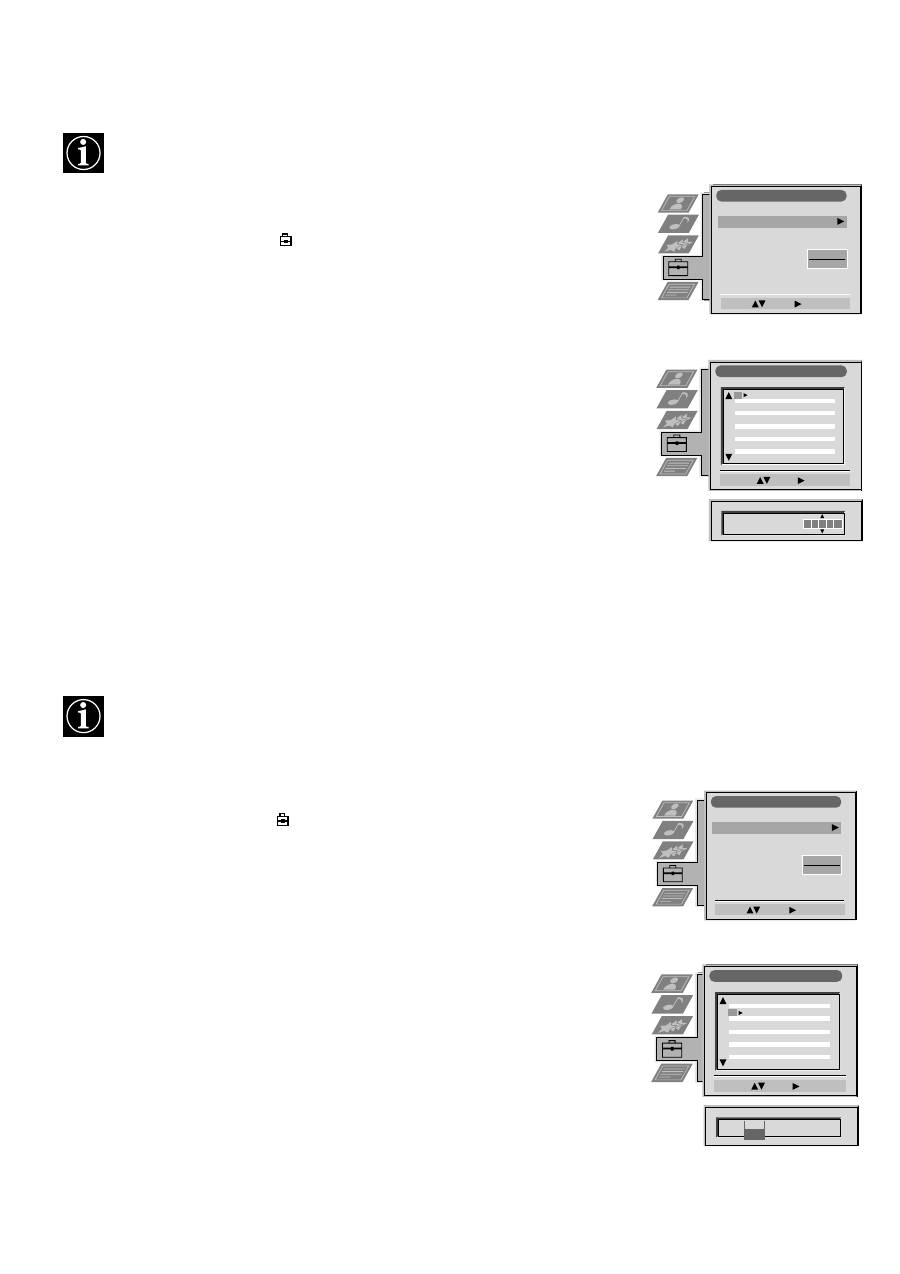

Using the TV menu system:

Naming a channel

Names for channels are usually taken automatically from Teletext if available. You can however name a channel or an

input video source using up to five characters (letters or numbers).

Skipping programme positions

This function enables you to skip unused programme positions when selecting them with the PROGR+/- buttons.

However, by using the number buttons you can still select the skipped programme position.

1. Press the MENU button on the remote control to display the menu on the TV screen.

2. Press the

V

button to select the

 symbol on the menu screen then press

B

 to enter the ‘Set

Up’ menu.

3. Press the

V

button to select ‘Manual Set Up’ then press

B

 to enter the ‘Manual Set Up’

menu.

4. Press the

V

button to select ‘Manual Programme Preset’ then press

B

 to enter the ‘Manual

Programme Preset’ menu.

5. Press the

v

or

V

buttons to select the channel you wish to name.

6. Press the

B

 button repeatedly until the first element of the ‘LABEL’ column is highlighted.

7. Press the

v

or

V

buttons to select a letter or number (select ‘-’ for a blank) then press

B

 to

confirm. Select the other four characters in the same way.

8. After selecting all the characters, press the OK button.

9. Repeat steps 5 to 8 if you wish to label other channels.

10. Press the MENU button to remove the menu from the TV screen.

1. Press the MENU button on the remote control to display the menu on the TV screen.

2. Press the

V

button to select the

 symbol on the menu screen then press

B

 to enter the ‘Set

Up’ menu.

3. Press the

V

button to select ‘Manual Set Up’ then press

B

 to enter the ‘Manual Set Up’

menu.

4. Press the

V

button to select ‘Manual Programme Preset’ then press

B

 to enter the ‘Manual

Programme Preset’ menu.

5. Press the

v

or

V

buttons to select the programme position then press

B

 to highlight the

‘SKIP’ column.

6. Press the

v

or

V

buttons to select ‘Off’ or ‘On’ (if you wish to skip this programme

position) then press the OK button to store.

7. Repeat steps 5 and 6 if you wish to skip or unskip further programme positions.

8. Press the MENU button to remove the menu from the TV screen.

Manual Programme Preset

Select:

Enter:

PROG

CH

SYS

SKIP

LABEL

PROG

CH

SYS

SKIP

LABEL

 53

I

F189

- - -

Off

On

C09

C10

BBC1

BBC

I

I

Off

Off

Off

Off

Off

Off

Off

Off

Off

Off

Off

51

52

53

54

55

56

57

58

59

60

61

Manual Programme Preset

Select:

Enter:

PROG

CH

SYS

SKIP

LABEL

C09

C10

ARD

BBC

B/G

B/G

Off

Off

Off

Off

Off

Off

Off

Off

Off

Off

Off

1

 2

 3

 4

 5

 6

 7

 8

 9

10

11

PROG

CH

SYS

Off

SKIP

LABEL

 6

I

C07

T E

Manual Set Up

Select:

Enter:

Language/Country

Manual Programme Preset

Further Programme Preset

RGB Set Up

Picture Rotation

Personal ID

Demo

O

- - - - - - -

Manual Set Up

Select:

Enter:

Language/Country

Manual Programme Preset

Further Programme Preset

RGB Set Up

Picture Rotation

Personal ID

O

- - - - - - -

Manual Set Up

Select:

Enter:

Language/Country

Manual Programme Preset

Further Programme Preset

RGB Set Up

Picture Rotation

Personal ID

O

- - - - - - -
