Sony KV-36FS70K: instruction

Instruction Manual

KV-36FS70K

4-204-994-94

R

Trinitron Colour

Television

© 1999 by Sony Corporation Printed in UK

Instrukcja obsługi

Návod k obsluze

Kezelési útmutató

Инструкции за употреба

Инструкция по зксплуатации

420499494

Safety Information

For your safety

This set is to operate on a 220-240V AC supply

only. Take care not to connect too many

appliances to the same power socket as this could

result in fire or electric shock.

For environmental and safety reasons, it is

recommended that the TV set is not left in

standby mode when not in use. Disconnect

from the mains.

Never push objects of any kind into the set as

this could result in a fire or electric shock. Never

spill liquid of any kind on the set. If any liquid or

solid object does fall through, do not operate the

TV. Have it checked immediately by qualified

personnel.

Do not open the cabinet and the rear cover of the

TV. Refer to qualified service personnel only.

To prevent fire or shock hazard, do not expose

the TV to rain or moisture.

For your own safety, do not touch any part of the

TV, power lead or aerial lead during lightning

storms.

Do not cover the ventilation openings of the TV

For ventilation, leave a space of at least 10cm all

around the set.

Never place the TV in hot, humid or excessively

dusty places. Do not install the TV where it may

be exposed to mechanical vibrations.

To prevent fire, keep inflammable objects or

naked lights (eg candles) away from the TV.

Clean the TV with a soft, lightly dampened cloth.

Do not use benzine, thinner or any other

chemicals to clean the TV. Do not scratch the TV

screen. As a safety precaution, unplug the TV

before cleaning it.

Pull out the power lead by the plug. Do not pull

on the power lead itself.

Take care not to place heavy objects on the power

lead as this could result in damage.

We recommend you wind any excess lead around

the holders provided on the rear of the TV.

Place the TV on a secure stable stand. Do not

allow children to climb on to it. Do not place the

TV on its side or face up.

Unplug the power lead before moving the TV.

Avoid uneven surfaces, quick steps or excessive

force. If the set has been dropped or damaged,

have it checked immediately by qualified

service personnel.

Do not cover the ventilation openings of the TV

with items such as curtains or newspapers etc.

1

Table of Contents

Table of Contents

Installation

1. Checking the accessories supplied

2. Inserting batteries into the remote control

3. Connecting the TV

4. Switching on the TV

5. Using the joystick

6. Tuning your TV

7. Finding your video channel

2

2

3

5

5

6

6

Operation

Overview of the TV set buttons

Overview of the remote control buttons

NexTView

Teletext

Using the TV menu system

Adjusting the picture settings

Adjusting the sound settings

Setting up ‘Dolby Surround’

Using the Features menu

Changing the screen size

Using Multi PIP

Operating PAP (Picture and Picture)

Re-arranging the TV channels

Manually tuning the TV

Naming a channel

Skipping programme positions

Using the ‘Further Programme Preset’ feature

Selecting the ‘Demo’ feature

Adjusting the picture rotation

Adjusting the picture geometry for an RGB source

Inputting your personal ID

Presetting and labelling of input sources

7

8

9

11

13

13

14

15

16

16

17

17

18

18

19

19

20

20

21

21

22

22

Additional Equipment

Connecting additional equipment to the TV

Additional information when connecting equipment

Smartlink

Remote control of other Sony equipment

23

24

24

24

Additional Information

Specifications

Channel Display Table

Troubleshooting

25

25

26

2

Follow steps 1-7 to install the TV and  view TV programmes. Installation

1. Checking the accessories supplied

2. Inserting batteries into the remote control

Always remember to dispose of used batteries in an environmentally friendly way.

remote control

batteries

surround speakers

surround speaker leads

3

Installation

Dolby* Pro Logic Surround normally requires 5 speakers.

Centre speaker (incorporated in the TV set) to anchor the stable sound image such as dialogues to the TV screen.

Left and right front speakers (incorporated in the TV set) for the normal two channels or stereo broadcasts.

Surround speakers (supplied) for the special effects created by the surround channel.

Connecting the supplied speakers

Connecting your own speakers

(Make sure the speakers have at least 8 ohms impedance and are magnetically shielded. Otherwise you may get picture

distortions).

*Manufactured under licence from Dolby Laboratories Licensing Corporation.  Dolby, ProLogic and the double-D symbol are

trademarks of Dolby Laboratories Licensing Corporation.

3. Connecting the TV

Connecting the speakers

S

C

S

R/D/D/D

L/G/S/I

right speaker

left speaker

surround speakers

S

C

S

surround speakers

black

lead

black/

white

lead

4

R/D/D/D

L/G/S/I

R/D

D/D

L/G

S/I

C

-

-

-

s

s

1

1

2

S

2

3

S

3

R/D/D/D

L/G/S/I

R/D

D/D

L/G

S/I

C

-

-

-

s

s

OUT

IN

AC IN

1

1

2

S

2

3

S 3

Installation

3. Connecting the TV

The scart lead is

optional.  If it can be

used however, this

additional

connection can

improve picture and

sound quality when

in play mode.

If you are not connecting

your TV to a VCR,

please connect the aerial

lead (as shown left) and

proceed to section

‘4.Switching on the TV’.

If you are connecting

your TV to a VCR please

refer to the section

below.

(existing aerial lead)

1. Connect your existing aerial lead to your VCR as shown.

2. Connect the VCR aerial lead from the RF OUT socket on the back of the VCR to the aerial

socket on the back of the TV as shown.

3. Connect the VCR set to the mains and switch on.

4. Insert a pre-recorded tape into the VCR and press the ‘PLAY’ button.

1. Connect your existing aerial lead to the socket marked

 on the rear of the TV set.

(scart lead - not supplied)

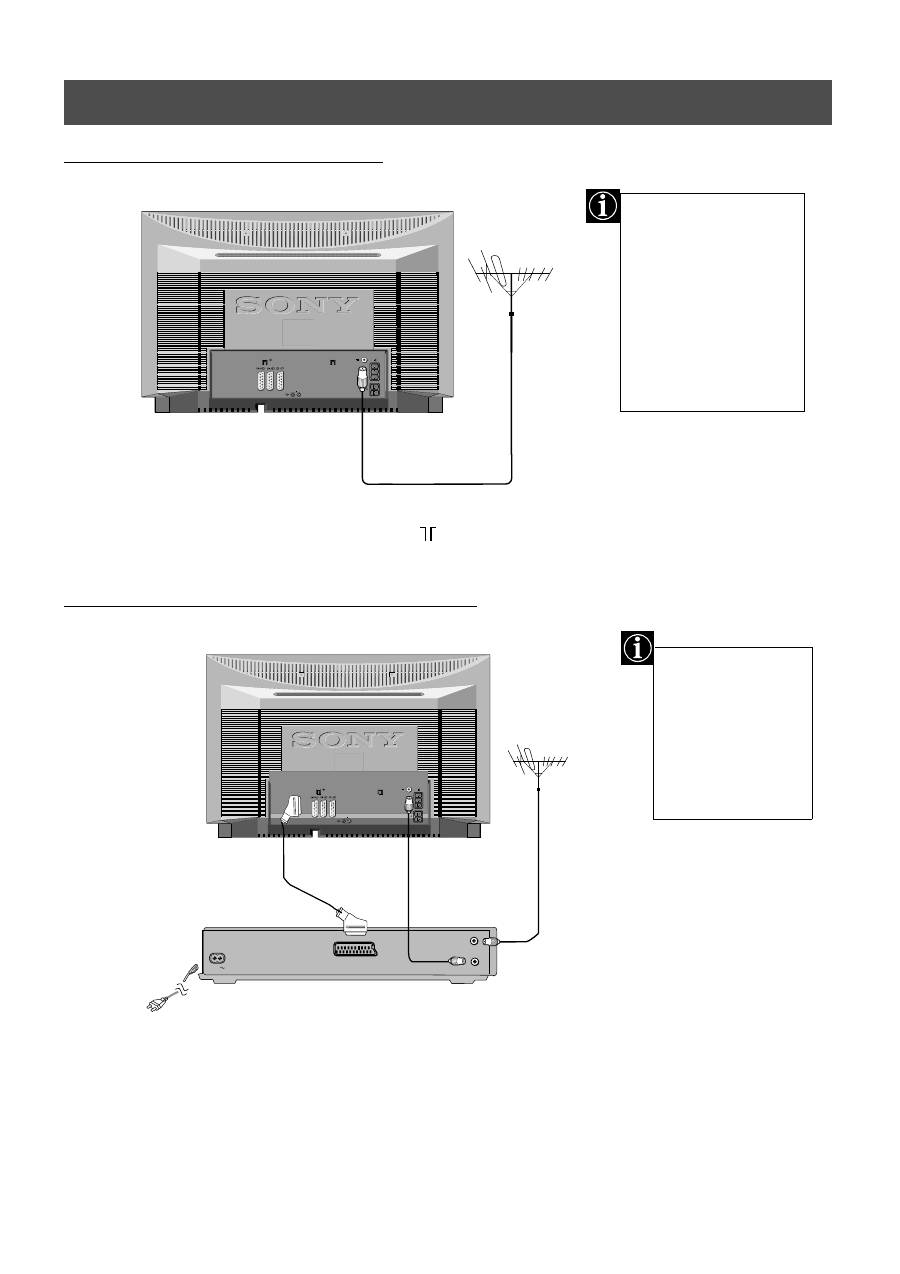

Connecting an aerial to your TV

Connecting an aerial and VCR to your TV

5

Installation

1. Connect the TV plug to the mains socket (220-240V AC, 50Hz) and switch on.

2. Push in the on/off button

 on the front of the TV.

If the standby mode indicator on the front of the TV is lit, press the TV

 button on the

remote control to switch on the TV set.  Please be patient as the picture may take a few

moments to appear on the TV screen.

4. Switching on the TV

5. Using the joystick

/

To select an item in a menu press

the OK button down in the middle.

To move around the menus press

the relevant arrow button.

Moving the joystick

Pressing the joystick

6

Installation

Before you tune your TV, you will be asked to set your language and country.

6. Tuning your TV

:

:

:

:

Language/Country

Language

Country

Select Country:

Confirm: OK

Greece

Great Britain

Germany

France

Finland

Denmark

Czech Rep.

Language/Country

Language

Country

Select Language:

Confirm: OK

Italiano

Français

Español

English

Deutsch

Dansk

Čeština

1. The Language/Country menu appears on the TV screen with the

word ‘English’ highlighted.

2. Press the

v

or

V

buttons on the remote control to select your

chosen language then press the OK button to confirm.  The

country menu appears on screen with the word ‘OFF’ highlighted.

Select ‘OFF’ if you do not want your channels stored in a given

channel sequence starting from programme position 1.

3. Press

v

or

V

to select the country in which you wish to operate

the TV then press the OK button to confirm your choice.

4. The ‘autotune’ menu appears on the TV screen in your selected

language.  Press the OK button to confirm.

5. Ensure the aerial is connected as instructed, then press the OK

button to confirm.  The TV starts to auomatically search and store

all available channels for you.  This may take a few minutes -

please be patient and do not press any buttons.

6. Once the TV has tuned all available channels the ‘Programme

Sorting’ menu appears on the TV screen enabling you to change

the order of the channels on your TV.  If you wish to change the

channel order, press the

v

or

V

buttons to select the channel you

want to move then press

B

.  Press the

v

or

V

buttons to select the

new programme number position for your selected channel then

press the OK button to confirm.  The selected channel now moves

to its new programme position and the other channels move

accordingly.  Repeat this procedure if you wish to sort the order of

other channels on your TV.

7. Press the MENU button to remove the menu from the TV screen.

8. Press the PROGR+/- or the numbered buttons to view the TV

channels.

Note: If you would like to stop the autotune process at any stage,

press the OK button.

If you have connected a VCR to your TV, you now need to find your video channel.

1. Press the PROGR+/- buttons on your remote control until your video picture appears on the TV screen.

Note: If you wish to move your video channel to a different programme position, refer to the ‘Re-arranging the TV channels’

section of this instruction manual.

7. Finding your video channel

Programme Sorting

Select Prog:

Confirm:

PROG CH

LABEL

Programme Sorting

Select Position:

Move: OK

C03

TV 5

PROG CH

LABEL

 1

 2

 3

 4

 5

 6

 7

 8

 9

10

11

C03

C05

C07

C08

C09

C11

C12

C13

C14

C15

C16

TV 5

PRO 7

EU-SP

SWF

RTL

SAT

MDR

DDI

DSF

RTL 2

KAB 1

C03

C05

C07

C08

C09

C11

C12

C13

C14

C15

C16

TV 5

PRO 7

EU-SP

SWF

RTL

SAT

MDR

DDI

DSF

RTL 2

KAB 1

1

 2

 3

 4

 5

 6

 7

 8

 9

10

11

7

+

–

+

–

PROGR

CONTROL

Operation

Overview of the TV set buttons

Volume control buttons.

Press to increase (+) /

decrease (-) volume.

Video input button.

Press to select

the input

signals from VCR etc.

CONTROL button

Press to activate and

illuminate the control panel.

On/Off switch.

Press to switch TV on and off.

Programme Up (+) or

Down (-) buttons.

Press to select TV

channels.

8

Operation

Overview of the remote control buttons

To temporarily switch off TV

Press to temporarily switch off TV.  Press again to switch on

from standby mode.  To save energy, we recommend

switching off completely when TV is not in use.  NOTE:

After 15-30 minutes without a TV signal and without any

button being pressed, the TV switches automatically into

standby mode.

To reveal on screen information

Press to reveal all on-screen indications.  Press again to

cancel.  In Teletext mode, press to reveal the index page

(normally page 100).

To select input signal or freeze teletext

Press to select inputs from the TV sockets (see Using

Optional Equipment section).  In Teletext mode, press to

freeze the displayed page.  Press once again to cancel.

Please refer to the ‘Operating PAP’ section of this

instruction manual for details.

To return to previous channel

Press to return to the previous channel you were watching.

Note: This can be done only after watching the present

channel for 5 seconds.

Press to switch Multi PIP mode on and off

.

To change screen format

Press to change the size of the screen.

Fastext keys

See Teletext section of manual for details.

To select menu items

Use the OK button and arrow keys to select the options

available in the menu system of this TV.

To display the menu

Press if you wish to use the TV menu system.  Press again to

remove the menu from the TV screen.

To select channels

Press to select channels.

To mute sound

Press to mute TV sound. Press again to restore the

sound.

To return to TV mode

Press to return to the normal operation from teletext

mode or standby mode.

To select Teletext

Press to switch Teletext on and off.

To select Electronic Programme Guide

(EPG)

Press to switch EPG on and off.

To freeze the picture

Press if you wish to make a note of some

information on the TV screen eg a telephone

number.  Press again to return to normal TV mode.

To select channels

Press the numbered buttons to select channels.

For double digit programme numbers, e.g.23, press

-/-- first, then the buttons 2 and 3.

To display picture menu

Press to change the picture settings.  Press the OK

button to remove the  display.

To display sound menu

Press to change the sound settings.  Press the OK

button to remove the  display.

To display the Channel Table

Press the OK button.  Press

v

or

V

 to select the

desired channel then press

B

 to confirm.

To adjust TV volume

Press to adjust the volume of the TV.

To reset to factory set levels.

Open the remote control lid and press to return

picture and sound settings to factory-set levels.

After the ‘Installation; menu has appeared on

the TV screen, refer to the ‘Selecting Language

and Country’ section of the instruction manual

to change your choice of language and country

if desired.

To display the time.

Open the remote control lid and press to display the

time on screen.  Press again to cancel.

To operate video equipment

Open the remote control lid and press these buttons to

operate your video equipment (please refer to your

VCR manual).

9

Operation

NexTView is an on-screen electronic programme guide, providing you with programme information for different

broadcasters.

NexTView*

Selecting your NexTView provider

Your TV set automatically selects the best NexTView provider for you.  This provider is available about 30 minutes after the

channel tuning.  You can however change this selection of provider if you wish.

1. Press the MENU button on the remote control to display the menu on the TV screen.

2. Press the

v

or

V

buttons to select the the

 symbol on the menu screen then press

B

 to enter the ‘Set Up’ menu.

3. Press

v

or

V

to highlight ‘Select NexTView’ then press

B

 to confirm.  A list is displayed containing all available

NexTView providers.

4. Press

v

or

V

to select the desired NexTView provider then press the OK button to store.

5. Press the MENU button to remove the menu from the TV screen.

7

Tue

07 Tue

12:38

8

Wed

10

Fri

11

Sat

12

Sun

13

Mon

9

Thu

12

SWISS

Star Wars

Super RTL

Fantasy film, USA, 1996

Werner - Beinhart

Pro 7

Flui grüsst den Rest der Welt

Kabel 1

Once upon a time in the West

Euronews

International News

RTL Plus

10:35 - 12:45

10:20 - 12:00

10:45 - 10:50

11:00 - 11:20

11:45 - 12:50

TXT

TPS / RINGIER

Tue 07. 04 .98

Displaying NexTView

1. Press the

 button repeatedly on the remote control to switch NexTView on and off.

* In some cases, you may also need to press the

b

 button to display the Sony electronic programme guide.

2. Press the

v

,

 V

,

b

 or

B

 buttons to move the cursor around the screen.

3. Press the OK button to confirm a selection.

a. If you press the OK button in the date, time or icon (themes) columns, you change the programme list according to the

selection.

b.  If you press the OK button in the programme list, you directly display the channel if the broadcast is currently running,

or, you display the ‘Long Info’ menu if the broadcast is running at some future time.

Index

full selection list

personal selection

news broadcasts

movies

sports

entertainment

children

return to last menu

Using the ‘Individual Setting’ menu

You can make a personal list of the types of programmes you wish to view on the

programme guide.

1. Press the

v

or

V

 buttons to select the

 icon then press

B

 to display the

‘Individual Setting’ menu.

2. Press

v

or

V

 to select your chosen item on the screen then press the OK button to

confirm your choice.

3. Repeat step 2 for all the items you wish to have in your list.

4. When you have finished the list, press

B

 to select

 on the menu screen.

5. Press the OK button to return to the previous menu.

6. Press the

v

or

V

 buttons to select the

 icon then press the OK button again to

activate your ‘Individual Setting’ filter.

Movie

Individual  Setting

Comedy

Adult

News

Interview

Entertainment

* depending on availability of service

10

Using the ‘Long Info’ menu

With this ‘Long Info’ menu screen, you can set timers or record selected programmes.

1. Press

v

or

V

 to select a future programme in the programme list column.

2. Press the OK button to display the ‘Long Info’ menu on the TV screen.

To set the timer

Press the

b

 or

B

 buttons to highlight the

 icon then press the OK button repeatedly to ‘set the timer’ or ‘cancel the timer’.  If

you choose to set the timer, the programme is marked with a clock symbol and a message appears on the screen shortly before

the programme is due to start asking whether you wish to still view this programme.

To view the timer table

Press the

b

 or

B

 buttons to highlight the

 icon then press the OK button repeatedly to switch on/off the timer table.  This table

shows the programmes on which you have already set a timer.  (You can set a timer on up to 5 programmes).

Operation

NexTView

07 Tue

12:38

Address Mapping

The position of the addresses in the

OSDA is shown in the following diagram.

The position values of the DPW are set

to '0'.

If other values are set, the complete

combination will be scrolled.

Example:

if the DPWC is set to '63', the char-

Speed

Timer Prog

VPS/PDC

SP

VCR1

On

This channel has been set for a timer

First nextTView/EPG-Providers in Europe

SWISS

TXT

TPS / RINGIER

nexTView

Tue 07. 04 .98

To record programmes*

* (only with Smartlink VCRs)

1. Connect your Smartlink VCR.

2. Press

b

 or

B

 to select

 then press the OK button to download the information to your VCR.

3. To set up the VCR:

VPS/PDC

Press

b

 to select VPS/PDC then press the OK button repeatedly to select ‘On’ or ‘Off’.  With this setting on you have the

guaranteed recording of the whole broadcast should there be a change in the TV programme. This only works if the selected

channel broadcasts a VPS/PDC signal

Speed

Press

V

 to select ‘Speed’ then press the OK button repeatedly to select between ‘SP’ for standardplay or ‘LP’ for

longplay.  With longplay you can record twice as much on a videotape.  The picture quality however may suffer.

VCR Setup

Press

V

 to select ‘VCR Setup’ then press the OK button repeatedly to select which VCR you wish to programme, namely

‘VCR1’ or ‘VCR2’.

4. Finally, press

B

to select the

 icon then press the OK button to remove the menu from the TV screen.

11

Operation

Most TV channels broadcast information via Teletext.  The index page of the teletext service (usually page 100) gives you

information on how to use the service.  Please use a TV channel with a strong signal, otherwise there may be Teletext errors.

Teletext

Switching Teletext on and off

1. Select the TV channel which carries the teletext service you want to view.

2. Press the

 button once for Picture and Teletext (P&T).  The screen is divided in two,

with the TV channel in the right corner and the Teletext display on the left.

P&T mode: Press

 then press PROGR+/- to change the channel of the TV

screen.  Press

b

or

 B

 to change the size of the TV screen then press

 again

to resume normal teletext reception.

3. Press

 twice to get Teletext only.

4. Press

 three times for Mix mode.

5. Press

 a fourth time to switch off Teletext.

Selecting a Teletext page

Input three digits for the page number using the numbered buttons on the control.  If you make

a mistake, type in any three digits then re-enter the correct page number.

Using Other Teletext Functions

Selecting the next or preceding page

Press the

 or

 buttons on the remote control to select the previous or next page.

Selecting a sub page

A teletext page may consist of several sub pages.  In this case an information line is displayed,

showing the number of subpages.  Select the sub page by pressing

v

or

V

.

To freeze a Teletext page

Press the

 button to freeze the page.  Press again to cancel the freeze.

Revealing the index page

Press the

 button to reveal the index page (normally page 100).

Using colour buttons to access pages (Fastext)

(only available if the TV station broadcasts Fastext signals)

When the colour coded menu appears at the bottom of a page, press a coloured button on the

remote control (green, red, yellow or blue) to access the corresponding page.

Using the feature ‘Page Catching’

1. Press the numbered buttons on the remote control to select a teletext page which has

several page numbers on it (eg the index page).

2. Press the OK button.

3. Press

v

or

V

 to select the desired page number then press the OK button.  The requested

page is displayed after some seconds.

Index

TELETEXT

TELETEXT

Programme

News

Sport

Weather

  25

153

101

  98

Index

TELETEXT

Programme

News

Sport

Weather

  25

153

101

  98

Index

TELETEXT

Programme

News

Sport

Weather

  25

153

101

  98

m

m

216-02

01

03

04

05

06

07

08

02

12

Operation

Teletext is an information service transmitted by most TV stations.

Teletext

Using the Teletext menu

1. With Teletext switched on, press the MENU button on the remote control to display the

menu on the TV screen.

2. Press

v

or

V

 to select your chosen item on the screen then press

B

 to display the relevant

sub menu.

3. To remove the Teletext menu from the screen, press the MENU button.

Top/Bottom/Full

The Top/Bottom/Full sub menu allows you to enlarge different sections of the Teletext page.

Press

v

 to enlarge the upper half of the screen, press

V

 to enlarge the lower half.  Press the

OK button to restore the page to normal size. Press

b

 to return to the Teletext menu screen.

Text Clear

*available in Teletext only and Mix modes (see ‘Switching Teletext on and off’).

Text Clear is a function that displays a TV channel whilst looking for a Teletext page.

1.

Press the

 button twice on the remote control to select full screen text.

2.

Press the MENU button to display the ‘Teletext’ menu.

3.

Press

v

 or

V

 to highlight ‘Text Clear’ and press

B

 to select.

4.

The current TV channel is displayed.  Once the text page has been found a blue

symbol appears in the top left corner of the screen.

5.

Press the

 button on the remote control to view the page.

Reveal

Some teletext pages contain hidden information (eg for a quiz), which you can reveal.  After

having selected the function, the hidden information appears on screen.  After having selected

the function, press

B

.  The hidden information appears on screen.

Time Page*

*depending on availability of service

You can call up a time-coded page such as an alarm page at a time specified by you.  After

you have displayed the Time Page sub menu:

Press the numbered buttons on the remote control to enter the three digits of the desired page.

Press the numbered buttons again to enter the four digits of the desired time.

Press the OK button to store the desired time.  The time is displayed in the top left corner of

the screen.  At the requested time the page is displayed.

Page Overview

*only available if TOP-Text is transmitted by the TV station

In this menu the TOP-Text pages are divided into two columns, the first column showing

‘blocks’ of pages and the second showing ‘groups’ of pages.

1.

Press

b

 or

B

 to select the first or second column.

2.

Press

v

or

V

 to select the relevant ‘group’ or ‘block’ of pages.

3.

Press the OK button to display the chosen pages.

Top:

Bottom:

Full: OK

Time  Page

PAGE

TIME

Select:

Enter:

– – –

- - : - -

Teletext

Top / Bottom / Full

Text Clear

Reveal

Time  Page

Page Overview

Select:

Enter Menu:

13

Operation

The TV consists of a menu system which is based on a series of user friendly on-screen displays and menus.  These displays will

help you get the most from your TV, helping you to change picture and sound settings, to alter the size of the TV picture and to

rearrange the TV channels etc.

Adjusting the picture and sound

The picture and sound are preset at the factory.  You can however adjust them to suit your own taste.

Using the TV menu system

1. Press the MENU button on the remote control to display the menu on the TV screen.

2. Press the

v

or

V

 buttons to select

 for picture settings or

 for sound settings

then press

B

 to enter either the ‘Picture Adjustment’ menu or the ‘Audio

Adjustment’ menu.

3. Press the

v

or

V

 buttons to select the item on the screen you wish to adjust then

press

B

 to confirm.  For a description of the menu items and their effects, see the

table below.

4. Press the

v

,

V

,

B

 or

b

 buttons to adjust your selected item.

5. As soon as you have adjusted the item, press the OK button to store the new setting.

6. Repeat steps 3-5 if you wish to adjust any of the other items.

7. Press the MENU button to remove the menu from the TV screen.

Picture Control

Item

Effect/Operation

Picture Mode

V

Live

(for live broadcasts)

Personal (for individual settings)

Movie

(for movie broadcasts)

v

Game

(for computer games)

Contrast

Less

b B

More

Brightness*

Darker

b B

Brighter

Colour*

Less

b B

More

Hue**

Reddish

b B

Greenish

Sharpness*

Softer

b B

Sharper

Reset

Resets picture to the factory preset levels

AI (Artificial Intelligence)

V

Off :  Normal

v

On :  Automatic optimisation of contrast level

according to the TV signal.

Noise Detection

V

Off :  Normal

v

On :  Reduces picture noise in case of a weak

broadcasting signal

Digital Mode

V

DRC 50 :  improves picture resolution and is optimal

for viewing scrolling characters

v

DRC 100 :improves picture resolution creating

flicker-free pictures

*

Only  if  ‘Personal’ is selected in Picture Mode.

**

Only available for NTSC colour signal (eg US video tapes)

AI

On

Off

Contrast

Picture Adjustment

Select :

Enter:

Picture Mode

  Contrast

  Brightness

  Colour

  Sharpness

     Reset

AI

Noise Detection

Digital Mode

Personal

On

On

Normal

Noise Detection

On

Off

Picture Mode

Live

Personal

Movie

Game

Digital Mode

DRC 50

DRC 100

14

Using the TV menu system:

Audio Adjustment

Equaliser Mode



Equaliser

      Adjustment

Surround Mode



SRS Mode

Auto Vol. Control

Dual Sound            00

     Volume

     Dual Sound       00

Stereo

Off

SRS

Stereo

Personal

Vocal

Jazz

Rock

Pop

Select Mode :

SRS  1

Confirm: OK

Equaliser Adjustment

Sel:

Adjust:

Confirm:OK

Personal

+

0

–

120

150

1,5K

5 K

10 K

Auto Vol. Control

Off

On

Dual Sound

Mono

Stereo

Volume

Dual Sound

A

B

Surround Mode

SRS Mode

SRS 1

SRS 2

SRS 3

Off

SRS

Hall

Church

Disco

Stadium

Sound Control

Item

Effect/Operation

Equaliser Mode

V

Personal

Vocal

Jazz

Rock

Pop

v

Flat (fixed setting, cannot be adjusted)

Equaliser adjustment

You can adjust the mode selected in Equaliser mode by

cutting and boosting the 5 selected frequency bands.

Press

b

 or

B

 to select the frequency band then

V

 or

v

 to

adjust the frequency.  Finally, press the OK button to store

the new adjustment.

If you want to store the new setting, you need to set

the Equaliser mode to ‘Personal’.  Personal mode

permanently stores the setting, all other modes

(Vocal, Jazz, Rock, Pop) store only until the next

mode change.

Surround Mode

V

Off

Dolby Sur

SRS

Hall

Church

Disco

v

Stadium

SRS Mode*

V

SRS 1

(*only if ‘Surround Mode’

SRS 2

  is set to ‘SRS’)

v

SRS 3

Auto Vol. Control

V

On : volume level of the channels will stay the same

independent of the broadcast signal (eg in the case of

advertisements)

v

Off : volume level changes according to the broadcast

signal.

Dual Sound

For a bilingual broadcast:

V

A for channel 1

v

B for channel 2

For a stereo broadcast:

V

Mono

v

Stereo

When NICAM stereo is being broadcast, the

indication NiCAM appears briefly on the screen.

Headphones

i

Volume

Less

b

B

More

i

Dual Sound

For a bilingual broadcast:

V

A for channel 1

v

B for channel 2

15

Using the TV menu system:

Setting up Dolby Surround

Before listening to Dolby Surround encoded programmes you need to adapt the Dolby settings to suit your individual

requirements.  This setting up is normally only necessary when installing your TV set or when changing the speaker positions.

1. Press the MENU button on the remote control to display the menu on the TV screen.

2. Press the

V

button to select the

 symbol on the menu screen then press

B

 to enter the

‘Set Up’ menu.

3. Press the

V

button to select ‘Dolby Surround Set Up’ then press

B

 to enter the ‘Dolby

Surround Set Up’ menu.

4. Press the

v

or

V

buttons to select ‘Surround Mode’ then press

B

 to enter the ‘Surround

Mode’ sub menu.  Press the

v

or

V

buttons to select’Pro Logic’ if you are using the

surround speakers or ‘TruSurround’ if you are not using surround speakers.  Press the OK

button to confirm.

5. Press the

v

or

V

buttons to select ‘Level Setting’ then press

B

 to hear a test tone which will

sequentially switch through all speakers.  From your sitting position all volume levels

should be the same. If this is the case, press the OK button to store the settings. If this is not

the case:

(a)Press the

v

or

V

buttons to select ‘Front L.’, ‘Centre’, ’Front R.’ or ‘Surround’ speakers.

(b) Press

b

 or

B

 to adjust the volume level then press the OK button to store.

(c) Press

V

to select another speaker.

(d) Repeat steps (a) and (b) for all the speakers you wish to adjust.

(e) Press the OK button to store the new settings.

6. To select ‘Speaker Mode’ ensure ‘Surround Mode’ is set to ‘Pro Logic’ then press the

v

or

V

buttons to select ‘Speaker Mode’.  Press

B

 to enter the ‘Speaker Mode’ sub menu. Press

the

v

or

V

buttons to select one of the following speaker modes then press the OK button

to store:

‘Normal’

all speakers are activated

‘Phantom’

centre speaker is switched off

‘Wide’

wider bandwidth from centre speaker

‘3CH Normal’

surround speakers are switched off

‘3CH Wide’

surround speakers are switched off, centre speaker carries full

frequency response.

7. To select ‘Delay Time’ ensure ‘Surround Mode’ is set to ‘Pro Logic’ then press the

v

or

V

buttons to select ‘Delay Time’.  Press

B

 to enter the ‘Delay Time’ sub menu.  Press the

v

or

V

buttons to select the desired delay time for the surround speakers.  You have the choice

between 15ms for big rooms, 20ms or 25ms for standard rooms and 30ms for small rooms.

Once you have set the time, press the OK button to store.

8. Press the

v

or

V

buttons to select ‘Auto Surround’ then press

B

 to enter the ‘Auto

Surround’ sub menu.  Press the

v

or

V

buttons to select ‘On’ or ‘Off’ then press the OK

button to store.

9. Press the MENU button to remove the menu from the TV screen.

.

.

Normal

16

Using the TV menu system:

Using the Features menu

1. Press the MENU button on the remote control to display the menu on the TV screen.

2. Press the

v

or

V

 buttons to select

 for the ‘Features’ menu then press

B

 to enter the ‘Features’

menu.

3. Press the

v

or

V

 buttons to select the desired menu item then press

B

 to confirm.  For a description

of the menu items and their effects, see the table below.

4. Press the

v

,

V

,

B

 or

b

 buttons to select the desired setting.

5. Press the OK button to confirm your choice of setting.

6. Repeat steps 3-5 if you wish to select any of the other items.

7. Press the MENU button to remove the menu from the TV screen.

Item

Effect/Operation

Auto Format*

V

Off:

Size of picture does not automatically adjust.

*only for aerial signal

Normal: Size of picture automatically adjusts according to

information from the broadcaster.

v

Full:

The TV can automatically adjust the picture size to eliminate any

dark areas on the TV picture (as shown below):

Format Correction*

V

Off :

4:3/14:9 is selected

(*only if Auto Format is

v

On :

Smart mode is selected automatically for 4:3/14:9 broadcasts

set to ‘Normal’ or ‘Full’)

Sleep Timer

You can select a time after which the TV switches itself into

standby mode.

V

Off

.

v

90 min

Parental Lock

V

Off : Normal

v

On : Press the buttons on the remote control to switch the TV out of

standby mode.  The buttons on the TV do not work.

AV2 Output

V

TV audio/video signal from the aerial

AV1 audio/video signal from scart 1

AV2 audio/video signal from scart 2

AV3 audio/video signal from scart 3

v

AV4 audio/video signal from connectors on front of TV

Changing the screen size

This feature allows you to change the size of the TV picture.

Press the

 button on the remote control repeatedly or use the

v

or

V

 buttons to select one of the

following formats then press the OK button to confirm your selection:

Smart

imitation of wide screen effect for 4:3 broadcasts.

4:3

conventional 4:3 picture size, full picture information.

14:9

compromise between 4:3 and 16:9 picture size.

Zoom

widescreen format for letterbox movies

Wide

for 16:9 broadcasts.

In Smart, Zoom and 14:9 modes parts of the top and bottom of the screen are cut off.  Press

v

or

V

 to

adjust the position of the image on screen (eg to read subtitles) then press the OK button to confirm.

Format Correction

Off

On

Parental Look

Off

On

10 min

Sleep Timer

AV 2 Output

TV

 AV 1

AV 2

AV 3

AV 4

Auto Format

Off

Normal

Full

Features

Auto Format

   Format Correction

Sleep Timer

Parental Lock

AV 2 Output

Off

Off

TV

Select:

Enter:

Off

On

17

Using the TV menu system:

Using Multi PIP

Multi PIP (picture in picture) mode displays a succession of 12 still pictures and a 13th that is live.  You can manually

select which channel you wish to watch, either full-screen or in the PIP mode.

Operating PAP (Picture and Picture)

This PAP feature divides the screen into two for watching two channels simultaneously (with a video source on one if you

want).  The sound of the left screen comes through the TV loudspeakers, the sound of the right screen is selectable via

headphones.

1. Press the

button on the remote control to select Multi PIP mode.  13 programme

positons appear on the screen with the current channel in the centre.

2. Press the PROGR+/- buttons repeatedly to select the next or preceding 12 programme

positions.

3. Press the

v

,

V

,

 b

 or

B

buttons to move within the 13 displayed channels.

4. Press the OK button to select the framed channel.  This channel now moves to the centre.

5. Press the OK button again to display the selected channel or press

 to remove Multi PIP

mode from the TV screen.

Switching PAP on and off

Press

 once to display the screens and twice to switch PAP off.

Selecting sound for the headphones

With PAP switched on, refer to the ‘Adjusting the picture and sound’ section of this manual and

set ‘

i

Dual Sound‘ to ‘PAP’.

Selecting a PAP source

Press

M

.  The symbol

M

 appears in the right screen.  Select the desired source using the numbered

buttons (for a TV channel) or

 (for a video source).

Swapping screens

Press

 to swap the two screens.

Zooming the screens

Press the

b

 or

B

buttons to change the size of the two screens.

03

05

01

06

11

09

08

02

10

07

13

12

04

18

Using the TV menu system:

Re-arranging the TV channels

After tuning the TV, you can use this feature to change the order of the channels on the TV.



1. Press the MENU button on the remote control to display the menu on the TV screen.

2. Press the

V

button to select the

 symbol on the menu screen then press

B

 to enter the ‘Set Up’

menu.

3. Press the

V

button to select ‘Programme Sorting’ then press

B

 to enter the ‘Programme Sorting’

menu.

4. Press the

v

or

V

buttons to select the channel you want to move then  press

B

 to confirm.

5. Press the

v

or

V

 buttons to select the new programme position (eg PROG 4) for your selected

channel then press the OK button to confirm.  The selected channel now moves to its new

programme position and the other channels move accordingly.

6. Repeat steps 4 and 5 if you wish to sort the other channels.

7. Press the MENU button to remove the menu from the TV screen.

Programme Sorting

Select Prog:

Confirm:

Set Up

Auto Tuning

Programme Sorting

Select NexTView

Dolby Surround Set Up

AV Preset

Manual Set Up

Select:

Enter:

PROG CH

LABEL

Programme Sorting

Select Position:

Move: OK

C03

TV 5

PROG CH

LABEL

 1

 2

 3

 4

 5

 6

 7

 8

 9

10

11

C03

C05

C07

C08

C09

C11

C12

C13

C14

C15

C16

TV 5

PRO 7

EU-SP

SWF

RTL

SAT

MDR

DDI

DSF

RTL 2

KAB 1

C03

C05

C07

C08

C09

C11

C12

C13

C14

C15

C16

TV 5

PRO 7

EU-SP

SWF

RTL

SAT

MDR

DDI

DSF

RTL 2

KAB 1

1

 2

 3

 4

 5

 6

 7

 8

 9

10

11

Manually tuning the TV

You have already tuned the TV automatically using the instructions at the start of this manual.  You can however carry

out this operation manually, adding channels to the TV one at a time.

1. Press the MENU button on the remote control to display the menu on the TV screen.

2. Press the

V

button to select the

 symbol on the menu screen then press

B

 to enter the ‘Set Up’

menu.

3. Press the

V

button to select ‘Manual Set Up’ on the menu screen then press

B

 to enter the ‘Manual

Set Up’ menu.

4. Press the

V

button to select ‘Manual Programme Preset’ on the menu screen then press

B

 to enter

the ‘Manual Programme Preset’ menu.

5. Press the

v

or

V

buttons to select a programme number for your channel (eg PROGR 1 for BBC1)

then press

B

 to highlight the ‘SKIP’ column.

6. Press

v

to select ‘OFF’ then press

B

 to highlight the ‘SYS’ column.

7. Press the

v

or

V

buttons to select the TV broadcast system (B/G for western european countries, I

for Great Britain, D/K for eastern european countries or L for France) or ‘EXT’ for a video input

source (AV1, AV2, ...) then press

B

 to confirm.

8. Press the

v

or

V

buttons to select ‘C’ for terrestrial channels, ‘S’ for cable channels, or ‘F’ for

direct frequency inputs then press

B

 to confirm.

9. Select the first number digit of ‘CH’ (channel) then the second number digit of ‘CH’ with the

number buttons on the remote control or

Press the

V

button to search for the next available channel.

10. If you do not wish to store this channel on the programme number you selected, press the

v

or

V

buttons to continue searching for the desired channel.

11. If this is the channel you wish to store, press the OK button.

12. Repeat steps 5-11 if you wish to store more channels then press the MENU button to remove the

menu from the TV screen.

PROG

SYS

Off

SKIP

LABEL

1

I

Manual Set Up

Select:

Enter:

Language/Country

Manual Programme Preset

Further Programme Preset

RGB Set Up

Picture Rotation

Personal ID

Demo

O

- - - - - - -

Set Up

Auto Tuning

Programme Sorting

Select Next View

Dolby Surround Set Up

AV Preset

Manual Set Up

Select:

Enter:

Manual Programme Preset

Select:

Enter:

PROG

CH

SYS

SKIP

LABEL

Off

Off

Off

Off

Off

Off

Off

Off

Off

Off

Off

1

 2

 3

 4

 5

 6

 7

 8

 9

10

11

PROG

CH

SYS

Off

SKIP

LABEL

1

B/G

L

I

D/K

EXT

CH

C

S

F

PROG

SYS

Off

SKIP

LABEL

1

I

CH

03

SEARCH

PROG

CH

SYS

Off

SKIP

LABEL

0

EXT

AV1

AV2

AV3

AV1

ARD

BBC

C03

C05

C07

C08

C09

C11

C12

C13

C14

B/G

B/G

C09

C10

B/G

B/G

TV 5

PRO 7

EU-SP

SWF

RTL

SAT

MDR

DDI

DSF

B/G

B/G

B/G

B/G

B/G

B/G

B/G
