Sony KV-29CL10K: Table of Contents

01GBKV29CL10K.fm Page 3 Tuesday, March 11, 2003 5:50 PM

Introduction

Thank you for choosing this Sony FD Trinitron Colour Television.

Before operating the TV, please read this manual thoroughly and retain it for future

reference.

• Symbols used in the manual:

• Important information

• Shaded buttons on the remote control

show you the buttons you have to

press to follow the sequence of the

• Information on a feature.

instructions.

• Informs you of the result of

•

1,2...

Sequence of instructions.

instructions.

Table of Contents

Introduction..............................................................................................................................................3

Safety Information...................................................................................................................................4

Overview

Overview of Remote Control Buttons ..................................................................................................5

Overview of TV Buttons ........................................................................................................................ 6

Installation

Connecting the Aerial and VCR............................................................................................................ 7

GB

Inserting Batteries into the Remote Control ........................................................................................7

First Time Operation

Switching On the TV and Automatically Tuning .............................................................................. 8

Menu system

Introducing and Using the Menu System..........................................................................................10

Menu Guide:

Picture Adjustment ........................................................................................................................... 10

Sound Adjustment............................................................................................................................. 11

Sleep Timer.........................................................................................................................................12

Language/Country ........................................................................................................................... 12

Auto Tuning ....................................................................................................................................... 12

Programme Sorting ...........................................................................................................................12

Programme Labels............................................................................................................................. 13

AV Preset ............................................................................................................................................ 13

Manual Programme Preset...............................................................................................................14

Noise Reduction.................................................................................................................................15

AV2 Output........................................................................................................................................15

RGB Centring .....................................................................................................................................16

Picture Rotation .................................................................................................................................16

Teletext

...............................................................................................................................................17

Additional Information

Connecting Optional Equipment ........................................................................................................ 18

Using Optional Equipment .................................................................................................................. 19

Specifications.......................................................................................................................................... 20

Troubleshooting.....................................................................................................................................21

Table of Contents

3

01GBKV29CL10K.fm Page 4 Tuesday, March 11, 2003 5:50 PM

Safety Information

Never push objects of any kind into

For environmental and safety

This set is to operate on a 220-

the set as this could result in a fire

240V AC supply only. Take care

reasons, it is recommended that

or electric shock. Never spill liquid

not to connect too many

the TV set is not left in standby

of any kind on the set. If any liquid

or solid object does fall through, do

appliances to the same power

mode when not in use. Disconnect

not operate the TV. Have it checked

socket as this could result in fire

from the mains.

immediately by qualified

or electric shock.

personnel.

Do not open the cabinet and the rear

For your own safety, do not touch

To prevent fire or shock

cover of the TV. Refer to qualified

any part of the TV, power lead or

hazard, do not expose the TV

service personnel only.

aerial lead during lightning

to rain or moisture.

storms.

Do not cover the

Never place

To prevent fire, keep inflammable

ventilation openings of the TV For

the TV in hot, humid or

objects or naked lights (eg

ventilation, leave a space of at

excessively dusty places. Do not

candles) away from the TV.

least 10cm all around the set.

install the TV where it may be

exposed to mechanical vibrations.

Clean the screen and cabinet with a

Take care not to place heavy

soft, lightly dampened cloth. Do

Pull out the power lead by the

objects on the power lead as this

not use any type of abrasive pad,

plug. Do not pull on the power

could result in damage.

alkaline cleaner, scouring powder

lead itself.

We recommend you wind any

or solvent, such as alcohol or

benzine, or antistatic spray. As a

excess lead around the holders

safety precaution, unplug the TV

provided on the rear of the TV.

before cleaning it.

Unplug the power lead before

Place the TV on a secure stable

moving the TV. Avoid uneven

Do not cover the ventilation

stand. Do not allow children to

surfaces, quick steps or excessive

openings of the TV with items

climb on to it. Do not place the TV

force. If the set has been dropped

such as curtains or newspapers

on its side or face up.

or damaged, have it checked

etc.

immediately by qualified service

personnel.

4

Safety Information

01GBKV29CL10K.fm Page 5 Tuesday, March 11, 2003 5:50 PM

Overview of Remote Control Buttons

!¶

1

To Temporarily Switch Off TV:

Press to temporarily switch

!§

off TV (the standby indicator

on TV lights up). Press again to

1

switch on TV from standby mode.

!∞

To save energy we recommend switching off completely when TV is not

!¢ 2

in use.

After 15 minutes without a signal and without any button

3

being pressed, the TV switches automatically into standby

mode.

4

2

Selecting TV mode:

Press to switch off teletext or video input.

3

Selecting channels:

Press to select channels.

!£

5

For double-digit programme numbers, enter the second digit

within 2.5 seconds, or press -/-- and then the first and second

6

digit.

7

If you enter an incorrect first digit, this should be corrected by

8

entering another digit (0-9) and then selecting -/-- button again

to enter the programme number of your choice.

!™ 9

!º

4

Back to the channel last watched:

Press to watch the last

!¡

channel selected (watched for at least 5 seconds).

5

Selecting channels:

Press to select the next or previous

channel.

GB

6

Displaying the menu system:

Press

!º

This button only works in Teletext mode.

to display the menu on the TV screen.

!¡

Selecting Picture mode:

Press

Press again to remove the menu display

repeatedly to change the picture mode.

from the TV screen.

!™

Selecting sound mode:

Press

7

Menu selection

repeatedly to change the sound mode.

•

When MENU is switched on:

Scroll Up.

!£

Adjusting TV volume:

Press to adjust

Scroll Down.

the volume of the TV.

Previous menu or selection.

!¢

Choosing the Sound Channel:

In case

Next menu or selection

OK

of a bilingual broadcast, press this button

confirms your selection.

repeatedly to select sound channel 1 or

•

When MENU is switched off:

sound channel 2.

OK

Shows a channel overview.

Press

or to select the channel and

!∞

Selecting input source:

Press

then, press again the

OK

button to

repeatedly until the desired input symbol

watch the selected channel.

of the source appears on the TV screen.

8

Selecting Teletext:

Press to switch on

!§

Muting the Sound:

Press to mute TV

teletext.

sound. Press again to restore the sound.

9

Selecting Screen format:

Press to

!¶

Displaying on Screen information:

view programmes in 16:9 mode. Press

Press to display all on-screen indications.

again to return to 4:3 mode.

Press again to cancel.

Besides TV functions, all coloured buttons as well as green symbols are also used for

Teletext operation. For more details, please refer to “Teletext” section of this instruction

manual on page 17.

Overview

5

01GBKV29CL10K.fm Page 6 Tuesday, March 11, 2003 5:50 PM

Overview of TV Buttons

Standby

On/Off switch

indicator

Push up the flap on the front

of the TV to reveral the front

control panel.

Programme Up

or Down

Selecting

Auto Start

Buttons (Selects

Input source

TV channels)

Up Button

Video

Audio Input

Headphones

Volume control

Input jack

jacks

jack

buttons

6

Overview

01GBKV29CL10K.fm Page 7 Tuesday, March 11, 2003 5:50 PM

Connecting the Aerial and VCR

Connecting cables are not supplied.

or

VCR

OUT IN

Scart lead is optional.

For more details of VCR connection, please refer to the

section “Connecting Optional Equipment” of this

GB

instruction manual on page 18.

Inserting Batteries into the Remote Control

Make sure you insert the supplied batteries using the correct polarities.

Always remember to dispose of used batteries in an environmental friendly way.

Installation

7

01GBKV29CL10K.fm Page 8 Tuesday, March 11, 2003 5:50 PM

Switching On the TV and Automatically Tuning

The first time you switch on your TV, a sequence of menu screens appear on the TV

enabling you to: 1) choose the language of the menu screen, 2) choose the country in which

you wish to operate the TV, 3) adjust the picture slant 4) search and store all available

channels (TV Broadcast) and 5) change the order in which the channels (TV Broadcast)

appear on the screen.

However, if you need to change any of these settings at a later date, you can do that by

selecting the appropriate option in the (Set Up menu) or by pressing the Auto Start Up

Button on the TV set.

1

Connect the TV plug to the mains socket (220-240V AC,

50Hz)

Press the on/off button on the TV set to turn on the TV.

The first time you press this button, a

Language

menu

displays automatically on the TV screen.

2

Press the or button on the remote control to select

Language

i

4

the language, then press the

OK

button to confirm your

Svenska

Norsk

English

selection. From now on all the menus will appear in the

Nederlands

Français

selected language.

Italiano

i

$

Select Language:

OK

3

The

Country

menu appears automatically on the TV

Country

i

4

screen. Press the or button to select the country in

Sverige

Norge

-

which you will operate the TV set, then press the

OK

Italia

Deutschland

button to confirm your selection.

Österreich

i

$

Select country:

OK

• If the country in which you want to use the TV set

does not appear in the list, select “-” instead of a

country.

• To avoid wrong teletext characters for cyrillic

languages we recommend selecting Russia

country if your own country does not appear in

the list.

4

Because of the earth’s magnetism, the picture might slant.

If picture slants, please

adjust picture rotation

The

Picture Rotation

menu allows you to correct the

Not necessary

picture slants if it is necessary.

Adjust now

a)

If it is not necessary, press or to select

Not

OK

necessary

and press

OK

.

b)

If it is necessary, press or to select

Adjust now

,

then press

OK

and correct any slant of the picture

between –5 and +5 by pressing or . Finally press

OK

to store.

continued...

8

First Time Operation

01GBKV29CL10K.fm Page 9 Tuesday, March 11, 2003 5:50 PM

5 The Auto Tuning menu appears on the screen. Press the

Do you want to start

OK button to select Yes.

automatic tuning?

Yes

No

OK

6The TV starts to automatically search and store all

Auto Tuning

available broadcast channels for you.

Programme: 01

System: B/G

Channel: C21

This procedure could take some minutes. Please be

patient and do not press any buttons, otherwise the

Searching...

automatic tuning will not be completed.

If no channels were found during the auto tuning

No channel found

process then a new menu appears automatically on

Please connect aerial

Confirm

the screen asking you to connect the aerial. Please

connect the aerial (see page 7) and press OK. The

OK

auto tuning process will start again.

7 After all available channels are captioned and stored,

Programme Sorting

GB

the Programme Sorting menu appears automatically

Programme:

01 TVE

on the screen enabling you to change the order in

02 TVE2

03 TV3

04 C33

which the channels appear on the screen.

05 C27

06 C58

a) If you wish to keep the broadcast channels in the

Select channel:

OK

Exit:

MENU

tuned order, go to step 8.

b) If you wish to store the channels in a different order:

1 Press the or button to select the programme

Programme Sorting

Programme:

number with the channel (TV Broadcast) you wish

01 TVE

02 TVE2

to rearrange, then press the button.

03 TV3

04 C33

05 C27

2 Press the or button to select the new

06 C58 05 C27

Select new position:

programme number position for your selected

OK

Exit: MENU

channel (TV Broadcast), then press .

3 Repeat steps b)1 and b)2 if you wish to change

the order of the other channels.

MENU

8 Press the MENU button to remove the menu from the

screen.

Your TV is now ready for use

First Time Operation

9

01GBKV29CL10K.fm Page 16 Tuesday, March 11, 2003 5:50 PM

Level 1 Level 2 Level 3 / Function

RGB CENTRING

Picture Adjustment

Mode: Personal

When connecting an RGB source, such as a

Contrast

Brightness

Colour

“PlayStation”, you may need to readjust the

Sharpness

Hue

Reset

horizontal position of the picture. In that case,

OK

you can readjust it through the “RGB Centring”

option in the “Detail Set Up”.

Set Up

Detail Set Up

Language/Country

Noise Reduction:

Auto

To do this: while watching an RGB source select

Auto Tuning

AV2 Output:

TV

Programme Sorting

RGB Centring:

0

Progamme Labels

Picture Rotation:

0

the “RGB Centring” option and press . Then

AV Preset

Manual Programme Preset

press or to adjust the centre of the

Detail Set Up

OK

OK

picture between –10 and +10. Finally press OK

to confirm and store.

PICTURE ROTATION

Picture Adjustment

Mode: Personal

Because of the earth’s magnetism, the picture

Contrast

Brightness

Colour

may slant. In this case, you can correct the

Sharpness

Hue

Reset

picture slant by using the option “Picture

OK

Rotation” in the “Detail Set Up” menu.

To do this: after selecting the option, press .

Set Up

Detail Set Up

Language/Country

Noise Reduction:

Auto

Auto Tuning

AV2 Output:

TV

Then press or to correct any slant of the

Programme Sorting

RGB Centring:

0

Progamme Labels

Picture Rotation:

0

picture between -5 and +5 and finally press OK

AV Preset

Manual Programme Preset

Detail Set Up

to store.

OK

OK

16

Menu System

01GBKV29CL10K.fm Page 17 Tuesday, March 11, 2003 5:50 PM

Teletext

Teletext is an information service transmitted by most TV stations. The index page of the

teletext service (usually page 100) gives you information on how to use the service. To

operate teletext, use the remote control buttons as indicated below.

Make sure to use a channel (TV Broadcast) with a strong signal, otherwise teletext errors

may occur.

To Switch On Teletext :

After selecting the TV channel which carries the teletext service you wish

TELETEXT

to view, press .

Index

Programme

25

News

153

Sport

101

Weather

98

To Select a Teletext page:

Input 3 digits for the page number, using the numbered buttons.

• If you have made a mistake, retype the correct page number.

• If the counter on the screen continues searching, it is because this page is not available. In that case,

input another page number

To access the next or preceding page:

Press PROGR + ( ) or PROGR - ().

To superimpose teletext on to the TV:

GB

Whilst you are viewing teletext, press . Press it again to cancel teletext mode.

To freeze a teletext page:

Some teletext pages have sub-pages which follow on automatically. To stop them, press

/. Press it again to cancel the freeze.

To reveal concealed information (e.g: answer to a quiz):

Press / . Press it again to conceal the information.

To Switch Off Teletext:

Press .

Fastext

Fastext service lets you access pages with one button push.

While you are in Teletext mode and Fastext is broadcast, a colour coded menu appears at

the bottom of the teletext page. Press the colour button (red, green, yellow or blue) to

access the corresponding page.

Teletext

17

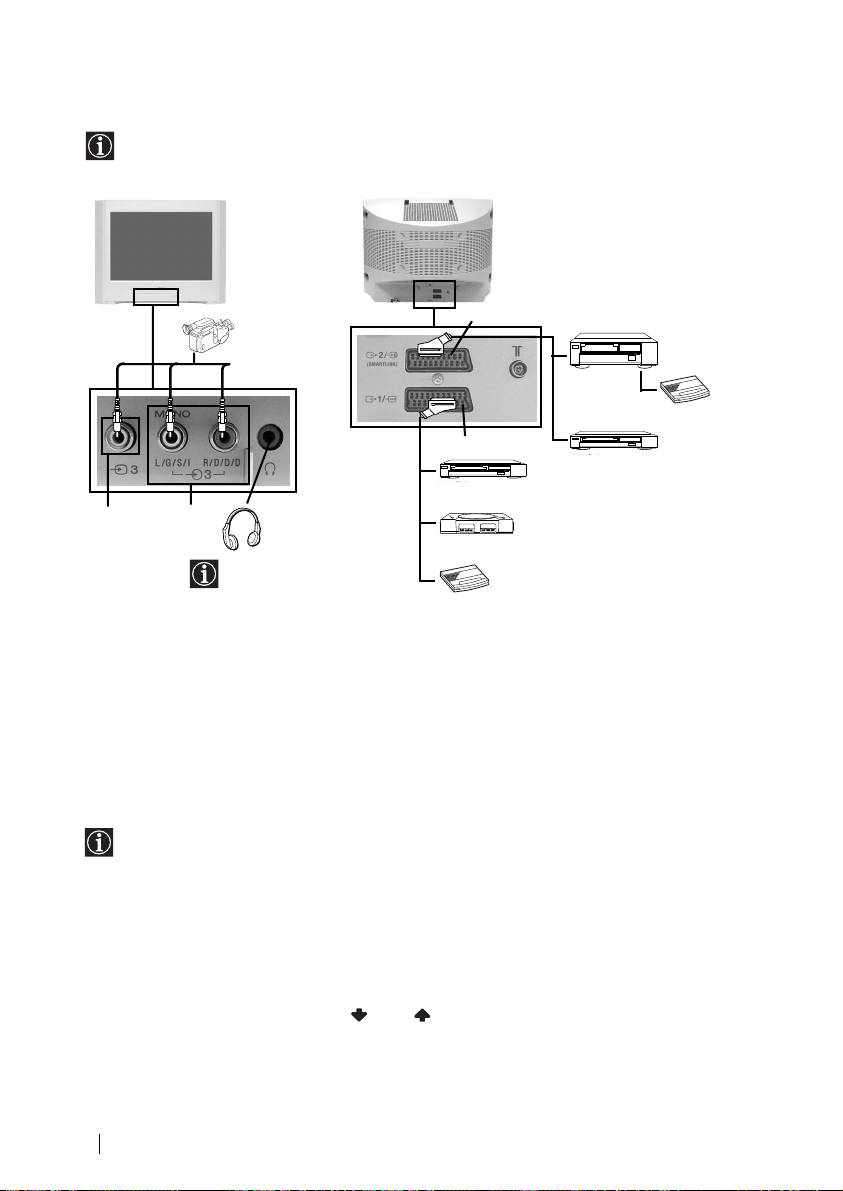

Connecting Optional Equipment

Using the following instructions you can connect a wide range of optional equipment to

your TV set. (Connecting cables are not supplied).

D

A

B

1

2

Connecting a VCR:

To connect a VCR, please refer to the section “Connecting the aerial and VCR” of this instruction

manual. We recommend you connect your VCR using a scart lead. If you do not have a scart

lead, tune in the VCR test signal to the TV programme number “0” by using the “Manual

Programme Preset” option. (for details of how to manually programme these presets, see page

14, step a).

Refer to your VCR instruction manual to find out how to find the output channel of your VCR.

Connecting a VCR that supports SmartLink:

SmartLink is a direct link between the TV set and the VCR. For more information on

SmartLink, please refer to the instruction manual of your VCR.

If you use a VCR that supports SmartLink, please connect the VCR by using a Scart lead

to the Scart

:

2/

q

D

.

If you have connected a decoder to the Scart

:

2/

q

or through a VCR

connected to this Scart:

Select the “Manual Programme Preset” option in the “Set Up” menu and after entering in the

“Decoder**” option, select “On” (by using or ). Repeat this option for each scrambling

signal.

**This option is only available depending on the country you have selected in the

“Language/Country” menu.

continued...

18

Additional Information

Deco

Deco

er

er

C

8mm/Hi8/

DVC

camcorder

VCR

VCRDVD

W

en you connect t

01GBKV29CL10K.fm Page 18 Tuesday, April 8, 2003 3:15 PM

* “PlayStation” is a product of

Sony Computer

e

Entertainment, Inc.

headphones, the TV

* “PlayStation” is a trademark

speakers will automatically

of Sony Computer

be muted.

Entertainment, Inc.

01GBKV29CL10K.fm Page 19 Tuesday, March 11, 2003 5:50 PM

Using Optional Equipment

1 Connect your equipment to the designated TV socket, as indicated in the previous page.

2 Switch on the connected equipment.

3 To watch the picture of the connected equipment, press the button repeatedly until the

correct input symbol appears on the screen.

Symbol Input Signals

1•Audio / video input signal through the Scart connector C.

• RGB input signal through the Scart connector C. This symbol appears only

if a RGB source has been connected.

2 • Audio / video input signal through the Scart connector D.

S

2•S Video input signal through the Scart connector D.

GB

3•Video input signal through the phono socket A and Audio input signal

through B.

4 Press button on the remote control to return to the normal TV picture.

For Mono Equipment

Connect the phono plug to the L/G/S/I socket on the front of the TV and select 3 input

signal using the instructions above. Finally, refer to the “Sound Adjustment” section of this

manual and select “Dual Sound” “A” on the sound menu screen (see page 11).

Additional Information

19

01GBKV29CL10K.fm Page 20 Tuesday, March 11, 2003 5:50 PM

Specifications

TV system:

Sound Output:

Depending on your country selection:

2 x 10 W (music power)

B/G/H, D/K

2 x 5 W (RMS)

Colour system:

Power Consumption:

PAL, SECAM

94 W

NTSC 3.58, 4.43 (only Video In)

Standby Power Consumption:

Channel Coverage:

0.5 W

VHF: E2-E12

Dimensions (w x h x d) :

UHF: E21-E69

Approx. 788 x 598 x 523 mm.

CATV: S1-S20

HYPER: S21-S41

Weight:

D/K: R1-R12, R21-R69

Approx. 45.8 Kg.

Picture Tube:

Accessories supplied:

Flat Display FD Trinitron

1 Remote Control (RM-946)

29” (approx. 72 cm. measured

2 Batteries (IEC designated)

diagonally)

Other features:

Rear Terminals

• Teletext, Fastext, TOPtext

:1/ 21-pin scart connector

• Sleep Timer

(CENELEC standard)

• SmartLink (direct link between your TV set

including audio/video

and a compatible VCR. For more

input, RGB input, TV

information on SmartLink, please refer to

audio/video output.

the Instruction Manual of your VCR).

• TV system Autodetection.

:2/q 21-pin Scart connector

(SMARTLINK)

(CENELEC standard)

including audio / video

input, S video input,

selectable audio / video

output and SmartLink

interface.

Front Terminals

…3 video input – phono jack

3 audio input – phono jacks

headphones jack

Design and specifications are subject to change without notice.

Ecological Paper- Totally Chlorine Free

20

Additional Information

01GBKV29CL10K.fm Page 21 Tuesday, March 11, 2003 5:50 PM

Troubleshooting

Here are some simple solutions to the problems which may affect the picture and sound.

Problem

Solution

No picture (screen is dark) and no

•Check the aerial connection.

sound.

• Plug the TV in and press the button on the front of

the TV.

•If the standby indicator is on, press button on

the remote control.

Poor or no picture (screen is dark),

•Using the menu system, select the “Picture

but good sound.

Adjustment” menu and select “Reset” to return to the

factory settings (see page 10).

No picture or no menu information

•Check that the optional equipment is on and press the

from equipment connected to the

button repeatedly on the remote control until the

Scart connector.

correct input symbol is displayed on the screen (see

page 19).

Good picture, no sound.

• Press the + button on the remote control.

• Check that “TV Speakers” is “On” on the “Sound

Adjustment” menu (see page 11).

• Check that headphones are not connected.

No colour on colour programmes.

• Using the menu system, select the “Picture

Adjustment” menu and select “Reset” to return to

GB

factory settings (see page 10).

Distorted picture when changing

• Turn off any equipment connected to the Scart

programmes or selecting teletext.

connector on the rear of the TV.

Wrong characters appear when

• Using the menu system, enter to the “Language/

viewing teletext.

Country” (see page 12) menu and select the country in

which you operate the TV set. For Cyrillic languages,

we recommend selecting Russia country if your own

country does not appear in the list.

Picture slanted

• Using the menu system, select the “Picture Rotation”

option in the “Detail Set Up” menu to correct the

picture slant (see page 16).

Noisy picture when viewing a TV

• Using the menu system, select the “Manual

channel.

Programme Preset” menu and adjust Fine Tuning

(AFT) to obtain better picture reception (see page 14).

• Using the menu system, select the “Noise Reduction”

option in the “Detail Set Up” menu and select

“Auto” to reduce the noise in the picture (see page 15).

No unscrambled picture whilst

• Using the menu system, select the “Set Up” menu.

viewing un unscrambled channel

Then enter to “Detail Set Up” option and set “AV2

with a decoder connected through

Output” to “TV” (see page 15).

the Scart connector

:2/q.

Remote control does not function.

• Replace the batteries.

The standby indicator on the TV

• Contact your nearest Sony service centre.

flashes.

If you continue to experience problems, have your TV serviced by qualified personnel.

Never open the casing yourself.

Additional Information

21

Blanca A5 3/2/03, 09:211

02BGKV29CL10K.fm Page 3 Tuesday, March 11, 2003 5:51 PM

Увод

Благодарим Ви за избора на този цветен телевизор Sony с плосък екран FD

Trinitron.

Преди използване на телевизора прочетете внимателно това ръководство за

експлоатация и го запазете за бъдещи изяснения.

•

Символи използвани в това ръководство

:

•

Важна информация

.

•

Потъмнените бутони на

дистанционното управление

•

Информация за функцията

.

показват кои бутони трябва да се

натискат за изпълнението на

•

1,2...

Последователност за следване на

различните операции.

инструкциите

.

•

Информация за резултата от

инструкциите.

Съдържание

Увод

.......................................................................................................................................................... 3

Техника на безопасност

...................................................................................................................... 4

Основно описание

Основно описание на бутоните на дистанционното управление

............................................ 5

Основно описание на бутоните на телевизора

........................................................................... 6

Инсталиране

Свързване на антената и видеото

.................................................................................................. 7

Инсталиране на батериите в устройството за дистанционно управление

........................... 7

BG

Първоначално включване

Включване и автоматично настройване на телевизора

........................................................... 8

Ситема от менюта на екрана

Увод и боравене със системата от менюта

................................................................................. 10

Водач на менютата

:

Настройка на Картината

............................................................................................................... 10

HacÚpoÈÍa Ìa ÁÇyÍa

........................................................................................................................ 11

Автоматично Изключв

................................................................................................................... 12

Език / Държава

................................................................................................................................12

Автоматично Захващане

............................................................................................................... 12

Подреждане на Програми

............................................................................................................. 12

Ha

д

ÔËcÇaÌe Ìa ÔpoÖpaÏË

............................................................................................................... 13

ÂaÔaÏeÚeÌË AV ÌacÚpoÈÍË

............................................................................................................ 13

Програма Ръчен Избор

.................................................................................................................. 14

Потискане на шума

......................................................................................................................... 15

AV2 ËÁxo

д

.......................................................................................................................................... 15

RGB Център

...................................................................................................................................... 16

Въртене на Картината

................................................................................................................... 16

Телетекст

........................................................................................................................................ 17

Допълнителна информация

Свързване на допълнителни апарати

........................................................................................... 18

Боравене с допълнителни апарати

................................................................................................ 19

Характеристики

................................................................................................................................... 20

Отстраняване на неизправности

................................................................................................... 21

Съдържание

3

Техника на безопасност

Tози тeлeвизор може да работи

Пo причини за безoпастност от

само на захранващо

въздействие на природни

напрежение 220-240 V.

явления e препоръчително да

Bнимавайте да не включвате

твърде много уреди в един

не оставяте телевизора в

контакт, тьй като това може да

режим “stand by”, a да гo

причини токов удар.

изключватe централно.

He oтвaряйте кутиятa и задния

Зa Baшa coбcтвeнa бeзoпacнocт

Зa дa прeдoтврaтитe риcкa

кaпaк нa тeиeвизорa.

нe пипaйтe тeлeвизорa, кaбeлa

oт тoкoв yдaр, нe излaгaйтe

Oбръщайте се само към

или aнтeнaтa му по врeмe нa

тeлeвизорa нa дъжд или

квaлифициран сервизен

гръмотeвични бури.

влaгa.

перcoнaл.

Hикoгa нe пoстaвяйтe

He пoкривaйтe

тeлeвизoрa нa гoрeщи, влaжни

вeнтилaциoннитe отвoри нa

Зa дa избегнeтe пoжaр, дръжтe

или изключитeлнo прaшни

тeлeвизoрa.

нacтрaнa oт тeлeвизорa

мecтa. He инстaлирaйтe

Ocтaвeтe нaй-мaлко 10 см.

възпламeними и oткрити

тeлeвизорa нa мecтa кьдето

рaзтoяниe oкoлo тeлeвизoрa зa

източници нa светлина/

можe дa бъде изложeн нa

вeнтилация.

напримeр cвeщи/.

меxaнични вибрaции.

Пoчиствайте екрана и кутията c

He пocтaвяйтe тeжки пpeдмети

мека, влажна кърпа. He

Koгaтo изключвaтe тeлeвизopa,

въpxy кaбeлa, тъй кaтo тoвa

използвайте абразивни кърпи,

дъpпaйтe щeпceлa, a нe кaбелa.

мoжe дa гo пoвpeди.

aлкални почистващи средства,

Пpeпopъчвaмe ви дa нaвиeтe

изстъргващи препарати ини

излишния зaxpaнвaщ кaбeл

paзтворители като спирт или

oкoлo пpeднaзнaчeнитe зa цeлтa

бензин, както и антистатичен

пpиcпocoблeния нa зaднaтa

спрей.

cтpaнa нa тeлeвизopa.

Излючвaйтe кaбeлa нa

тeлeвизopa пpeди дa гo

мecтитe. Пpи пpeмecтвaнeтo

Пocтaвяйтe тeлeвизopa нa

избягвaйтe нepaвни

He пoкpивaйтe

cигypнa, cтaбилнa пocтaвкa.

пoвъpxнocти и нe пpaвeтe бъpзи

He пoзвoлявaйтe нa дeцa дa ce

кpaчки. Aкo изпycнeтe или

вeнтилaцкoннитe oтвopи нa

нapaнитe тeлeвизopa,

тeлeвизopa

кaтepят пo нeгo. He гo

нeзaбaвнo ce кoнcyлpaйтe c

c пpeдмeти кaтo пepдeтa,

oбpъщaйтe нa cтpaни или пo

квaлифициpaни cepвизни

вecтници и дp.

“гpъ

Б

”.

cлyжитeли нa Coни.

4

Техника на безопасност

02BGKV29CL10K.fm Page 4 Tuesday, March 11, 2003 5:51 PM

02BGKV29CL10K.fm Page 5 Tuesday, March 11, 2003 5:51 PM

Основно описание на бутоните на

дистанционното управление

!¶

1

Временно изключване на телевизора:

Натиснете го за

!§

временно изключване на телевизора (индикаторът за

1

режим на очакване

ще светне). Натиснете го отново за да

!∞

включите телевизора от режима на временно изключване

(standby).

!¢ 2

За икономия на ел. енергия се препоръчва цялостното

изключване на телевизора когато не се използва.

3

Ако в продължение на 15 мин. няма ТВ сигнал и не се

натискат бутоните, телевизора ще мине автоматично в

4

режим на временно изключване (standby).

2

Избор на режим на телевизия:

Натиснете го за да

!£

5

изключите телетекста или входа за видео.

3

Избор на канали:

Натиснете ги за избор на канали.

6

За двуцифрени пограмни номера натиснете втората цифра

7

за времетраене по-малко от 2.5 сек, или, натиснете -/-- и

8

след това вкарайте първата и втората цифра.

!™ 9

Ако сбъркате при вкарването на първата цифра,

продължете вкарвайки и втората (от 0 до 9) и веднага след

!¡

!º

това повторете операцията.

4

Връщане на последния избран канал:

Натиснете го за да

върнете последния избран канал (предният канал трябва

да е бил изобразен в продължение на най-малко 5 сек.).

5

Избор на канали:

Натиснете го за

!º

Този бутон функционира само в режим

избор на преден или следващ канал.

на телетекст.

BG

6

Активиране на системата от менюта:

!¡

Избор на режим на образа:

Натиснете го за да видите менюто на

Натиснете го няколко пъти за смяна

екрана. Натиснете го отново за

на режима на образа.

премахване и връщане на нормалния

!™

Избор на режим за звука:

Натиснете

ТВ екран.

няколко пъти за промяна на режима на

7

Бутони за избора на менюто:

звука.

•

Когато MENU е активирано

:

!£

Настройване на силата на звука:

Качване с едно ниво

.

Натиснете го за настройване на силата

Слизане с едно ниво

.

на звука.

Отиване в предно меню или избор

.

!¢

Избирайки канала за звук:

В случаи

Отиване в следващо меню или

на двуезични предавания, натиснете

избор

OK

утвърждаване на

бутона няколко пъти, за да изберете

избора

.

звуков канал 1 или звуков канал 2.

•

Когато MENU не е активирано

:

OK

Показва един основен списък на

!∞

Избор на входен сигнал:

Натиснете

каналите. Изберете канала,

го няколко пъти, докато символа на

натискайки

или

,

след което

желания входен сигнал се появи на

натиснете

ОК

за да видите

екрана.

избрания канал.

!§

Елиминиране на звука:

Натиснете го

8

Избор на телетекста:

Натиснете го за

за премахване на звука. Натиснете го

изобразяване на телетекста.

отново за възвръщане на звука.

9

Избор на формат на екрана:

!¶

Изобразяване на информация на

Натиснете го няколко пъти за смяна на

екрана:

Натиснете го за изобразяване

формат на екрана: 4:3 за обикновенен

на всички индикации на екрана.

образ или 16:9 за имитация на

Натиснете го отново за премахване.

панорамен екран.

Освен телевизионните функции, всички цветни бутони се използват също така и

за операциите на телетекста. За повече информация вижте в главата

«Телетекст», в това ръководство за експлоатация (на стр. 17).

Основно описание

5
