Instruction manual

Very important: Please read this manual fully before using your freezer.

This manual has been designed so that the text is linked to the relevant drawings.

Installation

Identify the model of your freezer

(“

a

”, “

b

”, “

c

”,

“

d

”, “

e

”) by comparing the control panel with the

illustrations.

Your freezer is a NO FROST model if NO FROST

appears on the control panel.

1.1 Unpacking.

 Remove all the protection.

1.2 Location.

Position the freezer away from

heat sources and protected from direct

sunlight to reduce consumption.

Do not install the freezer outside or anywhere

it is exposed to rain.

Air must be able to circulate around the back

of the freezer. Leave 25 mm between the

back of the freezer and the wall behind it. Do

not block the space between your freezer

and the fl oor or ceiling with any object.

Level the freezer to prevent any vibrations or

noise. Remember that if the freezer is located

next to a wall or cabinet, it might make a

small noise.

Also check that the shelves have been fi tted

correctly, and place containers apart to

prevent any vibrations.

1.3 Electrical connection.

Stand the freezer

upright for at least 2 hours before plugging

it in. Check the information on the

specifi cations plate (220-240V earthed)

(1.3.1, 1.3.2).

Do not use any adapters or extension leads.

Make sure that the lead is not touching the

motor or trapped underneath it.

1.4  Changing the direction the door opens.

Unplug the freezer from the mains supply

and empty it completely.

Gently lay the appliance on its back (1.4.1).

0

Identifi cation

e n g l i s h

Undo the screws (1.4.2) and remove the top

hinge and the rotating bushing with the aid of

a screwdriver (1.4.3).

Unplug by pressing on the connector tab

(1.4.4). Remove the freezer door (1.4.5).

Remove the control panel, levering it up

by inserting a screwdriver in the notches

provided for that purpose (1.4.6).

Make a notch for the lead on the other side,

in the area indicated on the casing (1.4.7).

Replace the control panel passing the lead

through the notch made (1.4.8).

Undo the screws from the bottom hinge and

remove it. Change the position of the pin in

the hinge and position it on the other side

(1.4.9).

Fit the door (1.4.11).

Remove the vertical handle and fi t it on the

other side of the door turning it 180º (1.4.10).

Fit the closing capsule in the top hinge

space on the other side (1.14.12). Press the

connector to plug it into the door (1.4.13).

Fit the top hinge and the rotating bushing,

inserting any spare lead in the control panel

(1.4.14) and replace the screws (1.4.15).

Lift the freezer up carefully (1.4.16).

1.5  Levelling the appliance.

Adjust the feet so

that it is tilting backwards slightly, to help the

door close correctly (1.5.1).

1.6 Climate class.

This freezer is designed for

optimum functioning at a room temperature

of between +10ºC and +43º, climate class

SN-T (1.3.2). Higher or lower temperatures

may affect its performance.

2.1  Switching on the freezer.

Press the

button (2.1.1) or (2.1.2). Press    ,   until

a digit appears on the display (2.1.3) or turn

the control (2.1.4, 2.1.5). The display

or the On light

 models will light up to

indicate the appliance is switched on.

The child lock is automatically activated in

2

Use

e n g l i s h

14

model

a

, to release it press the   button

for 3 seconds (2.3.11). Models

 do

not have the automatic lock function.

2.2  Setting the temperature.

Press the

,

buttons (2.2.1, 2.2.2). Press    ,

(2.2.3), or turn the control (2.2.4, 2.2.5).

When you have selected the temperature

you want, the indicator lights (2.2.7) will show

you the real temperature or you can press

the keys for 5 seconds to see this

,

(2.2.6, 2.2.7), or   ,   (2.2.8). buttons

for fi ve seconds. The temperature will fl ash.

Models

 does not have this function.

 Recommendation:

 The recommended

temperature for your freezer is

 .

If you want to freeze, the recommended

temperature is

 . See 2.3. (Quick cool

function)

Remember that the temperature inside the

freezer depends on the ambient temperature,

the location and how often the freezer door is

opened.

2.3 Freezer functions.

Fast cooling function:

This function makes

the freezer work at the minimum temperature

for a maximum of 52 hours. We recommend

you use this function whenever you put large

quantities of food in the freezer. You should

activate the function 24 hours in advance. To

activate and deactivate it: Press

 (2.3.1,

2.3.2) or

 (2.3.3, 2.3.4, 2.3.5). In the

model

  the screen shows

 while

the function is active.

 ECO

setting:

 The ECO setting gives

substantial energy savings and keeps the

freezer at a stable temperature. This function

stays active even after a power cut. When

using this mode, we recommend you store

all the food on the shelves in the centre. To

activate or switch off press

 (2.3.6, 2.3.7,

2.3.8). In the model

 the screen shows

 while the function stays activated.

Models

 do not have this option.

Quick cooling function:

 Put the bottle or

bottles into the freezer and press

or

 for a  few  seconds  until  the

icon appears (2.3.9, 2.3.10). The freezer will

supply cold for 15 minutes, after which time

the function fi nishes,   will fl ash and an alarm

will sound for 20 minutes, telling you it is

time to remove the bottle to prevent it from

bursting. Disable the alarm by pressing

in

 or

 for a few seconds. If the

function is interrupted by a power cut, when

the power comes on again, it will fi nish and

the alarm will sound.

 Lock:

 The lock is used to prevent the

appliance settings from being changed by

accident or due to interference by children.

The display shows the   icon when the

appliance is locked. Press   (2.3.11) or

 (2.3.12). The screen will show

alternating with the normal display while the

function is activated. Models

 do not

have this option.

2.4  Arranging food in your freezer.

Food must

be stored in the right area to make sure that it

is kept correctly (2.4.1):

1.

 Medium-sized containers

2.

 Ice cream

3.

 Twist Ice (optional feature)

4.

 Medium-sized containers

5.

Medium-sized containers

6.

 Large-sized containers

7.

Medium-sized containers

Eutectic containers (Depending on the

model):

 This appliance is supplied with

eutectic containers (2.4.2) designed to

increase autonomous operation during power

failures and reduce energy consumption. The

containers should preferably be placed in the

top part of the appliance.

2.5 TWIST ICE.

This is an accessory in your

freezer that makes up to 24 ice cubes. If your

freezer has Twist Ice, take out the ice drawer

(2.5.1). Fill the ice tray without going over the

level (2.5.2). Replace the ice drawer being

careful not to spill the water (2.5.3).

After two hours the ice cubes will be ready

to use. Turn both knobs several times until

the ice cubes fall out ((2.5.4, 2.5.5). Open the

lower drawer to take them out (2.5.6).

2.6  Switching the freezer off.

Press   for 3

seconds or press

 until no temperature

appears on the display (2.6.1, 2.6.2, 2.6.3),

or turn the control to the off setting (2.6.4,

2.6.5). The display

 model or the On

light

 models will switch off.

2.7  Recommendations for use.

•  Do not open the doors for longer than

necessary or put hot food into the freezer.

This will ensure your freezer works more

effi ciently and will avoid increased energy

consumption.

•   If you have a NO FROST freezer, do not

block the ventilation grills and leave some

space between the food so the air can

move fl ow freely.

•   Do not put bottles containing fi zzy drinks

or glass bottles containing liquid in the

freezer, because they may burst.

e n g l i s h

15

3

Maintenance and

cleaning

3.1  Cleaning the inside.

Use a sponge or cloth

soaked in water with bicarbonate of soda to

clean the inside of the freezer to prevent any

smells from forming.

Never use a steam cleaner, solvents or

scouring powders.

3.2  Cleaning the outside.

Never use a steam

cleaner to clean the displays.

It is a good idea to clean the grille at the back

once a year with a vacuum cleaner.

3.3  Cleaning the accessories.

 Do not put them

in the dishwasher. Clean them by hand with

the help of a sponge or cloth.

Keep used and new fi lters out of the reach

of children;

 digesting large quantities can be

dangerous.

4

Troubleshooting

4.1  Door open.

On all models except

 ,

if you leave the door open for longer than

1 minute the

 signal will light up and an

alarm beep will sound (4.1.1, 4.1.2, 4.1.3,

4.1.4). The alarm will switch off when you

close the door.

4.2  Electricity cuts.

Open the freezer doors as infrequently as

possible. If the temperature inside the freezer

drops below -11º C the following will happen:

• On

 and

 models, the

Cold

Chain Failure

 alarm beep will sound for

30 minutes. You can disable the alarm by

pressing any button.

• The

 function is also enabled

automatically. To disable it, press the

 button or wait for it to be disabled

automatically.

• The red pilot light will come on (4.1.1,

4.1.2, 4.1.3, 4.1.4).

Checking the food preservation status.

 On

 models, the following indications

may appear on the display:

 The food has not thawed and it is safe

to keep it frozen.

 The food has thawed partially. It will not

be safe unless you cook it.

 The food has thawed and is not safe to

eat. You must throw it away.

 For

 models, check the state of

preservation yourself and do whatever is

best.

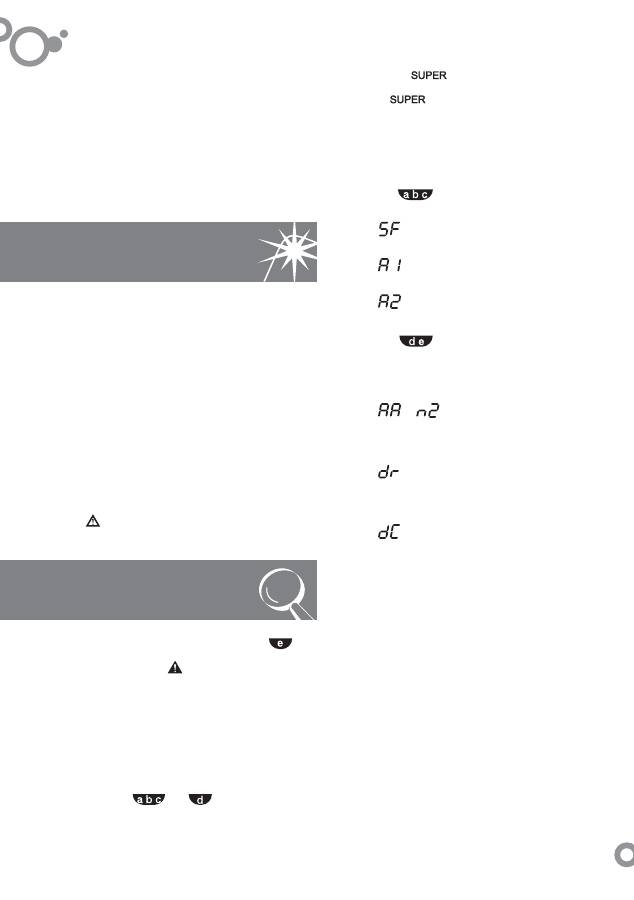

4.3  Some other alarms that may appear are:

 or

 This is a safeguard mode for

guaranteeing food preservation. It starts

up automatically, but

you must call the

technical assistance service.

 One of the freezer components is not

working correctly. There is no danger for

food preservation, but

 you must call the

technical assistance service.

 In all models (except for FROST FREE)

which build up frost inside, do the

following every 6 months:

- Switch off the appliance.

- Remove the frost following the

recommendations in 3.

If you ignore the message, it will

disappear in 48 hours.

- Switch on the appliance according to

the instructions in 2.1.

4.4  Normal noises in the freezer.

Your freezer may make a number of quite

normal operating noises which should not

concern you.

• The refrigerant may make a gargling noise

as it passes through the circuits.

• The compressor may make a buzzing and/

or a slight knocking noise, above all when it

switches on.

• The dilation or contraction of the materials

used can make clicking or creaking noises.

•   Store food in sealed containers to prevent it

from drying out.

•   Do not eat excessively cold ice creams or

food because they may burn your mouth.

•   To make the most of the freezer’s capacity

(2.4.1) you can remove the baskets (5), the

small drawers (4) or the Twist Ice (3). Do not

remove the lower baskets (6 and 7) or the

upper lids (1 and 2) as the this will affect the

appliance’s consumption performance.

e n g l i s h

16

5

Safety

•  Keep the ventilation grills clear.

• Be careful not to damage the refrigeration

circuit.

• Do not use any electrical appliances inside

your freezer unless they are of the type

recommended by the manufacturer.

• Do not use any mechanical devices or any other

means to speed up defrosting other than those

recommended by the manufacturer.

• This appliance is not intended for use by

people (including children) with reduced

physical, sensory or mental capabilities, or

lack of experience or knowledge, unless they

have been given supervision or instruction

concerning use of the appliance by a person

responsible for their safety. Children should be

supervised to ensure that they do not play with

the appliance.

• If the power lead is damaged, it must be

replaced by the manufacturer, or by their after

sales service or a similar qualifi ed person to

prevent any risk.

Even if the display is switched off, there is still

voltage to the freezer.

• This appliance is designed for domestic and

similar uses, such as:

– staff kitchen facilities in shops, offi ces and

other workplace settings;

– rural guest houses and hotel guests, motels

and other residential type settings;

– bed and breakfast accommodation;

– restaurant services and similar non-retail

settings.

Do not store explosive substances such as

aerosol cans with infl ammable propellant in

the appliance.

6

The environment

This freezer was designed with environmental

conservation in mind.

The appliance operates with coolant R600A,

which does not damage the environment.

Respect the environment.

Protect the

environment by using the temperatures

recommended for each function you require,

to ensure effi cient use of your freezer. They will

depend on the mode you need for effi cient use of

your freezer.

Unplug the freezer from the mains if you will not

be using the appliance for a long period of time.

You will reduce power consumption and save

energy.

Avoid leaving the doors open more time than

necessary.  It causes an increase in power use.

Waste management of electrical and

electronic appliances.

The symbol

 indicates that the appliance must

not be disposed of in traditional bins for domestic

waste.

Deliver your freezer to a special collection centre.

Recycling domestic appliances prevents negative

impacts on health and the environment and helps

save energy and resources.

For more information, contact your local

authorities or the establishment where you

purchased your freezer.

• The air moved by the freezer fan can make

a small background noise.

Do not tamper with your freezer in an

attempt to repair it.

Call for service.
