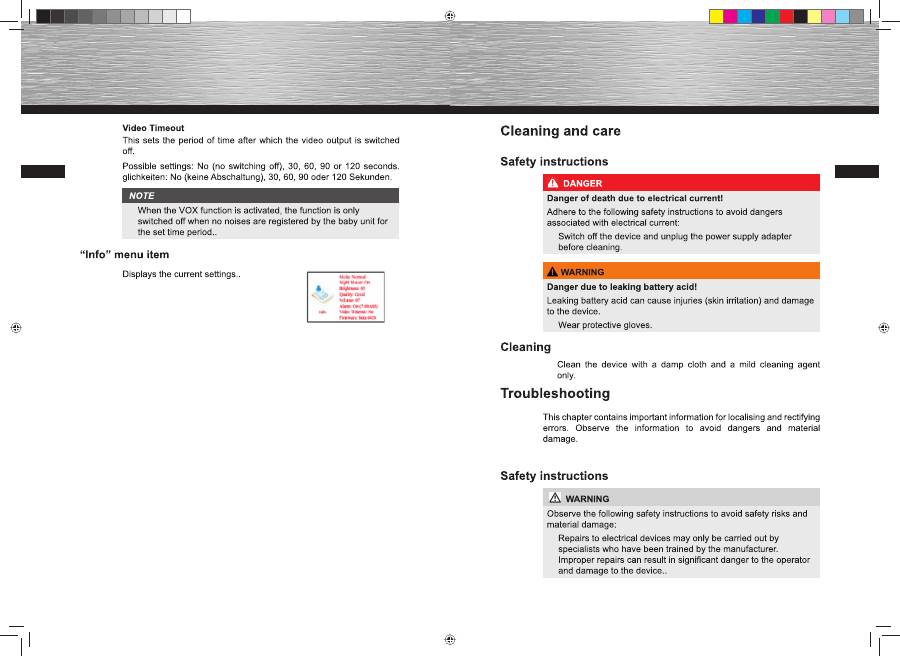

Hama BC-500D: Cleaning and care

 Cleaning and care

Safety instructions

  DANGER

Danger of death due to electrical current!

Adhere to the following safety instructions to avoid dangers

associated with electrical current:

►

Switch off the device and unplug the power supply adapter

before cleaning.

 WARNING

Danger due to leaking battery acid!

Leaking battery acid can cause injuries (skin irritation) and damage

to the device.

►

Wear protective gloves.

Cleaning

■

Clean the device with a damp cloth and a mild cleaning agent

only.

Troubleshooting

This chapter contains important information for localising and rectifying

errors. Observe the information to avoid dangers and material

damage.

Safety instructions

  WARNING

Observe the following safety instructions to avoid safety risks and

material damage:

►

Repairs to electrical devices may only be carried out by

specialists who have been trained by the manufacturer.

Improper repairs can result in signi

fi

 cant danger to the operator

and damage to the device..

Video Timeout

This sets the period of time after which the video output is switched

off.

Possible settings: No (no switching off), 30, 60, 90 or 120 seconds.

glichkeiten: No (keine Abschaltung), 30, 60, 90 oder 120 Sekunden.

 NOTE

►

When the VOX function is activated, the function is only

switched off when no noises are registered by the baby unit for

the set time period..

“Info” menu item

Displays the current settings..

52

Baby-Control BC-500D

GB

53

Baby-Control BC-500D

GB

00092662man_de_en_es_fr_pl_ru.indd   Abs3:52-Abs3:53

00092662man_de_en_es_fr_pl_ru.indd   Abs3:52-Abs3:53

08.02.10   07:57

08.02.10   07:57

Error

Possible cause

Solution

Flickering image

Distance between

baby unit and baby is

too small

Increase the distance between

the baby unit and baby.

Steel structures and

concrete walls may

have a negative effect

on transmission

Change the location of the baby

unit and parent unit.

Interference from

other devices

Switch to another channel.

Identify and remove the sources

of interference.

Audio feedback

Distance between the

baby unit and parent

unit is too small

Increase the distance to at least

1 metre.

Volume is too high

Decrease the volume.

No connection

between the

parent unit and

baby unit

Different channels

have been set

Ensure that the same channel is

set on both units.

Baby unit is not

switched on

Switch on the baby unit.

Distance between the

baby unit and parent

unit is too large

Reduce the distance between

the baby unit and parent unit.

Batteries in the baby

unit are too weak

Replace the batteries in the

baby unit or connect the power

supply adapter.

  NOTE

►

Contact our customer service department if the problem remains

after taking the steps detailed above.

Causes of errors and error recti fi  cation

The following table can be used to localise and rectify minor errors

with the device:

Error

Possible cause

Solution

Display is empty

Device is switched

off

Switch on the device.

Power supply

adapter not

connected correctly

Ensure that the power supply

adapter is plugged in and

connected to the device.

Batteries are empty

Replace the batteries or

recharge the rechargeable

batteries.

No mains power

Check your fuse box..

Device is faulty

Inform our customer service

department.

No noises or

images recorded

by the baby unit

are shown on the

parent unit

Incorrect display

brightness

Adjust the display brightness

according to the surroundings.

Device is not in

Normal

 mode

Switch the device to

Normal

mode.

Video Timeout is

activated

Switch on the video output..

Volume is too low

Increase the volume.

Interference from

other devices

Switch to another channel.

Identify and remove the sources

of interference.

Displayed images

are too dark

Image brightness is

set too low

Increase the display brightness.
